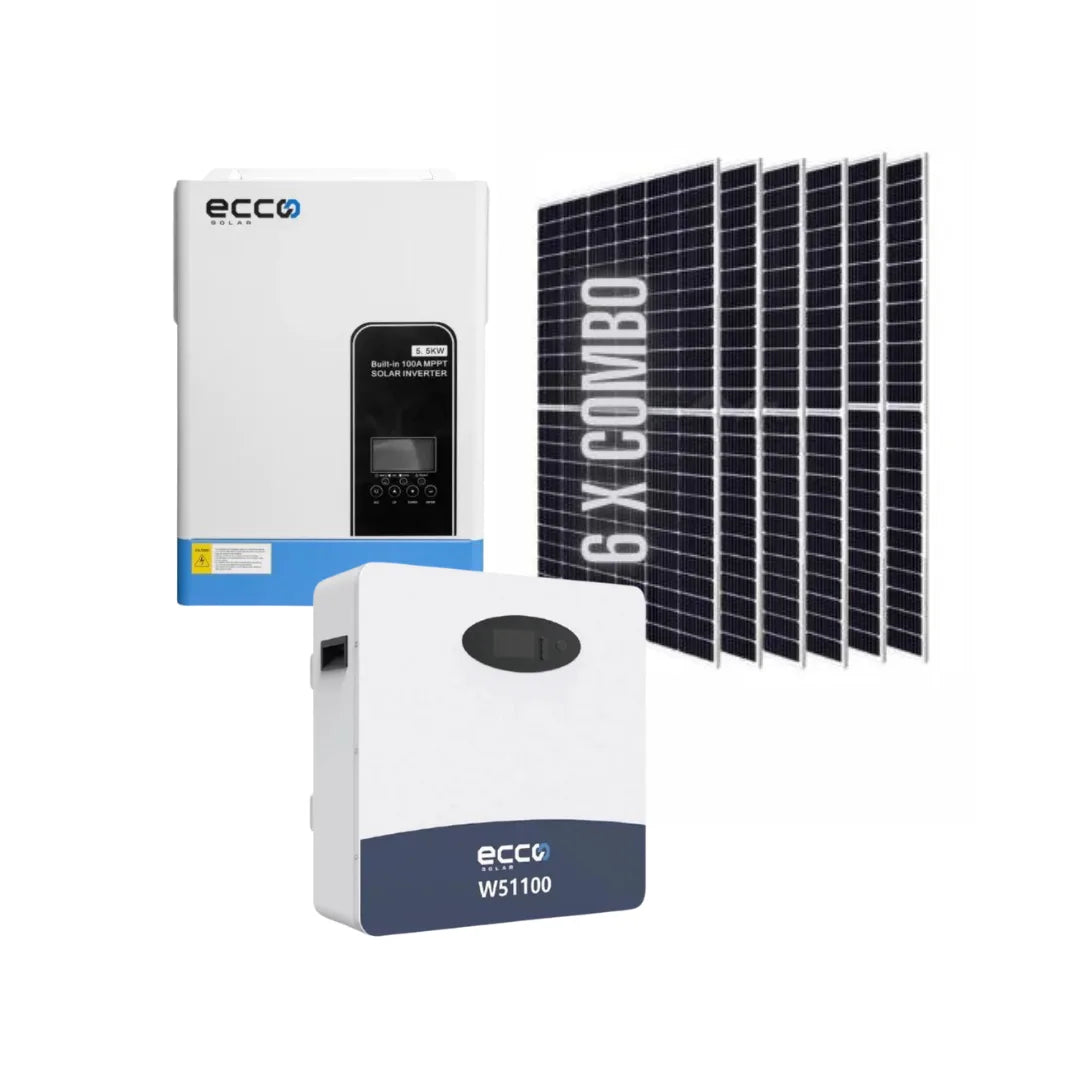

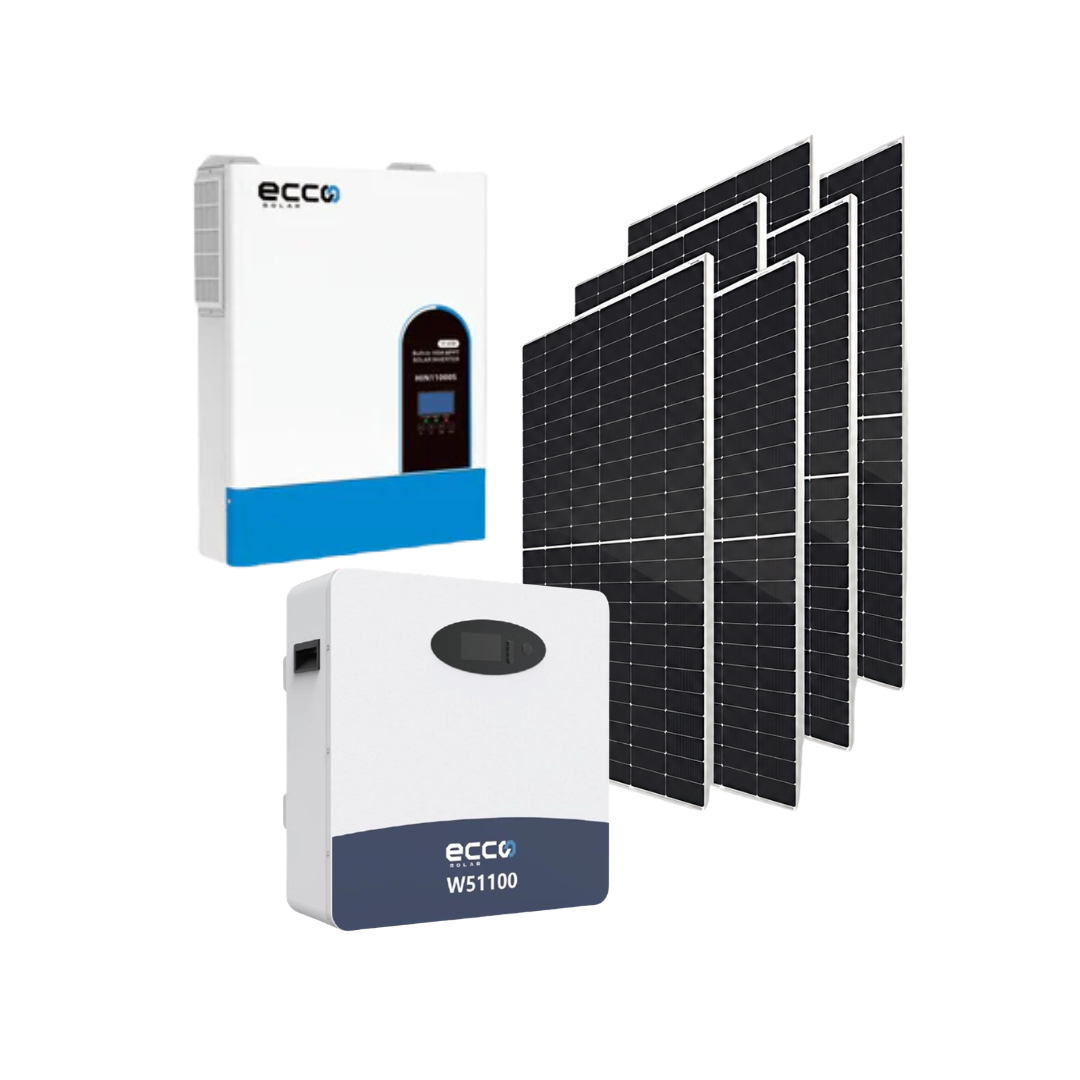

6.2KVA/6200W Ecco MPPT Hybrid Inverter + 1 x 5.12kWh 100AH Battery + 6x 580W Mono Solar Panels

6.2KVA/6200W Ecco MPPT Hybrid Inverter + 1 x 5.12kWh 100AH Battery + 6x 580W Mono Solar Panels

SOLAR PANELS ARE COURIERED AT OWN RISK

What’s included ?

1x 6.2KVA/6200W Ecco MPPT Hybrid Inverter +

2x 5.12k Ecco Wh 100AH Battery +

6x 560W Ecco Mono Crystal Solar Panels

INVERTER MODEL
HIN6200S

PHASE
1-Phase In /1-Phase Out

Maximum PV Input Power
6500W

Maximum Main Output Power
6200VA/6200W

Maximum Second Output Power
6200VA/6200W

Maximum Total Output Power
6200VA/6200W

Parallel Capability
NO

Lithium Battery activation
YES ( By PV or Utility)

Lithium Battery communication
YES(RS485)

AC INPUT

Nominal Voltage
230VAC

Acceptable Voltage Range
170-280VAC(For personal Computer);90-280VAC(For Home Appliances)

Frequency
50/60 Hz (Auto sensing)

AC OUTPUT

Nominal Voltage
220/230VAC +5%

Surge Power
12400VA|

Frequency
50/60 Hz

Waveform
Pure Sine wave

Dual Outputs
Yes

Transfer Time
10ms(For personal Computer);20ms(For Home Appliances)

Peak Efficiency
94%

Overload Protection
5s@>=140% load; 10s@100%~ 140% load

Admissible Power Factor
0.6~1 (inductive or capacitive) |

BATTERY

Battery Voltage
48VDC

Floating Charge Voltage
54VDC

OverCharge Protection
63VDC

Charging Method
CC/CV

SOLAR CHARGER & AC CHARGER
Solar Charger TYPE
MPPT
Max.PV Array Power
6500W
Max. PV Array Open Circuit Voltage
500VDC
PV Array MPPT Voltage Range
60VDC~500VDC
Max. Solar Input Current
1/ 27A
Max. Solar Charge Current
120A
Max. AC Charge Current
80A
Max. Charge Current
120A
PHYSICAL

Dimensions, D x W x H(mm)|
438x312x122

Lithium Battery Ecco 51.2v 100ah 5.12kWh W51100 Wall-Mounted

• + Wall-mounted design, easy to install, and aesthetic
  + Adopts lithium iron phosphate battery cell, safe to use, long life cycle
  + Maximum 1C charge/discharge
  + User-friendly human-machine inter face
  + Compatible with multiple brands of inverters at the same time
  + Supports a maximum of 16 parallel groups
  + Meet North American UL, EU TUV standards

Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than a lead acid battery, helping to minimize replacement cost and reduce the total cost of ownership. Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ‘drop in’ replacement for lead acid batteries. Higher Power: Delivers twice the power of the lead acid battery, even high discharge rate, while maintaining high energy capacity. Wider Temperature Range: -20 C~60 C. Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging, or short circuit situations.

What’s in the box:

Battery

Battery Cables & Mounts Included

Battery Parameters:

Battery Type is set to “USE.”
Bulk Charge Voltage is set to 56.4-56.6V.
Float Charge Voltage is set to 54V.
Cut Off Voltage is set to 47V.

Specifications:

Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Operating Voltage Range (V) 43-54.5
Short Circuit Protection yes
Power-on Reverse Connection Protection optional
Maximum Charging Voltage (V) 57.6
Best Charging Voltage (V) 56.4 (recommended)
Maximum Continuous Output Power (W) 5500
Maximum Momentary Output Power (W) 7500
Local Parameter Configuration support
Max Installation Dimension (mm) 480*170*500
Package Size (mm) 590*290*615
Weight (kg) 49
IP Class IP 54
Communication RS485, RS232, CAN
Design Life 15 years

Please Note: Solar panels are couriered at your own risk.

Warranties:

5 Years Warranty

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
