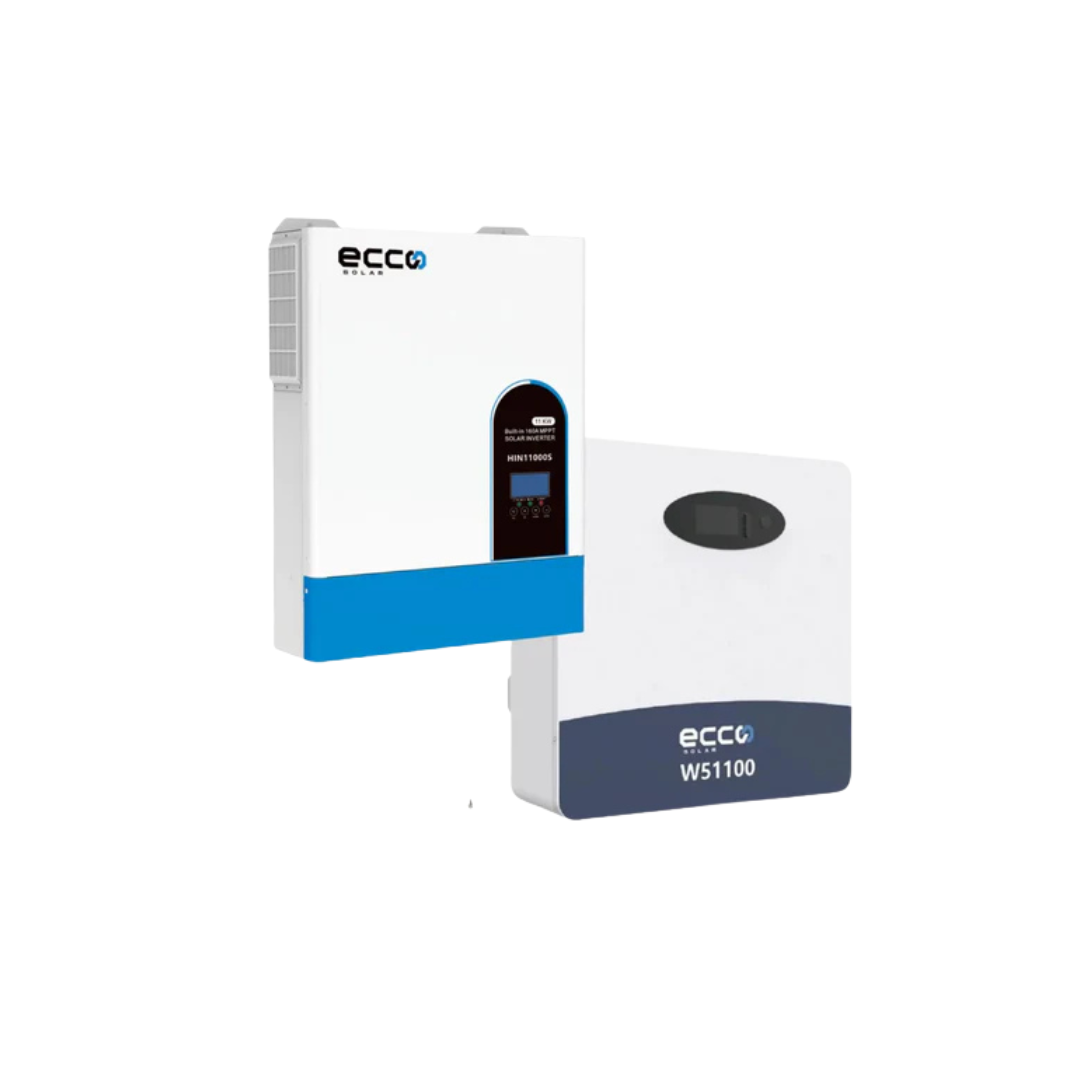

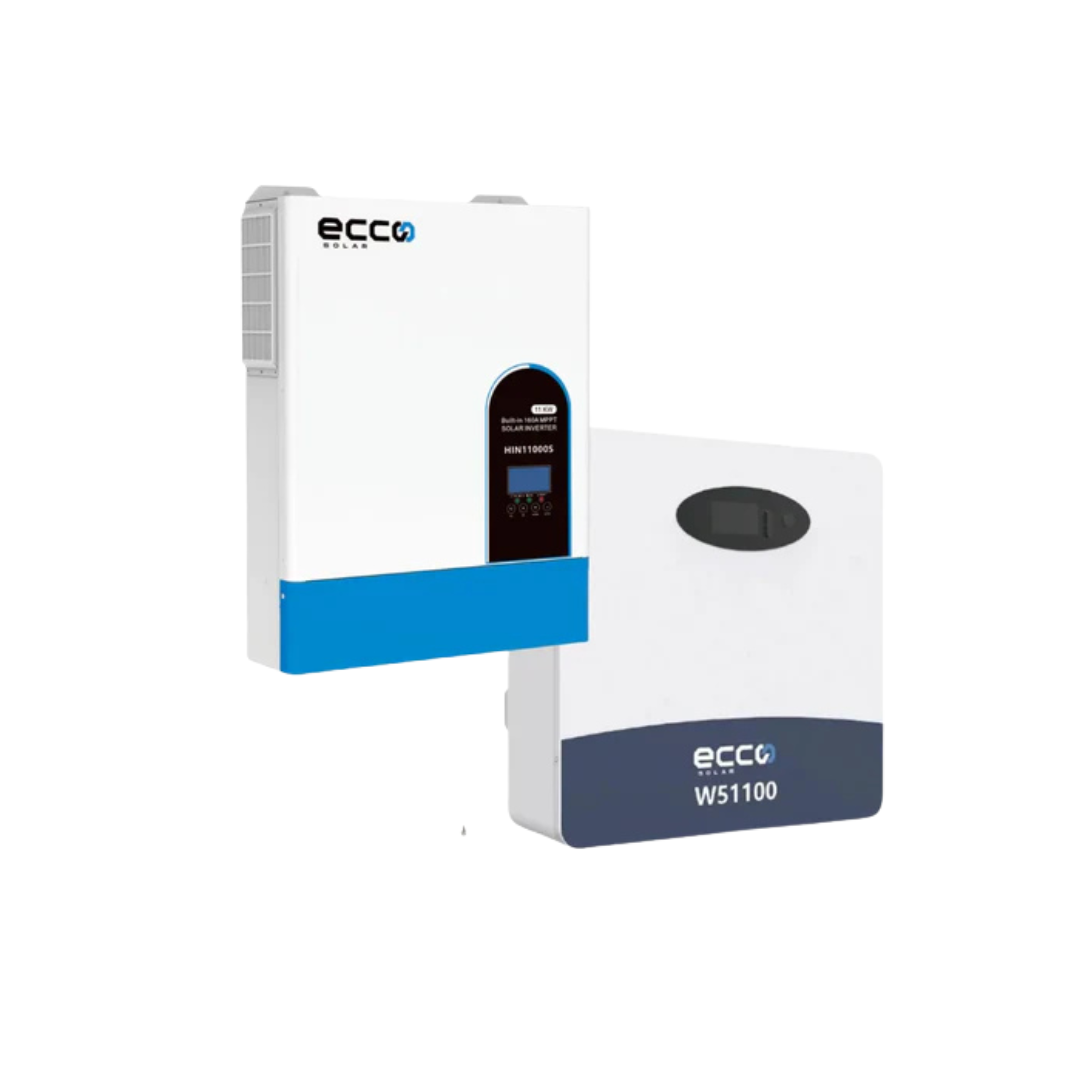

6.2KVA / 6200W Ecco Hybrid Inverter 120A MPPT + 5.12kWh 51.2V ECCO Lithium Battery
6.2KVA / 6200W Ecco Hybrid Inverter 120A MPPT + 5.12kWh 51.2V ECCO Lithium Battery
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 8 left
Couldn't load pickup availability
Reliable 6.2kW ECCO Hybrid Inverter with Advanced Battery & Solar Integration
The HIN6200S Hybrid Inverter is a high-performance single-phase solar inverter designed for efficient energy conversion and battery management. With 6,500W maximum PV input power, this inverter ensures optimal solar energy harvesting for both residential and commercial applications. Featuring pure sine wave output, intelligent MPPT charging, and seamless lithium battery integration, it delivers reliable backup power and grid-tied functionality.
Key Features:
Powerful & Efficient Performance
- Maximum Power Output: 6,200W for continuous load supply.
- Surge Power: 12,400VA to handle high starting loads.
- Dual Output Design: Supports multiple load priorities.
- 94% Peak Efficiency: Maximizes energy savings and performance.
Smart Battery & Solar Charging
- Lithium Battery Activation: Enables seamless PV or utility charging.
- Battery Voltage: 48V DC with floating charge at 54V DC.
- Overcharge Protection: Automatically prevents battery damage at 63V DC.
- Flexible Charging Options: 120A max solar charge, 80A AC charge, and hybrid charging up to 120A.
Advanced MPPT Technology for Maximum Solar Harvesting
- Maximum PV Input: 6,500W to optimize solar efficiency.
- MPPT Voltage Range: 60V–500V DC for versatile solar compatibility.
- High Voltage Tolerance: 500V DC open circuit capacity.
Smart Grid & Backup Power Management
- Grid Voltage Range: 170-280V AC (Computers) / 90-280V AC (Appliances).
- Auto Frequency Detection: 50/60Hz sensing for global compatibility.
- Seamless Switchover: 10ms for computers, 20ms for appliances.
Built for Durability & Safety
- Operating Temperature: -10°C to 50°C for various environments.
- Humidity Resistance: 5%–95% non-condensing.
- Overload Protection: Handles up to 140% load with auto safety cut-off.
Technical Specifications:
General
- Model: HIN6200S
- Phase: Single-phase input/output
- Parallel Capability: No
- Battery Communication: Yes (RS485)
AC Input & Output
- Nominal Voltage: 230V AC
-
Acceptable Voltage Range:
- 170–280V AC (Computers)
- 90–280V AC (Home Appliances)
- Frequency: 50/60Hz (Auto-Sensing)
- Waveform: Pure Sine Wave
- Transfer Time: 10ms (Computers) / 20ms (Appliances)
Battery & Charging
- Battery Voltage: 48V DC
- Floating Charge Voltage: 54V DC
- Overcharge Protection: 63V DC
- Charging Method: CC/CV (Constant Current / Constant Voltage)
Solar & MPPT Charger
- MPPT Controller: Yes
- Maximum PV Array Power: 6,500W
- Max PV Open Circuit Voltage: 500V DC
- MPPT Voltage Range: 60V – 500V DC
- Max Solar Input Current: 27A
- Max Solar Charge Current: 120A
- Max AC Charge Current: 80A
- Max Total Charge Current: 120A
Physical & Connectivity
- Dimensions: 438 × 312 × 122 mm
- Package Size: 540 × 390 × 210 mm
- Weight: 11 kg
- Communication Interface: RS485 (RJ45) / RS232 (DB9)
Environmental Conditions
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -15°C to 60°C
-
Humidity: 5% – 95% (Non-Condensing)
What’s Included?
1 × HIN6200S ECCO Hybrid Inverter
User Manual & Installation Guide
Battery Communication Cables
Lithium Battery (Ecco 51.2V 100Ah 5.12kWh W51100 – Wall-Mounted)
Key Features:
-Wall-mounted design – easy to install and aesthetically pleasing
-Lithium Iron Phosphate (LiFePO4) cells – safe, long life cycle
-Max 1C charge/discharge rate
-User-friendly interface
-Compatible with multiple inverter brands
-Supports up to 16 parallel groups
-Compliant with North American UL & EU TUV standards
Advantages:
- Longer Cycle Life: Up to 20× longer cycle life and 5× longer float/calendar life than lead-acid batteries
- Lighter Weight: ~40% of the weight of comparable lead-acid batteries
- Higher Power: 2× the power of lead-acid batteries while maintaining high energy capacity
- Wider Temperature Range: -20°C to 60°C
- Superior Safety: Eliminates risk of explosion or combustion from impact, overcharging, or short circuits
What’s in the Box?
- Battery
- Battery Cables & Mounts
Battery Parameters:
- Battery Type: Set to “USE”
- Bulk Charge Voltage: 56.4-56.6V
- Float Charge Voltage: 54V
- Cut-off Voltage: 47V
Technical Specifications:
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Total Power: 5.12kWh
- Best Operating Voltage Range: 43V - 54.5V
- Short Circuit Protection: Yes
- Power-on Reverse Connection Protection: Optional
- Max Charging Voltage: 57.6V
- Best Charging Voltage: 56.4V (Recommended)
- Max Continuous Output Power: 5500W
- Max Momentary Output Power: 7500W
- Local Parameter Configuration: Supported
- Max Installation Dimensions (mm): 480 × 170 × 500
- Package Size (mm): 590 × 290 × 615
- Weight: 49kg
- IP Class: IP54
- Communication: RS485, RS232, CAN
- Design Life: 15 years
-
Battery:
- Voltage: 48V
- Max Discharge Current: 220A
- Floating Charge Voltage: 54VDC
- Overcharge Protection: 63VDC
- Charging Method: CC/CV
- 5-Year Warranty
- Installation must be performed by a qualified electrical wireman or Master Electrician with valid registration with the Department of Labour.
- A valid Electrical Certificate of Compliance (COC) must be issued after installation, specific to the backup or solar system.
- Installation must comply with SANS 10142 and all its parts.
- Warranty claims must include:
- Installation photos
- Valid COC
- Proof of installation by a qualified wireman or Master Electrician
- Failure to provide the above may void the warranty.
