6.2KVA / 6200W Hybrid Portable Power System + 5.12kWh Lithium Battery (SOLAR READY)
6.2KVA / 6200W Hybrid Portable Power System + 5.12kWh Lithium Battery (SOLAR READY)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Couldn't load pickup availability

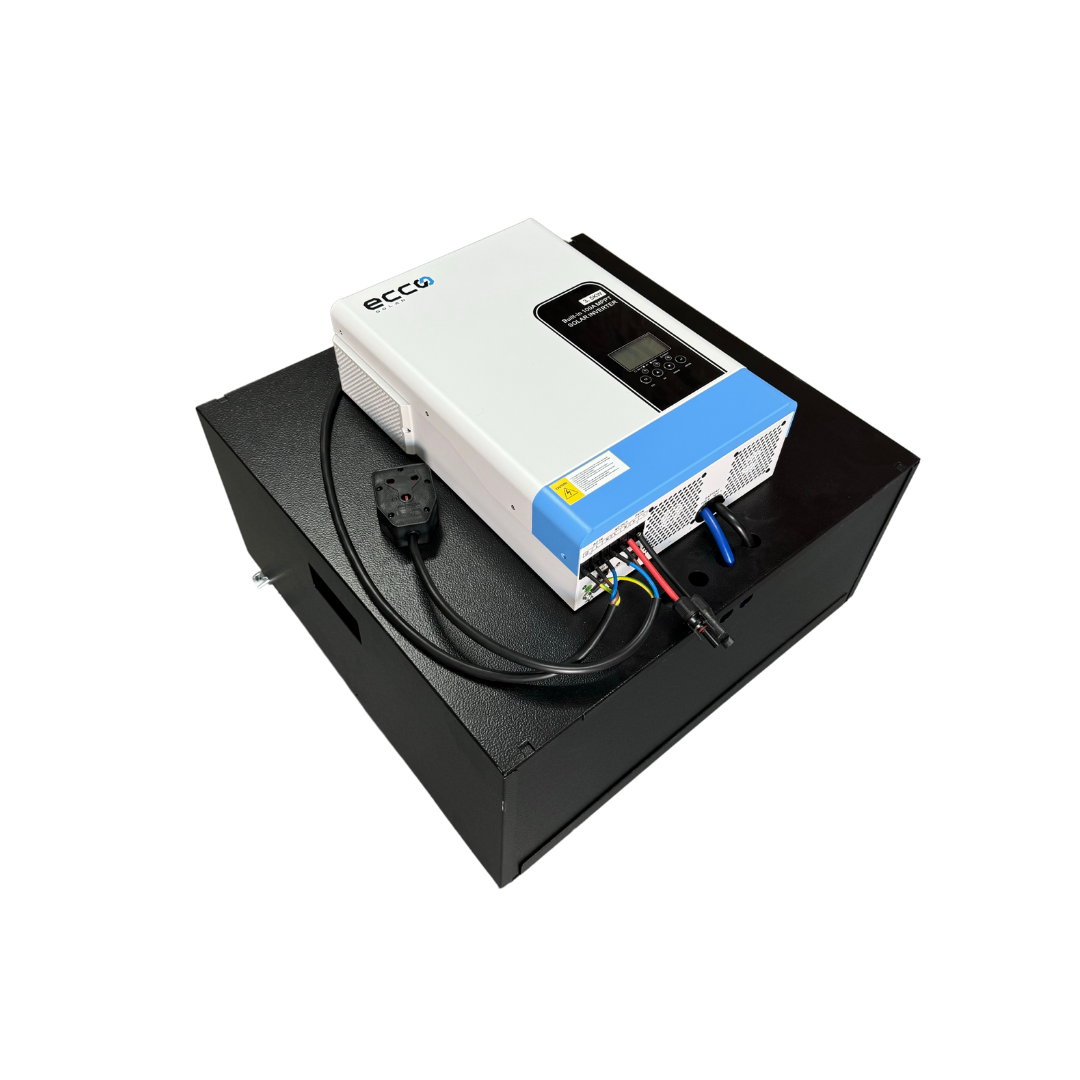

PORTABLE POWER SYSTEM
If you connect 150w which is usually a TV, Wifi, Lights, etc. This portable system will last 45-50 Hours With a 100% DOD.
Hybrid Inverter 6.2 KVA 6200 Watt MPPT 48V- Conderenergy S-2155
One will be able to run lights, television, and wifi.
Compatible with mains voltage and can charge batteries.
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
-Pure sine wave inverter
-Built-in solar charge controller
-MPPT
Operating Temperature Range: -10-50'C
PV INPUT:
Normal operating voltage:240Vdc Vmax PV:500Vdc
PV input voltage range:90-450Vdc Imax PV:27A
Full load MPPT range: 240-450Vdc Rated Power 6500W
Maximum Solar Charging Current: 120A
GRID/AC OUTPUT:
Normal Output Voltage:220/230/240Vac
Feed-in Grid Voltage Range: 195-253Vac
Feed-in Grid Frequency Range: 49-51+1Hz
Normal Output Current: 27A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC) :97%
Normal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load:6200W
Maximum Main load:6200W Maximum Second load:2066W
Main load cut off voltage: 44Vdc
Main load return voltage:54Vdc AC INPUT:
Normal operating voltage:230Vac
Maximum input current:40A
Normal operating frequency:50/60Hz
Surge power:12400VA
Maximum AC charging current: 100A
Description
The CONDERENERGY 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The CONDERENERGY 51.2V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
Features:
- A-Grade Cell Technology
- Maintenance-free
- Environmental Friendly
- Wide Variety of Markets
- Renewable Energy
- 7 Protection Features
- Built-in Battery Management System
- Mountable
- 5-year Warranty
Battery Specifications:
- Battery Type-Chemistry: LiFePO4
- Nominal Voltage: 51.2V
- Nominal Capacity: 106Ah
- Energy Density: 5427.2Wh
- Terminal Type: M6
- Terminal Torque: 8.5NM
- Case Material: Metal
- BMS Built-in: Yes
- Internal Resistance: - Efficiency - Round Trip: >99.5%
- Self Discharge per Month: - Max Parallel Connectors: 16Pcs
- Series Connections: Not Allowed
- Cycle Life(0.2C, 25 C @ 80% DOD): >4000 Cycles
- Discharge Temperature: -20 C to 65 C
- Charge Temperature: 0 C to 45 C
- Storage Temperature: -10 C to 30 C
- Voltage Window: 44.8 - 57.6V
- Recommended Charge Voltage: 57.6 0.20V
- Max Charge Voltage: 58.4 0.20V
- Recommended Charge Current: 50A
- Max Continuous Charge Current: 100A
- Recommended Discharge Voltage: 44.8 0.20V
- Max Discharging Voltage: 43.2 0.20V
- Max Continuous Discharge Current: 100A
- Peak Discharge Current: 120A (5s 2s)
- Dimensions: L 566 x W 402 x H135 mm
- Weight: 47Kg
BMS Characteristics:
- Primary Charging Protection: (Current: 80A) (Delay Time:1000ms)
- Secondary Charging Protection: (Current: 100A) (Delay Time:500ms)
- Primary Discharging Protection: (Current: 110A) (Delay Time: 5s 2s)
- Secondary Discharging Protection: (Current: 120A) (Delay Time: 5s 2s)
- Over Charge Voltage Protection: (Voltage: 58.4V) (Delay Time:500ms)
- Over Discharge Voltage Protection: (Voltage: 43.2V) (Delay Time:500ms)
- Temperature Protection: (Temperature: 95 C) (Recover: 85 C)
- Communication Port: Major RS485,CAN/Dryport
What's in the box
1 x CONDERENERGY 51.2V 106Ah A-Grade Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Manual
This system is equipped with the following:
1x PORTABLE STEEL BOX WITH 2x LOCK WHEELS
1x SURGE PLUG ON 1m POWER CABLE (2.5mm cabtyre)
1x DOUBLE SIDED FEMALE PLUG SOCKET
1x FUSE + DISCONNECTOR (battery to inverter)
1x BATTERIES AND INVERTER MENTIONED IN THE TITLE
SIZE
60 cm x 60 cm x 45 cm
