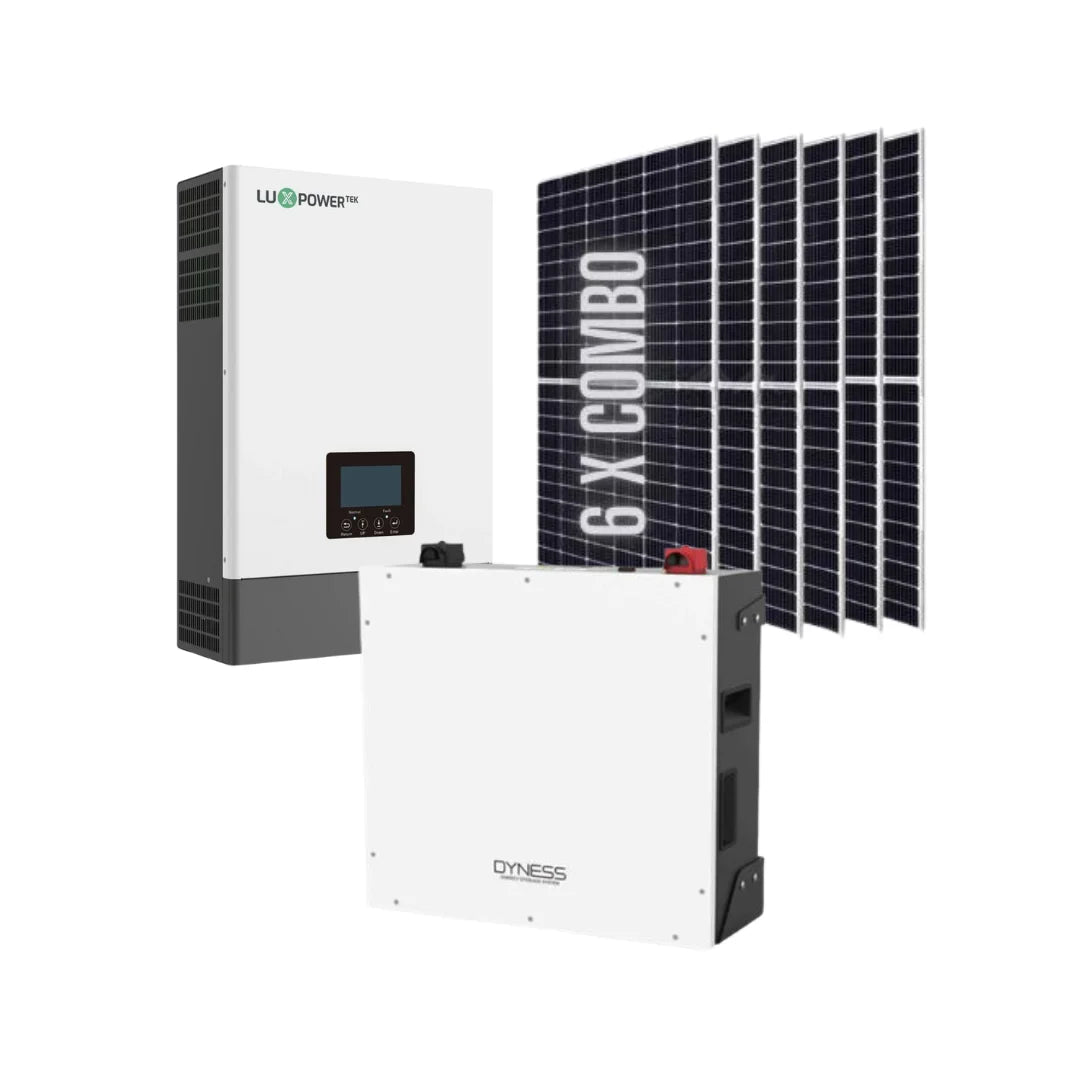

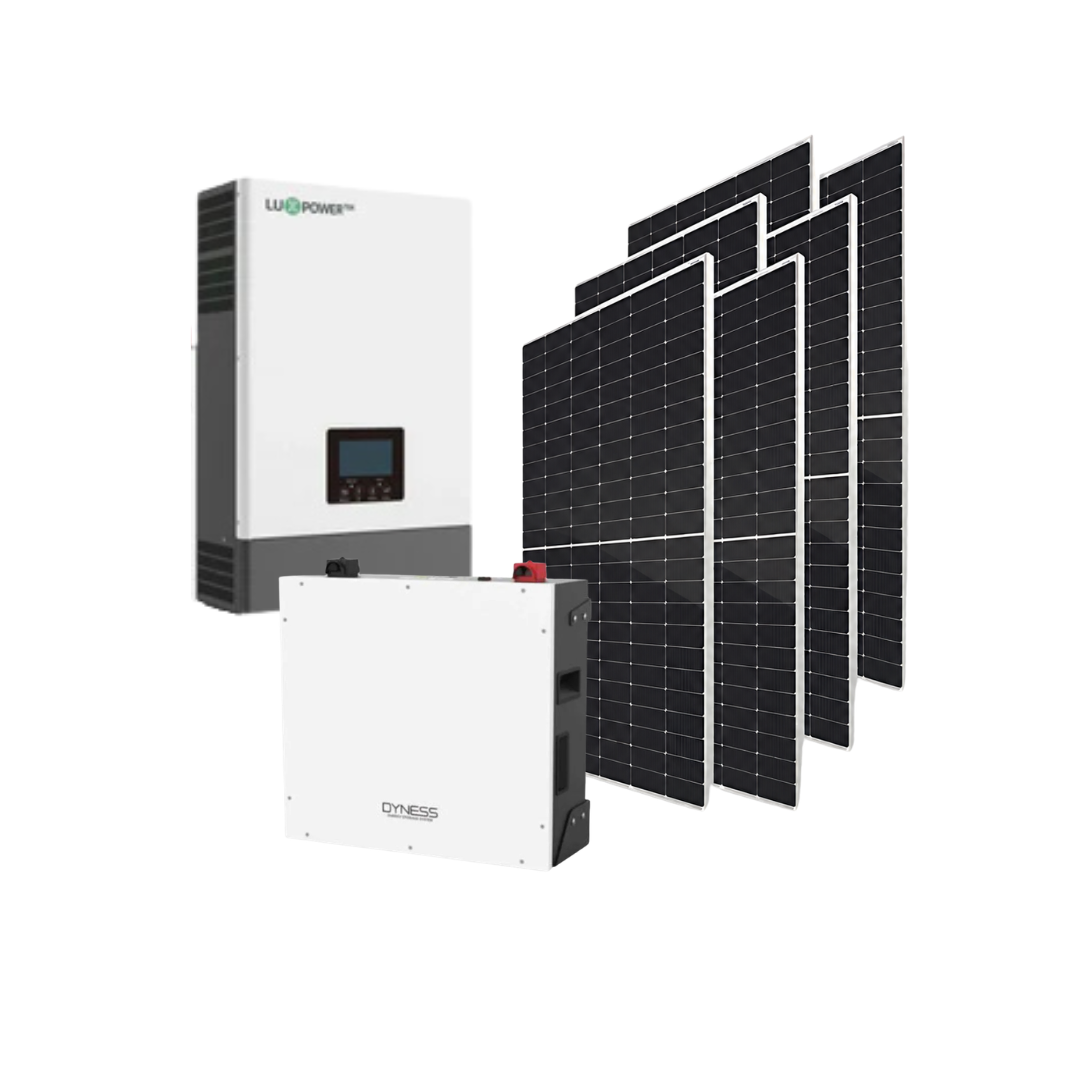

5KVA Luxpower MPPT Hybrid Inverter +6x 560W Megatron Tier 1 Solar Panel + 5.12 (DL5.0-1C) Dyness Lithium Battery Solar Backup Power Combo Kit
5KVA Luxpower MPPT Hybrid Inverter +6x 560W Megatron Tier 1 Solar Panel + 5.12 (DL5.0-1C) Dyness Lithium Battery Solar Backup Power Combo Kit
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 5 left
Couldn't load pickup availability
COMBO INCLUDES
5KVA Luxpower MPPT Hybrid Inverter +
1x 5.12kWh Dyness Lithium Battery
6x 560W Megatron Tier 1 Solar Panel
PLEASE NOTE SOLAR PANELS ARE COURIERED AT OWN RISK
5KVA Luxpower MPPT Hybrid Solar Backup Power Combo Kit
The Perfect MONEY SAVING solution
Lux Power 5KW OFF GRID Inverter (SNA5000WPV)
OUTPUT DATA
- Rated power: 5000W/5000VA.
- Parallel capacity: YES.
- Normal output voltage: 230/240, Split phase 220/110 Vac *
- Normal output frequency: 50/60Hz.
- Surge power: 10000VA.
- Switch time: 10ms.
- Waveform: Pure sine wave.
- Battery Type: Lithium/Lead-Acid.
- Normal Voltage: 51.2V/48V.
- Max. Charge Voltage: 59V.
SOLAR DATA
- Max. Recommended PV Power: 3200W/3200W.
- MPPT Tracker: 2.
- Max. PV Open Circuit Voltage: 480Vdc.
- MPPT Voltage Range: 100-385Vdc.
- Max. Solar Charge Current: 100A.
- Max. Solar Input Current: 13A/13A.
- Parallel MPPT Charger: YES.
GRID DATA
- Normal Voltage: 230Vac.
- AC Voltage Range: 110-280Vac.
- Max. Charge Current: 60A.
- Frequency Range: 50/60Hz(Auto Sensing).
INTERFACE
- Display: LCD+LED.
- Lithium Battery Communication: CAN/RS485.
- RS485/Dry Connector: YES/YES.
- Wifi/GPRS: YES/YES.
- 2 YEARS WARRANTY
SPECIFICATIONS
- Dimensions(W/H/D): 330x504x135mm.
- Weight 14Kg.
- Protection DegreeIP20.
- Relative Humidity5%~95% Relative Humidity(Non-condensing).
- Operating Temperature0°C~50°C.
- Storage Temperature-15°C~60°C.
- Applicable for pure off grid/ backup power / self-consumption / on grid situation
- Integrated with 2 MPPT solar charge controllers, MPPT ranges 120V~385V
- Rated power 5KW, power factor 1
- Be able to run with or without battery in On-grid and Off-grid mode
- With separated generator input interface, able to control generator remotely
- Solar and utility grid can power loads at the same time
- With integrated advanced parallel function, up to 9 pcs max paralleling
- Support CAN/RS485 for Li-ion battery BMS communication
- WIFI/ GPRS remote monitoring included, setting and firmware update, support website, free IOS/Android APP
Luxpower offers a range of efficient and affordable off-grid inverters, including the Luxpower 5kW Off-Grid Inverter, Luxpower SNA 5000, and Luxpower ECO Hybrid SNA 5K. These inverters are designed to provide power to homes, with or without grid power, and are compatible with a variety of battery types, including lithium and lead-acid.
The Luxpower 5kW off-grid inverter is a DC to AC power inverter with a built-in battery charger and MPPT solar charge controller, allowing for maximum power generation from solar panels. It is also generator-ready and can be used as an off-grid power source, providing freedom from the grid.
Reliable & Scalable Lithium Battery for Solar Storage
The Dyness DL5.0 100AH 1C 5.12kWh Lithium Battery is a high-performance energy storage solution designed for home and commercial solar installations. Built with LiFePO4 (LFP) technology, it ensures enhanced safety, longevity, and efficiency. The battery supports parallel configurations of up to 40 modules, providing a scalable system for larger energy storage needs.
Key Features:
Technical Specifications:
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Charge Voltage: 56.5V
- Cell Configuration: 16 cells in series
- Max Parallel Modules: 40
- Enclosure Protection Rating: IP20
High-Capacity Energy Storage
- 5.12kWh battery module for efficient energy backup
- 51.2V DC system with a 100Ah capacity
- Supports continuous charge/discharge at 50A (75A max)
Advanced Lithium Iron Phosphate (LFP) Technology
- Superior thermal stability and extended battery lifespan
- Safe and stable operation with built-in protection features
Smart Energy Management & Connectivity
- Supports CAN & RS485 communication for system monitoring
- Compatible with wall-mounted and rack-mounted installations
Scalable System for Large Power Demands
- Up to 40 battery modules can be connected in parallel
- Flexible system design for residential and commercial setups
Installation & Warranty
To ensure compliance and optimal performance:
- Must be installed by a qualified electrician
- Installation must comply with SANS 10142 standards
- A valid Certificate of Compliance (COC) is required
- Warranty claims require proof of professional installation with installation photos
- 7 YEAR WARRANTY - BATTERY
- 2 YEAR WARRANTY - INVERTER
- 10 YEAR PRODUCT WARRANTY - SOLAR PANELS
