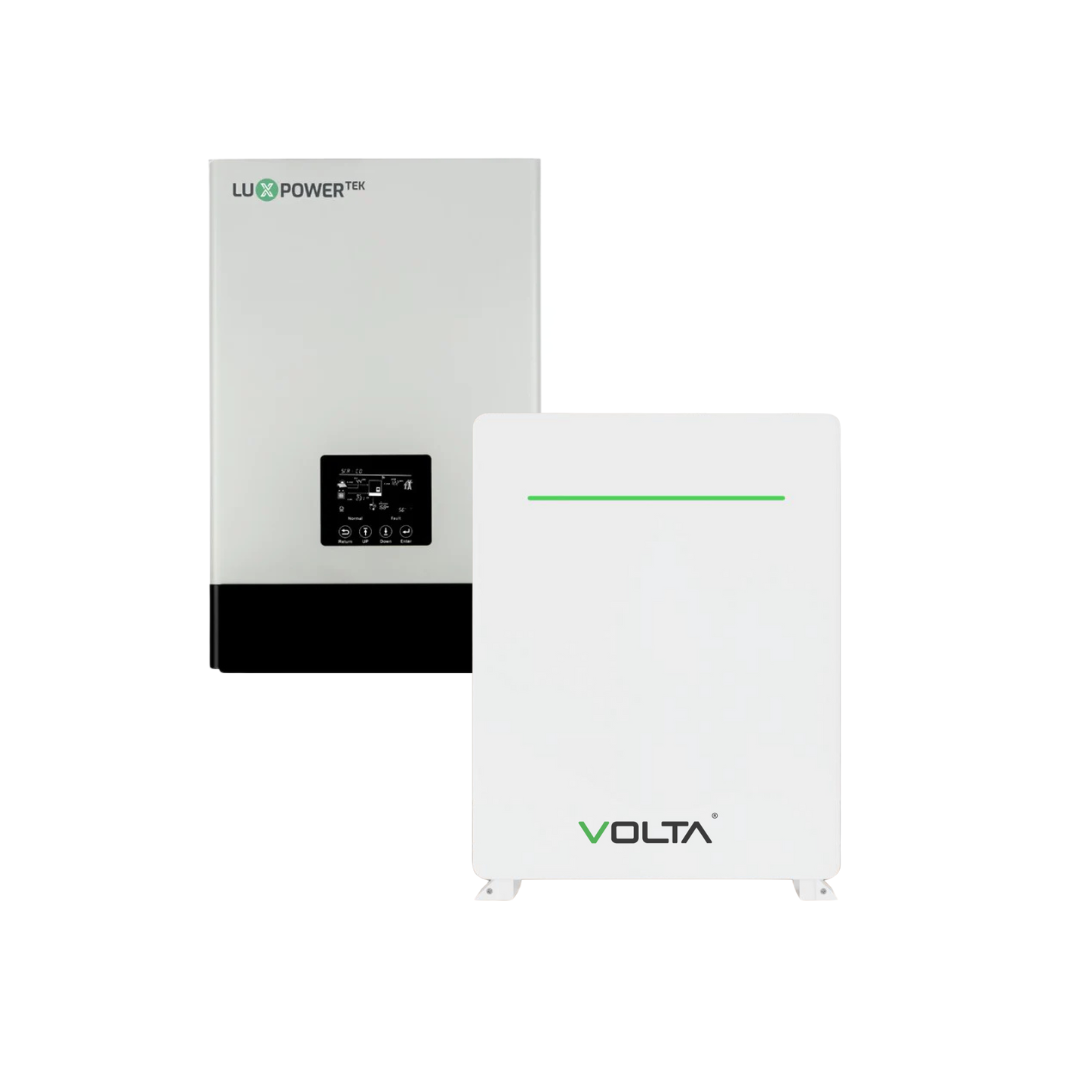

5KVA LuxPower Hybrid Inverter Load Shedding Combo + Volta Lithium Battery Stage 1 (5.12kWh)
5KVA LuxPower Hybrid Inverter Load Shedding Combo + Volta Lithium Battery Stage 1 (5.12kWh)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 5 left
Couldn't load pickup availability
INVERTER SPECIFICATIONS:
LUXPOWER SNA5000 WPV 5KW 48V
The Solar Select LuxPower SNA 5000 is one of the best off-grid inverters on the market. This inverter meets all the requirements we feel is important in an inverter of this type. With two high voltage MPPTs and a max PV input of 6000 Watts, compatibility to communicate with a wide range of lithium batteries, and full off-site monitoring via an App it is hard to beat this unit at this price point.
Key Features
- Intelligent Off-Grid & Hybrid modes
- PV and AC Power can power loads simultaneously
- 2 x MPPTs with a wide input voltage range.
- BMS communication to most leading brands of Batteries (See List)
- Free monitoring via the app and remote upgrades.
- Single or unbalanced three phase
- Parallel up to 10 units.
- Independent generator interface.
PV INPUT:
Normal operating voltage:240Vdc Vmax PV:500Vdc
PV input voltage range:90-500Vdc Imax PV:27A
Full load MPPT range: 240-450Vdc Rated Power 6200W
Maximum Solar Charging Current:120A
GRID/AC OUTPUT:
Normal Output Voltage:220/230/240Vac Feed-in Grid Voltage Range:195-253Vac Feed-in Grid Frequency Range: 49-51+1Hz
Normal Output Curren: 15.7A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC) :97%
Normal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load:3600W
Maximum Main load:3600W Maximum Second load: 1200W Main load cut off voltage:22Vdc Main load return voltage:26Vdc AC INPUT:
Normal operating voltage:230Vac Maximum input current:30A
Normal operating frequency:50/60Hz
Surge power:7200VA
Maximum AC charging current:100A
Battery voltage range: 20-33Vdc
Maximum battery current: 150A
What’s in the box
1 x Inverter
1 x User Manual
1 x Wifi Dongle

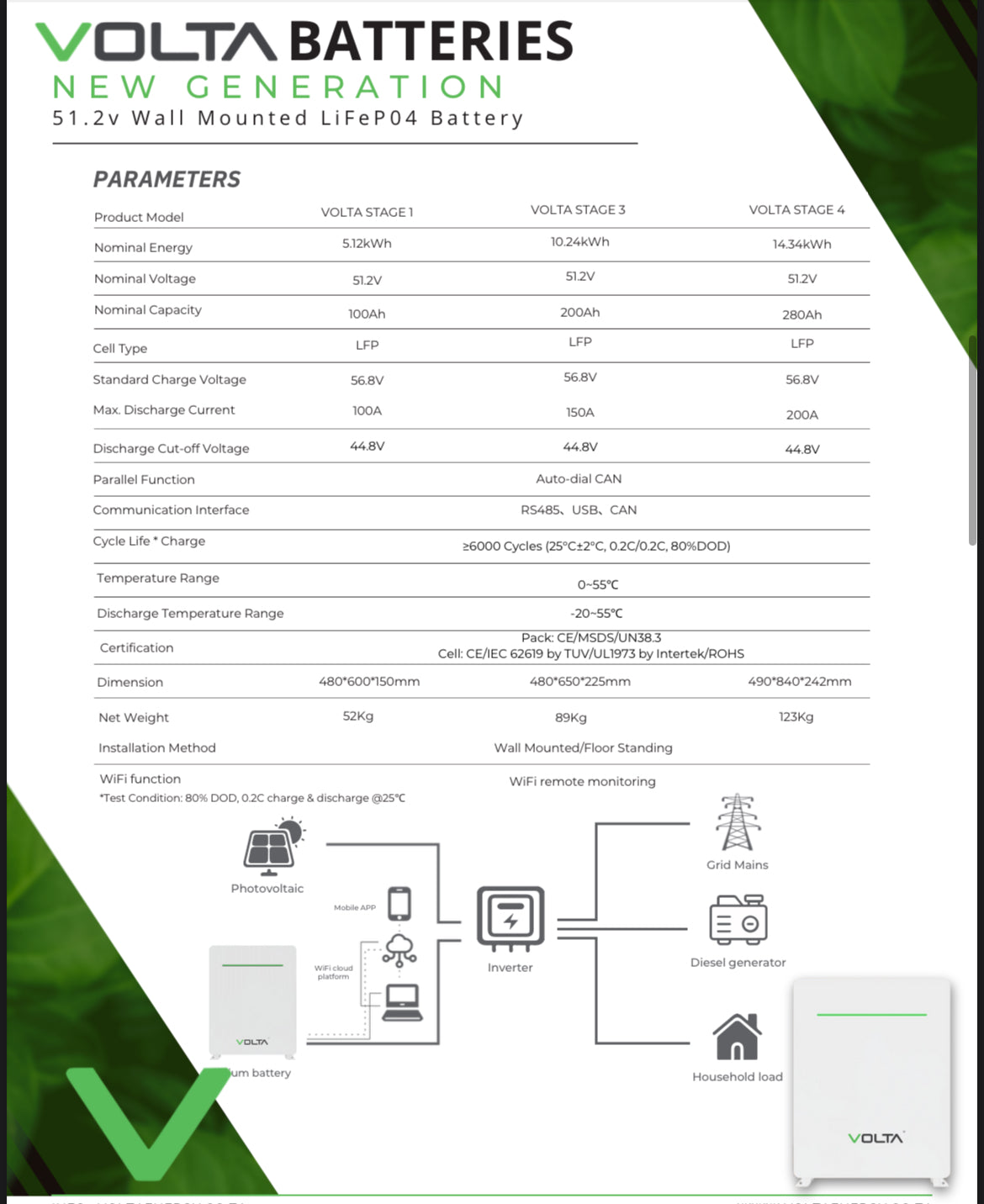

Battery Specifications:
General Data
• Battery Type: Lithium-Ion
• Product Model: VOLTA STAGE 1
• Nominal Energy: 5.12KWH
• Nominal Voltage: 51.2VDC
• Nominal Capacity: 100AH
• Cell Type: LFP
• 1C/1C Continual Charge & Discharge
• Standard Charge Voltage: 56VDC
• Maximum Discharge Current: 100A
• Discharge Cut-Off Voltage: 44.8VDC
• Maximum Parallel Units: 8
• Design Life: 6000 Cycles @ 80% DOD @ 25°C
• Installation Type: Wall Mount & Floor Stand
Environment Limit
• Ingress Protection: IP20
• Charge Temperature Range: 0°C to +65°C
• Discharge Temperature Range: -20°C to +65°C
• Communication: RS485, RS232, CAN
• Safety Rating: MSDS / UN38.3
Combo includes:
- 1x Volta Batteries 51.2V Wall Mounted LiFePO4 5KWH Stage 1 (10-year warranty)
- 1x Luxpower 5kw + Wifi Dongle Inverter (2 year warranty)
- Battery Cables And Brackets Included
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
