The Solar Step

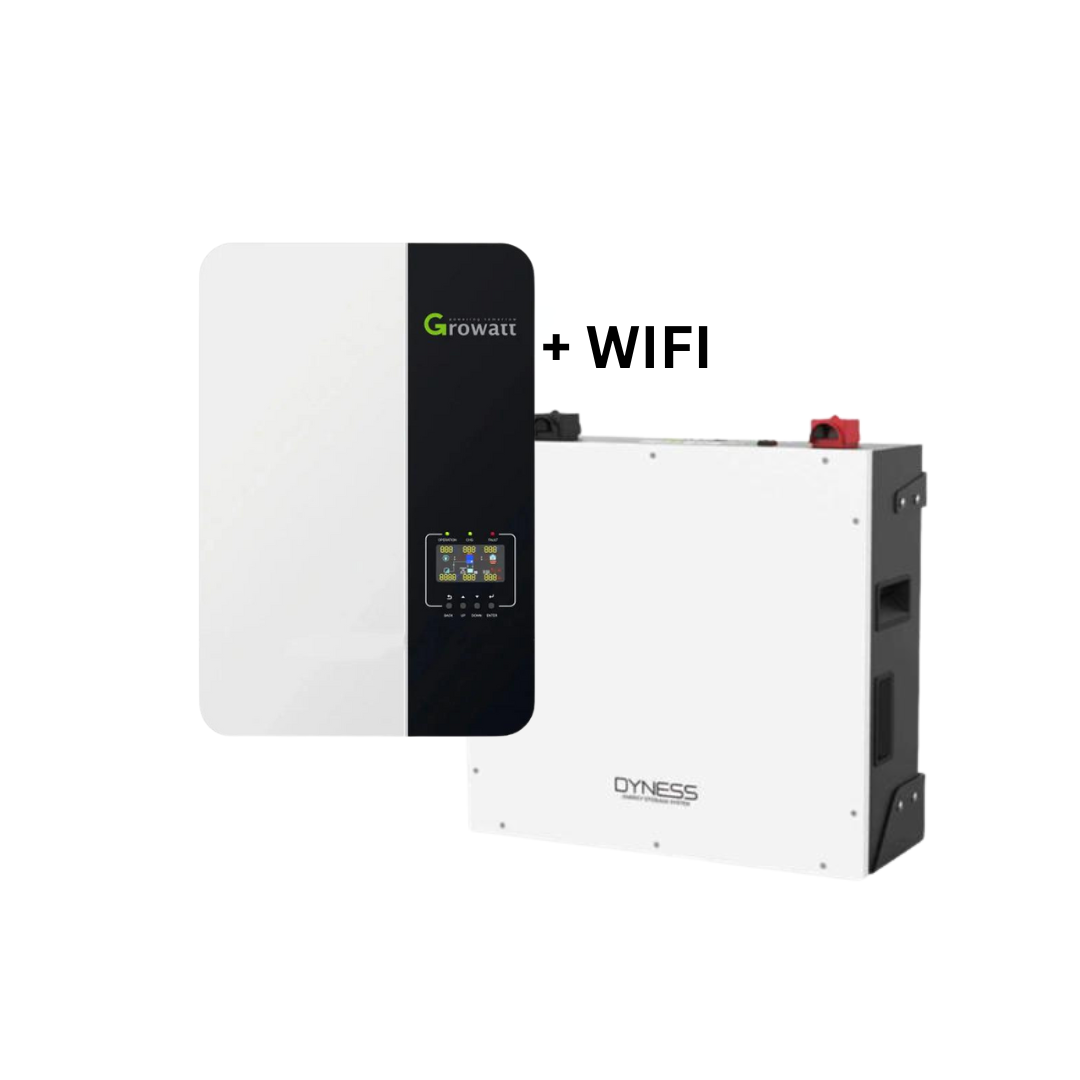

5KVA Growatt SNA5000 MPPT Hybrid Inverter + Dyness 5.12 kWh Combo Backup Power Kit
5KVA Growatt SNA5000 MPPT Hybrid Inverter + Dyness 5.12 kWh Combo Backup Power Kit
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 10 left
Share
5KVA Growatt SNA5000 MPPT Hybrid Inverter + Dyness 5.12 kWh Combo Backup Power Kit
INVERTER SPECIFICATIONS:
GROWATT SPF-5000 ES IS A 230(VAC) OUTPUT VOLTAGE OFF- GRID INVERTER FOR BACKUP POWER AND SELF CONSUMPTION APPLICATION, MAX PV INPUT VOLTAGE UP TO 450(VDC) . IT CAN ALSO WORK WITHOUT A BATTERY TO SAVE SYSTEM INVESTMENT COSTS.
Functions
- Integrated MPPT charger controller.
- Equalization charging function.
- Use with Batteries or without.
- Max PV input up to 450vDC.
- Choose grid or solar input priority.
- WIFI/GPRS remote monitoring.
- Parallel up to 6 inverters.
- PV & Grid Power combine if PV energy is insufficient for load.
- Flexible schedule for charging and discharging the batteries.
Inverter Output [AC]
- Rated Power: 5000W.
- AC Voltage Regulation (Battery): 230VAC ± 5%.
- Surge Power: 10000VA for 5 sec.
- Efficiency (Peak): 93%.
- Waveform: Pure sine wave.
- Transfer Time: 10ms – 20ms.
Solar Charger
- Maximum PV Array Power: 6000W.
- MPPT Range @ Operating Voltage: 120VDC – 430VDC.
- Maximum PV Array Open Circuit Voltage: 450vDC.
- Maximum Solar Charge Current: 100 A.
AC Charger
- AC Charge Current: 80A.
- AC Input Voltage: 230 VAC.
- Selectable Voltage Range: 230 VAC.
- Frequency Range : 50 Hz/60 Hz (Auto sensing).
Physical
- Protection degree: IP20.
- Height: 330 x 485 x 135mm.
- Weight: 12 kg
Key Features
- Intelligent Off-Grid & Hybrid modes
- PV and AC Power can power loads simultaneously
- 2 x MPPTs with a wide input voltage range.
- BMS communication to most leading brands of Batteries (See List)
- Free monitoring via the app and remote upgrades.
- Single or unbalanced three phase
- Parallel up to 10 units.
- Independent generator interface.
PV INPUT:
Normal operating voltage:240Vdc Vmax PV:500Vdc
PV input voltage range:90-500Vdc Imax PV:27A
Full load MPPT range: 240-450Vdc Rated Power 6200W
Maximum Solar Charging Current:120A
GRID/AC OUTPUT:
Normal Output Voltage:220/230/240Vac Feed-in Grid Voltage Range:195-253Vac Feed-in Grid Frequency Range: 49-51+1Hz
Normal Output Curren: 15.7A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC) :97%
Normal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load:3600W
Maximum Main load:3600W Maximum Second load: 1200W Main load cut off voltage:22Vdc Main load return voltage:26Vdc AC INPUT:
Normal operating voltage:230Vac Maximum input current:30A
Normal operating frequency:50/60Hz
Surge power:7200VA
Maximum AC charging current:100A
Battery voltage range: 20-33Vdc
Maximum battery current: 150A
Battery Specifications:
The BX51100 is more than just a robust energy storage solution; it’s a testament to reliability. Its advanced BMS ensures the safety and longevity of the battery, and with 5.12kWh of capacity, it provides you with the perfect power backup. Whether it’s for residential or commercial use, the Dyness solar battery BX51100 is the key to uninterrupted, sustainable energy.
Key Specifications:
- Capacity: 5.12kWh
- Battery Type: Lithium-ion
- Continuous Output Power
- Battery Management System (BMS): Yes
- Protection Features: Overcharging, Over-discharging, Short Circuit Protection
- Cycle Life: Ensuring a long-lasting energy solution
What’s in the box
1 x Inverter
1 x User Manual
1 x Wifi Dongle
Battery Size:
59.7 x 50.4 x 15.5 cm
55Kg
Combo includes:
- 1x Growatt Hybrid Inverter 48V 5KW Inverter Pure Sine Wave (Including WIFI) SPF 5000 ES (2 Years Warranty)
- 1x DYNESS Lithium Battery BX51100(51.2V100AH 5.12KWH)
(10 Years Warranty) - Battery cables and brackets included
