5KVA Growatt Hybrid Inverter 48V MPPT + 5.12kWh Dyness Lithium Battery Combo Kit
5KVA Growatt Hybrid Inverter 48V MPPT + 5.12kWh Dyness Lithium Battery Combo Kit
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 10 left
Couldn't load pickup availability
Description:
This hybrid inverter solar kit is built for load-shedding protection and daily solar use, combining a Growatt 5kW 48V hybrid inverter with a Dyness DL5.0C 5.12kWh LiFePO₄ battery. It supports flexible operating modes, smart solar harvesting via MPPT, and system monitoring through the included WiFi dongle.

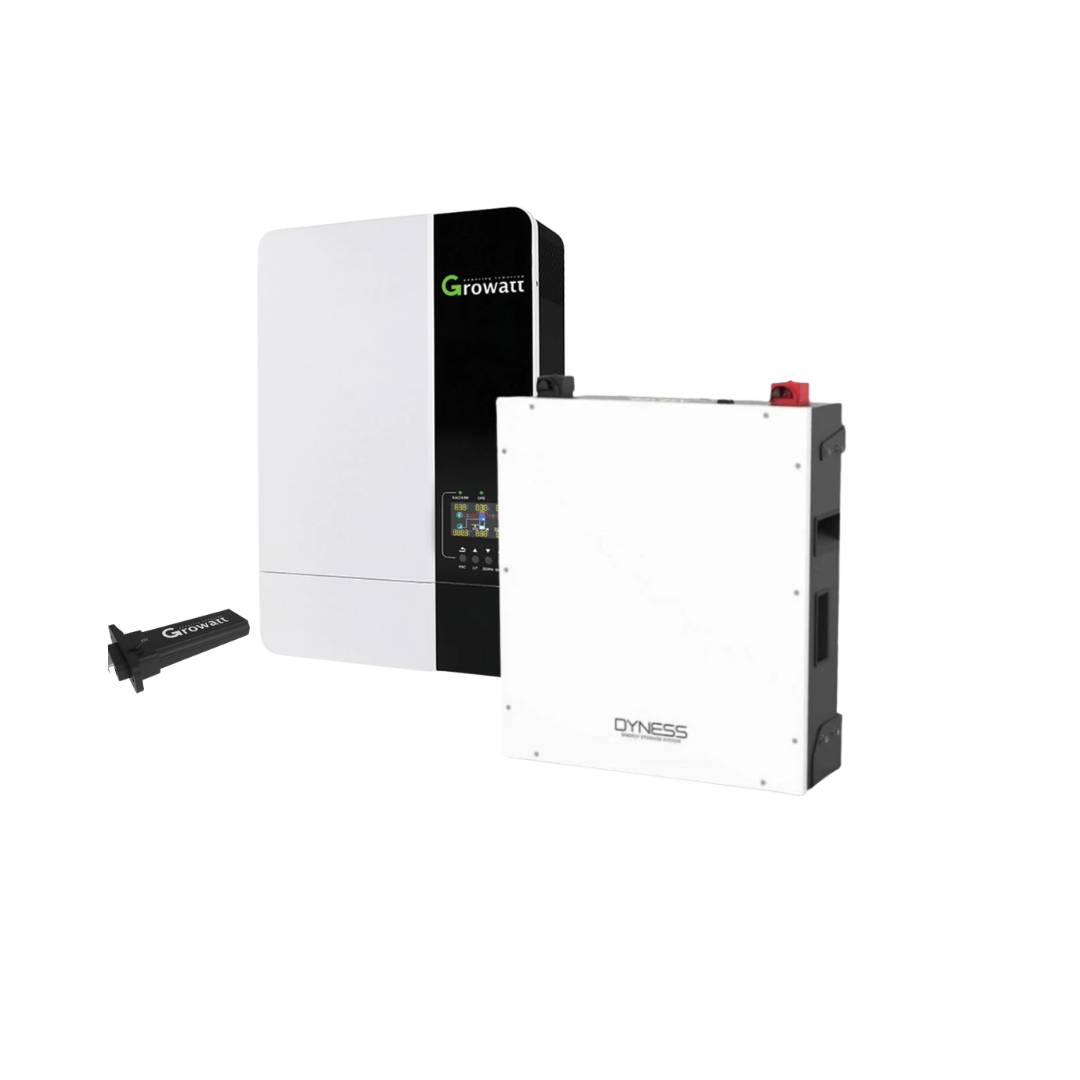

What’s Included
- 1x Growatt inverter 5kW 48VDC SPF 5000 ES LITE plus WiFi dongle
- 1x Dyness DL5.0C 5.12kWh 51.2V Version 2 lithium battery
- Battery cables included
Inverter Smart Operation (Growatt SPF 5000 ES LITE)
- Can run with or without a battery connected
- PV and grid can supply loads together when solar is available
- Equalization charging function included for battery support
- Configurable operating modes for different site priorities

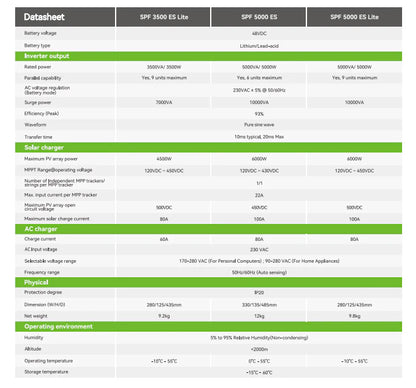

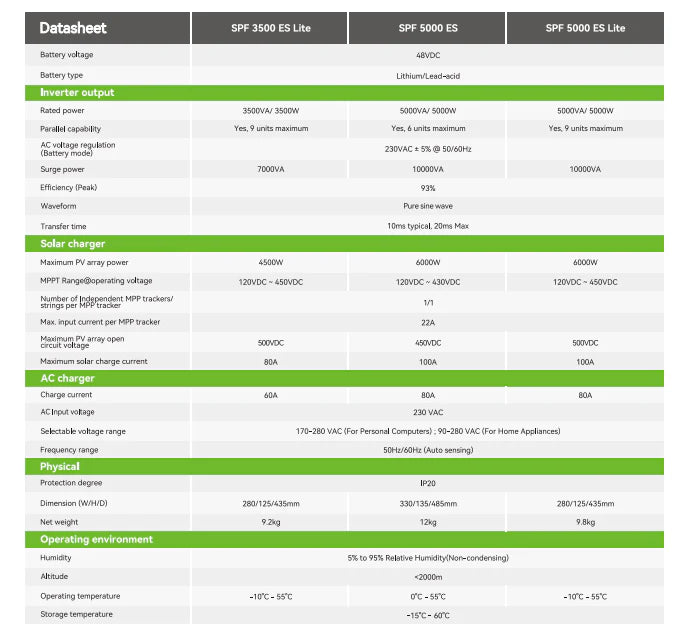

Solar Charging and Expansion (Inverter)
- Max PV array power: 6000W
- MPPT operating voltage range: 120–450VDC
- Max PV open circuit voltage: 500VDC
- Max solar charge current: 100A
- Parallel capability: up to 9 units
- WiFi dongle included
Battery Overview (Dyness DL5.0C)
The Dyness DL5.0C is an LFP battery module designed for residential and small commercial storage. It supports remote update and app monitoring, offers multiple installation methods, and scales from 5.12kWh up to 256kWh with up to 50 modules in parallel.
Battery Specifications (Dyness DL5.0C 5.12kWh 51.2V Version 2)
Battery type: LiFePO4
Nominal battery energy: 5.12 kWh
Nominal capacity: 100Ah
Nominal voltage: 51.2V
Operating voltage: 44.8V to 57.6V
Recommended charge and discharge C rate: 0.5C
Maximum discharge C rate: 1C
Recommended charge/discharge current: 50A
Max continuous charge current: 75A
Max continuous discharge current: 100A
Peak power charge/discharge current: 110A (15s)
Depth of discharge (DOD): 90%
Net weight: 54 kg
Dimensions (W x D x H): 558 x 545 x 150 mm
Charging temperature range: 0°C to 55°C
Discharging temperature range: -20°C to 55°C
Communication: CAN, RS485, RS232
Cycle life: ≥6000 cycles
Protection level: IP20
Expansion: up to 50 units in parallel
Stated advantage: can be used in both off-grid and hybrid setups, compact design
Certification and safety standard: UN38.3, CE-EMC, IEC62619, CEI-021 all undergoing
Cycle life test reference: 0.2C charging/discharging at 25°C, 95% DOD
Warranty
Inverter warranty: 2 years
Battery warranty: 7 years
Installation Requirements
Installation should be completed by a qualified electrician and aligned with SANS 10142 requirements, with a valid COC issued for the installation where applicable
Confirm PV string design remains within the inverter’s PV voltage limits before commissioning
