The Solar Step
5KVA / 5000W LUXPOWER Hybrid Inverter Portable Power System + 5.12kWh SHOTO Lithium Battery
5KVA / 5000W LUXPOWER Hybrid Inverter Portable Power System + 5.12kWh SHOTO Lithium Battery
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 4 left
Share
The perfect solution for load shedding!

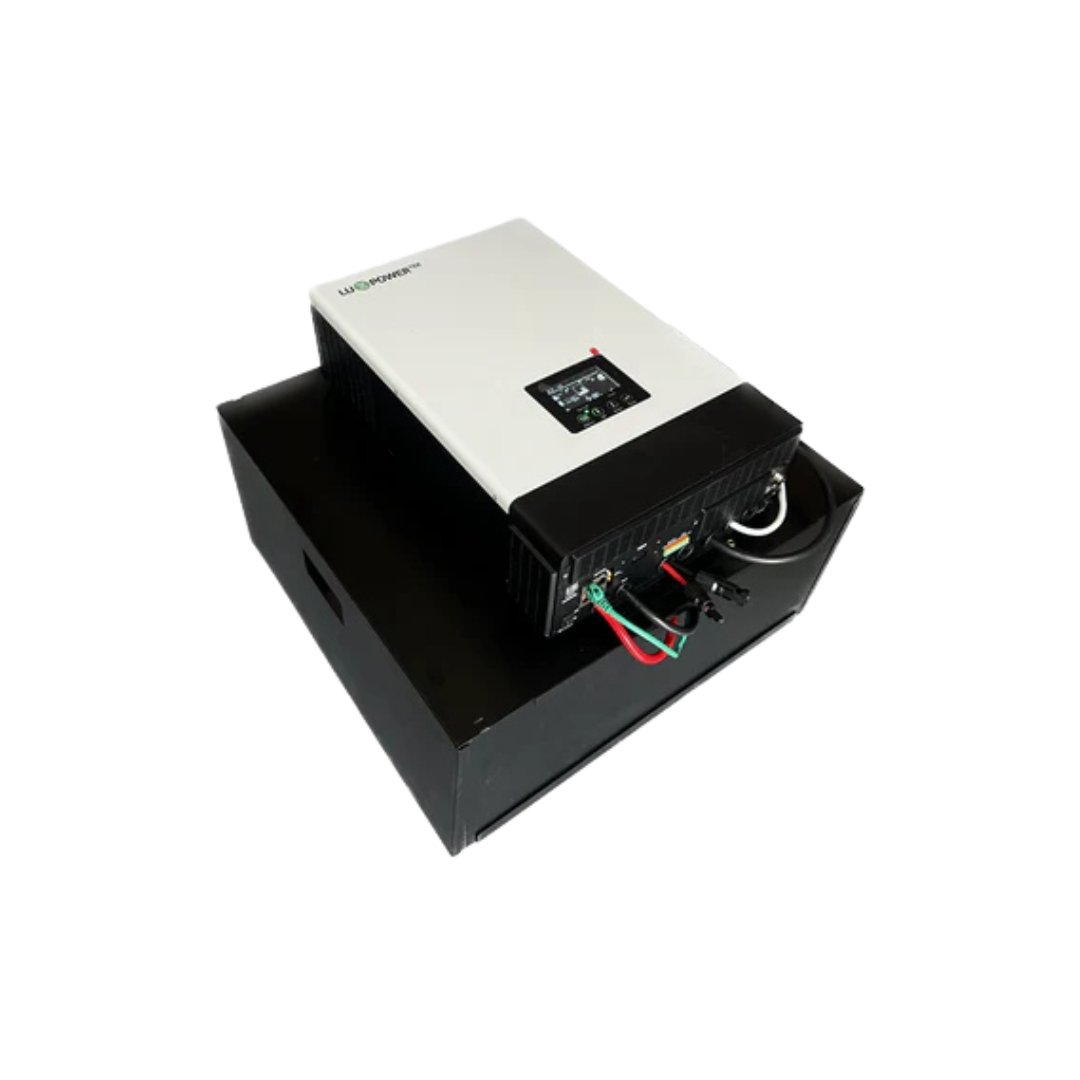

The all-in-one portable plug & play inverter battery trolley system (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.
What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 150w which is usually a TV, Wifi, Lights, etc. This portable system will last 45-50 Hours With a 100% DOD.
LUXPOWER SNA5000 WPV 5KW 48V
The Solar Select LuxPower SNA 5000 is one of the best off-grid inverters on the market. This inverter meets all the requirements we feel is important in an inverter of this type. With two high voltage MPPT's and a max PV input of 6000 Watts, compatibility to communicate with a wide range of lithium batteries and full off-site monitoring via an App it is hard to beat this unit at this price point.
Key Features
- Intelligent Off-Grid & Hybrid modes
- PV and AC Power can power loads simultaneously
- 2 x MPPT's with wide input voltage range.
- BMS communication to most leading brands of Batteries (See List)
- Free monitoring via app and remote upgrades.
- Single or unbalanced three phase
- Parallel up to 10 units.
- Independent generator interface.
Battery Compatability list
- BYD
- Dyness
- Hubble
- Lithium Batteries SA
- PylonTech
- Shoto
- Revo.
General:
Model: SNA 5000 WPV
Warranty: 2years.
Battery voltage: 48VDC.
Output:
Rated power: 5000W/5000VA.
Parallel capacity: YES.
Normal output voltage: 230/240, Split phase 220/110 Vac.
Normal output frequency: 50/60Hz.
Surge power: 10000VA.
Switch time: 10ms.
Waveform: Pure sine wave.
Battery:
Battery Type: Lithium/Lead-Acid.
Normal Voltage: 51.2V/48V.
Max. Charge Voltage: 59V.
Solar:
Max. Recommended PV Power: 3200W/3200W.
MPPT Tracker: 2.
Max. PV Open Circuit Voltage: 480Vdc.
MPPT Voltage Range: 100-385Vdc.
Max. Solar Charge Current: 100A.
Max. Solar Input Current: 13A/13A.
Max. MPPT Eiciency: >98%.
Parallel MPPT Charger: YES.
Grid:
Normal Voltage: 230Vac.
AC Voltage Range: 110-280Vac.
Max. Charge Current: 60A.
Frequency Range: 50/60Hz (Auto Sensing).
General:
Dimensions(W/H/D): 330x504x135mm.
Weight14Kg.
Protection DegreeIP20.
Relative Humidity5%~95% Relative Humidity (Non-condensing).
Operating Temperature0°C~50°C.
Storage Temperature-15°C~60°C.
Interface.
Display: LCD+LED.
Lithium Battery Communication: CAN/RS485.
RS485/Dry Connector: YES/YES.
Wifi/GPRS: YES/YES.
Warranty: 2 years.
Self-designed and self-manufactured LFP cell, pack, and rack to ensure the highest safety.
Thanks to its modular and scalable design, it can be expanded to meet future energy requirements.
More than 5000 cycles with 90% DOD and 10+ years of design life.
Compatible with the most universal hybrid inverters.
Simple rack-mounted structure to reduce the installation time and cost.
Description:
High LFP Cyclic Cell
Wide Compatibility (Installed 20+ Communication Protocols)
Multiple Installation Methods (19 /23 inch/Wall-mounted/stacking)
Easy Expansion (Max 20 Pcs Parallel)
Nominal Capacity 5.12KWh
Usable Capacity 4.1kWh (Suggest) 5.12 kWh (Max)
Charge Voltage 54.0 -56.4V
Discharge Voltage 51.2V
Charge/Discharge Current Recommended 50A (0.5C), Max 100A (1C)
Communication Port CAN & RS485
Dimensions 443 x 135 x 440 mm
Operating Temperature
Charge 0 to +45
Discharge -20 to +35
Storage -20 to +35
Weight 40Kg
Protection Level IP20
Expansion Up to 20 Units in Parallel
Pros Support embedded, wall-mounted, stacked mounting.
Compatible Inverters Deye/ Goodwe/ Luxpower/ Victron/ SMA/ Growatt/ Sofar/ SRNE/ TBB/ Megarevo/ Soruide/ Solis/ Voltronic/ Epever etc.
Certification UL1972/ IEC62619/ CE/ UN38.3/ CEI 0-21
Compatible Inverters
• Growatt, Goodwe, Victron, Deye, Sofar, Luxpower & more
These great batteries come with a 5-year warranty and 5000 cycles at 90% DOD. Thanks to their modular design, you can easily add another 5.12kWh Shoto Lithium-ion Battery should you need to expand your battery bank in the future.
This system is equipped with the following:
1x PORTABLE STEEL BOX WITH 2x LOCK WHEELS
1x SURGE PLUG ON 1m POWER CABLE (2.5mm cabtyre)
1x DOUBLE SIDED FEMALE PLUG SOCKET
1x FUSE + DISCONNECTOR (battery to inverter)
1x BATTERIES AND INVERTER MENTIONED IN THE TITLE
SIZE
60 cm x 60 cm x 45 cm
5 YEAR REPAIR WARRANTY
