5KVA / 5000W GROWATT hybrid Inverter Portable Power System + 1x 5.43kWh SVOLT Lithium Battery
5KVA / 5000W GROWATT hybrid Inverter Portable Power System + 1x 5.43kWh SVOLT Lithium Battery
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 3 left
Share

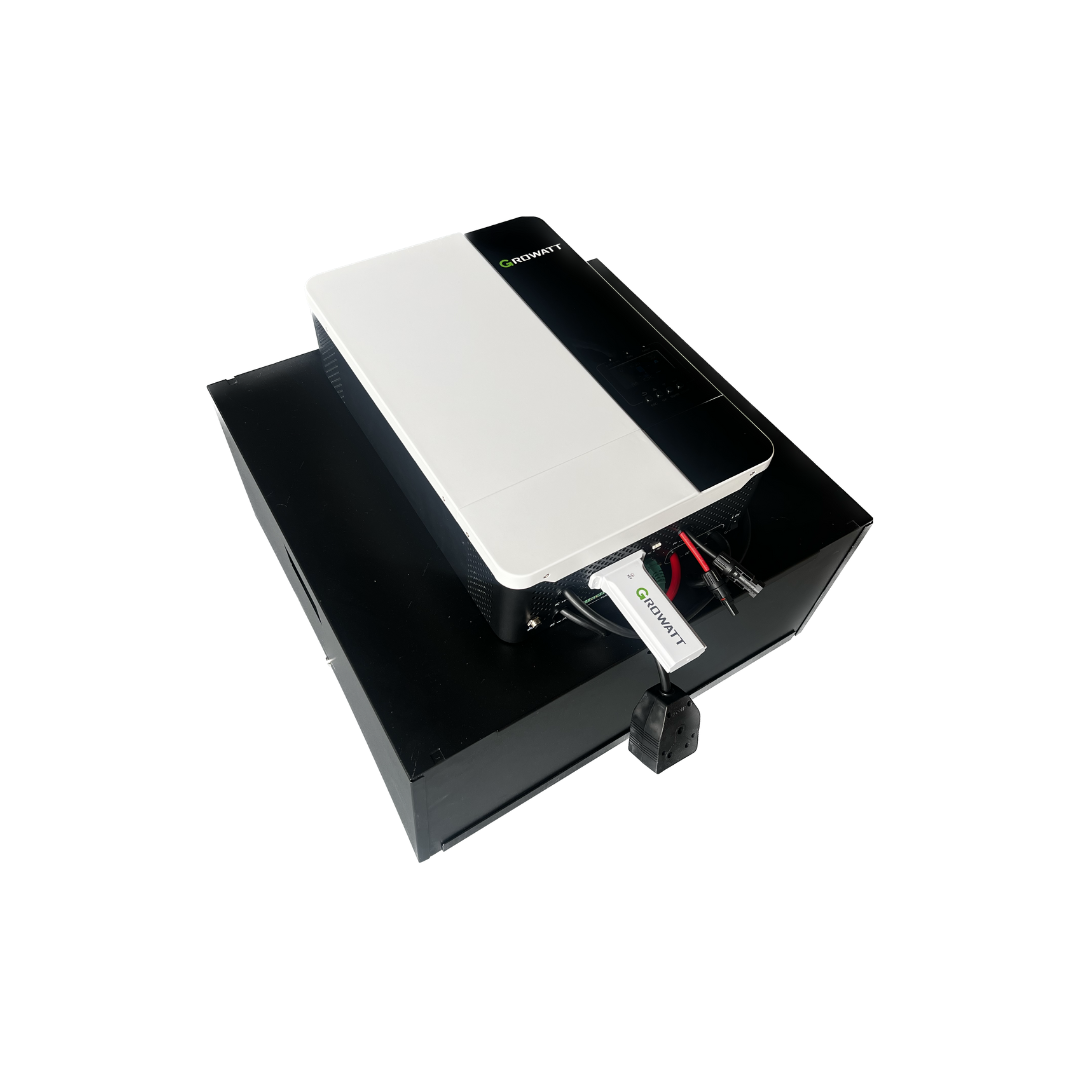

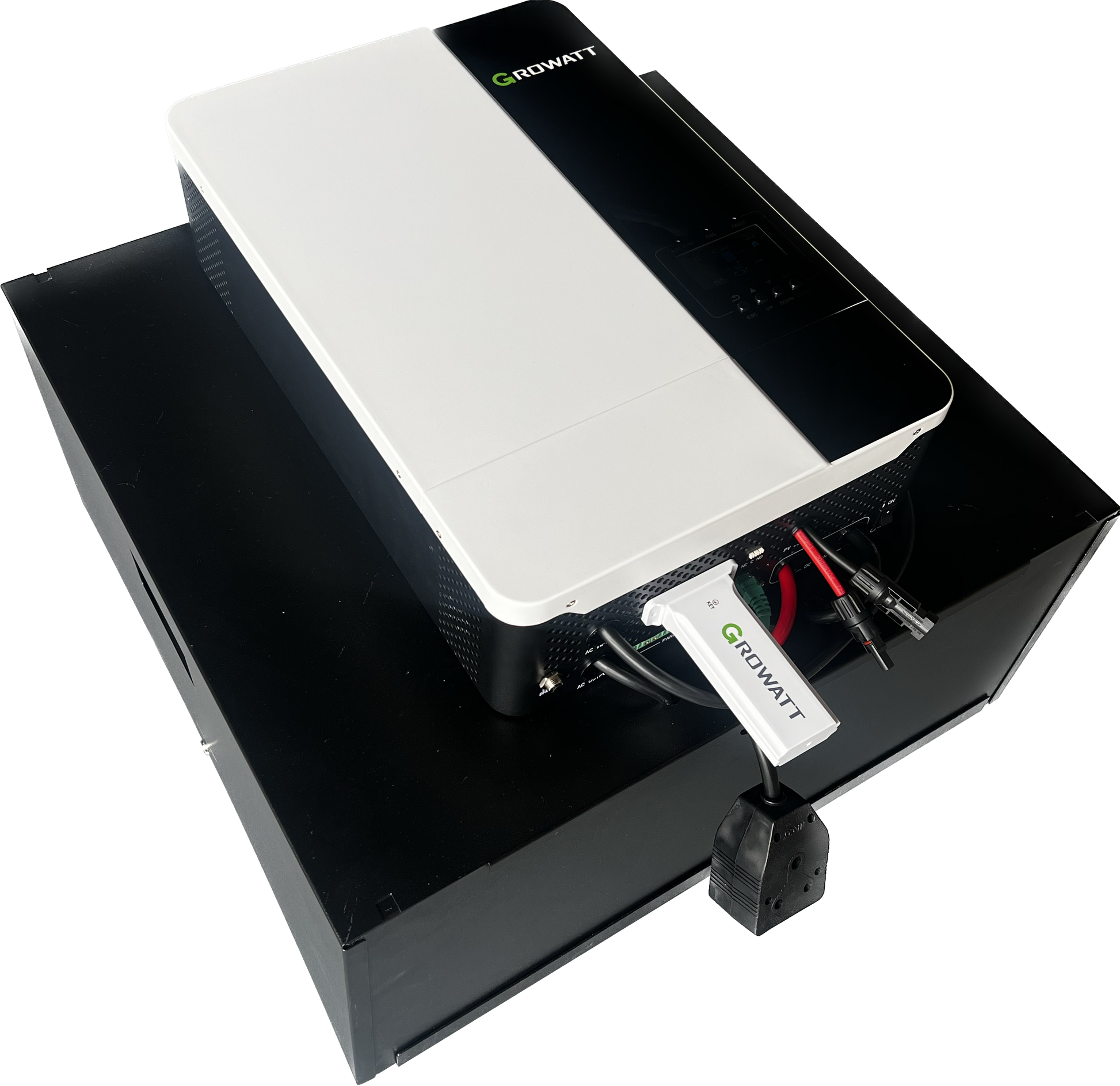

The all-in-one portable plug & play inverter battery trolley system (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.
What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 150w which is usually a TV, Wifi, Lights, etc. This portable system will last 45-50 Hours With a 100% DOD.
Inverter Specifications:
GROWATT SPF-5000 ES IS A 230(VAC) OUTPUT VOLTAGE OFF- GRID INVERTER FOR BACKUP POWER AND SELF CONSUMPTION APPLICATION, MAX PV INPUT VOLTAGE UP TO 450(VDC) . IT CAN ALSO WORK WITHOUT A BATTERY TO SAVE SYSTEM INVESTMENT COSTS.
Functions
- Integrated MPPT charger controller.
- Equalization charging function.
- Use with Batteries or without.
- Max PV input up to 450vDC.
- Choose grid or solar input priority.
- WIFI/GPRS remote monitoring.
- Parallel up to 6 inverters.
- PV & Grid Power combine if PV energy is insufficient for load.
- Flexible schedule for charging and discharging the batteries.
General Specifications
- Module: SPF 5000 ES.
- Battery voltage: 48vDC.
- Battery type: Lithium/Lead-acid.
Inverter Output [AC]
- Rated Power: 5000W.
- AC Voltage Regulation (Battery): 230VAC ± 5%.
- Surge Power: 10000VA for 5 sec.
- Efficiency (Peak): 93%.
- Waveform: Pure sine wave.
- Transfer Time: 10ms – 20ms.
Solar Charger
- Maximum PV Array Power: 6000W.
- MPPT Range @ Operating Voltage: 120VDC – 430VDC.
- Maximum PV Array Open Circuit Voltage: 450vDC.
- Maximum Solar Charge Current: 100 A.
AC Charger
- AC Charge Current: 80A.
- AC Input Voltage: 230 VAC.
- Selectable Voltage Range: 230 VAC.
- Frequency Range : 50 Hz/60 Hz (Auto sensing).
Physical
- Protection degree: IP20.
- Height: 330 x 485 x 135mm.
- Weight: 12 kg
Battery Specifications:
Description
The SVolt 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVolt 51.2V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
Features:
A-Grade Cell Technology
Maintenance-free
Environmental Friendly
Wide Variety of Markets
Renewable Energy
7 Protection Features
Built-in Battery Management System
Mountable
Battery Specifications:
Battery Type-Chemistry: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 106Ah
Energy Density: 5427.2Wh
Terminal Type: M6
Terminal Torque: 8.5NM
Case Material: Metal
BMS Built-in: Yes
Internal Resistance: - Efficiency - Round Trip: >99.5%
Self Discharge per Month: - Max Parallel Connectors: 16Pcs
Series Connections: Not Allowed
Cycle Life(0.2C, 25 C @ 80% DOD): >4000 Cycles
Discharge Temperature: -20 C to 65 C
Charge Temperature: 0 C to 45 C
Storage Temperature: -10 C to 30 C
Voltage Window: 44.8 - 57.6V
Recommended Charge Voltage: 57.6 0.20V
Max Charge Voltage: 58.4 0.20V
Recommended Charge Current: 50A
Max Continuous Charge Current: 100A
Recommended Discharge Voltage: 44.8 0.20V
Max Discharging Voltage: 43.2 0.20V
Max Continuous Discharge Current: 100A
Peak Discharge Current: 120A (5s 2s)
BMS Characteristics:
Primary Charging Protection: (Current: 80A) (Delay Time:1000ms)
Secondary Charging Protection: (Current: 100A) (Delay Time:500ms)
Primary Discharging Protection: (Current: 110A) (Delay Time: 5s 2s)
Secondary Discharging Protection: (Current: 120A) (Delay Time: 5s 2s)
Over Charge Voltage Protection: (Voltage: 58.4V) (Delay Time:500ms)
Over Discharge Voltage Protection: (Voltage: 43.2V) (Delay Time:500ms)
Temperature Protection: (Temperature: 95 C) (Recover: 85 C)
Communication Port: Major RS485,CAN/Dryport
What's in the box
1 x 51.2V 106Ah Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Coms cable
1 x Manual
5 Years Warranty
This all-in-one system Includes:
1x GROWATT HYBRID INVERTER 48V 5KW INVERTER PURE SINE WAVE (INCLUDING WIFI) SPF 5000 ES + Wifi Dongle
2 Years Warranty
1x SVOLT 48V 106Ah 5.42 kWh A-Grade Wall Mount Lithium Battery
5 Year Repair Warranty
This system is equipped with the following:
1x PORTABLE STEEL BOX WITH 2x LOCK WHEELS
1x SURGE PLUG ON 1m POWER CABLE (2.5mm cabtyre)
1x DOUBLE SIDED FEMALE PLUG SOCKET
1x FUSE + DISCONNECTOR (battery to inverter)
1x BATTERIES AND INVERTER MENTIONED IN THE TITLE
SIZE
60 cm x 60 cm x 45 cm
