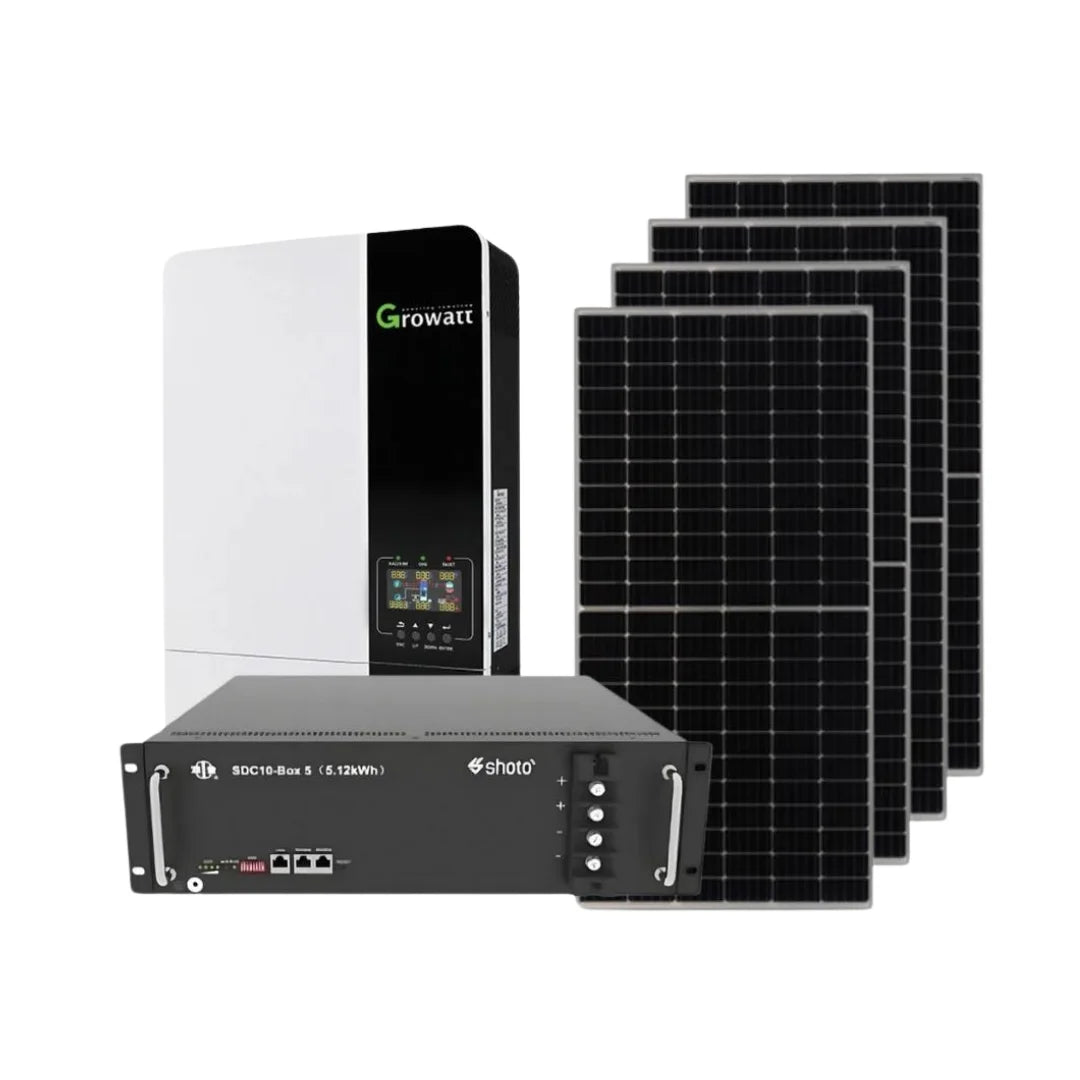

5KVA / 5000W GROWATT Hybrid Inverter+ 5.12kWh SHOTO Lithium Battery + 4x 560W Mono Crystal Solar Panels

Features & Benefits:

-Hybrid Functionality – Operates with or without a battery, providing flexible energy solutions for both grid-tied and off-grid setups.
-Advanced MPPT Charge Controller – Integrated Maximum Power Point Tracking (MPPT) optimizes solar charging, enhances energy efficiency, and extends battery life.
-Battery Management & Longevity – Supports equalization charging, which improves battery performance and lifespan by preventing capacity loss over time.
-Configurable Power Prioritization – Select whether to prioritize solar or grid power for charging, ensuring your energy system adapts to your specific needs.
-Seamless Energy Management – Automatically switches between solar, grid, and battery power, maximizing energy savings and providing backup power during outages.

Inverter Functions

• Integrated MPPT charger controller.
• Equalization charging function.
• Use with Batteries or without.
• Max PV input up to 450vDC.
• Choose grid or solar input priority.
• WIFI/GPRS remote monitoring.
• Parallel up to 6 inverters.
• PV & Grid Power combine if PV energy is insufficient for load.
• Flexible schedule for charging and discharging the batteries.

General Specifications

• Module: SPF 5000 ES.
• Battery voltage: 48vDC.
• Battery type: Lithium/Lead-acid.

Inverter Output [AC]

• Rated Power: 5000W.
• AC Voltage Regulation (Battery): 230VAC ± 5%.
• Surge Power: 10000VA for 5 sec.
• Efficiency (Peak): 93%.
• Waveform: Pure sine wave.
• Transfer Time: 10ms – 20ms.

Solar Charger

• Maximum PV Array Power: 6000W.
• MPPT Range @ Operating Voltage: 120VDC – 430VDC.
• Maximum PV Array Open Circuit Voltage: 450vDC.
• Maximum Solar Charge Current: 100 A.

AC Charger

• AC Charge Current: 80A.
• AC Input Voltage: 230 VAC.
• Selectable Voltage Range: 230 VAC.
• Frequency Range : 50 Hz/60 Hz (Auto sensing).

Physical

• Protection degree: IP20.
• Height: 330 x 485 x 135mm.
• Weight: 12 kg
• Warranties: 2 Years

Shoto 5.12kWh Lithium-Ion Battery – 5000+ Cycles, Rack Mount

Description:

The Shoto 5.12kWh Lithium-Ion Battery is a high-performance energy storage solution, engineered for residential and commercial solar applications. With over 5000 cycles at 90% Depth of Discharge (DOD) and a 10+ year design life, this battery ensures long-term reliability and efficiency. The rack-mounted structure allows for easy installation, while its scalable parallel capability of up to 16 units makes it ideal for expanding energy storage needs.

Key Features:

• High-Capacity Energy Storage

  • 5.12kWh nominal capacity with 4.6kWh usable energy for optimized performance.
  • 90% DOD extends battery lifespan and increases efficiency.

• Reliable & Long-Lasting Design

  • More than 5000 cycles at 25°C for durable, long-term use.
  • 10+ year design life for sustainable energy storage.
  • Wide operating voltage range (42V - 57.6V) to support various load requirements.

• Flexible Installation & Scalability

  • Rack mounted design for space-saving installation.
  • Parallel up to 16 units to increase storage capacity as needed.

• Advanced Battery Management System (BMS)

  • Intelligent charge and discharge management to prevent overcharging and deep discharge.
  • Boost & float charge control (57.6V / 54V) to maintain battery health.

• Durable Construction for Various Environments

  • Operating humidity: 5% – 95%
  • Altitude tolerance: ≤4000m
  • Reliable terminal stud (M8) for secure connections

Technical Specifications:

• Model: (SDC10-Box 5)
• Nominal Capacity: 5.12kWh
• Rated Capacity: 100Ah
• Operating Voltage Range: 42V – 57.6V
• Charge Voltage: 57.6V
• Discharge Voltage: 48V
• Nominal Voltage: 51.2V
• Maximum Parallel Units: 16
• Cycle Life: ≥5000 cycles
• Installation Type: Rack Mount / Wall Mount
• Terminal Stud: M8
• Humidity Tolerance: 5% – 95%
• Altitude Limit: ≤4000m

Compatible Inverters:

• Growatt, Goodwe, Victron, Deye, Sofar, LuxPower, and more.

What’s Included:

-1 × Shoto 5.12kWh Lithium-Ion Battery (SDC10-Box 5)
-Battery Cables

Warranty & Installation Requirements:

• 5-Year Warranty
• Installation must be performed by a qualified electrical wireman or Master Electrician registered with the Department of Labour.
• A valid Electrical Certificate of Compliance (COC) must be issued after installation.
• The system must comply with SANS 10142 regulations.
• Warranty claims require:
  • Installation photos
  • A valid COC
  • Proof of installation by a qualified professional
• Failure to meet these requirements may void the warranty
