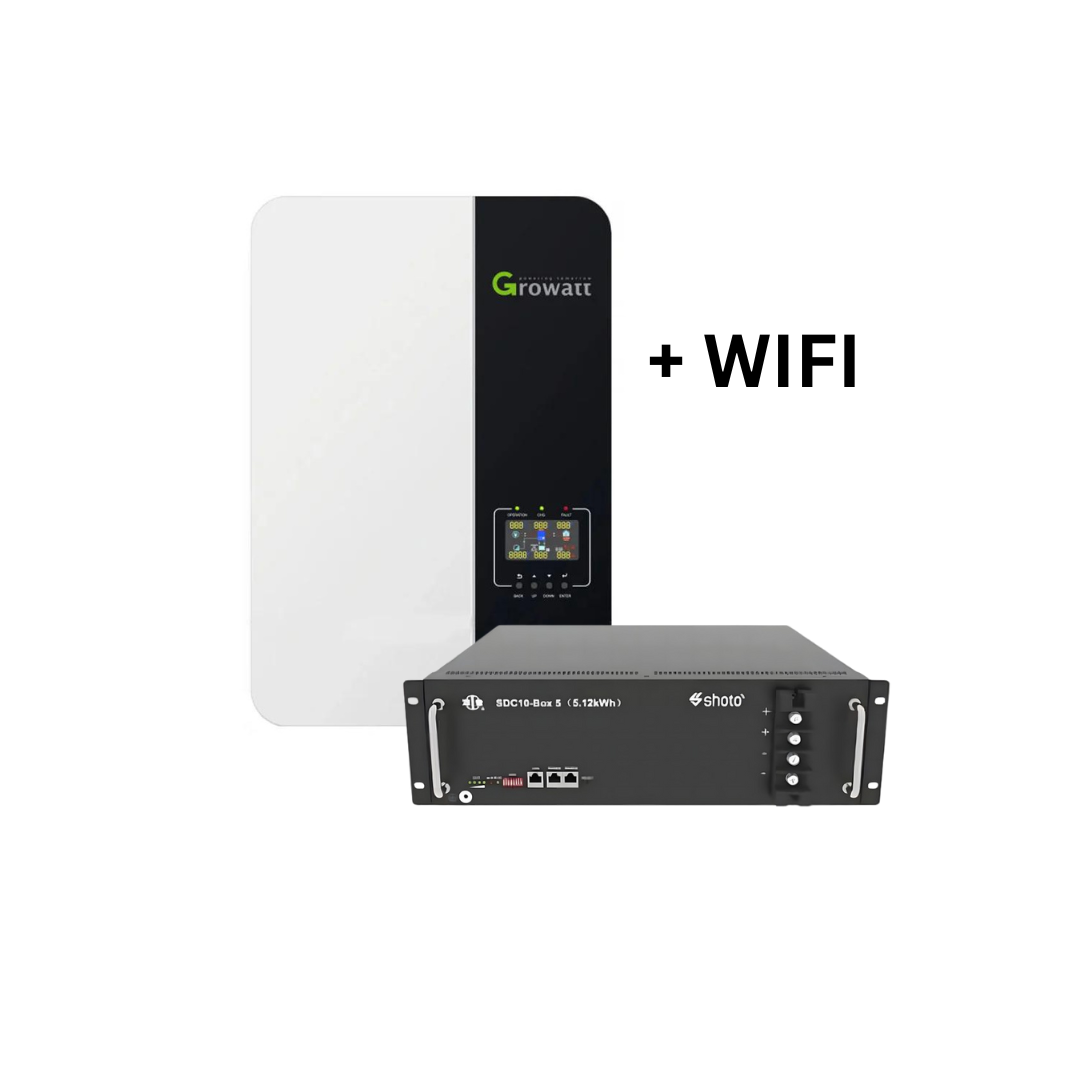

5KVA / 5000W GROWATT Hybrid Inverter + 5.12kWh SHOTO Lithium Battery 48V Combo
5KVA / 5000W GROWATT Hybrid Inverter + 5.12kWh SHOTO Lithium Battery 48V Combo
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 6 left
Couldn't load pickup availability
The 5KVA / 5000W Growatt Hybrid Inverter paired with a 5.12kWh SHOTO Lithium Battery 48V Combo offers a robust solar energy solution for residential and small commercial applications. The Growatt inverter efficiently manages both solar and grid power, optimizing energy use and providing reliable backup. The SHOTO Lithium Battery ensures high energy storage capacity, fast charging, and long cycle life, enhancing the system's overall performance and durability. Together, they deliver a dependable, scalable, and efficient power system for energy independence and cost savings.
INVERTER SPECIFICATIONS:
GROWATT SPF-5000 ES IS A 230(VAC) OUTPUT VOLTAGE OFF- GRID INVERTER FOR BACKUP POWER AND SELF CONSUMPTION APPLICATION, MAX PV INPUT VOLTAGE UP TO 450(VDC) . IT CAN ALSO WORK WITHOUT A BATTERY TO SAVE SYSTEM INVESTMENT COSTS.
Functions
- Integrated MPPT charger controller.
- Equalization charging function.
- Use with Batteries or without.
- Max PV input up to 450vDC.
- Choose grid or solar input priority.
- WIFI/GPRS remote monitoring.
- Parallel up to 6 inverters.
- PV & Grid Power combine if PV energy is insufficient for load.
- Flexible schedule for charging and discharging the batteries.
Inverter Output [AC]
- Rated Power: 5000W.
- AC Voltage Regulation (Battery): 230VAC ± 5%.
- Surge Power: 10000VA for 5 sec.
- Efficiency (Peak): 93%.
- Waveform: Pure sine wave.
- Transfer Time: 10ms – 20ms.
Solar Charger
- Maximum PV Array Power: 6000W.
- MPPT Range @ Operating Voltage: 120VDC – 430VDC.
- Maximum PV Array Open Circuit Voltage: 450vDC.
- Maximum Solar Charge Current: 100 A.
AC Charger
- AC Charge Current: 80A.
- AC Input Voltage: 230 VAC.
- Selectable Voltage Range: 230 VAC.
- Frequency Range : 50 Hz/60 Hz (Auto sensing).
Physical
- Protection degree: IP20.
- Height: 330 x 485 x 135mm.
- Weight: 12 kg
Key Features
- Intelligent Off-Grid & Hybrid modes
- PV and AC Power can power loads simultaneously
- 2 x MPPTs with a wide input voltage range.
- BMS communication to most leading brands of Batteries (See List)
- Free monitoring via the app and remote upgrades.
- Single or unbalanced three phase
- Parallel up to 10 units.
- Independent generator interface.
PV INPUT:
Normal operating voltage:240Vdc Vmax PV:500Vdc
PV input voltage range:90-500Vdc Imax PV:27A
Full load MPPT range: 240-450Vdc Rated Power 6200W
Maximum Solar Charging Current:120A
GRID/AC OUTPUT:
Normal Output Voltage:220/230/240Vac Feed-in Grid Voltage Range:195-253Vac Feed-in Grid Frequency Range: 49-51+1Hz
Normal Output Curren: 15.7A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC) :97%
Normal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load:3600W
Maximum Main load:3600W Maximum Second load: 1200W Main load cut off voltage:22Vdc Main load return voltage:26Vdc AC INPUT:
Normal operating voltage:230Vac Maximum input current:30A
Normal operating frequency:50/60Hz
Surge power:7200VA
Maximum AC charging current:100A
Battery voltage range: 20-33Vdc
Maximum battery current: 150A
What's in the box
1 x Inverter
1 x User Manual
1 x Wifi Dongle
Battery Specifications:
Description:
High LFP Cyclic Cell
Wide Compatibility (Installed 20+ Communication Protocols)
Multiple Installation Methods (19 /23 inch/Wall-mounted/stacking)
Easy Expansion (Max 20 Pcs Parallel)
Nominal Capacity 5.12KWh
Usable Capacity 4.1kWh (Suggest) 5.12 kWh (Max)
Charge Voltage 54.0 -56.4V
Discharge Voltage 51.2V
Charge/Discharge Current Recommended 50A (0.5C), Max 100A (1C)
Communication Port CAN & RS485
Dimensions 443 x 135 x 440 mm
Operating Temperature
Charge 0 to +45
Discharge -20 to +35
Storage -20 to +35
Weight 40Kg
Protection Level IP20
Expansion Up to 20 Units in Parallel
Pros Support embedded, wall-mounted, stacked mounting.
Compatible Inverters Deye/ Goodwe/ Luxpower/ Victron/ SMA/ Growatt/ Sofar/ SRNE/ TBB/ Megarevo/ Soruide/ Solis/ Voltronic/ Epever etc.
Certification UL1972/ IEC62619/ CE/ UN38.3/ CEI 0-21
Compatible Inverters
• Growatt, Goodwe, Victron, Deye, Sofar, Luxpower & more
These great batteries come with a 5-year warranty and 5000 cycles at 90% DOD. Thanks to their modular design, you can easily add another 5.12kWh Shoto Lithium-ion Battery should you need to expand your battery bank in the future.
Combo includes:
- 1x Growatt Hybrid Inverter 48V 5KW Inverter Pure Sine Wave (Including WIFI) SPF 5000 ES (2-year warranty)
- 1x SDC10-Box 5 Shoto 48V Lithium Iron Phosphate LiFePO4 48V 5.12KWH (5-year warranty)
