The Solar Step

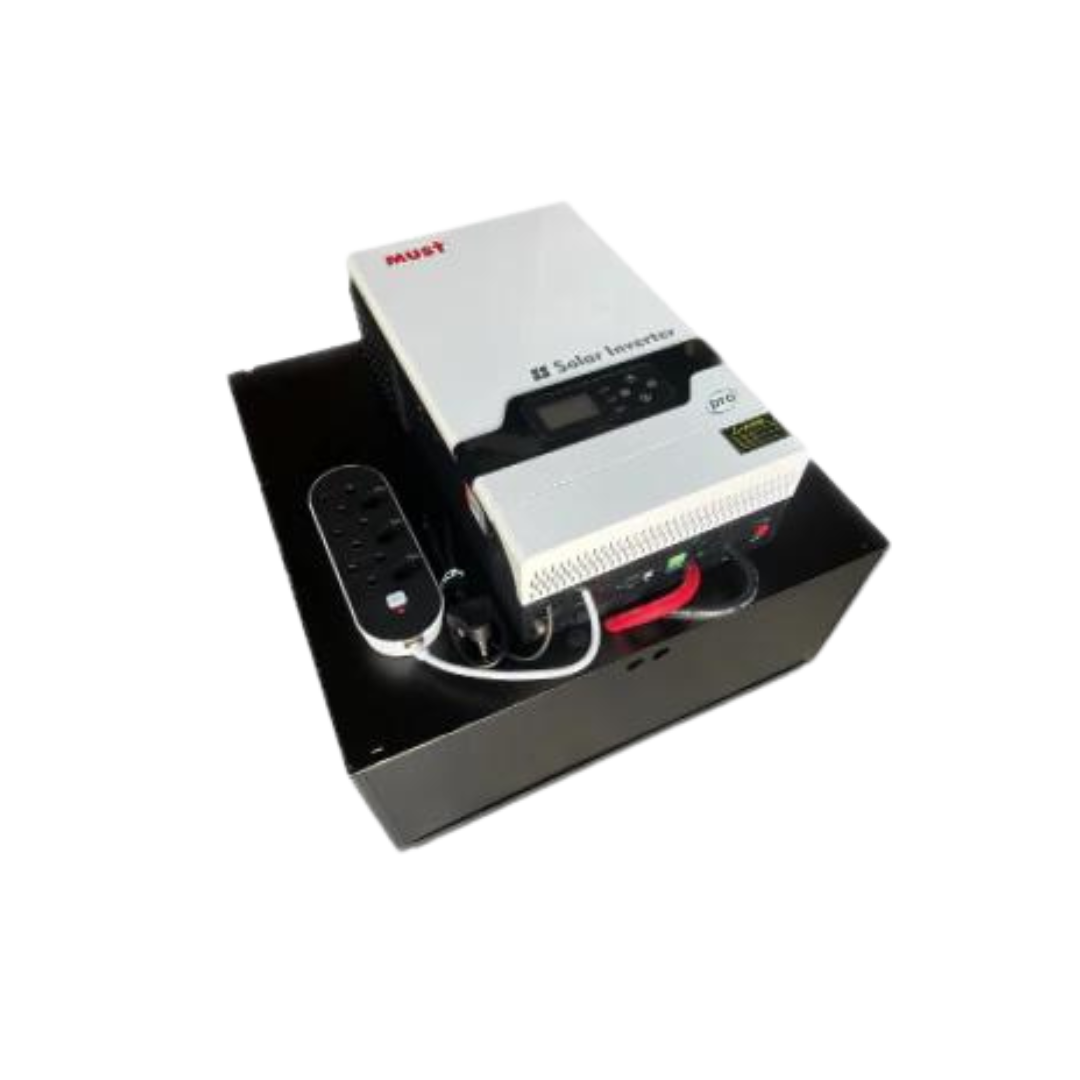

5.2KVA / 5200W MUST Hybrid Inverter + 5.42kWh LITHIUM Portable Plug & Play System (SOLAR READY)
5.2KVA / 5200W MUST Hybrid Inverter + 5.42kWh LITHIUM Portable Plug & Play System (SOLAR READY)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 6 left
Couldn't load pickup availability
The perfect solution for load shedding!
The all-in-one portable plug & play inverter battery trolley system (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.
What is an all-in-one portable plug & play inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 250w which is usually a TV, Wifi, Lights, etc. This portable system will last 14-16 Hours.
Inverter Specifications & Fixtures:
-Pure sine wave inverter
-Built-in MPPT / solar charge controller
-Compatible with mains voltage and can charge batteries.
-Auto restart while AC is recovering
-Overload and short circuit protection
-Smart battery charger design for optimized battery performance
-Cold start function
How to maximize battery life:
Keep your inverter system plugged in and switched on, this will keep your batteries at full charge.
Hybrid Inverter 48V 5.2KVA / 5200W 100A MPPT Solar Inverter -MUST
You can choose which priority you want to charge your loads / battery whether it Solar or Grid or both
The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which can help you make full use of solar energy.
This inverter can provide power to the loads without a battery
Features:
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Built-in MPPT solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Can provide the power to the load without battery
- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function
- Support USB, RS485 monitoring function
- WIFI remote monitoring (Purchase WIFI Dongle Separately)
Specifications:
- Rated Power 5200VA/5200W
- Input Voltage 230 VAC
- Frequency Range 50 Hz/60 Hz (Auto sensing)
Output
- AC Voltage Regulation (Batt. Mode) 230VAC 5 %
- Surge Power 10400W
- Efficiency (Peak) 93 %
- Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances)
- Waveform: Pure sine wave
Battery & AC Charger
- Battery Voltage 48 VDC
- Floating Charge Voltage 54.8 VDC
- Overcharge Protection 60 VDC
- Maximum Charge Current 80 A
Solar Charger
- Maximum PV Array Open Circuit Voltage 450 VDC
- Maximum Charging Current 80A
Description
The SVolt 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVolt 51.2V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
Features:
A-Grade Cell Technology
Maintenance-free
Environmental Friendly
Wide Variety of Markets
Renewable Energy
7 Protection Features
Built-in Battery Management System
Mountable
Battery Specifications:
Battery Type-Chemistry: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 106Ah
Energy Density: 5427.2Wh
Terminal Type: M6
Terminal Torque: 8.5NM
Case Material: Metal
BMS Built-in: Yes
Internal Resistance: - Efficiency - Round Trip: >99.5%
Self Discharge per Month: - Max Parallel Connectors: 16Pcs
Series Connections: Not Allowed
Cycle Life(0.2C, 25 C @ 80% DOD): >4000 Cycles
Discharge Temperature: -20 C to 65 C
Charge Temperature: 0 C to 45 C
Storage Temperature: -10 C to 30 C
Voltage Window: 44.8 - 57.6V
Recommended Charge Voltage: 57.6 0.20V
Max Charge Voltage: 58.4 0.20V
Recommended Charge Current: 50A
Max Continuous Charge Current: 100A
Recommended Discharge Voltage: 44.8 0.20V
Max Discharging Voltage: 43.2 0.20V
Max Continuous Discharge Current: 100A
Peak Discharge Current: 120A (5s 2s)
BMS Characteristics:
Primary Charging Protection: (Current: 80A) (Delay Time:1000ms)
Secondary Charging Protection: (Current: 100A) (Delay Time:500ms)
Primary Discharging Protection: (Current: 110A) (Delay Time: 5s 2s)
Secondary Discharging Protection: (Current: 120A) (Delay Time: 5s 2s)
Over Charge Voltage Protection: (Voltage: 58.4V) (Delay Time:500ms)
Over Discharge Voltage Protection: (Voltage: 43.2V) (Delay Time:500ms)
Temperature Protection: (Temperature: 95 C) (Recover: 85 C)
Communication Port: Major RS485,CAN/Dryport

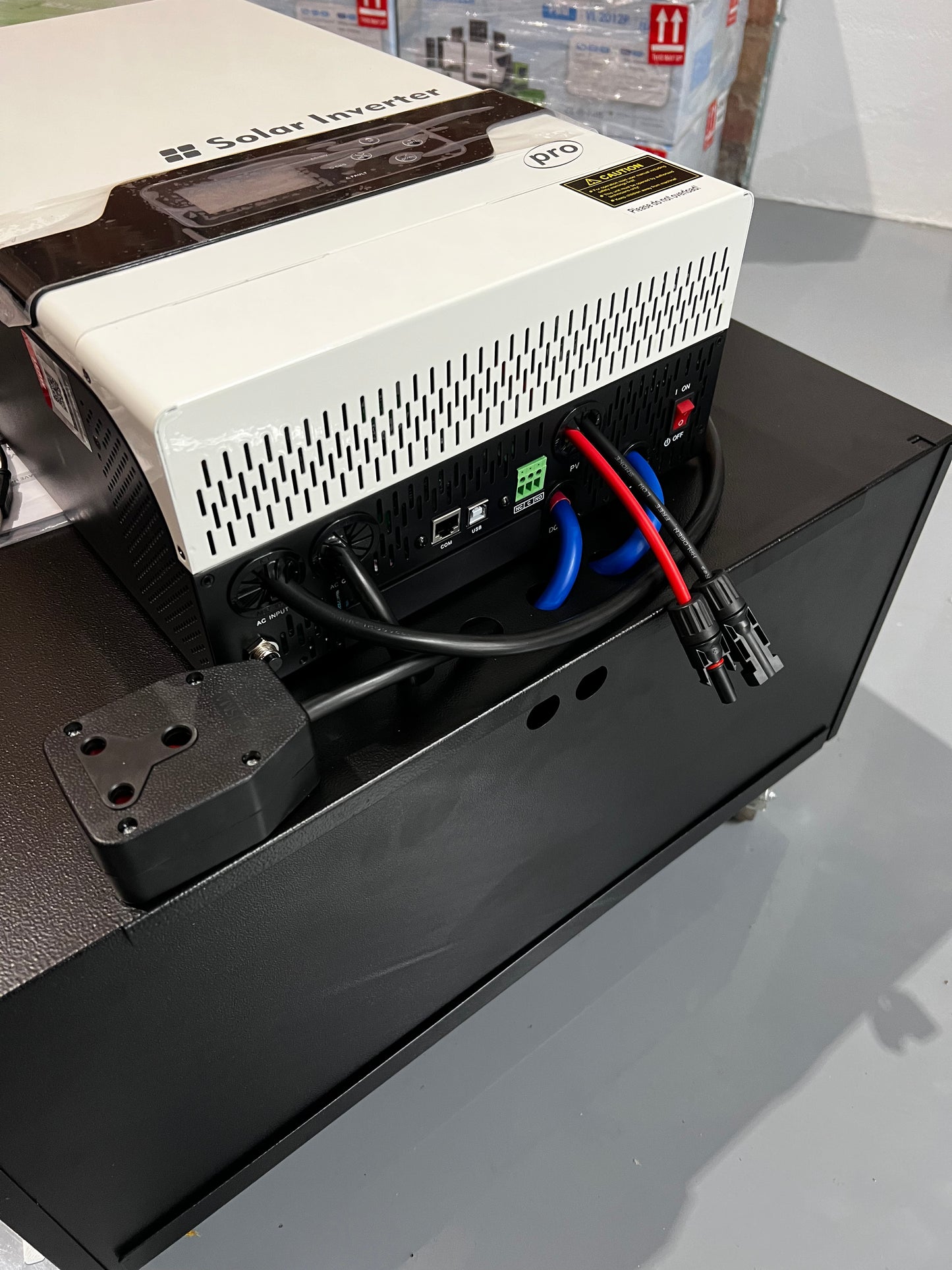

This system is equipped with the following:
1x PORTABLE STEEL BOX WITH 2x LOCK WHEELS
1x SURGE PLUG ON 1m POWER CABLE (2.5mm cabtyre)
1x DOUBLE SIDED FEMALE PLUG SOCKET
1x FUSE + DISCONNECTOR (battery to inverter)
1x BATTERIES AND INVERTER MENTIONED IN THE TITLE
SIZE
60 cm x 60 cm x 45 cm
