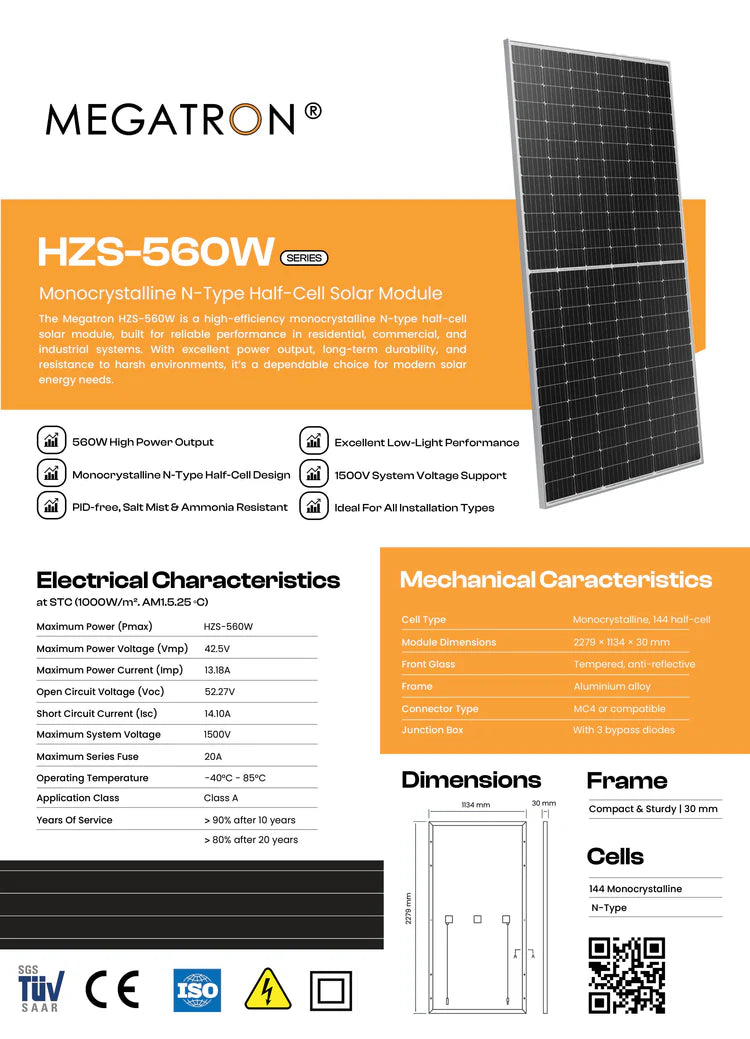

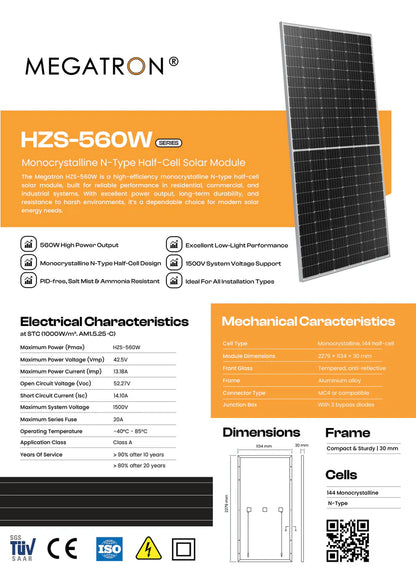

560W Megatron Tier 1 Solar Panels (HZS-560W)
560W Megatron Tier 1 Solar Panels (HZS-560W)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 3 left
Couldn't load pickup availability
Description
High-Power Tier 1 PV Module for Commercial & Utility Use
The Megatron 560W Tier 1 Solar Panel (HZS-560W) is a high-output monocrystalline photovoltaic module designed for commercial rooftops, ground-mounted arrays, and large residential systems. Built to deliver reliable performance in demanding environments, this panel combines modern cell technology with a robust mechanical design for long-term energy production.
PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK
Power Output and Energy Density
Nominal output of 560W under Standard Test Conditions (STC)
High power density reduces the total number of panels required per installation
Ideal for projects focused on optimising space and balance-of-system costs
Advanced Monocrystalline Cell Technology
High-efficiency mono PERC cells for improved energy yield
Optimised performance in low-light and variable weather conditions
Reduced internal resistance improves real-world output consistency
Thermal Performance and Durability
Favourable temperature coefficient helps limit performance losses in hot climates
Engineered to withstand harsh environmental conditions, including wind and heavy rain
Designed for long-term reliability in South African operating conditions
Mechanical Strength and Build Quality
Toughened glass front with a reinforced anodised aluminium frame
Certified to handle high mechanical loads for rooftop and ground-mount systems
IP-rated junction box ensures protection against dust and moisture ingress
Applications
Commercial and industrial solar installations
Utility-scale ground-mounted systems
Large residential solar arrays
Agricultural and industrial power generation
Technical Specifications
Electrical Characteristics (STC)
| Specification | Value |
|---|---|
| Model | HZS-560W |
| Maximum Power (Pmax) | 560 W |
| Module Efficiency | ±21.0% |
| Open Circuit Voltage (Voc) | ±49.5 V |
| Short Circuit Current (Isc) | ±14.0 A |
| Voltage at Max Power (Vmp) | ±41.5 V |
| Current at Max Power (Imp) | ±13.25 A |
| Power Tolerance | 0 ~ +5 W |
Operating Parameters
| Specification | Value |
|---|---|
| Maximum System Voltage | 1500 V DC |
| Operating Temperature | −40°C to +85°C |
| Temperature Coefficient (Pmax) | −0.35% / °C |
| Maximum Series Fuse Rating | 25 A |
| Protection Class | Class II |
Mechanical Parameters
| Specification | Details |
|---|---|
| Cell Type | Monocrystalline PERC |
| Cell Configuration | 144 half-cells |
| Glass | 3.2 mm tempered glass |
| Frame | Anodised aluminium alloy |
| Junction Box | IP68, 3 bypass diodes |
| Dimensions | ±2279 × 1134 × 35 mm |
| Weight | ±28.5 kg |
Warranty and Compliance
Megatron solar panels are manufactured in accordance with international quality standards and are supplied as Tier 1 modules.
Warranty coverage typically includes a 10-year product warranty subject to correct installation and system design.
Installation must be performed by qualified solar professionals and comply with applicable electrical and mounting standards.
