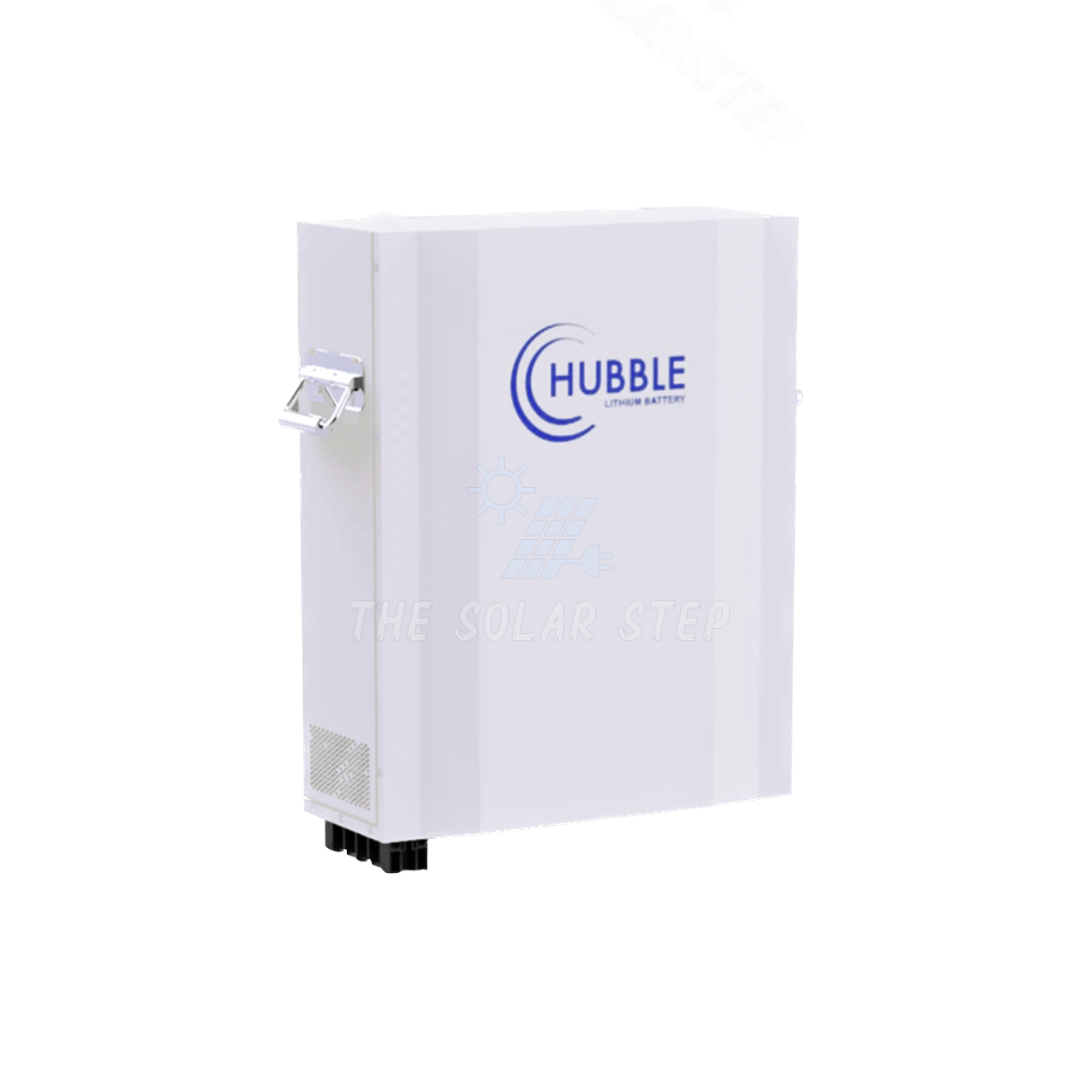

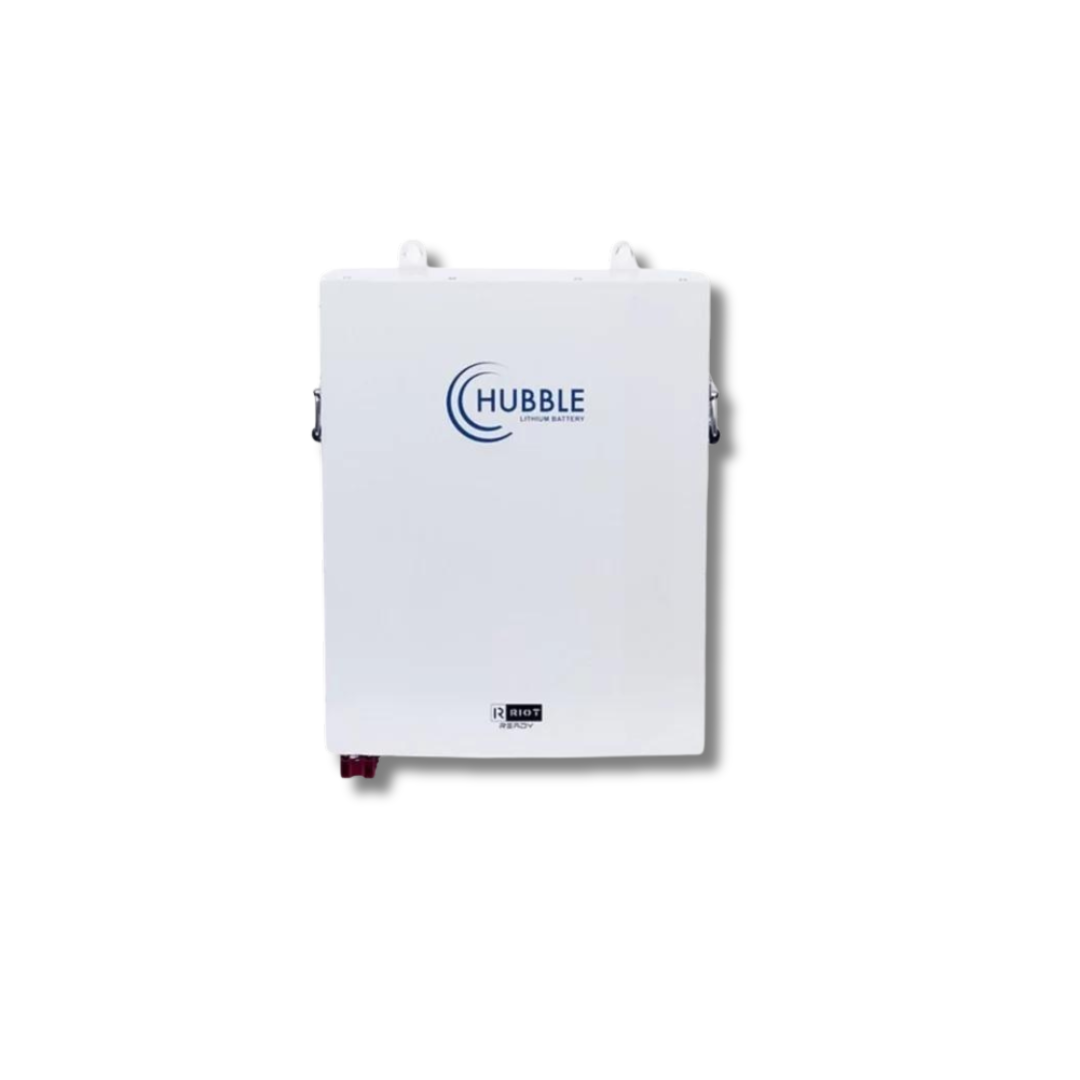

5.5kWh 51V Hubble Lithium Battery Pack AM-2

The AM-2 is our 5.5KWh 48V Lithium pack designed to be easily wall-mounted or shelf installed in a standard rack.​

Specification: 48V  5.5KWh
Rating: 1C
Parallel: up to 15 units per string
Extras: Battery Link & DC cables included
Internal Fire Suppression System: Yes
​​CAN Bus: Yes
Hubble Cloudlink Ready: Yes

Features:

• Low self-discharge

• High cycle and service life

• Easy wall mount or shelf rack installation

• Excellent high temperature performance

• Advanced BMS with current limiting function

• Compatible with most inverters and chargers

• High energy density and conversion efficiency

• Cloudlink integration ready for wifi monitoring

• Complete with integrated Battery Management System

• Heavy duty side handles for easy handling and mounting on the wall

• Built in protection for over-charge, over-discharge & over-temperature

• CAN Bus, fully integrates and communicates with leading Inverter brands

 Technical Specifications:

Rated Capacity (5HR): 116Ah

Nominal Voltage: 48V

Design Capacity: 5.5kWh

Equalised Charge Voltage: 53.8V

Max. Continuous Charging Current: 105A

Max. Continuous Discharging Current: 105A

C Rating: 1.0C

Weight: Approx. 42kg

Display: None

Parallel: Parallel connection up to 15 packs with full communications

Dimensions (WxDxH): 375mm x 145mm x 467mm

Ports: 1 x CAN-bus, 2 x Battery Link Ports

Cells: New Li-ion Prismatic Cells

Design Life: ± 15 years

Cycle Life @ 1C: +/- 6000 cycles @ 50% DOD, Above 3000 cycles @ 100% DOD

Certification: CE, UN38.2, GBT31484-2015, GBT31485-2015, GBT31486-2015

Outer Package Material: White Bake Lacquer Steel Case

Operating Temperature

• Charging: 0°C to 55°C

• Discharging: -20°C to +55°C

• Storage: -20°C to +55°C

Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting

Battery Warranty

The warranty period commences on the date of purchase from Hubble Lithium (Pty) Ltd (“Hubble Lithium”) as reflected in the relevant Hubble Lithium tax invoice. Hubble Lithium warrants that the Battery cells will achieve at least 10 years’ service life or deliver at least 3000 charge-discharge cycles as counted by the BMS, which ever event occurs first.
