5.12kWh Shoto HP10-BOX5 Pro Lithium Ion Battery
Description:

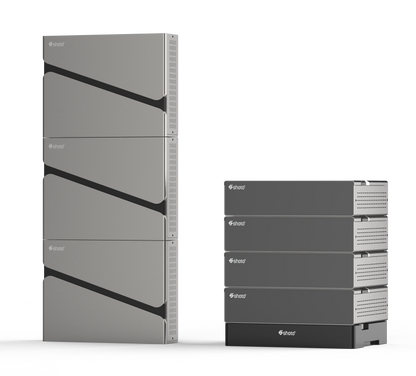

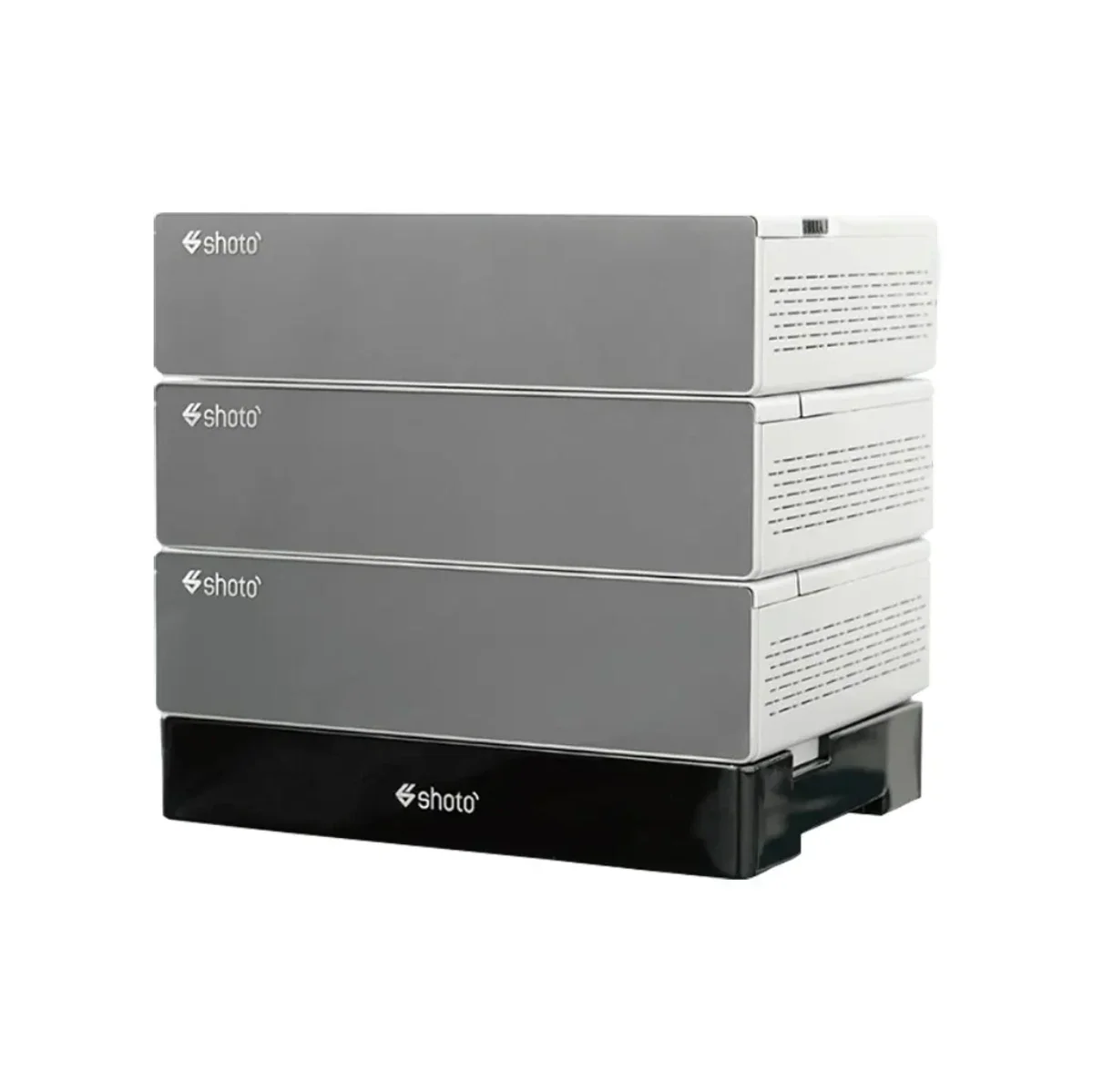

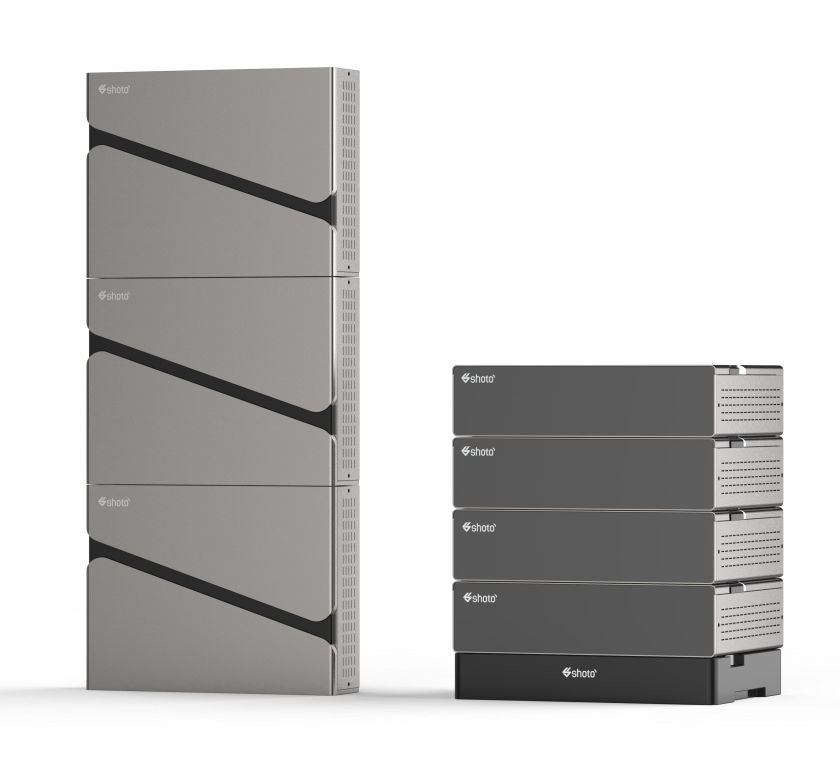

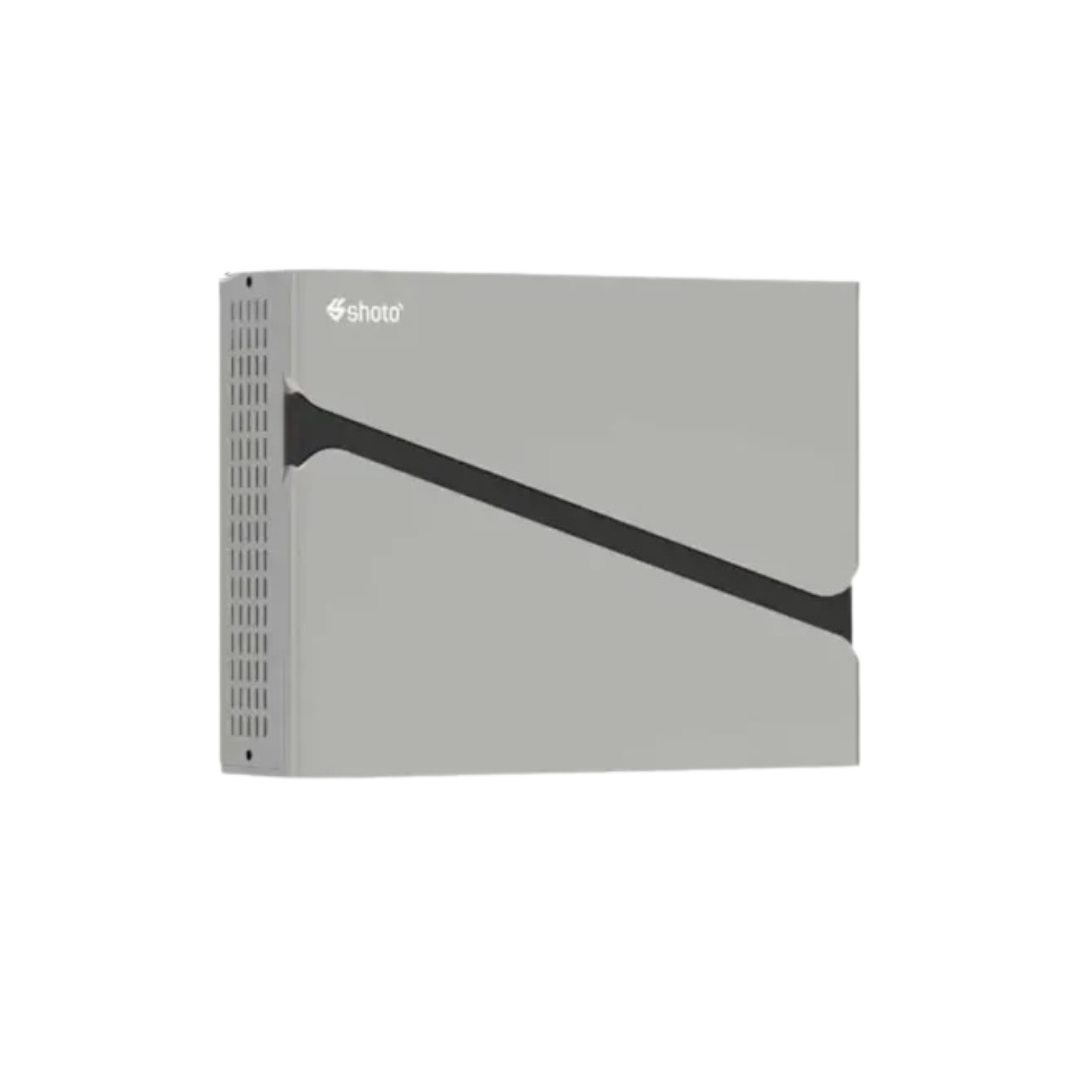

The SHOTO HP10-Box5 Pro is a professional-grade 5.12kWh lithium iron phosphate (LiFePO₄) battery module engineered for long-lasting energy storage and seamless integration into solar and backup systems. Its modular, compact design ensures scalability and efficiency for both residential and commercial installations.
Key Features and Benefits
Advanced Battery Technology
Built with high-quality LiFePO₄ chemistry for maximum safety and durability
More than 6,000 cycles at 80% depth of discharge
High energy density in a compact, stackable unit
Reliable Performance
5.12kWh storage with 100Ah capacity
Continuous efficiency above 95% to minimize energy loss
Fast charge/discharge capability with max current of 100A (recommended 50A)
Low self-discharge to maintain stored energy
Battery Management System (BMS)
Prevents overcharge, over-discharge, and short-circuits
Provides overcurrent and temperature protection
Balances cells for optimized charging and extended lifespan
Integration and Compatibility
Works with leading inverter brands: Deye, Goodwe, Luxpower, Victron, SMA, Growatt, Sofar, SRNE, TBB, Megarevo, Soruide, Sungrow, Solis, Voltronic, and Epever
RS485 and CAN communication for intelligent monitoring
Plug-and-play design for simplified installation
Supports series and parallel expansion
Applications
Residential solar storage for maximizing self-consumption
Commercial energy storage for reducing peak demand costs
Backup power for homes, offices, and critical systems
Off-grid energy supply for remote sites
Technical Specifications
Chemistry: LiFePO₄
Nominal Voltage: 48V
Capacity: 100Ah
Energy: 5.12kWh
Max Charge Voltage: 54V
Cut-off Voltage: 42V
Efficiency: >95%
Operating Temperature: -20°C to 55°C
Weight: 58kg
Dimensions: 580 × 250 × 440 mm
Warranty & Installation
This battery includes a 10-year warranty, subject to correct installation. All inverters and batteries must be installed by a qualified wireman or master electrician registered with the Department of Labour, and the installation must comply with SANS 10142 standards. A valid Certificate of Compliance (COC) is required for any warranty claim, along with installation proof. Failure to provide this documentation may render the warranty void.
