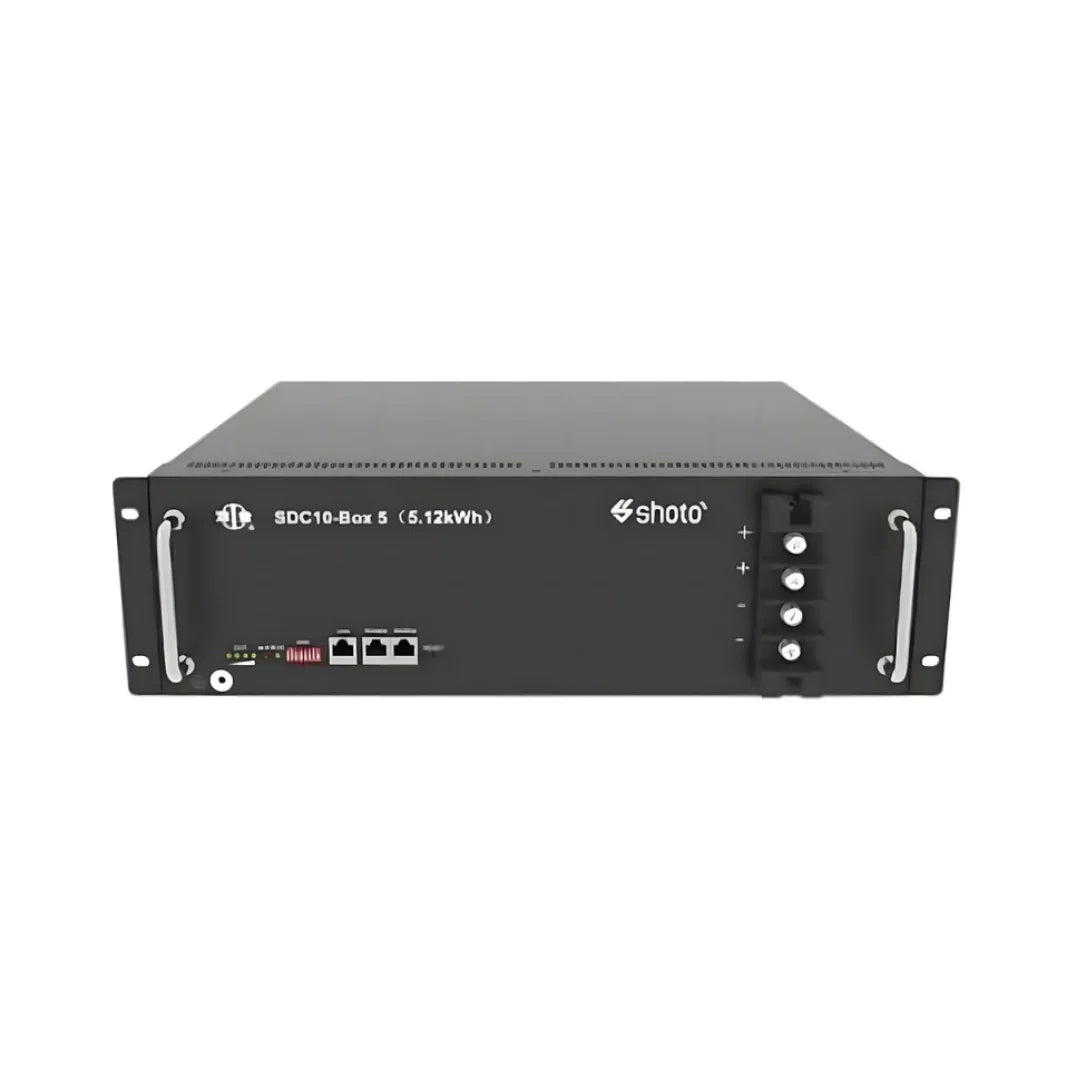

Shoto 5.12kWh (SDC10-Box 5) 48V 100AH Lithium Ion Battery

Title:

Shoto 5.12kWh Lithium-Ion Battery – 5000+ Cycles, Rack Mount

Description:

The Shoto 5.12kWh Lithium-Ion Battery is a high-performance energy storage solution, engineered for residential and commercial solar applications. With over 5000 cycles at 90% Depth of Discharge (DOD) and a 10+ year design life, this battery ensures long-term reliability and efficiency. The rack-mounted structure allows for easy installation, while its scalable parallel capability of up to 16 units makes it ideal for expanding energy storage needs.

Key Features:

• High-Capacity Energy Storage

  • 5.12kWh nominal capacity with 4.6kWh usable energy for optimized performance.
  • 90% DOD extends battery lifespan and increases efficiency.

• Reliable & Long-Lasting Design

  • More than 5000 cycles at 25°C for durable, long-term use.
  • 10+ year design life for sustainable energy storage.
  • Wide operating voltage range (42V - 57.6V) to support various load requirements.

• Flexible Installation & Scalability

  • Rack mounted design for space-saving installation.
  • Parallel up to 16 units to increase storage capacity as needed.

• Advanced Battery Management System (BMS)

  • Intelligent charge and discharge management to prevent overcharging and deep discharge.
  • Boost & float charge control (57.6V / 54V) to maintain battery health.

• Durable Construction for Various Environments

  • Operating humidity: 5% – 95%
  • Altitude tolerance: ≤4000m
  • Reliable terminal stud (M8) for secure connections

Technical Specifications:

• Model: (SDC10-Box 5)
• Nominal Capacity: 5.12kWh
• Rated Capacity: 100Ah
• Operating Voltage Range: 42V – 57.6V
• Charge Voltage: 57.6V
• Discharge Voltage: 48V
• Nominal Voltage: 51.2V
• Maximum Parallel Units: 16
• Cycle Life: ≥5000 cycles
• Installation Type: Rack Mount / Wall Mount
• Terminal Stud: M8
• Humidity Tolerance: 5% – 95%
• Altitude Limit: ≤4000m

Compatible Inverters:

• Growatt, Goodwe, Victron, Deye, Sofar, LuxPower, and more.

What’s Included:

-1 × Shoto 5.12kWh Lithium-Ion Battery (SDC10-Box 5)
-Battery Cables

Warranty & Installation Requirements:

• 5-Year Warranty
• Installation must be performed by a qualified electrical wireman or Master Electrician registered with the Department of Labour.
• A valid Electrical Certificate of Compliance (COC) must be issued after installation.
• The system must comply with SANS 10142 regulations.
• Warranty claims require:
  • Installation photos
  • A valid COC
  • Proof of installation by a qualified professional
• Failure to meet these requirements may void the warranty.
