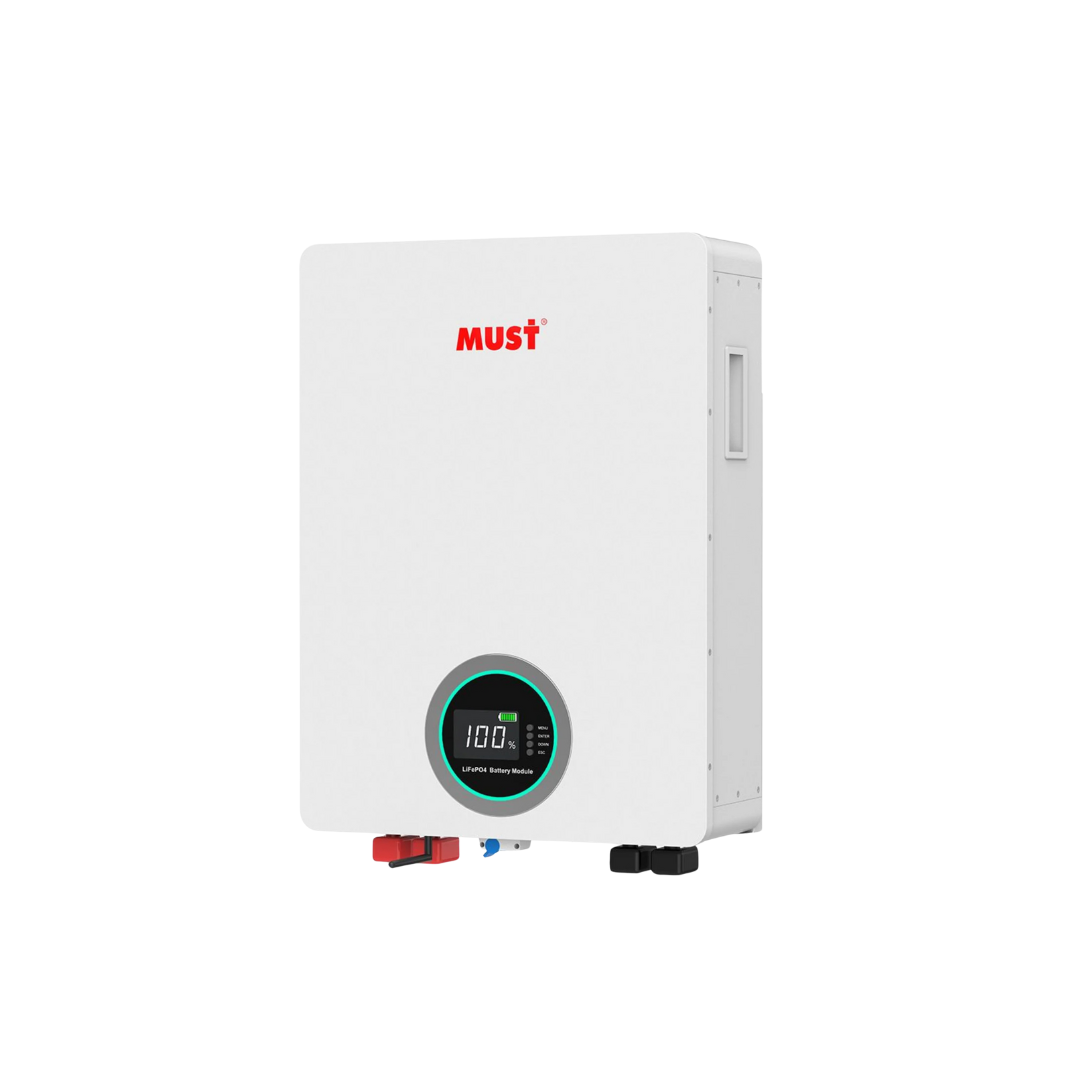

5.12kWh Must 100AH 51.2V Wall Mount Lithium Battery (LP1600) + WIFI
5.12kWh Must 100AH 51.2V Wall Mount Lithium Battery (LP1600) + WIFI
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 10 left
Couldn't load pickup availability
Share
Title:
Must 5.12kWh LiFePO₄ 51.2V Battery – Wall-Mount, Stackable, WiFi BMS
Description:
The Must LP1600 5.12kWh Lithium Battery delivers a safe, scalable, and intelligent energy storage solution for modern solar systems. Built with LiFePO₄ (Lithium Iron Phosphate) technology, this 51.2V 100Ah battery is designed for wall, rack, or stacked mounting, offering versatile installation options for both residential and light commercial applications.
Whether you need a compact backup power unit or a multi-unit energy bank, the LP1600 is engineered for flexibility, longevity, and seamless inverter integration.
Key Features:

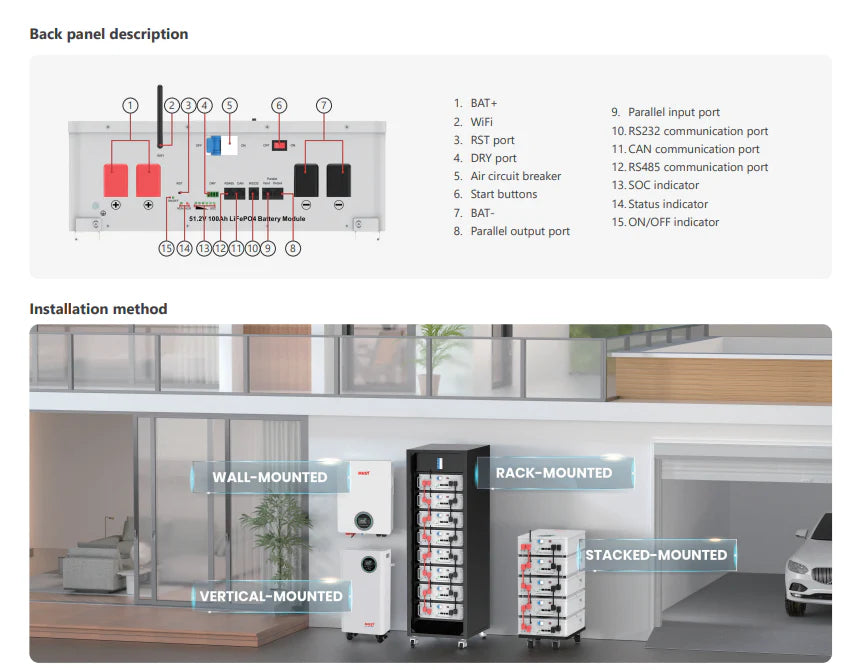

Flexible Mounting Options
-3-in-1 Design: Wall-mounted, rack-mounted, or stacked (up to 5 units)
-Supports up to 40 batteries in parallel for scalable energy storage systems
-Vertical installation required for higher capacity variants (not applicable to LP1600)
Reliable Energy Storage
-Nominal Capacity: 100Ah
-Total Energy: 5.12kWh
-Nominal Voltage: 51.2V
-Recommended Charging Voltage: 58.4V
-Max Continuous Power Output: 100A
Smart Monitoring & Integration
-Built-in WiFi-enabled Smart BMS for remote access and diagnostics
-Local LCD display for on-site monitoring
-Compatible with leading inverter brands via RS485 / CAN communication
Safety & Longevity
-Utilizes LiFePO₄ cells for maximum safety and thermal stability
-Designed for >4000 cycles at 80% DoD
-Fully certified: UN38.3, CE, IEC62619, RoHS
-Integrated battery protections for overvoltage, current, and temperature control
Compact and Efficient
-Package Dimensions: 442mm × 625.5mm × 177mm
-Weight: 45kg
-Operating Temp: Charge (0°C–55°C) / Discharge (-20°C–55°C)
Benefits of the Must LP1600 5.12kWh Battery:
Space-Saving Design
Wall-mountable and stackable for compact solar rooms or garages.
Smart Battery Management
Monitor performance, state of charge, and system alerts via WiFi or on-screen display.
Expandable Energy Bank
Add up to 40 units for total capacity over 200kWh with parallel support.
Reliable Chemistry
Lithium iron phosphate (LiFePO₄) ensures longer life and enhanced safety over AGM or gel batteries.
Broad Inverter Compatibility
Seamlessly integrates with leading inverters like Growatt, LuxPower, Deye, and more.
Warranty & Installation Requirements
5-Year Manufacturer Warranty
Installation must be done by a registered wireman or master electrician
A valid Certificate of Compliance (COC) must be issued
The system must comply with SANS 10142 regulations
Warranty claims may be rejected if installation is non-compliant or lacks proof
