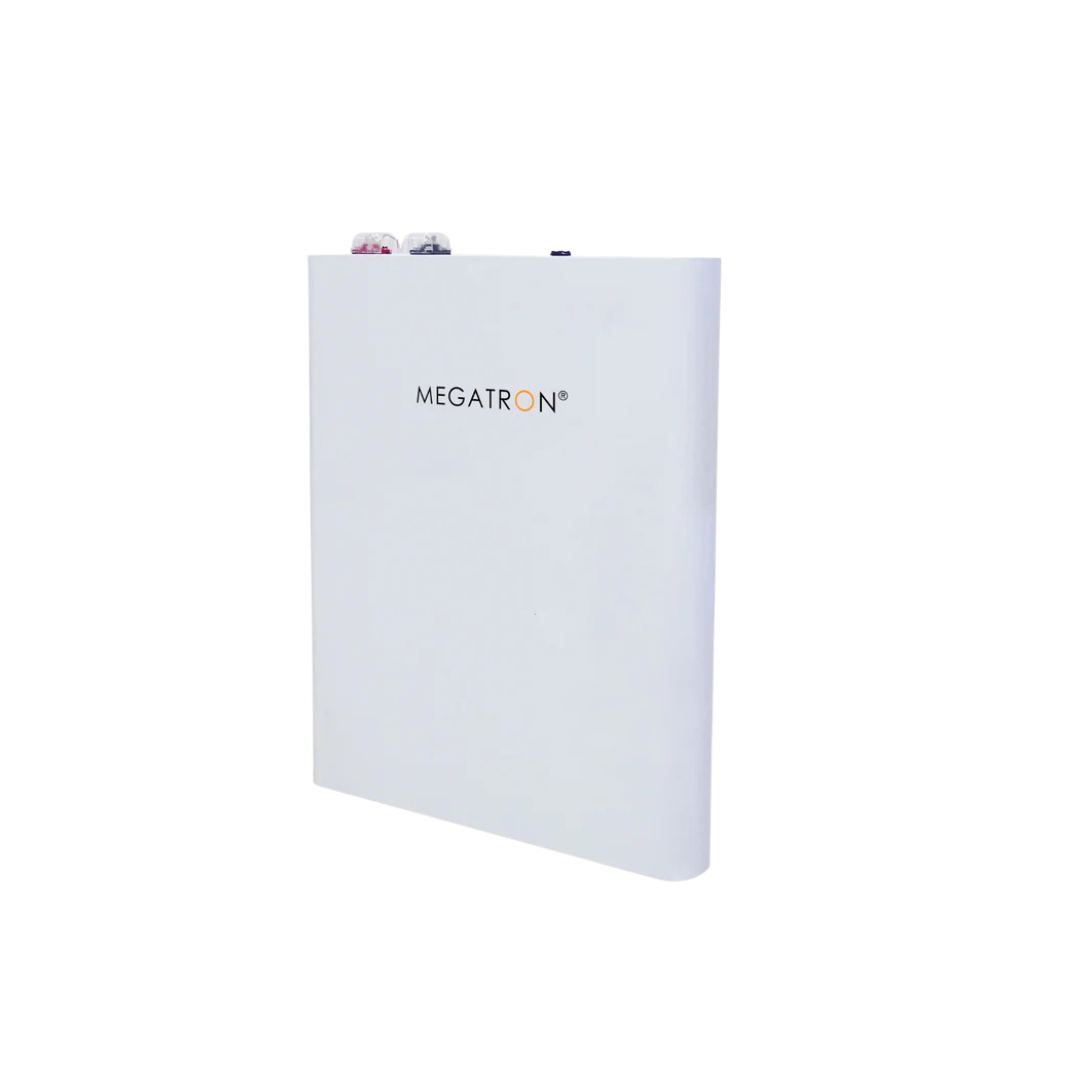

5.12kWh Megatron 100AH 51.2V Slim Lithium Battery

Title:
MEG-BATT-1 5.12kWh Ultra Slim LiFePO₄ Battery – Scalable, IP55 Rated

Description:

The MEGATRON is an advanced ultra-slim lithium iron phosphate (LiFePO₄) battery module designed for high-performance energy storage. With a compact form factor, extended cycle life, and scalable architecture, it is ideal for residential, commercial, and backup power systems requiring reliable and space-saving battery integration.

Core Specifications

• Battery chemistry: Lithium Iron Phosphate (LFP 16S)

• Nominal capacity: 5.12kWh

• Usable capacity: 4.86kWh (95% Depth of Discharge)

• Nominal voltage: 51.2V

• Operating voltage range: 43.2V – 58.4V

• Max charge voltage: 58.4V

Performance & Safety

• Max. charge current: 100A

• Max. discharge current: 150A

• Protective class: Class 1

• Ingress protection: IP55 (dust and water resistant)

• Designed for indoor environments up to 2000m altitude

• Compact and lightweight: 49kg | 780mm × 698mm × 68mm

Communication & Integration

• Supports RS485, CAN, RS232, and dry contact interfaces

• Seamless integration with compatible inverters and energy systems

• Max scalability: Up to 16 units in parallel (81.92kWh total capacity)

Durability & Lifecycle

• 6000 cycles at 25°C with 60% end-of-life capacity

• 10-year design life under standard usage conditions

• Certified to CE, IEC62619, and UN38.3 for safety and transport compliance

Operating Conditions

• Charging temperature: 0°C to 50°C

• Discharging temperature: -20°C to 60°C

• Recommended storage temperature: -10°C to 35°C

• Humidity tolerance: 95% RH (non-condensing)

Warranty

This battery includes a 10-year limited performance warranty.
Note: Installation must be performed by a certified professional in accordance with SANS 10142 standards. A valid Certificate of Compliance (COC) and proof of qualified installation must be retained for any warranty claims.
