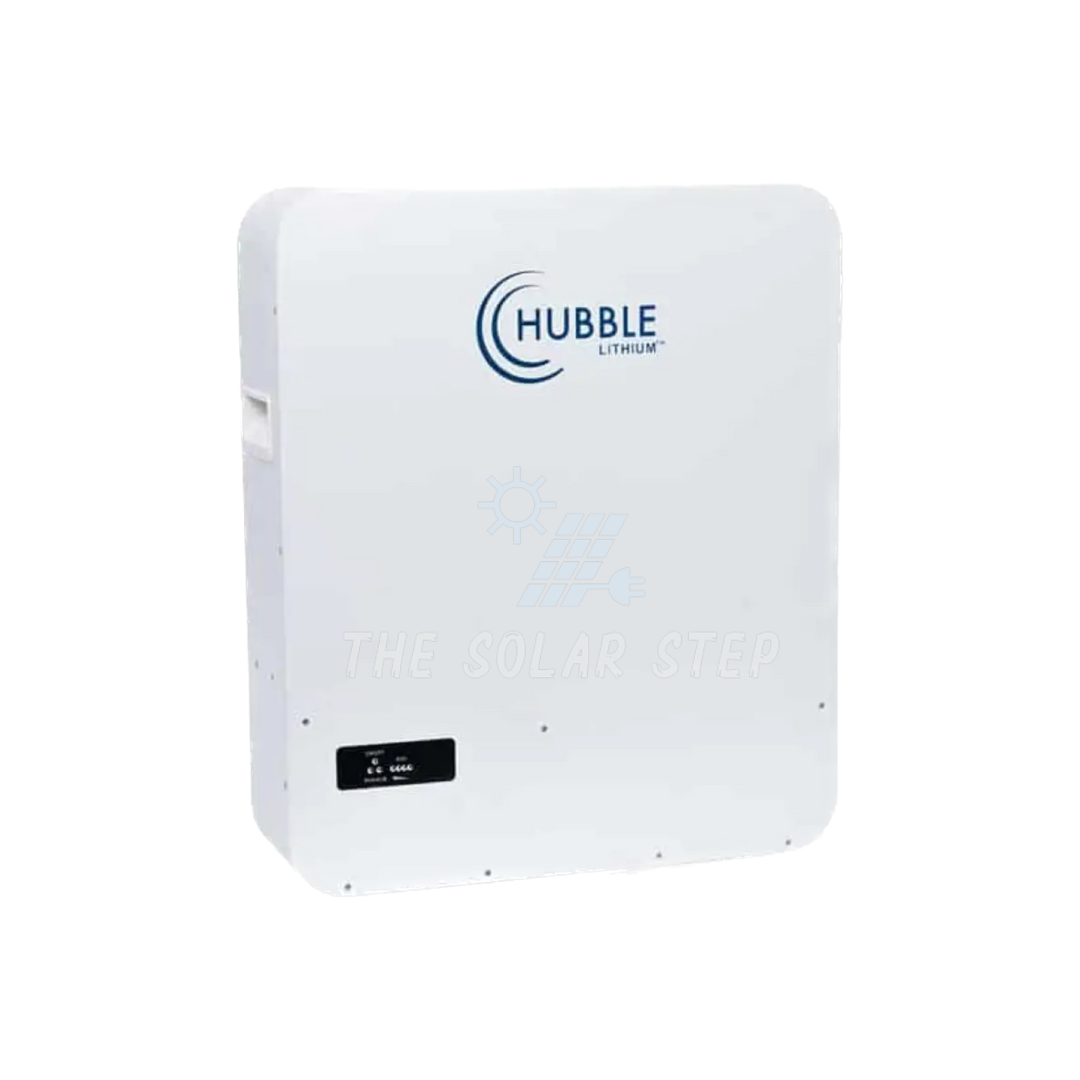

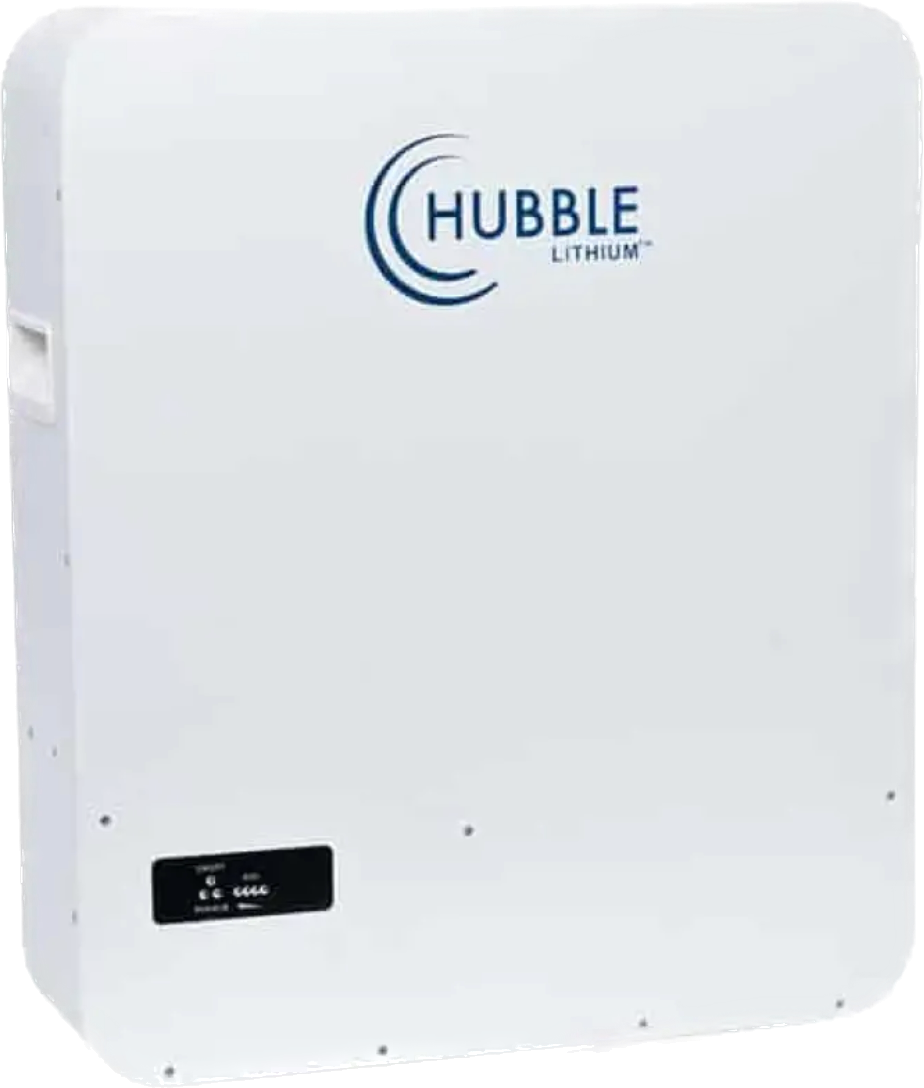

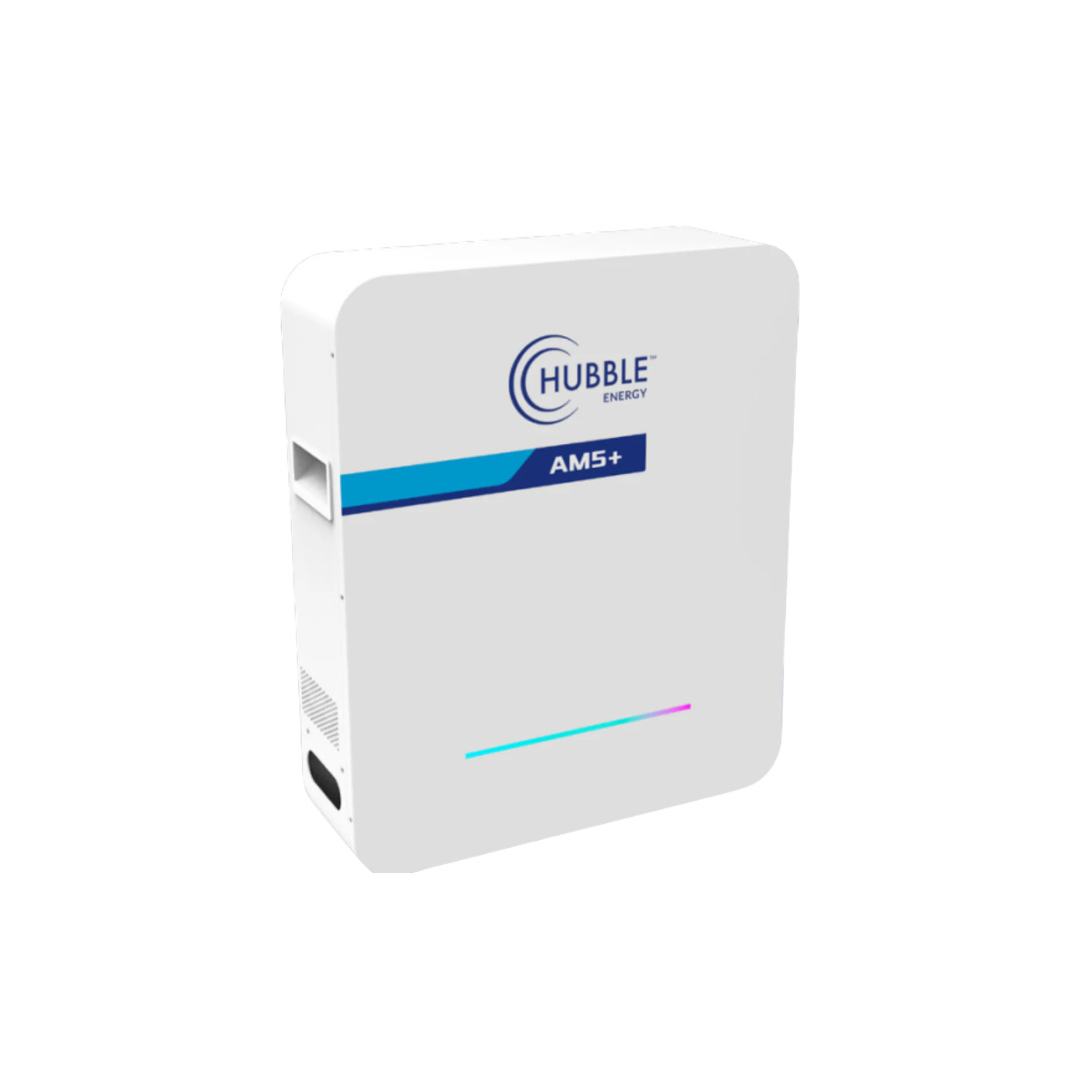

5.12kWh Hubble AM-5 LiFePO4 51.2V Battery

Hubble AM-5 LiFePO4 5.12kWh 51.2V Battery

The AM-5 is the first of its series to have LFP prismatic cells, featuring a 5.12kWh system capacity as well as monitoring capabilities via the Hubble Cloudlink.

Specification: 51.2V 5.12KWh
Rating: 1C
Parallel: up to 8 packs with full communications
Extras: Battery Link, rawl bolts, and wall bracket
CAN Bus: Yes
Hubble Cloudlink Ready: Yes

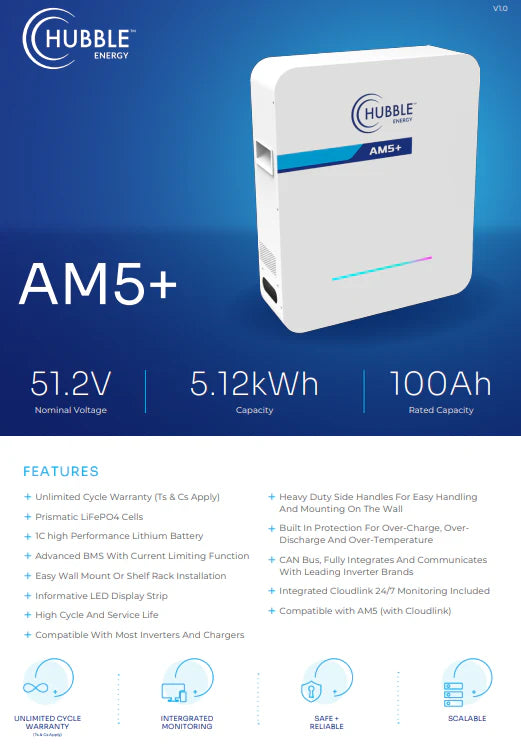

 Features:

• Low self discharge

• High cycle and service Life

• 1C High-performance lithium battery

• Easy wall mount or shelf rack installation

• Excellent high temperature performance

• Advanced BMS with current limiting function

• Compatible with most inverters and chargers

• High energy density and conversion efficiency

• Complete with integrated Battery Management System

• Hubble Cloudlink integration ready for cloud monitoring

• Heavy duty side handles for easy handling and mounting on the wall

• Built in protection for over-charge, over-discharge & over-temperature

• CAN Bus, fully integrates and communicates with leading Inverter brands

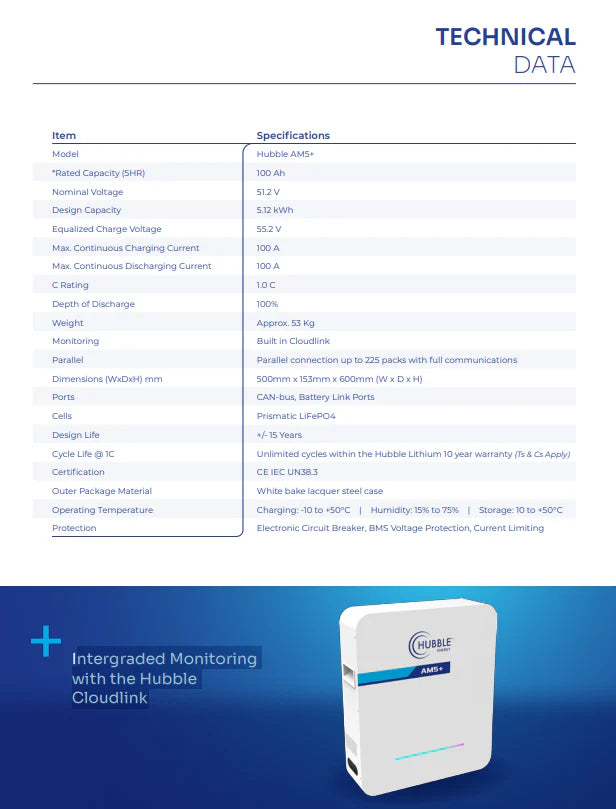

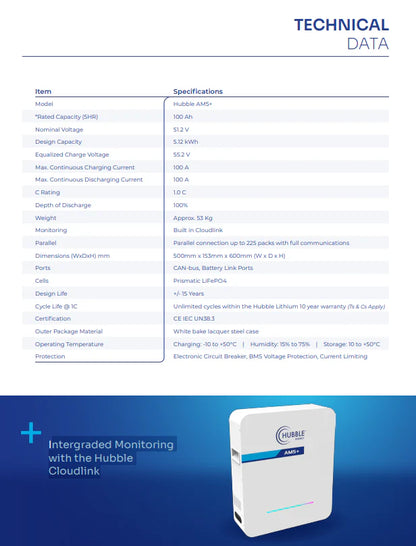

Technical Specifications:

Rated Capacity (5HR):  100Ah

Nominal Voltage: 51.2V

Design Capacity: 5.12KWH

Equalized Charge Voltage: 55.2V

Max. Continuous Charging Current: 100A

Max. Continuous Discharging Current: 100A

C Rating: 1C

Weight: Approx. 51kg

Monitoring: Cloudlink

Parallel: Parrallel connection up to 8 packs with full communications

Dimensions (WxDxH): 509.62mm x 173mm x 599.67mm

Ports: CAN-bus, Battery Link Ports

Cells: Prismatic LiFePO4

Design Life: ± 15 Years

Cycle Life: UNLIMITED CYCLES WITHIN THE HUBBLE LITHIUM 10-YEAR WARRANTY. (Ts & Cs Apply)

Certification: CE IEC UN38.3

Outer Package Material: White Bake Lacquer Steel Case

Operating Temperature

• Charging: -10°C to +50 °C

• Humidity: 15% to 75%

• Storage: 10°C to +50°C

Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting

Battery Warranty

The warranty period commences on the date of purchase from Hubble Lithium (Pty) Ltd (“Hubble Lithium”) as reflected in the relevant Hubble Lithium tax invoice. Hubble Lithium warrants that the Battery cells will achieve at least 10 years’ service life and deliver unlimited charge-discharge cycles within the warranty period.
