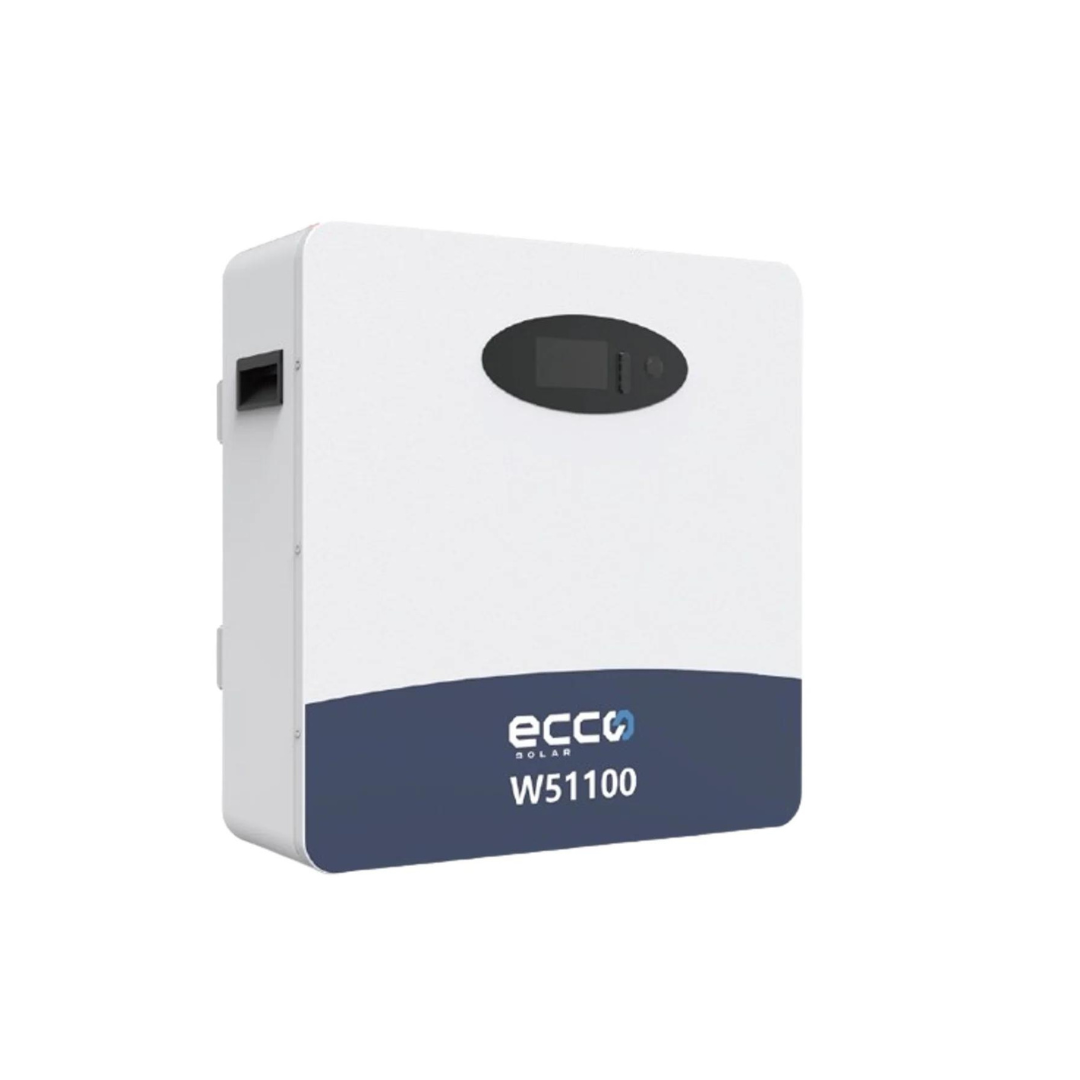

5.12kWh Ecco Lithium Battery 51.2V 100AH W51100 Wall-Mount

Lithium Battery (Ecco 51.2V 100Ah 5.12kWh W51100 – Wall-Mounted)

Key Features:
-Wall-mounted design – easy to install and aesthetically pleasing
-Lithium Iron Phosphate (LiFePO4) cells – safe, long life cycle
-Max 1C charge/discharge rate
-User-friendly interface
-Compatible with multiple inverter brands
-Supports up to 16 parallel groups
-Compliant with North American UL & EU TUV standards

Advantages:

• Longer Cycle Life: Up to 20× longer cycle life and 5× longer float/calendar life than lead-acid batteries
• Lighter Weight: ~40% of the weight of comparable lead-acid batteries
• Higher Power: 2× the power of lead-acid batteries while maintaining high energy capacity
• Wider Temperature Range: -20°C to 60°C
• Superior Safety: Eliminates risk of explosion or combustion from impact, overcharging, or short circuits

What’s in the Box?

• Battery
• Battery Cables & Mounts

Battery Parameters:

• Battery Type: Set to “USE”
• Bulk Charge Voltage: 56.4-56.6V
• Float Charge Voltage: 54V
• Cut-off Voltage: 47V

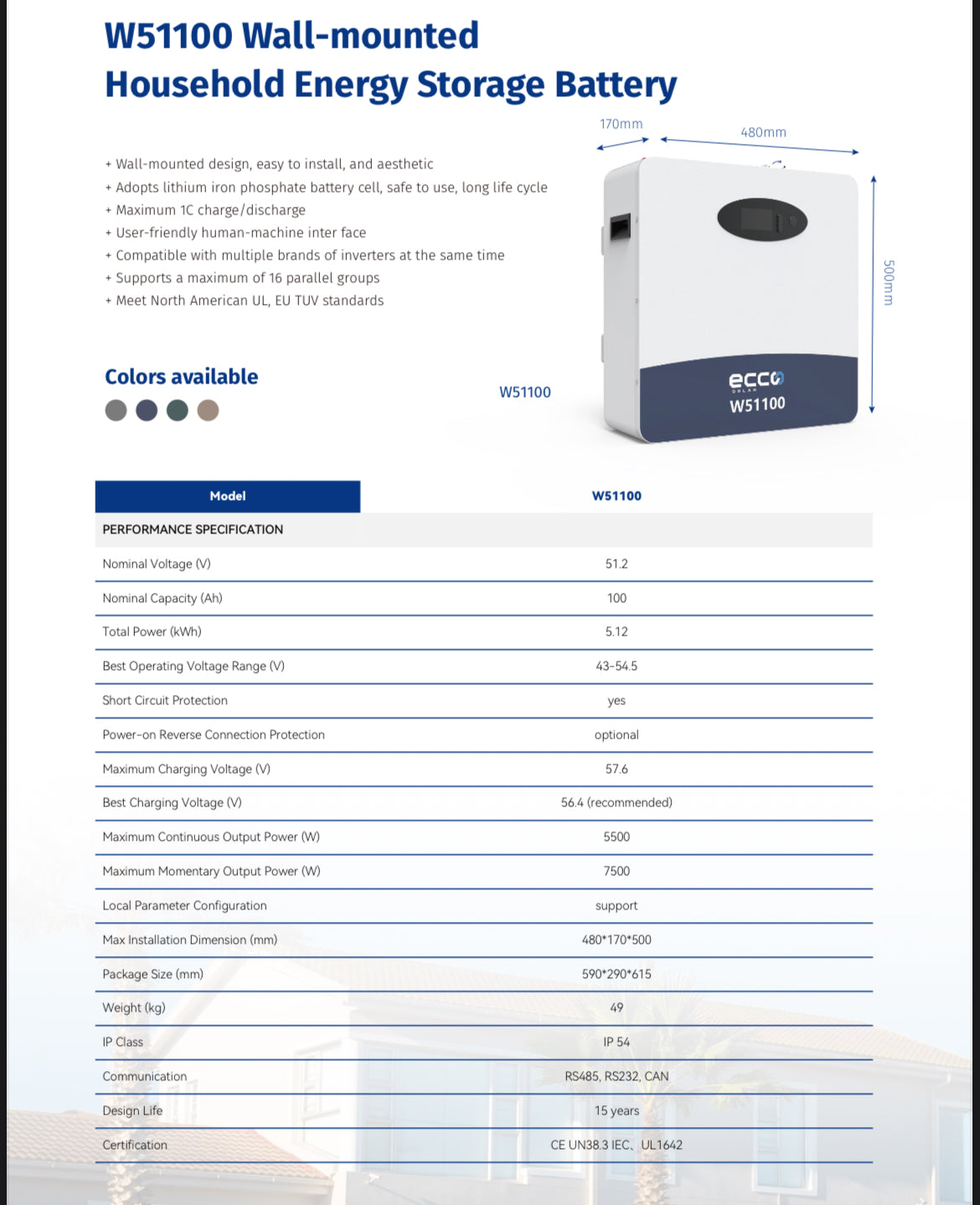

Technical Specifications:

• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Total Power: 5.12kWh
• Best Operating Voltage Range: 43V - 54.5V
• Short Circuit Protection: Yes
• Power-on Reverse Connection Protection: Optional
• Max Charging Voltage: 57.6V
• Best Charging Voltage: 56.4V (Recommended)
• Max Continuous Output Power: 5500W
• Max Momentary Output Power: 7500W
• Local Parameter Configuration: Supported
• Max Installation Dimensions (mm): 480 × 170 × 500
• Package Size (mm): 590 × 290 × 615
• Weight: 49kg
• IP Class: IP54
• Communication: RS485, RS232, CAN
• Design Life: 15 years

• Battery:

  • Voltage: 48V
  • Max Discharge Current: 220A
  • Floating Charge Voltage: 54VDC
  • Overcharge Protection: 63VDC
  • Charging Method: CC/CV

• 5-Year Warranty
• Installation must be performed by a qualified electrical wireman or Master Electrician with valid registration with the Department of Labour.
• A valid Electrical Certificate of Compliance (COC) must be issued after installation, specific to the backup or solar system.
• Installation must comply with SANS 10142 and all its parts.
• Warranty claims must include:
  • Installation photos
  • Valid COC
  • Proof of installation by a qualified wireman or Master Electrician
• Failure to provide the above may void the warranty.
