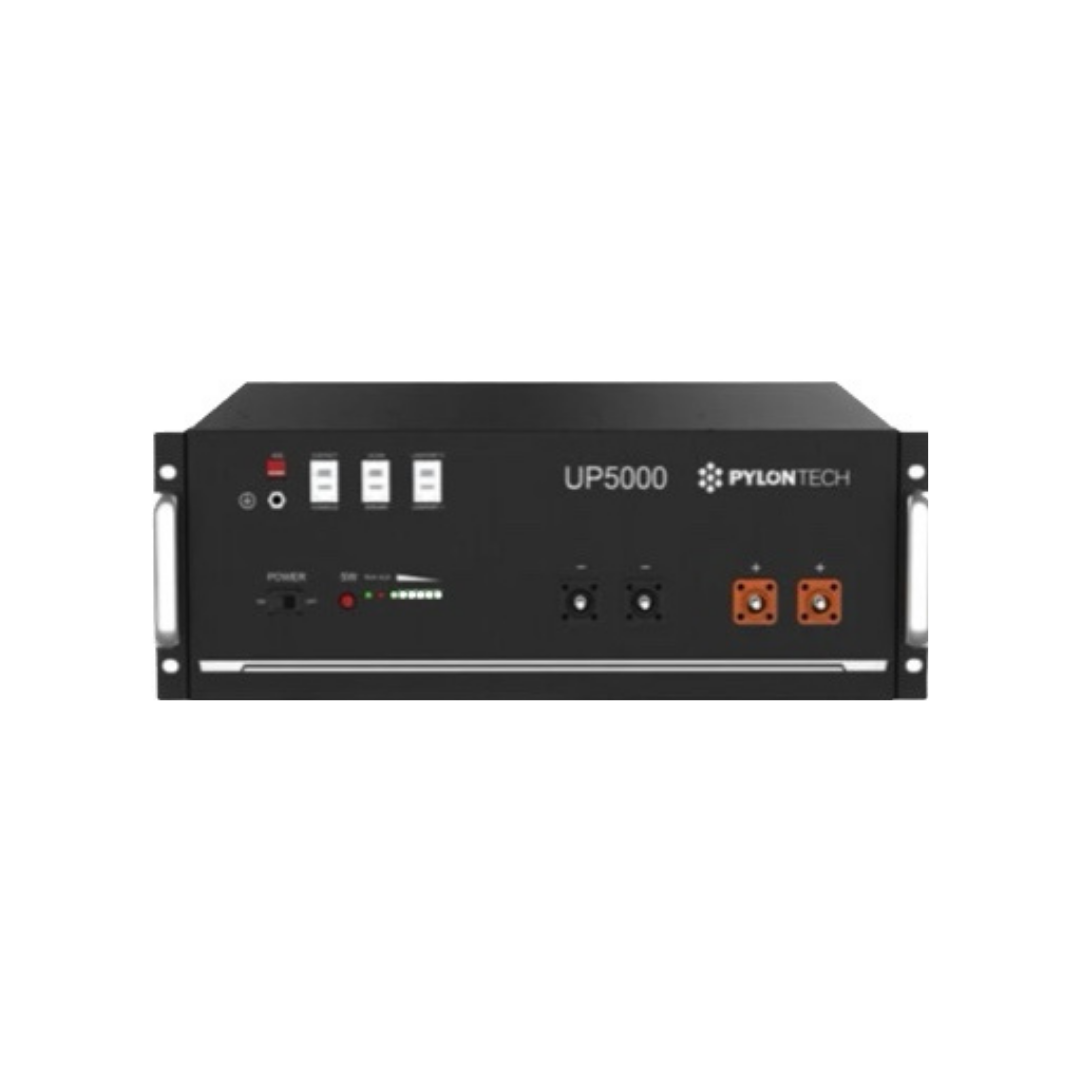

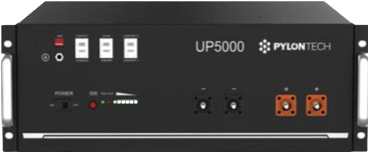

4.8kWh 48V PylonTech UP5000 LI-ION Solar Battery

Pylontech UP5000 4.8kWh 48V Li-Ion Battery – Modular & Expandable

Engineered for efficient energy storage, the Pylontech UP5000 48V lithium battery is a modular, high-performance solution for home and commercial backup systems. With its intelligent design and 95% Depth of Discharge (DoD), this unit delivers more usable energy per module — reducing the number of batteries required for larger installations.

Key Benefits:

Expandable Storage Design

• Modular system supports seamless scaling

• Parallel connection of up to 16 units (total capacity up to 72.96kWh)

• No need for a separate LV Hub during expansion

Efficient Energy Output

• Delivers 4.56kWh of usable energy from a 4.8kWh total capacity

• 95% Depth of Discharge (DoD) allows for optimal energy utilization

• Advanced Battery Management System (BMS) safeguards internal cells

Robust Compatibility

• Compatible with inverters supporting CAN or RS485 communication

• Designed to integrate easily into existing solar or backup setups

Technical Specifications:

• Nominal Voltage: 48VDC

• Rated Capacity: 100Ah

• Usable Energy: 4,560Wh

• Dimensions: 442mm x 485mm x 132mm

• Weight: 45kg

• Cable Set: Not Included

• PLEASE NOTE THAT BATTERY CABLES ARE NOT INCLUDED

Installation & Warranty:

This product includes a 5-year warranty, provided the unit is installed by a qualified wireman or master electrician registered with the Department of Labour. An installation-specific COC (Certificate of Compliance) is mandatory. Installations must adhere to SANS 10142. Warranty claims require valid proof of compliant installation, including photos and documentation.
