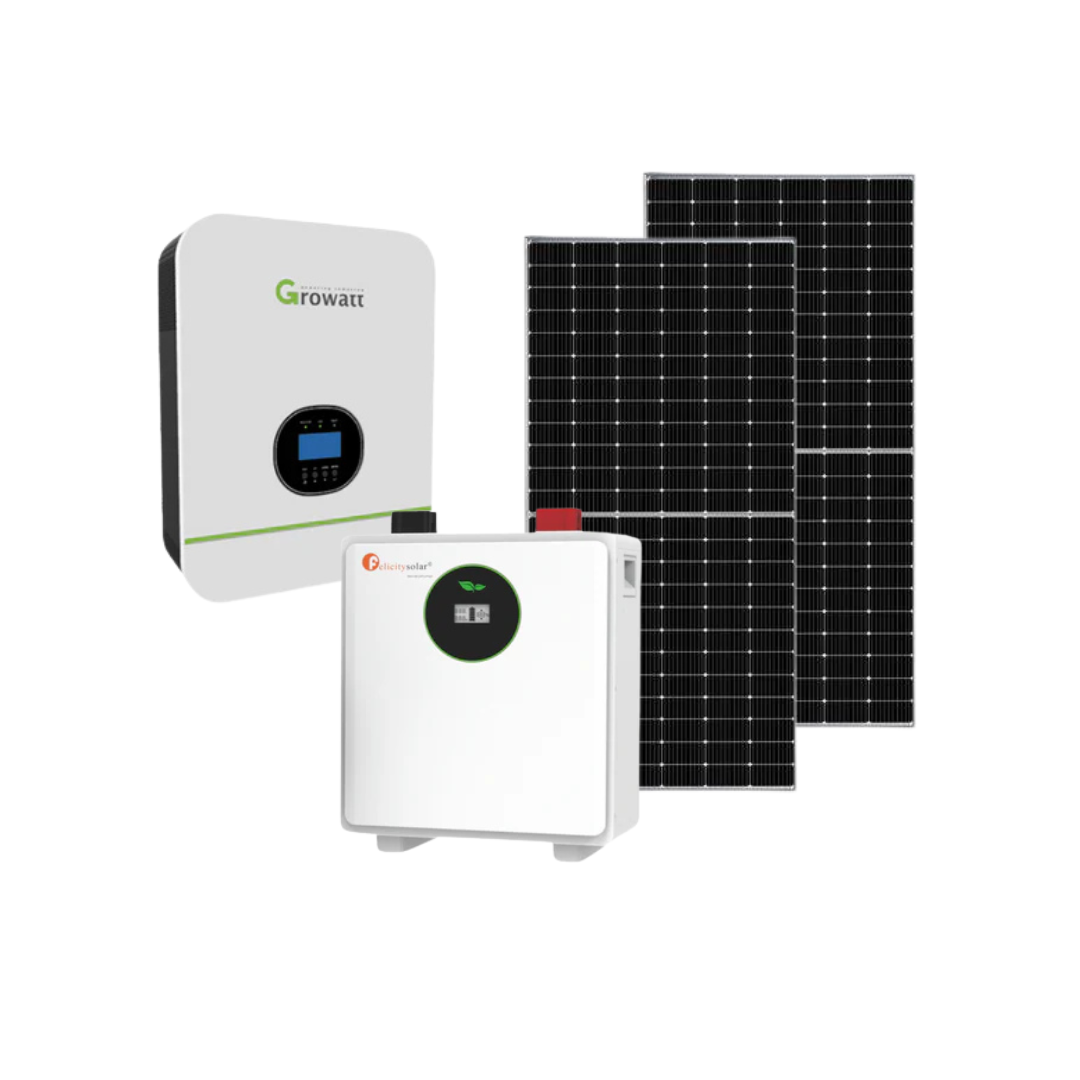

3KVA Growatt 24V Hybrid Inverter + 24V Felicity 25.6kWh Battery + 2x 460W Bi-Facial Solar Panels Combo Kit
3KVA Growatt 24V Hybrid Inverter + 24V Felicity 25.6kWh Battery + 2x 460W Bi-Facial Solar Panels Combo Kit
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 1 left
Couldn't load pickup availability
3KVA Growatt 24V Hybrid Inverter + 24V Felicity 25.6kWh Battery + 2x 460W Bi-Facial Solar Panels Combo Kit
Description:
This compact hybrid solar combo is built for load-shedding protection in homes and small offices. It combines the Growatt SPF 3000TL HVM-24 24V hybrid inverter with the 2.56kWh Felicity 100AH LiFePO₄ 25.6V (Low-Voltage) Battery Pack IP54 and two Tier 1 460W Bi-Facial panels, giving you a stable backup platform with efficient MPPT solar charging and monitoring capability via the included WiFi dongle.
Compact Hybrid Solar Kit for Backup Power :
Designed for essential circuits during outages and load shedding
Suitable for lighting, WiFi, TVs, security systems, and key plug points
Practical system size for easy installation and future solar expansion
Growatt Hybrid Inverter Performance (SPF 3000TL HVM-24) :
Rated power: 3000VA / 3000W for essential loads
Pure sine wave output suitable for sensitive electronics
Battery operation supported
Integrated MPPT charge controller for PV optimisation and battery charging
Configurable power priorities to suit site requirements
Monitoring supported via WiFi dongle (included)
Solar Charging and MPPT Control (Inverter) :
Max PV array power: 1500W
MPPT voltage range: 30VDC to 80VDC
Max PV open circuit voltage: 102VDC
Max solar charge current: 50A
Max efficiency: 93%
Nominal Energy: 2.56kWh
Nominal Voltage: 25.6V
Operating Voltage: 22.4V – 28.8V
Max Continuous Charge / Discharge Current: 100A
Peak Charge / Discharge Current: 200A for 15 seconds
Max Charge / Discharge Power: 2,500W
Parallel Expansion: Up to 15 units
Maximum Storage Capacity: 38.4kWh
Product Weight: 23kg
Package Weight: 27kg
Product Dimensions: 325 × 400 × 180mm
Package Dimensions: 462 × 417 × 252mm
General Specifications :
Battery Type: LiFePO₄
Nominal Voltage: 25.6V
Operating Voltage Range: 22.4V – 28.8V
Depth of Discharge: ≥95%
Communication: RS485 / CAN
Protection Degree: IP21
Cycle Life: ≥6,000 cycles
Charging Temperature Range: 0°C to 55°C
Discharging Temperature Range: -20°C to 55°C
Display Type: LCD + LED
Installation: Wall-mounted or floor-mounted
Protection: Built-in smart BMS and fuse
Warranty Period: 7 Years
Certification: UN38.3
What’s Included :
1 x Growatt SPF 3000TL HVM-24 24V 3kW hybrid inverter
1 x WiFi monitoring dongle
1 x Felicitysolar 25.6V Low-Voltage LiFePO₄ Battery Pack

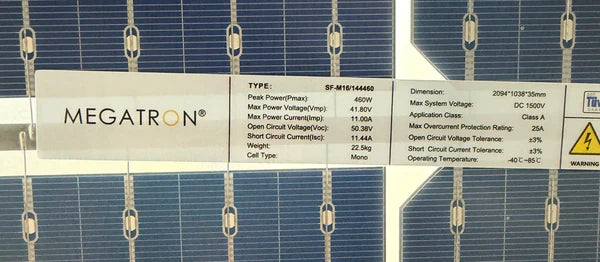

2 x 460W Tier 1 Bi-Facial panels (10-year warranty)
Warranty and Installation Requirements :
Inverter warranty: 2 years
Battery warranty: 7 years
Solar panel warranty: 10 years
Delivery Note for Panels
Please note courier for solar panels are at your own risk
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician registered with the Department of Labour
A valid Certificate of Compliance (COC) must be issued upon installation, and the system must comply fully with SANS 10142
Warranty claims submitted without installation photos, a valid COC, and proof of professional installation may be rejected and rendered null and void
