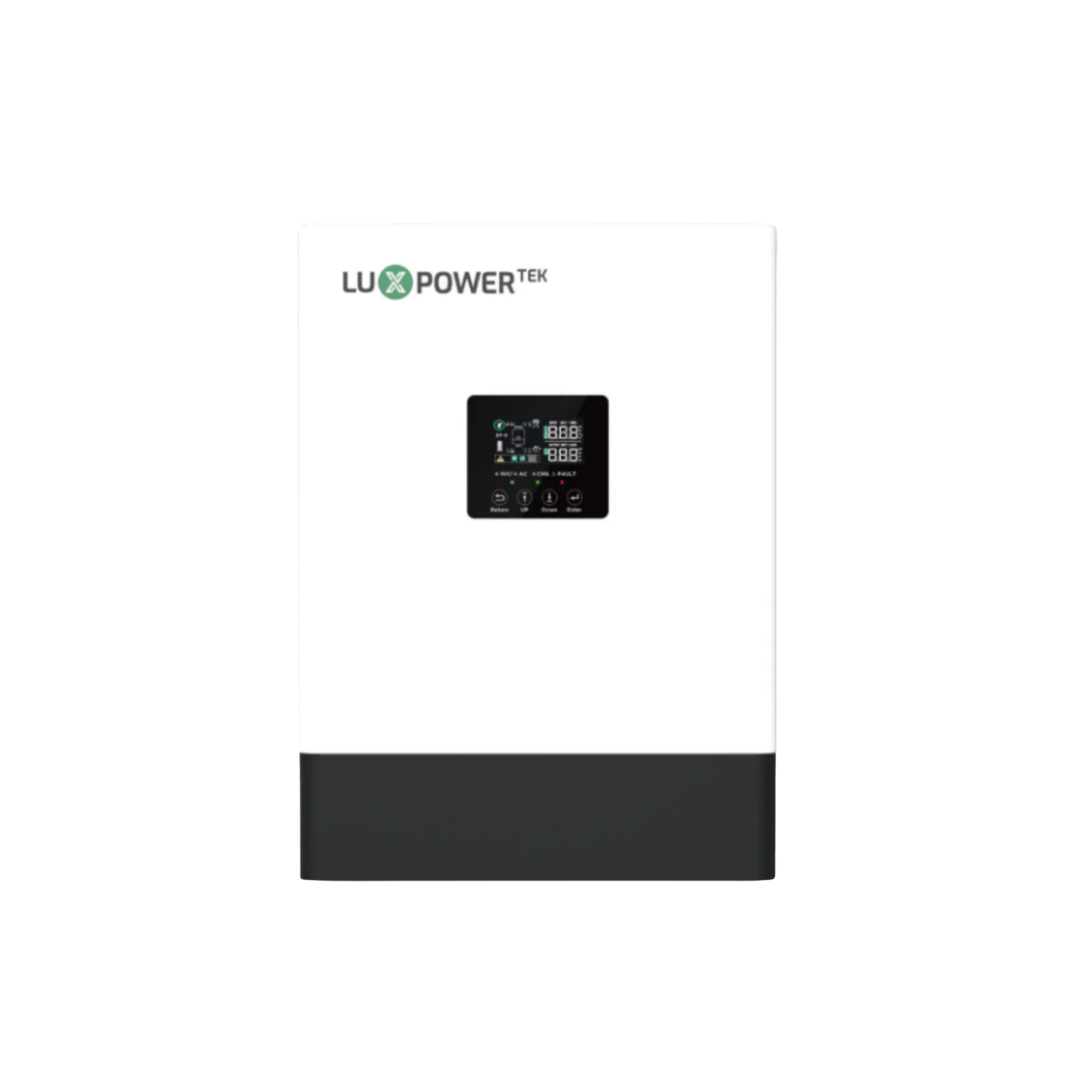

3.6kVA Luxpower GETA 24V Hybrid Inverter + 500V MPPT

Product Description:

The Luxpower GETA 3.6K/24V Hybrid Inverter is a compact 3600W pure sine wave inverter designed for residential solar backup, essential appliance circuits and small off-grid power systems.

Its high-voltage MPPT solar input supports up to 4000W of PV capacity and a maximum PV input voltage of 500V. This allows compatible solar panels to be connected in longer series strings, helping to reduce PV cable current and simplify suitable installations.

Dual AC outputs provide intelligent load management by separating essential and secondary appliances. This allows the system to prioritise important loads while controlling less critical equipment according to the available battery capacity, solar production and programmed operating mode.

The inverter is compatible with both lithium-ion and lead-acid batteries and includes battery activation from either solar power or the utility grid. Built-in Wi-Fi enables continuous remote monitoring, giving users access to system performance and operating information throughout the day.

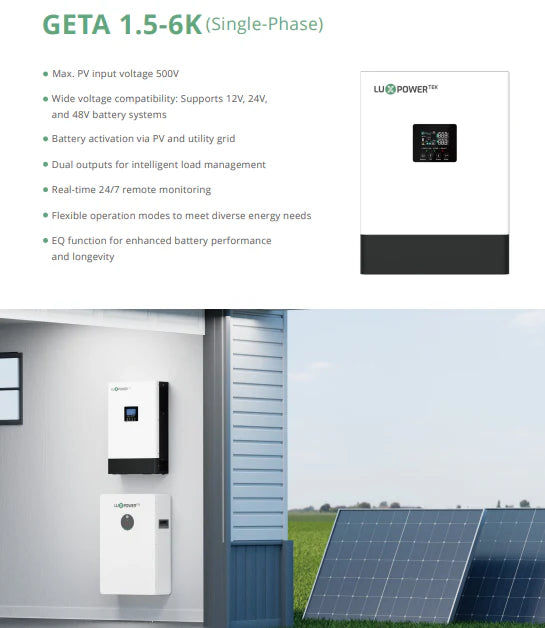

Key Features:

3600W rated pure sine wave output
24V battery system
High-voltage MPPT solar charge controller
Maximum PV array capacity of 4000W
Maximum PV input voltage of 500V
Wide MPPT operating range from 55V to 440V
Dual outputs for intelligent load management
Compatible with lithium-ion and lead-acid batteries
Battery activation through solar power or the utility grid
Flexible operating modes for different energy requirements
EQ function for improved compatible battery performance
Built-in Wi-Fi dongle
Real-time remote monitoring
Suitable for solar backup and small off-grid applications
Compact wall-mounted design
Two-year warranty

Pure Sine Wave Output:

The Luxpower GETA delivers a rated output of 3600W with a pure sine wave waveform. This provides clean and stable AC power for compatible household and electronic appliances.

Pure sine wave output is suitable for equipment such as:

Televisions
Wi-Fi routers
Computers
Lighting
Refrigerators
Security systems
Small office equipment
Selected household appliances within the inverter rating

High-Voltage MPPT Solar Input:

The inverter includes one independent MPPT input with support for a maximum PV array capacity of 4000W.

The MPPT operating range extends from 55V to 440V, while the maximum permitted PV input voltage is 500V. The connected solar panel string must remain within all voltage and current limits under the expected operating and environmental conditions.

PV Input Specifications:

Maximum PV array power: 4000W
Independent MPPT inputs: 1
Maximum PV input voltage: 500V
MPPT voltage range: 55V–440V
PV start-up voltage: 65V
Maximum PV input current per MPPT: 18A

Dual Output Load Management:

The dual-output design allows essential and non-essential loads to be managed separately. This helps the system reserve available battery energy for important circuits while controlling secondary appliances according to the inverter configuration.

The final load arrangement must be planned by the installer according to:

The inverter’s 3600W output rating
Battery discharge capability
Available solar production
Appliance start-up current
Required backup duration
Essential and non-essential load priorities

Battery Compatibility:

The Luxpower GETA 3.6K/24V supports compatible 24V lithium-ion and lead-acid battery systems.

Battery Specifications:

Compatible battery types: Lithium-ion and lead-acid
Rated battery voltage: 24V
Maximum combined PV and AC charge current: 100A
Battery wake-up from PV: Supported
Battery wake-up from utility grid: Supported
EQ battery function: Included

The EQ or equalisation function should only be enabled for battery types that support equalisation charging. It must not be used with lithium batteries unless specifically permitted by the battery manufacturer.

Battery Activation:

The inverter can activate a compatible battery using energy from either the solar array or the utility grid. This feature may assist when a compatible lithium battery has entered a low-voltage protection or sleep state.

Battery communication, voltage limits and charge settings must be configured according to the battery manufacturer’s requirements.

UPS Output Specifications:

Rated output power: 3600W
Rated output voltage: 220V / 230V AC
Rated output current: 15.7A
Output waveform: Pure sine wave

Remote Monitoring:

The inverter includes a built-in Wi-Fi dongle for remote system monitoring. Users can view compatible operating data and system performance remotely, subject to internet connectivity, platform availability and correct commissioning.

Monitoring Features:

Built-in Wi-Fi connectivity
Real-time operating information
Remote performance monitoring
Continuous 24/7 system visibility
Access to compatible solar, battery and load data

Flexible Operating Modes:

The Luxpower GETA can be configured for different energy management requirements, depending on the battery type, grid availability and solar installation design.

Possible operating priorities may include:

Solar power priority
Battery backup operation
Utility grid support
Solar and battery self-consumption
Off-grid power operation
UPS-style backup for essential loads

The exact operating options and settings must be confirmed in the latest Luxpower manual for this model.

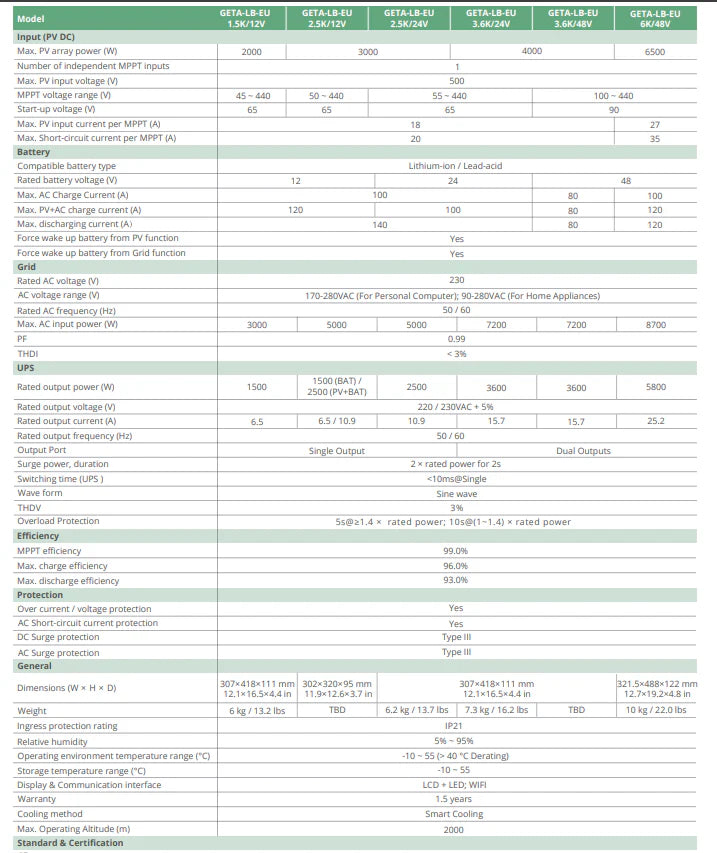

General Specifications:

Brand: Luxpower
Model: GETA 3.6K/24V
Product type: Hybrid solar inverter
Rated output power: 3600W
Rated capacity: 3.6kVA
Battery voltage: 24V
Output waveform: Pure sine wave
Maximum PV array power: 4000W
Maximum PV input voltage: 500V
MPPT inputs: 1
Maximum combined charging current: 100A
Remote monitoring: Built-in Wi-Fi
Dimensions: 307.4mm × 418mm × 111mm
Dimensions in inches: 12.1 × 16.5 × 4.4 inches
Weight: Approximately 7kg
Warranty: 2 years

Dimensions and Weight:

Width: 307.4mm
Height: 418mm
Depth: 111mm
Approximate weight: 7kg

Recommended Applications:

Residential load-shedding backup
Small home solar systems
Essential appliance circuits
Small office backup systems
Remote properties
Cabins and cottages
Small off-grid installations
Wi-Fi, lighting and security backup
Refrigerator and television backup
Systems requiring intelligent dual-output management

System Sizing Notice:

The inverter can supply a maximum rated output of 3600W. The total continuous appliance load must remain within this limit.

Appliances with motors, compressors, pumps or heating elements may draw substantially more power during start-up or operation. The installer must calculate the continuous load, surge demand, battery capacity and required backup time before commissioning the system.

The inverter output rating does not determine battery runtime. Runtime depends on:
Battery storage capacity
Usable depth of discharge
Total connected load
Inverter efficiency
Battery condition
Solar production during use
Configured operating limits

Solar Panel Configuration:

Solar panels must be configured so that the complete string remains within the following inverter limits:
Maximum array power: 4000W
Maximum open-circuit voltage: 500V
MPPT operating voltage: 55V–440V
Maximum MPPT input current: 18A
Start-up voltage: 65V

The solar string voltage must be calculated using the panel open-circuit voltage and the expected minimum site temperature. Exceeding the inverter’s maximum PV voltage or current can damage the inverter and may invalidate the warranty.

Warranty:

Two-year warranty.

The warranty is subject to the Luxpower warranty terms, correct system design, compatible equipment, approved operating conditions and professional installation.

Installation and Warranty Requirements:

All inverters and batteries must be installed by a qualified electrical wireman or master electrician with valid registration through the relevant South African authority.

A valid electrical Certificate of Compliance must be issued after installation and must specifically cover the completed backup or solar system. The installation must comply with SANS 10142 and all applicable sections, manufacturer instructions and electrical regulations.

Warranty claims may require:

A valid Certificate of Compliance
Clear installation photographs
Proof of installation by a qualified electrical wireman or master electrician
The inverter serial number
Proof of purchase
Battery and inverter settings
Solar panel string information
System commissioning records

A warranty claim submitted without the required installation documentation may be rejected and the warranty may be rendered invalid.
