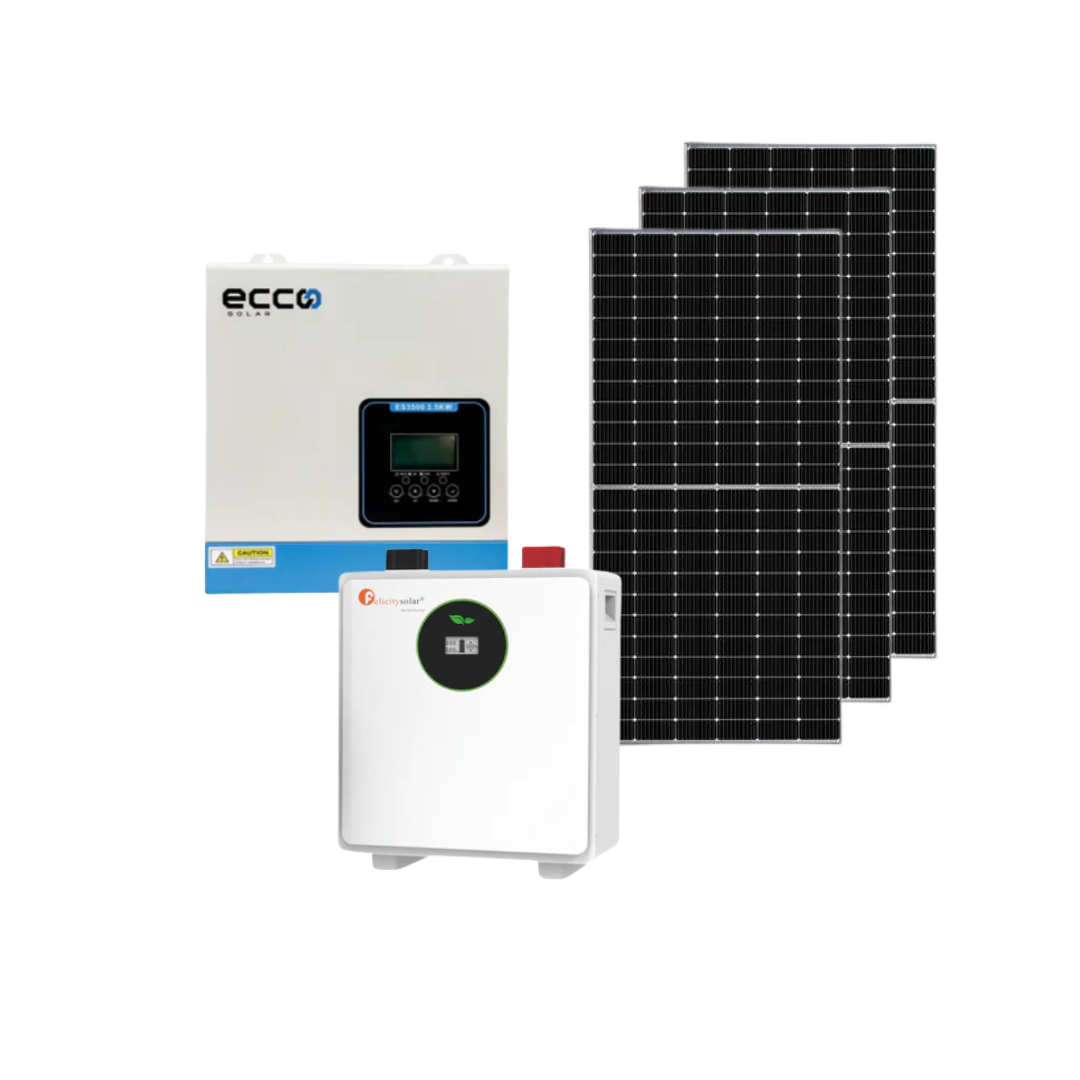

Ecco 3.5KVA 24V Hybrid Inverter + 24V Felicity 25.6kWh Battery + 3x 460W Bi-Facial Solar Panels
Description:
This Ecco hybrid solar combo kit is a practical 24V solution for backup power and small solar installations. It combines a 3.5kVA pure sine wave hybrid inverter with a 2.56kWh Felicity 100AH LiFePO₄ 25.6V (Low-Voltage) Battery Pack and three high-watt Bi-Facial solar panels, giving you a complete base system that can be monitored with an optional WiFi dongle.
Combo Includes
1x Ecco LR24100 25.6V 100Ah 2.56kWh lithium battery with BMS

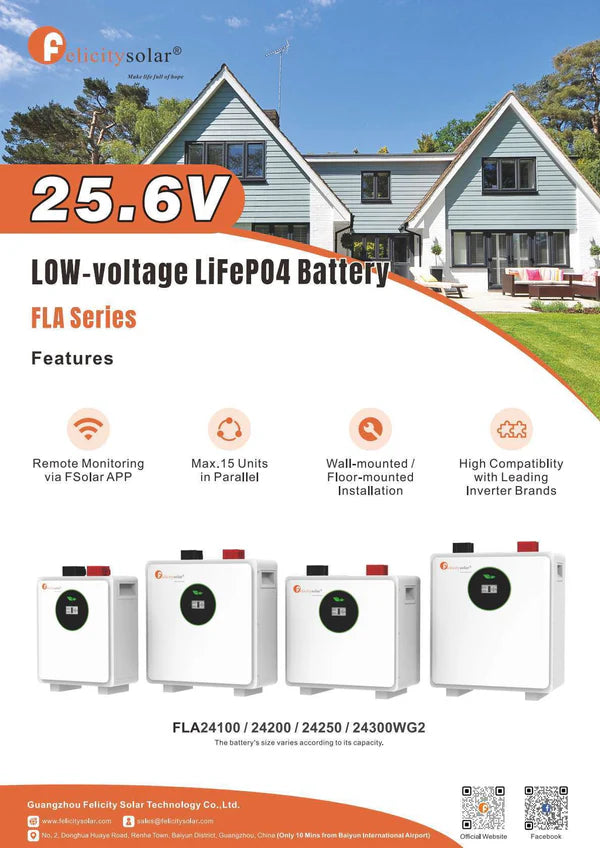

1x Felicitysolar 25.6V Low-Voltage LiFePO₄ Battery Pack

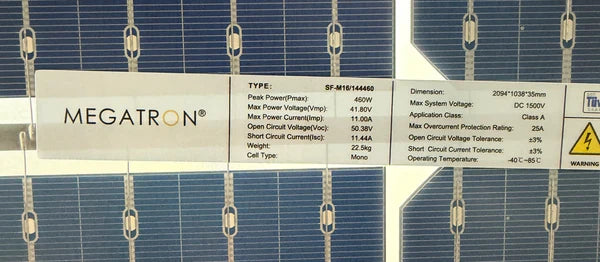

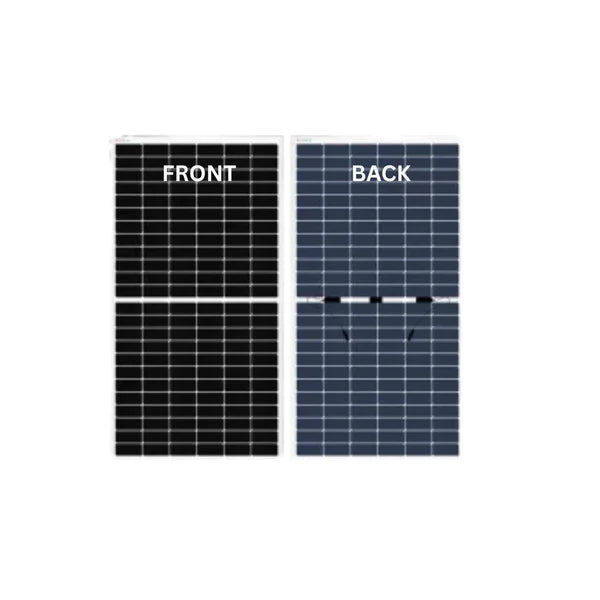

3x 460W Solar Bi-Facial panels
Optional add-on: WiFi dongle available
Hybrid Inverter Specifications (Ecco ES3500)
Inverter Mode
Rated power: 3500VA / 3500W
Nominal voltage: 24V
AC Charger Mode
AC input: 230VAC, 50/60Hz
Max charge current: 60A
Max charger current (AC + PV): 100A
AC output: 230VAC
Solar Charger Mode
Max PV array power: 4000W
Minimum solar voltage: 30VDC
Max solar voltage (Voc): 500VDC
Max MPPT charge current: 100A
Nominal Energy: 2.56kWh
Nominal Voltage: 25.6V
Operating Voltage: 22.4V – 28.8V
Max Continuous Charge / Discharge Current: 100A
Peak Charge / Discharge Current: 200A for 15 seconds
Max Charge / Discharge Power: 2,500W
Parallel Expansion: Up to 15 units
Maximum Storage Capacity: 38.4kWh
Product Weight: 23kg
Package Weight: 27kg
Product Dimensions: 325 × 400 × 180mm
Package Dimensions: 462 × 417 × 252mm

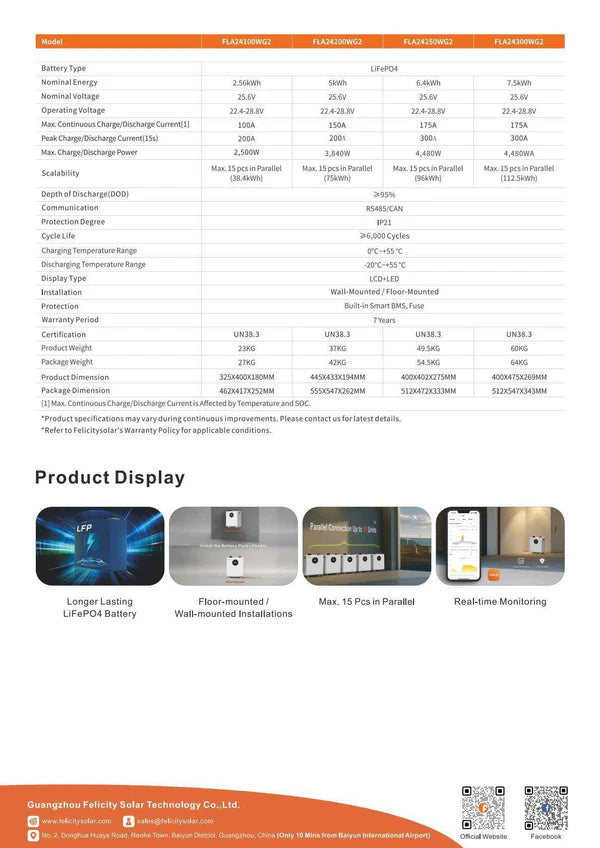

General Specifications :
Battery Type: LiFePO₄
Nominal Voltage: 25.6V
Operating Voltage Range: 22.4V – 28.8V
Depth of Discharge: ≥95%
Communication: RS485 / CAN
Protection Degree: IP21
Cycle Life: ≥6,000 cycles
Charging Temperature Range: 0°C to 55°C
Discharging Temperature Range: -20°C to 55°C
Display Type: LCD + LED
Installation: Wall-mounted or floor-mounted
Protection: Built-in smart BMS and fuse
Certification: UN38.3
Warranty
Battery warranty: 7 years
Inverter warranty: 5-year repair warranty
Solar panel warranty: 12-year product workmanship warranty
Delivery Note for Panels
Please note courier for solar panels are at your own risk
Warranty and Installation Requirements
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour
A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system
The installation must be compliant with SANS 10142 and all its parts
Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman or master electrician installing the unit, can be rejected and will render the warranty claim null and void
