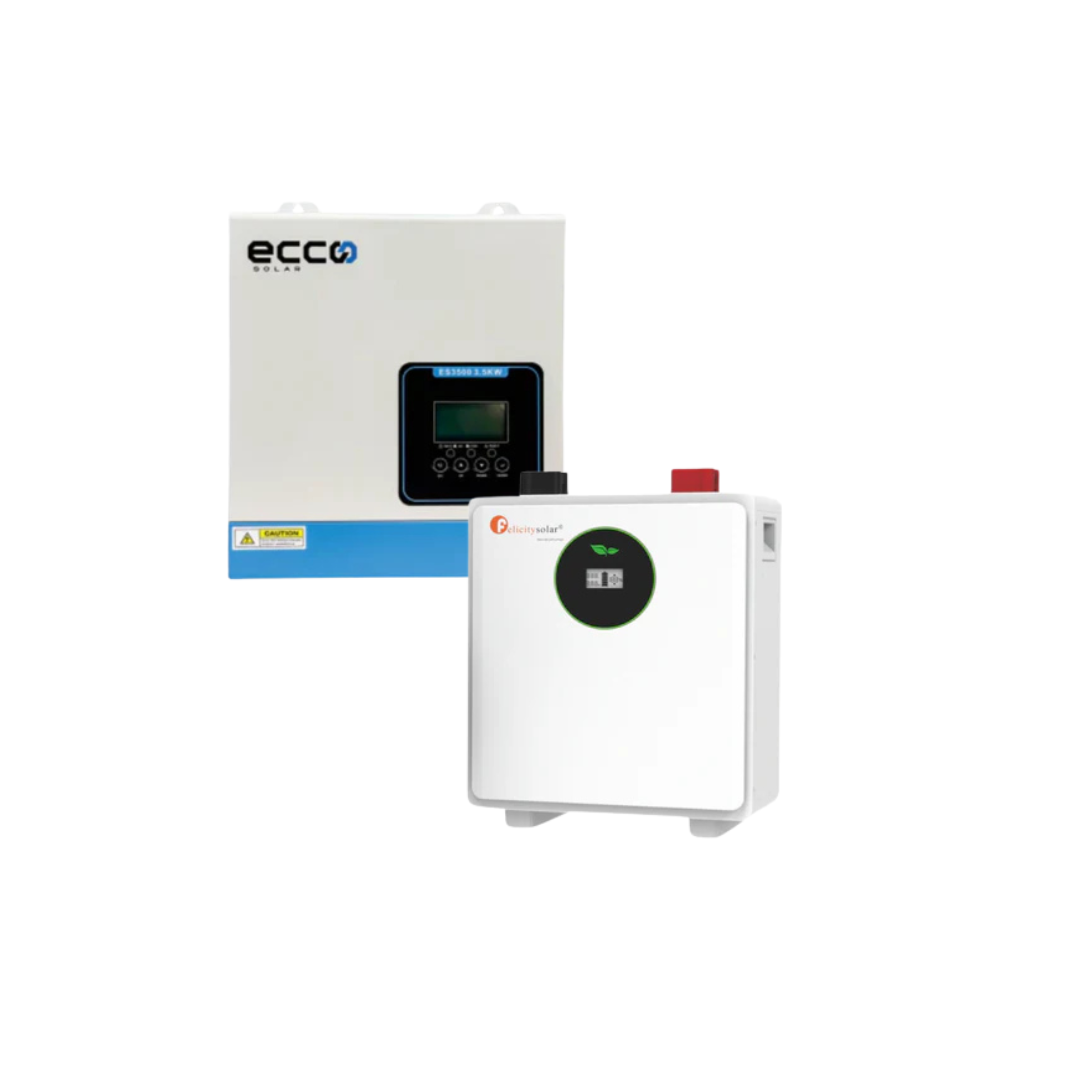

3.5KVA Ecco 24V MPPT Hybrid Inverter + 2.56kWh Felicity 100AH LiFePO₄ 25.6V (Low-Voltage) Battery Pack
3.5KVA Ecco 24V MPPT Hybrid Inverter + 2.56kWh Felicity 100AH LiFePO₄ 25.6V (Low-Voltage) Battery Pack
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 3 left
Couldn't load pickup availability
3.5KVA Ecco 24V MPPT Hybrid Inverter + 2.56kWh Felicity 100AH LiFePO₄ 25.6V (Low-Voltage) Battery Pack
Description:
This Ecco hybrid backup combo kit is a practical 24V solution for load-shedding protection and small solar installations. It pairs a 3.5kVA pure sine wave hybrid inverter with a Felicitysolar 25.6V Low-Voltage LiFePO₄ Battery Pack , giving you a complete base system that can be monitored with an optional WiFi dongle.
Combo Includes
1x Felicitysolar 25.6V Low-Voltage LiFePO₄ Battery Pack
1x Ecco 24V 3.5kVA 3500W hybrid inverter pure sine wave with 100A MPPT (ES3500)
Optional add-on: WiFi dongle available
Hybrid Inverter Specifications (Ecco ES3500)
Inverter Mode
Rated power: 3500VA / 3500W
Nominal voltage: 24V
AC Charger Mode
AC input: 230VAC, 50/60Hz
Max charge current: 60A
Max charger current (AC + PV): 100A
AC output: 230VAC
Solar Charger Mode
Max PV array power: 4000W
Minimum solar voltage: 30VDC
Max solar voltage (Voc): 500VDC
Max MPPT charge current: 100A
Nominal Energy: 2.56kWh
Nominal Voltage: 25.6V
Operating Voltage: 22.4V – 28.8V
Max Continuous Charge / Discharge Current: 100A
Peak Charge / Discharge Current: 200A for 15 seconds
Max Charge / Discharge Power: 2,500W
Parallel Expansion: Up to 15 units
Maximum Storage Capacity: 38.4kWh
Product Weight: 23kg
Package Weight: 27kg
Product Dimensions: 325 × 400 × 180mm
Package Dimensions: 462 × 417 × 252mm
General Specifications :
Battery Type: LiFePO₄
Nominal Voltage: 25.6V
Operating Voltage Range: 22.4V – 28.8V
Depth of Discharge: ≥95%
Communication: RS485 / CAN
Protection Degree: IP21
Cycle Life: ≥6,000 cycles
Charging Temperature Range: 0°C to 55°C
Discharging Temperature Range: -20°C to 55°C
Display Type: LCD + LED
Installation: Wall-mounted or floor-mounted
Protection: Built-in smart BMS and fuse
Certification: UN38.3
Battery cables not included
Warranty
Battery warranty: 7 years
Inverter warranty: 5-year repair warranty
Warranty and Installation Requirements
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour
A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system
The installation must be compliant with SANS 10142 and all its parts
Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman or master electrician installing the unit, can be rejected and will render the warranty claim null and void
