3.5KVA Ecco 24V Hybrid Inverter + 2x Ingle 12.8V 100Ah Batteries (2.56kWh)
Description:

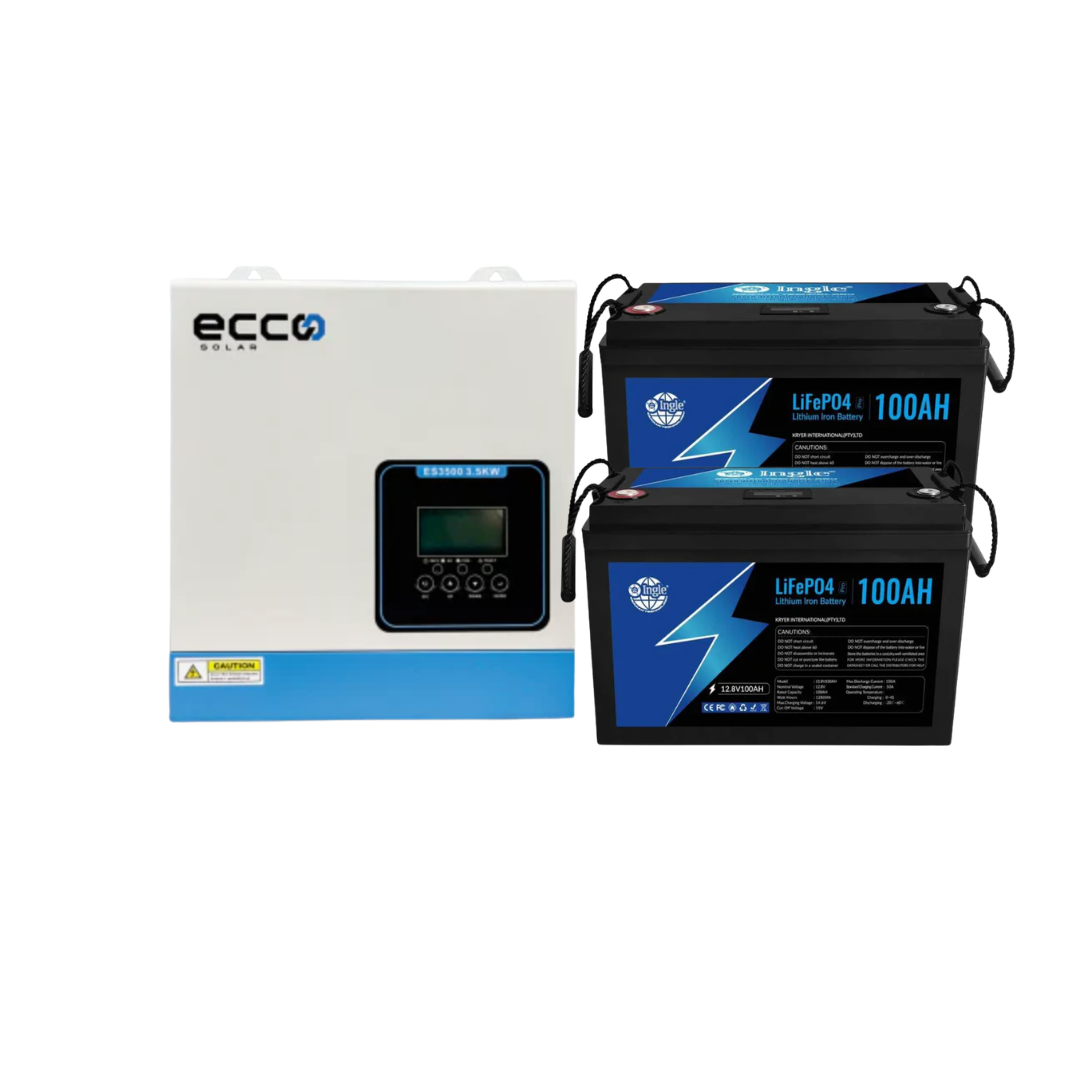

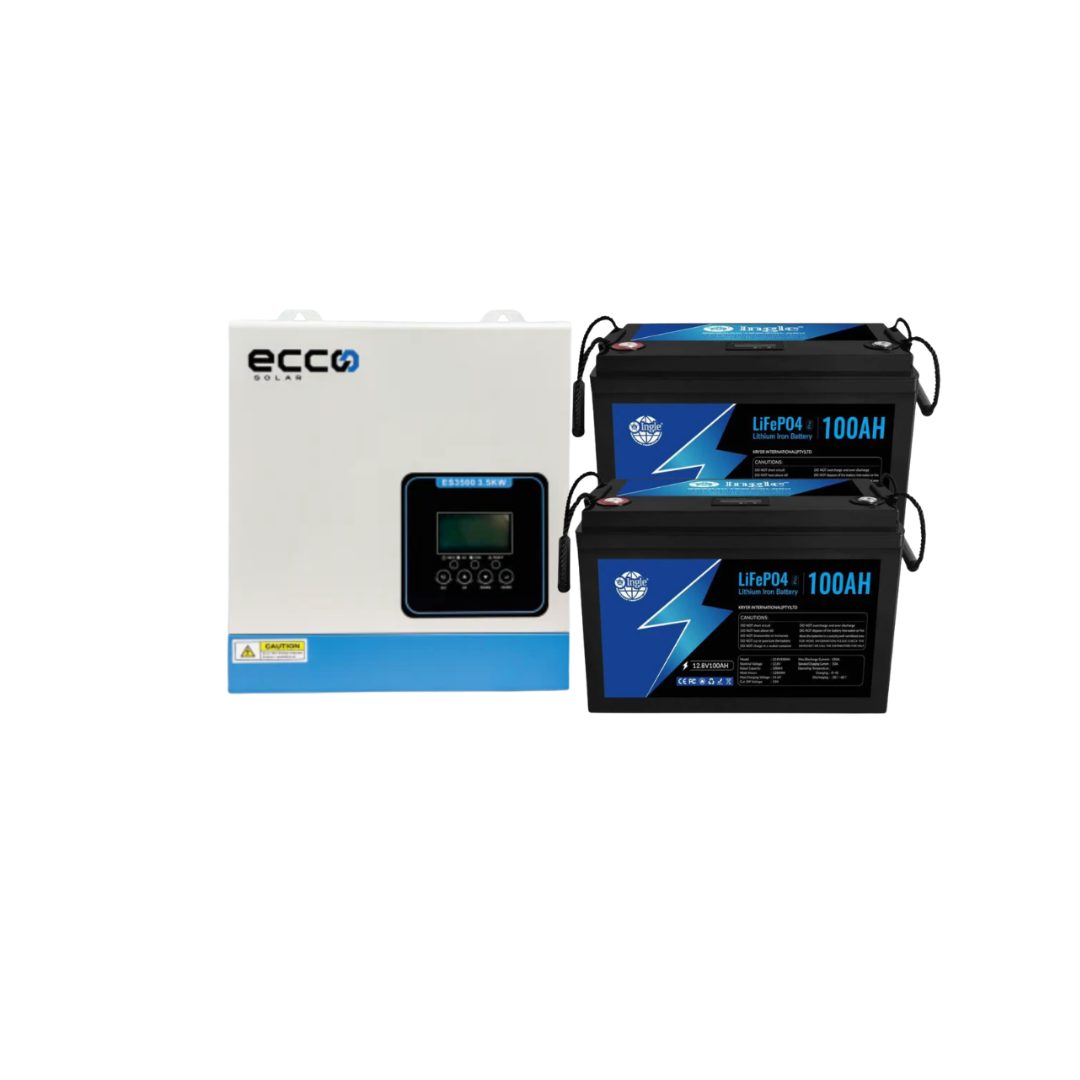

This compact backup combo pairs the Ecco ES3500 24V 3.5kVA hybrid inverter with two 12.8V 100Ah LiFePO₄ battery modules to create a 24V battery bank with 2.56kWh total rated energy. It’s a practical foundation for essential-load backup and small solar setups, with a 100A MPPT charger built into the inverter and an optional WiFi monitoring dongle available.
Package Includes
1x Ecco hybrid inverter 24V 3.5kVA 3500W pure sine wave with 100A MPPT (ES3500)
2x Ingle 12.8V 100Ah 1.28kWh LiFePO4 battery modules (total rated energy 2.56kWh)
Hybrid Inverter Specifications (Ecco ES3500)
Inverter Mode
Rated power: 3500VA / 3500W
Nominal voltage: 24V
AC Charger Mode
AC input: 230VAC, 50/60Hz
Max charge current: 60A
Max charger current (AC + PV): 100A
AC output: 230VAC
Solar Charger Mode
Max PV array power: 4000W
Minimum solar voltage: 30VDC
Max solar voltage (Voc): 500VDC
Max MPPT charge current: 100A

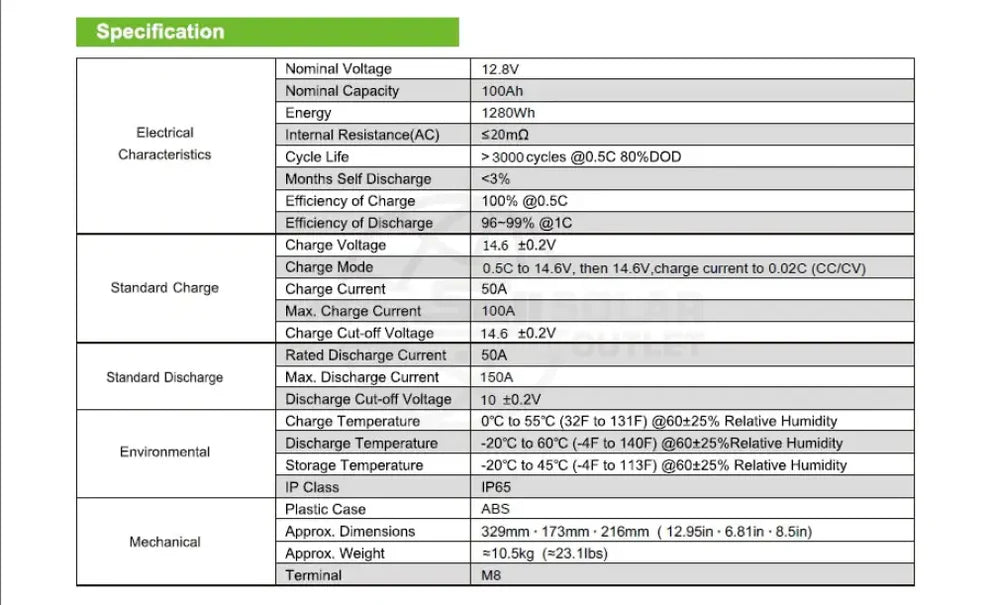

Battery Module Specifications (per Ingle battery)
Battery type: 12V 100Ah LiFePo4 single battery module
Rated capacity: 1.28kWh
Nominal voltage: 12.8V
Charge cut-off voltage: 14.6V
Discharge cut-off voltage: 10V
Max discharge current: 100A
Design life: approximately 3 to 5 years
Charging working temperature: 0°C to 45°C
Dimensions (L x W x H): 329 x 173 x 216 mm
Weight: approximately 10.5 kg
Can be connected in series and parallel: up to 4 series and 4 parallel
Cycle life: 3000 cycles at 80% depth of discharge (DOD)
Monitoring Option
Optional add-on: WiFi dongle available
Warranty
Inverter warranty: 5 years
Battery warranty: 2 years
Installation Requirements
Installation should be completed by a qualified electrician and aligned with SANS 10142 requirements, with a valid COC issued for the installation where applicable
Confirm correct battery configuration and polarity for a 24V system when commissioning
