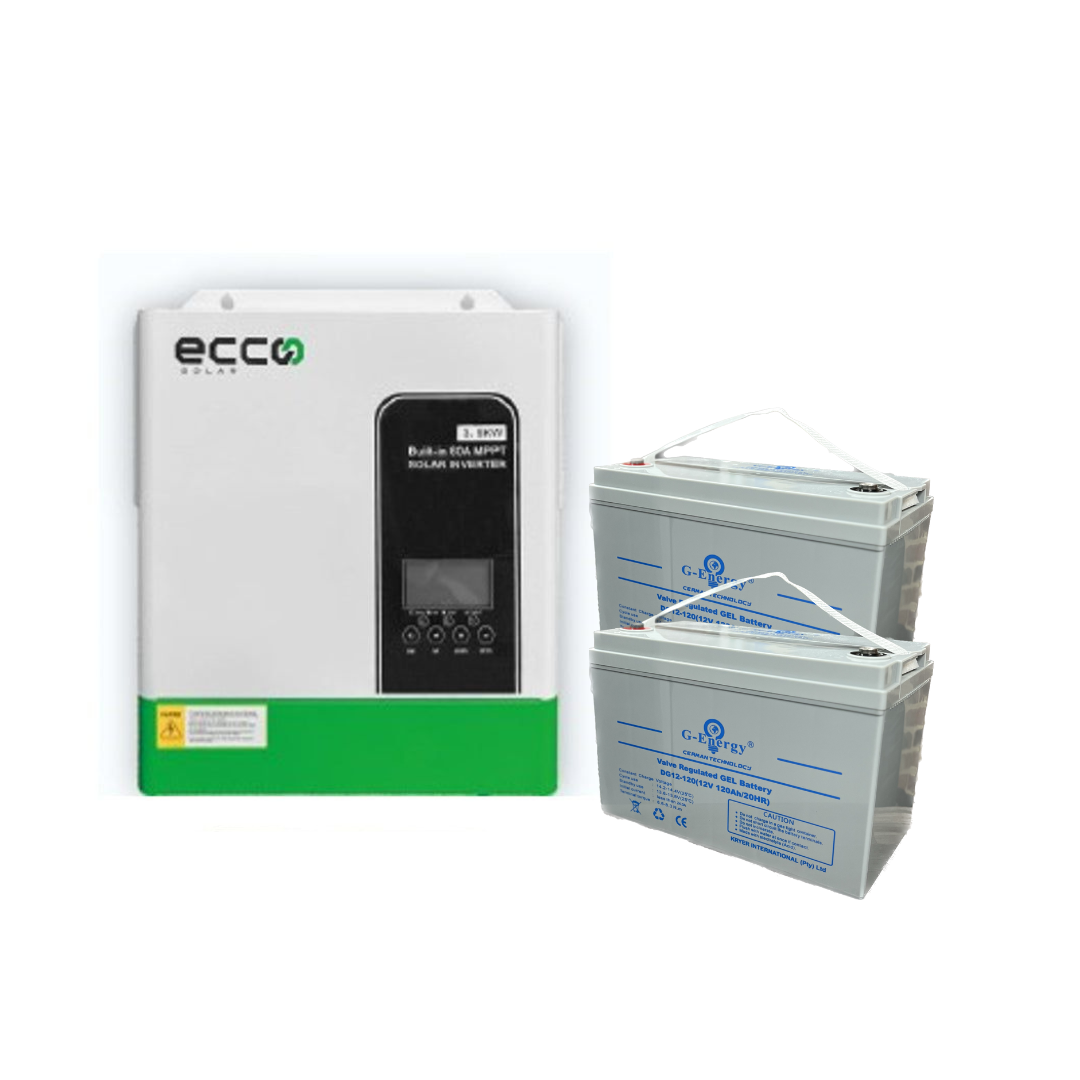

Ecco 3.5KW / 3500W 24V MPPT 100A Ecco Pure Sine Wave Hybrid Inverter + 2x 100AH Gel Batteries Load Shedding Kit
Ecco 3.5KW / 3500W 24V MPPT 100A Ecco Pure Sine Wave Hybrid Inverter + 2x 100AH Gel Batteries Load Shedding Kit
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 4 left
Couldn't load pickup availability
Description:
Reliable Hybrid Solar Backup System
The Ecco 3.5KVA 3500W Hybrid Inverter & 2x 120Ah Gel Battery Combo is a versatile and efficient backup power solution, ideal for homes, small businesses, and off-grid applications. This system includes a pure sine wave inverter with built-in MPPT charging and two deep-cycle gel batteries, ensuring reliable energy storage and uninterrupted power supply.
Key Features & Benefits
- 3500W hybrid inverter delivering clean and stable pure sine wave output.
- Built-in 100A MPPT charge controller, optimizing solar energy conversion.
- Power factor 1.0, ensuring high efficiency and performance.
- Supports multiple output priority modes (UTL, SOL, SBU) for customizable power management.
- RS485 BMS communication for smart battery monitoring and management.
- Lithium battery activation, making it compatible with future lithium upgrades.
- Detachable dust cover, protecting components in harsh environments.
- Wi-Fi remote monitoring (optional) for real-time system tracking.
Technical Specifications
Inverter Specifications
- Rated Power: 3500VA / 3500W
- DC Input: 24VDC, 158A
- AC Output: 230VAC, 50/60Hz, 23.5A
AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 23.5A
- DC Output: 27VDC
- Max. AC Charge Current: 60A (default: 30A)
- Max. PV+AC Charge Current: 100A
- AC Output: 230VAC, 50/60Hz, 15.2A
Solar Charge Mode
- Max. PV Array Power: 4000W
- Min. Solar Voltage: 120VDC
- Max. Solar Voltage (VOC): 500VDC
- Max. MPPT Charge Current: 100A
Battery Specifications
- 2x 120Ah 12V Gel Batteries included.
- Weight per battery: 22.7kg
- Battery Dimensions: 420mm x 185mm x 265mm
- Deep-cycle gel technology, providing maintenance-free operation.
Ideal Applications
- Home and small business backup power solutions.
- Load shedding protection for uninterrupted electricity.
- Solar energy storage for grid-tied, hybrid, or off-grid systems.
- Power backup for essential devices and appliances.
Warranty & Installation Requirements
- 5-year repair warranty on the inverter.
- Gel batteries 30 day replacement warranty.
- Must be installed by a qualified electrician with SANS 10142 compliance.
- Certificate of Compliance (COC) required for warranty validation.
- Failure to provide installation documentation may void the warranty.
