3.5KVA / 3500W 24V ECCO Hybrid Inverter Plug & Play System + 2x 2.56kWh (5.12kWh) LITHIUM BATTERY (SOLAR READY)
3.5KVA / 3500W 24V ECCO Hybrid Inverter Plug & Play System + 2x 2.56kWh (5.12kWh) LITHIUM BATTERY (SOLAR READY)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 2 left
Share
OUR LOAD SHEDDING SOLUTION !
The all-in-one portable back-up inverter battery system .
What is an all-in-one portable inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 150w which is usually a TV, Wifi, Lights, etc. This portable system will last +- 60-65 Hours.
How to maximize battery life:
Keep your inverter system plugged in and switched on, this will keep your batteries at full charge.
Weight:
+-65 KG
Size L x B x H
60cm x 60cm x 49cm
High Voltage VDC500V
3.5KVA/3500W 100A Pure Sine Wave Solar Inverter
Features
- Pure Sine Wave Solar Inverter
- Output Power Factor 1
- High PV Input Voltage Range (120VDC - 500VDC)
- Built-in 100A MPPT Solar Controller
- Supports Multiple Output Priority: UTL, SOL, SBU, SUB
- Parallel Operation with Up to 12 units (Parallel Version)
- Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version)
- Supports Wireless Parallel, Without Extra Sharing of Current Cable
- RS485 Communication for BMS
- Battery Equalization Function to Optimise Battery Performance and Extended Lifecycle
Specifications:
Inverter Mode
- Rated Power: 3500VA / 3500W
- DC Input: 24VDC, 158A
- AC Output: 230VAC, 50/60Hz, 23.5A
AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 23.5A
- DC Output: 27VDC
- Max. Charge Current(AC): 60A Default 30A
- Max. Charge Current(PV+AC): 100A
- AC Output: 230VAC, 50/60Hz, 15.2A
Solar Charge Mode
- Max. PV Array Power: 4000W
- Min. Solar Voltage: 120VDC
- Max. Solar Voltage (VOC): 500VDC
- Max. MPPT Charge Current: 100A
Ingress Protection: IP21 (Indoor Use)
Dimensions ; 38 x 55 x 20 cm
Weight: 9.65kg
What's in the box
1 x ECCO 3.5KW 24V 100A MPPT Hybrid Solar Inverter
1 x User Manual
25.6V 100Ah lithium iron battery designed for Inverters and UPS solar systems.
The obvious lead replacement solution – a new world of longevity and performance awaits for wide ranging applications from alarm and gate motors to high end boat and camper energy storage. Also suitable for small solar integrated and backup systems
Features
-The 25.6V 100Ah Lithium iron battery is designed for UPS, solar system, portable devices, energy storage and medical
cart applications.
- Last two to four times longer than a lead acid battery.
- Boasts advantages on safety, cycle life, energy density,
temperature range and environmental protection.
Advantages:
- Packed with high performance, long life, safety, and wide temperature range
- High energy density, small size, light weight, no pollution;
- High efficiency, fast charging
- Easy to carry battery case ,
- 10 years design life, Stable performance, maintenance-free
Direction for use:
Charge using the positive and negative ports to connect to your inverter and charge on these ports.
Specifications:
- Energy storage: 2560WH
- Output Voltage: 25.6VDC
- Rated capacity 100ah
- Bulk Absorbtion Rate: 28.4 - 29.2V
- Equalize Voltage: 28.8VDC
- Float Charge: 27.2VDC
- Max Discharge current 100A
- Max Charge current 100A

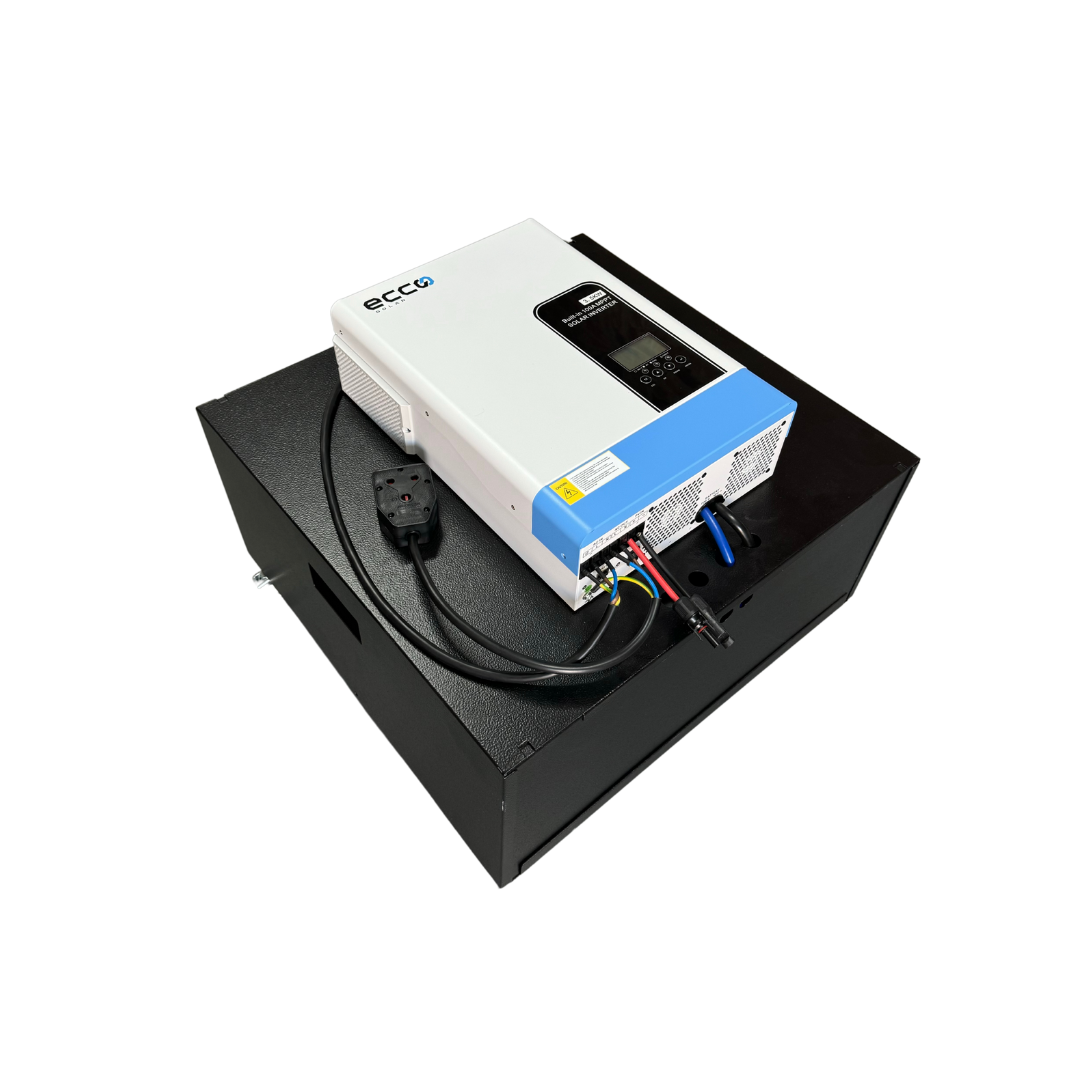

This system is equipped with the following:
1x PORTABLE STEEL BOX WITH 2x LOCK WHEELS
1x SURGE PLUG ON 1m POWER CABLE (2.5mm cabtyre)
1x DOUBLE SIDED FEMALE PLUG SOCKET
1x FUSE + DISCONNECTOR (battery to inverter)
1x BATTERIES AND INVERTER MENTIONED IN THE TITLE
SIZE
60 cm x 60 cm x 45 cm
5 YEAR REPAIR WARRANTY ON SYSTEM
