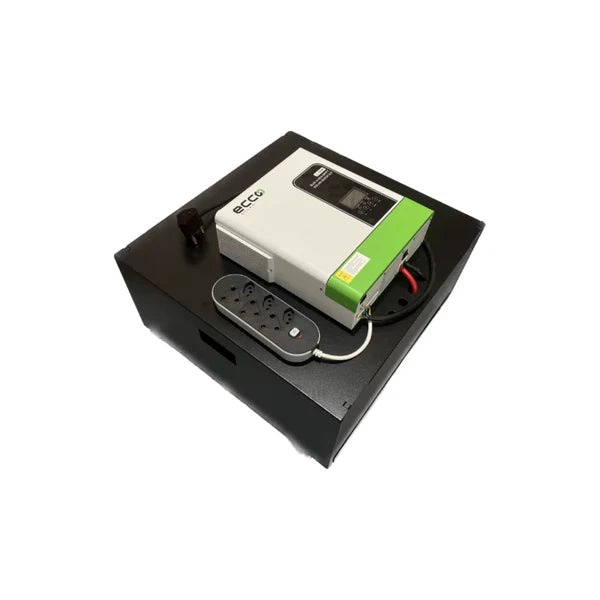

3.5KVA / 3500W 24V ECCO Hybrid Inverter 100A Plug & Play System + 2.56kWh LITHIUM BATTERY (SOLAR READY)

The all-in-one portable back-up inverter battery system .

Description:

Reliable Power Backup for Load Shedding
This all-in-one portable inverter system ensures uninterrupted power during outages. Designed for homes and small businesses, it integrates a 3.5kVA pure sine wave inverter with a 24V lithium-compatible battery system, providing stable electricity for essential devices like TVs, WiFi routers, lights, and chargers.

A plug-and-play power system is a simple backup solution that provides electricity during load shedding or power outages—no complex installation required.

How It Works:

1. Plug it into a wall socket – The system charges its built-in battery while the power is on.
2. Automatic Power Switching – When the electricity goes off, the system instantly switches to battery power.
3. Keep Essentials Running – You can plug in WiFi, TV, lights, laptops, and chargers directly into the system.
4. Recharge When Power Returns – Once the electricity comes back, the system automatically recharges for the next outage.
5. Solar Ready (Optional) – You can add solar panels to charge the system even when there is no grid power.

Key Features:

Efficient Power Management

• Pure sine wave output ensures stable power for sensitive electronics
• Built-in MPPT 100A charge controller for efficient solar charging
• Supports multiple output priority modes: UTL, SOL, SBU
• Lithium battery activation for extended battery life

Flexible Charging & Compatibility

• PV Input Voltage: 30Vdc - 160Vdc
• Solar Power Capacity: Up to 4000W for solar integration
• AC & Solar Charging: Max combined charge current of 100A
• RS485 BMS Communication for battery management

ECCO 24V LITHIUM BATTERY

Key Features:

• 25.6V 100Ah Capacity – Stores 2560Wh of energy for backup and solar applications.
• Lithium Iron Phosphate (LiFePO4) Technology – Offers enhanced safety, longevity, and efficiency.
• Up to 4X Longer Lifespan – Outperforms lead-acid batteries in durability and cycle life.
• High Charge & Discharge Rates – Supports 100A max charge/discharge for efficient power management.
• Wide Application Compatibility:
  • Solar & Backup Systems – Ensures reliable power storage.
  • UPS & Inverters – Provides uninterrupted energy supply.
  • Portable Power Solutions – Ideal for off-grid, RV, marine, and camping use.
• Fast Charging & High Efficiency – Reduces downtime with quick recharge capabilities.
• Compact & Lightweight Design – Easier to install and transport compared to traditional lead-acid alternatives.
• Maintenance-Free & Environmentally Friendly – No harmful chemicals or frequent maintenance required.

Technical Specifications:

• Energy Storage Capacity: 2560Wh
• Nominal Voltage: 25.6VDC
• Rated Capacity: 100Ah
• Bulk Absorption Voltage: 28.4V - 29.2V
• Equalize Voltage: 28.8VDC
• Float Charge Voltage: 27.2VDC
• Maximum Charge Current: 100A
• Maximum Discharge Current: 100A

User-Friendly Design

• Portable steel enclosure with 2 lockable wheels for mobility
• Detachable dust cover for protection in harsh environments
• Surge plug (1m power cable, 2.5mm cabtyre)
• Double-sided female plug socket for easy appliance connection

Power Backup Duration

• Powers 150W load (TV, WiFi, Lights) for 19-20 hours
• Recharge batteries via solar panel (optional) or grid power

Installation & Maintenance

• Keep system plugged in and switched on to maximize battery lifespan
• Suitable for homeowners, small businesses, and DIY solar users
• Weight: ~65kg
• Unit Dimensions: 60cm x 60cm x 49cm

Warranty & Compliance

• Must be installed by a qualified electrician
• Valid COC (Certificate of Compliance) required
• Installation must adhere to SANS 10142 regulations
