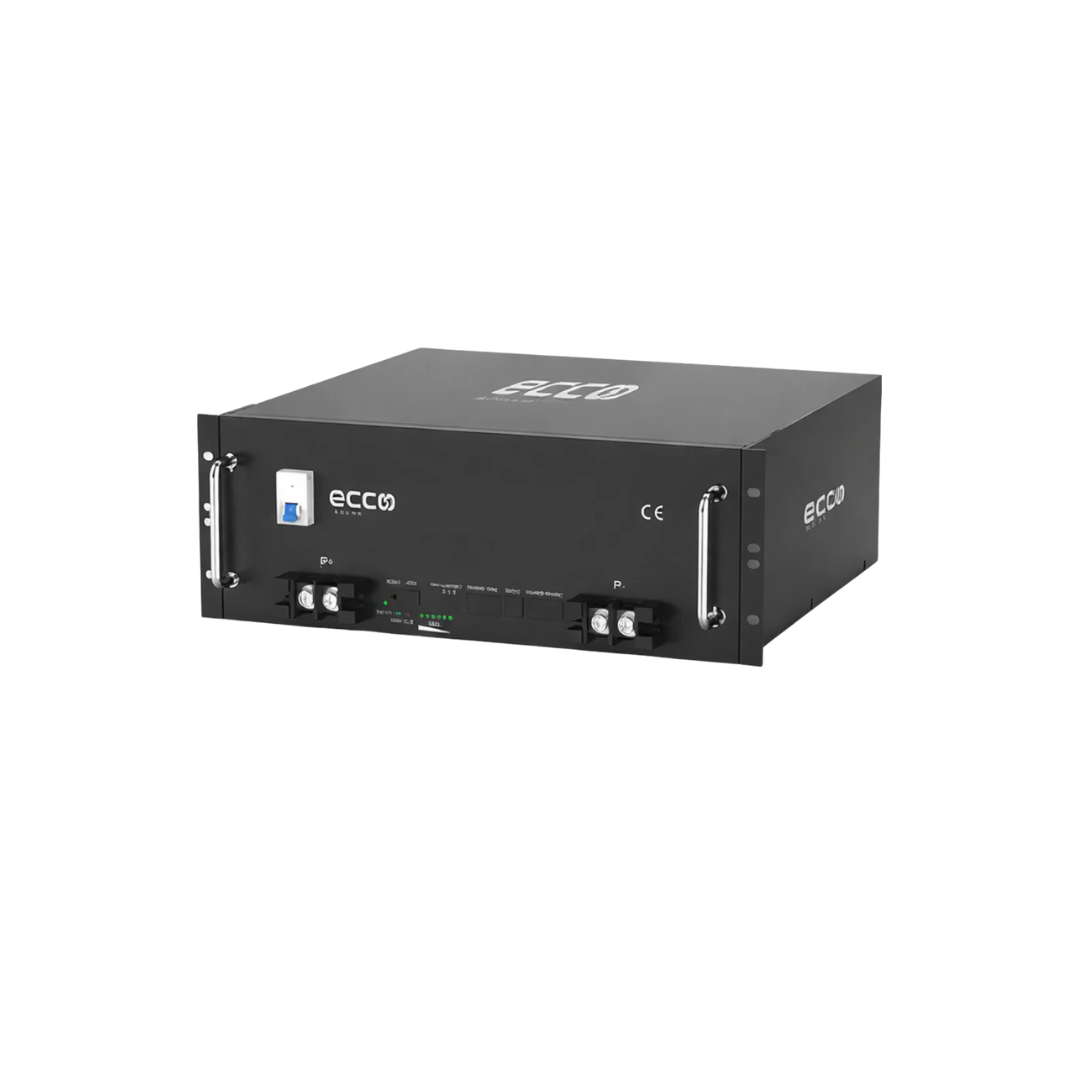

25.6V Ecco LR24100 100Ah LiFePO4 Battery 2.56kWh IP54

Ecco LR24100 25.6V 100Ah LiFePO4 Battery 2.56kWh IP54

Description:

The Ecco LR24100 is a 25.6V 100Ah LiFePO₄ lithium battery designed for reliable energy storage in solar systems, backup power, UPS applications, and off-grid setups. With an integrated Battery Management System (BMS), high charge and discharge efficiency, and strong cycle life performance, it delivers stable output with built-in protection for long-term use.

Core Technology and Protection

LiFePO4 battery chemistry focused on safety and durability

Built-in BMS supports protection against overcharge, over-discharge, and short-circuit conditions

Protection rating: IP54 for improved environmental resistance

Electrical Specifications

Nominal voltage: 25.6V

Nominal capacity: 100Ah

Total energy: 2.56 kWh

Operating voltage range: 21.6V to 28.8V

Discharge ending voltage: 21.6V

Charge voltage range: 28.8V nominal, maximum 29.2V

Standard charge/discharge current: 50A

Max charge/discharge current: 100A

Max continuous output power: 2560W

Max momentary output power: 3200W

Efficiency and Cycle Performance

Charge efficiency: 99% at 0.5C and 25°C

Discharge efficiency: 98% at 1C

Cycle life: more than 5000 cycles at 0.5C and 80% DOD at 25°C

Physical and Packaging

Weight: 26 kg

Package dimensions: 52 cm x 46 cm x 24 cm

Battery cables not included

Warranty

5-year warranty

Warranty and Installation Requirements

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour

A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system

The installation must be compliant with SANS 10142 and all its parts

Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman or master electrician installing the unit, can be rejected and will render the warranty claim null and void
