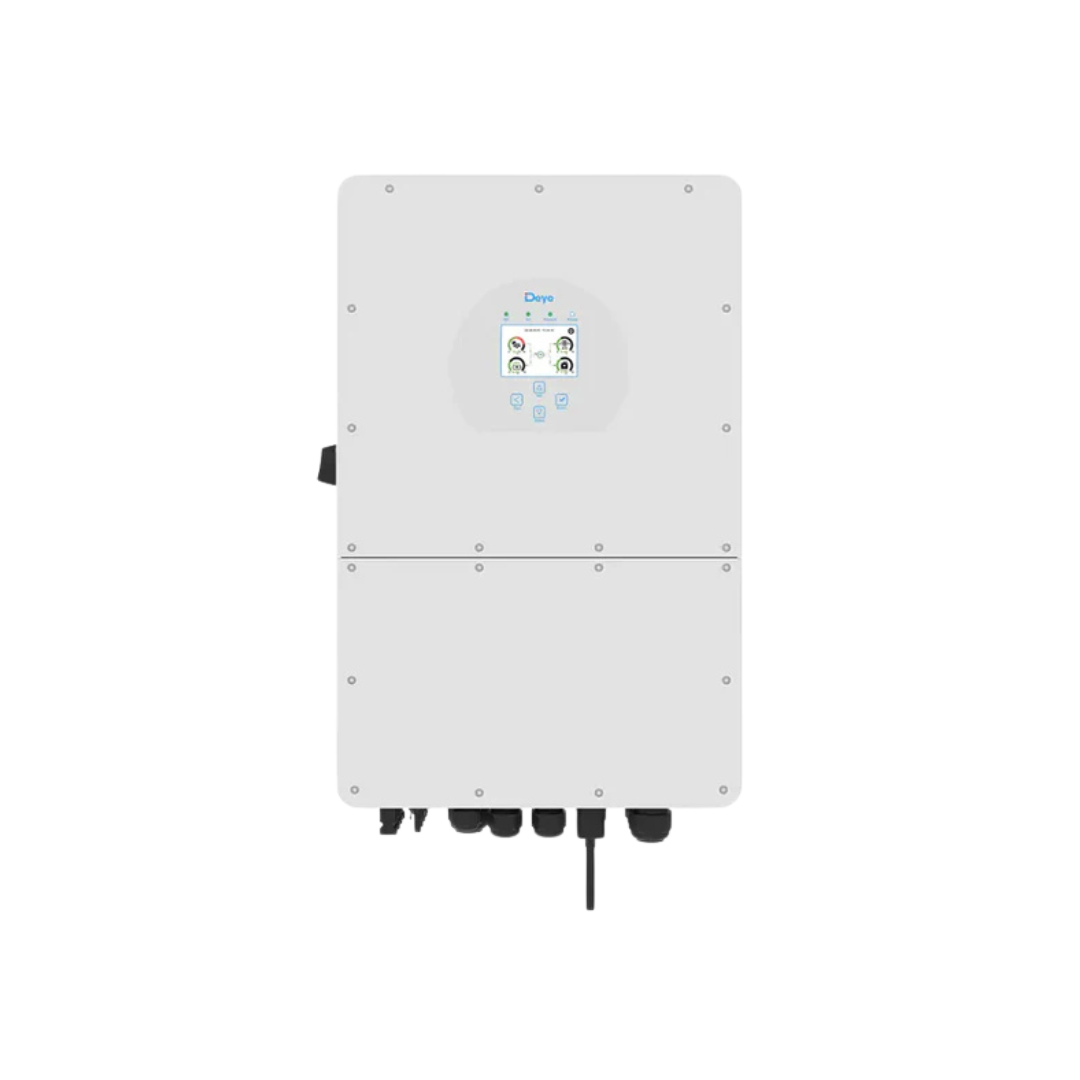

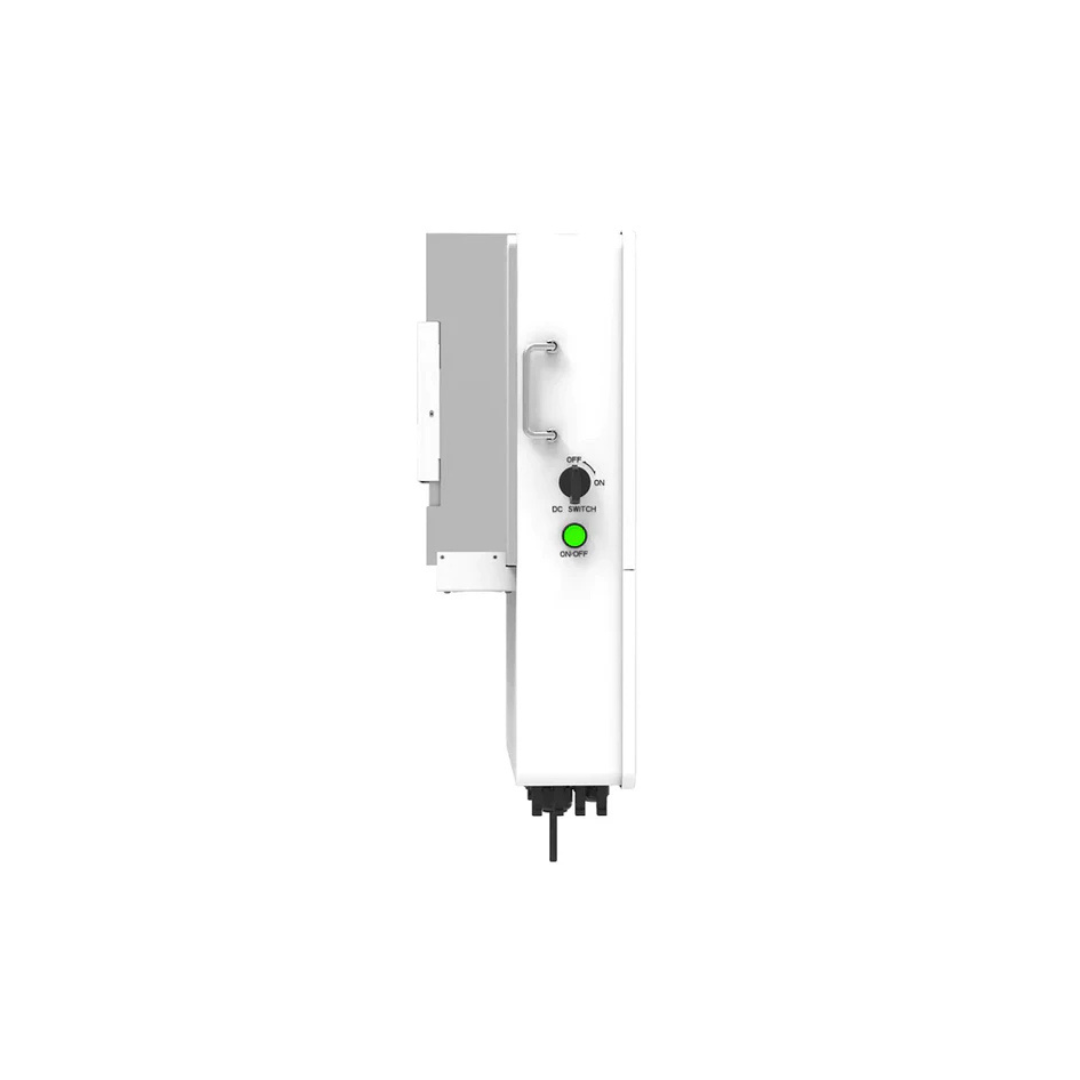

Deye 20kW 3-Phase Hybrid Inverter 1000V 2MPPT High-Voltage Battery
Description:
The Deye 20kW three-phase hybrid inverter is a high-output solution for commercial and larger residential systems that need strong PV capacity, three-phase performance, and high-voltage battery efficiency. It supports unbalanced loads across phases, AC coupling for retrofit projects, and programmable time periods for battery operation.
Online Deal Only - Can be ordered for in-store collection if needed !
Key Operating Features
100% unbalanced output on each phase
AC couple function for retrofitting an existing solar system
Parallel capability: maximum 10 units for on-grid and off-grid operation
Supports multiple batteries in parallel
Maximum charging and discharging current stated as 50A
High voltage battery support for improved efficiency
Six time periods for battery charging and discharging scheduling
Supports storing energy from a diesel generator
Battery Input Data
Battery type: lead-acid or lithium-ion
Battery voltage range: 160V to 700V
Max charging current: 37A
Max discharging current: 37A
Number of battery inputs: 1
PV String Input Data
Max DC input power: 26000W
Max DC input voltage: 1000V
Start-up voltage: 180V
MPPT voltage range: 150V to 850V
Max operating PV input current: 26A + 26A + 26A
MPPT trackers and strings: 2 MPPT trackers, 2+2 strings
AC Input and Output Data
Rated AC input/output active power: 20000W
Max AC input/output apparent power: 22000VA
Rated AC input/output current: 30.4A / 29A
Max AC input/output current: 33.4A / 31.9A
Max continuous AC passthrough (grid to load): 35A
General
Noise: <55 dB
Ingress protection rating: IP65
Cabinet size (W x H x D): 408 x 638 x 237 mm (excluding connectors and brackets)
Weight: 30.5 kg
Installation Requirements
Installation should be completed by a qualified electrician and aligned with SANS 10142 requirements, with a valid COC issued for the installation where applicable
Ensure PV string design and protection remain within the inverter’s DC voltage and current limits before commissioning
Warranty
10 Year warranty
