Description

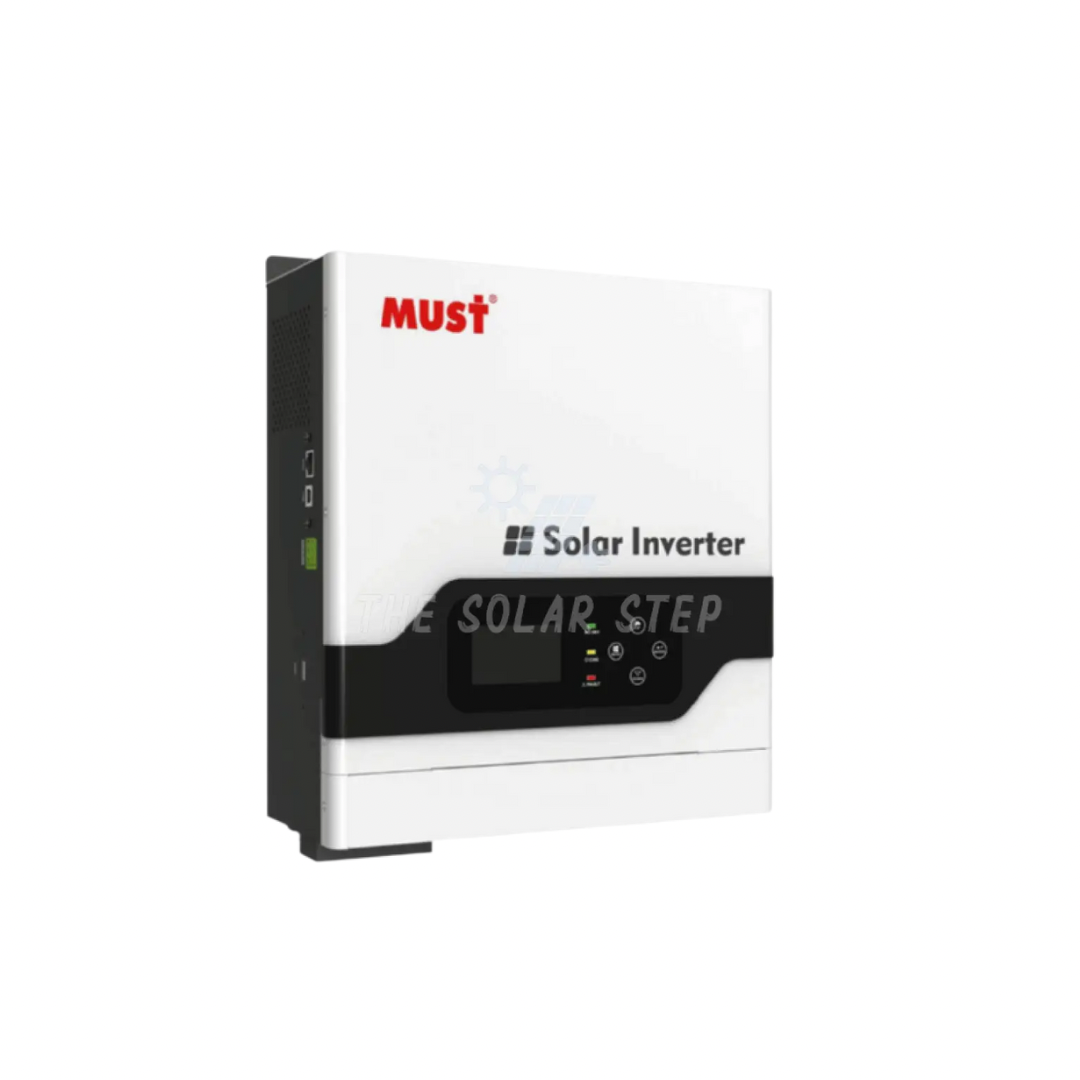

PV1800 VPK is a multi-function inverter/charger, combining functions of inverter, PWM solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
-Pure sine wave output
-Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc.)
-Built-in PWM 50A/60A solar charge controller
-New SUB working mode (Solar-Utility-Battery working mode)
-Combining solar system, AC utility, and battery power source to supply continuous power
-Overload, short circuit and deep discharge protection
-Parallel operation with up to 3 units (Available for 4KW/5KW only)
-Cold start function
-Support USB, RS485 monitoring function
-WIFI remote monitoring (optional)
-Compatible to generator
Specifications:
Inverter Output:
-Nominal Battery System Voltage: 12VDC
-Rated Power: 1000W
-Wave Form: Pure sine Wave
-AC Voltage Regulation (Batt. Mode): (220VAC~240VAC) ±5%
-Inverter Efficiency Peak: 93%
-Transfer Time 10ms (UPS / VDE4105) 20ms (APL)
AC Input:
-Voltage: 230VAC
-Selectable Voltage range: 170~280VAC (For personal computer) / 90~280VAC (For home appliances) / 184~253VAC(VED4105)
-Frequency Range: 50Hz / 60Hz (Auto sensing)
Battery:
-Normal Voltage: 12VDC
-Floating Charge Voltage:13.7VDC
-Overcharge Protection: 15.5VDC
Solar Charge & AC Charger:
-Maximum PV Array Open Circuit Voltage: 55VDC
-Standby Power Consumption: 2W
-(PWM) Maximum Solar Charge Current:50A
-Maximum AC Charge Current: 10A or 20A
-Maximum ChargeCurrent:70A
What's in the box
1x 1KW 12V/50A Pure Sinewave Hybrid Inverter - MUST
1x User Manual
