16kWh Greenrich AF16000 Lithium Battery 51.2V LiFePO₄ (Floor Standing)
16kWh Greenrich AF16000 Lithium Battery 51.2V LiFePO₄ (Floor Standing)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 6 left
Couldn't load pickup availability

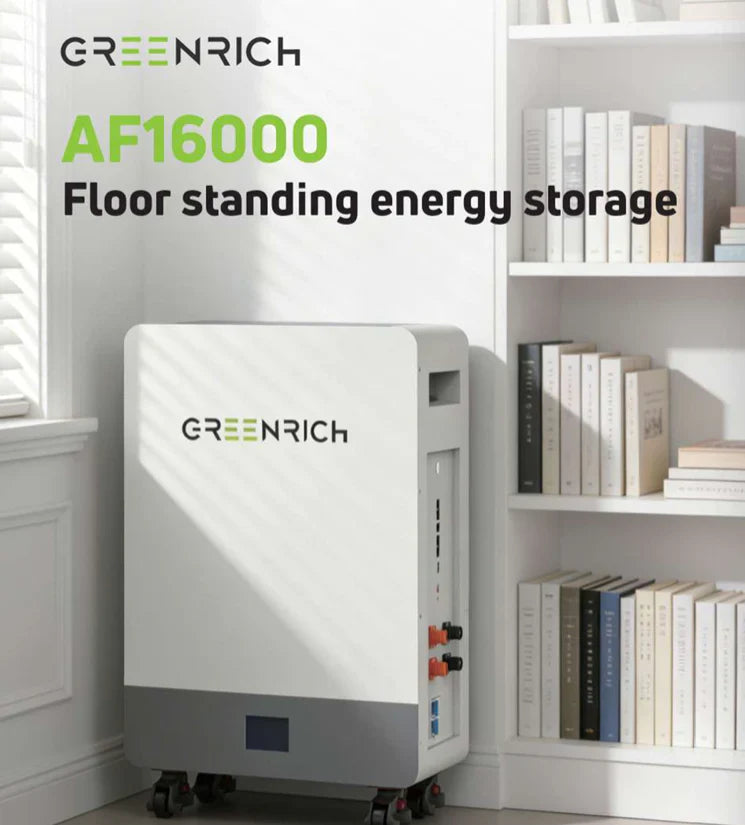

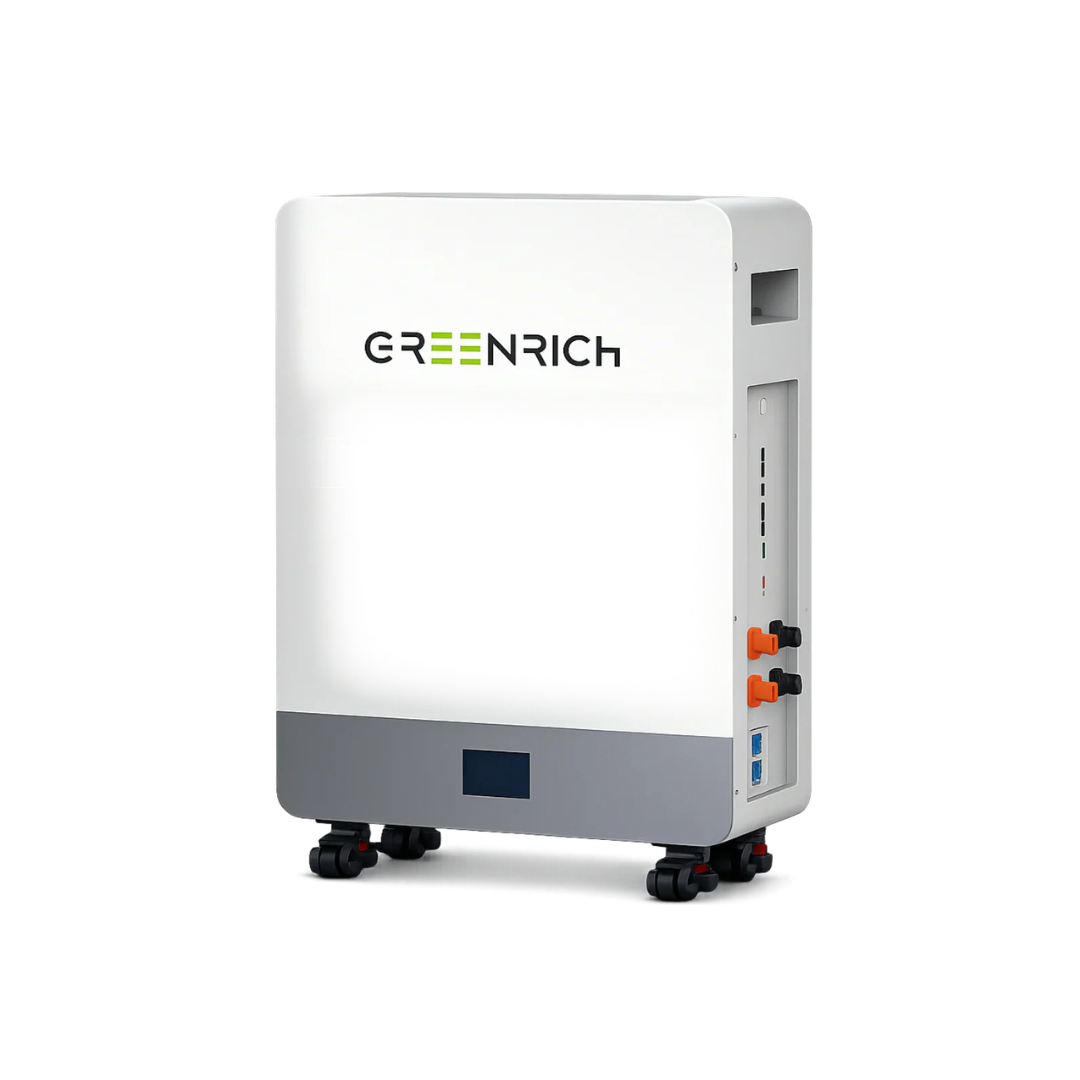

16kWh Greenrich AF16000 Lithium Battery 51.2V LiFePO₄ (Floor Standing)
The Greenrich AF16000 16kWh Floor Standing Lithium Battery is a high-capacity LiFePO₄ energy storage battery designed for homeowners, businesses, farms, and light commercial sites that require reliable backup power and long-term energy independence. With a strong 16kWh total energy capacity, 51.2V nominal voltage, integrated BMS, and scalable parallel support, this battery is ideal for larger hybrid and off-grid solar systems.
Built with durable LiFePO₄ battery chemistry, the Greenrich AF16000 offers excellent safety, long cycle life, and dependable daily performance. It is rated for 8,000+ cycles, making it a strong long-term storage solution for solar energy systems, load-shedding backup, and high-demand installations.
The AF16000 features a floor-standing cabinet design with an integrated display for easy monitoring. With CAN / RS485 communication, it integrates with many leading inverter brands, including Sunsynk, Victron, Deye, Solis, Growatt, Kodak, and Luxpower. It also supports parallel expansion of up to 15 units, allowing the system to scale up to 240kWh for larger residential, commercial, or off-grid applications.
With a maximum charge and discharge current of 200A, continuous power of 5.12kW, and peak/surge power of 10.24kW, the Greenrich AF16000 is built to handle demanding power requirements when paired with the correct inverter and system design.
Key Features
16kWh floor-standing lithium battery
51.2V 314Ah LiFePO₄ battery
Suitable for residential, commercial, and off-grid solar systems
12.8kWh usable energy at 80% depth of discharge
8,000+ cycle life
Integrated Battery Management System, BMS
CAN / RS485 communication
Maximum charge current of 200A
Maximum discharge current of 200A
Continuous power output of 5.12kW
Peak/surge power of 10.24kW
Scalable up to 15 units in parallel
Total expandable capacity up to 240kWh
Floor-standing / stackable cabinet design
Integrated display for battery monitoring
Compatible with many leading inverter brands
10-year warranty
Benefits
Provides strong backup capacity for larger homes and businesses
Helps reduce grid reliance when paired with solar panels
Supports long runtime during load-shedding
Scalable battery bank design for future expansion
Suitable for hybrid and off-grid solar installations
Long cycle life supports daily charging and discharging
Integrated BMS helps protect the battery during operation
CAN / RS485 communication allows easier inverter integration
Floor-standing design offers a neat and professional installation finish
Ideal Applications
The Greenrich AF16000 16kWh Battery is ideal for:
Residential solar backup systems
Large homes with higher energy usage
Small businesses and offices
Farms and rural properties
Guesthouses and lodges
Load-shedding backup systems
Hybrid solar systems
Off-grid solar installations
Light commercial energy storage
Expandable battery banks
Sites requiring long-term energy independence

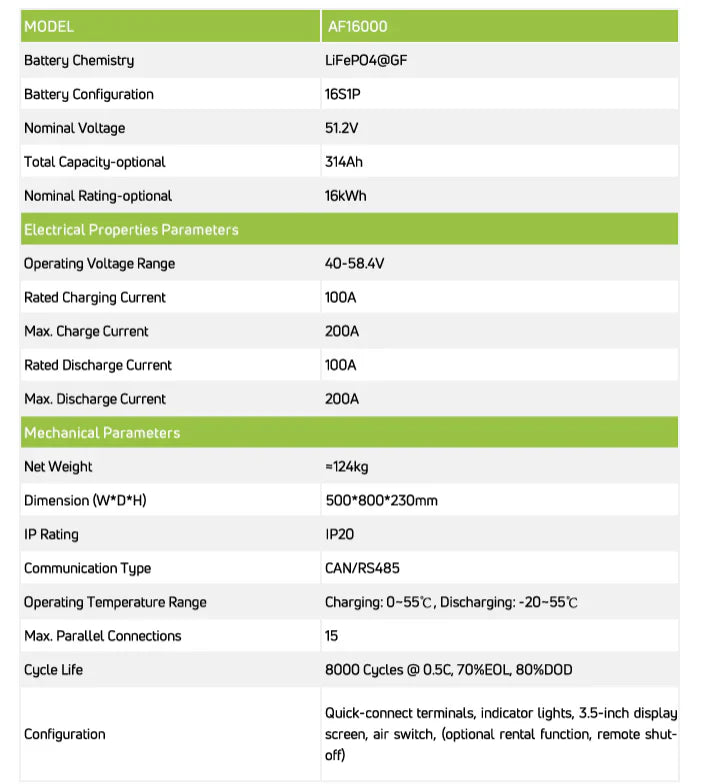

Technical Specifications
Identification
| Specification | Details |
|---|---|
| Brand | Greenrich |
| Model | AF16000 |
| Battery Type | Floor Standing Lithium Battery |
| Chemistry | LiFePO₄ |
Capacity & Energy
| Specification | Details |
| Total Energy | 16kWh |
| Usable Energy | 12.8kWh |
| Depth of Discharge | 80% |
| Capacity | 314Ah |
Electrical Data
| Specification | Details |
| Nominal Voltage | 51.2V |
| Voltage Range | 40V – 58.4V |
| Max Charge Current | 200A |
| Max Discharge Current | 200A |
| Continuous Power | 5.12kW |
| Peak / Surge Power | 10.24kW, 200A max |
Performance
| Specification | Details |
| Battery Chemistry | LiFePO₄ |
| Cycle Life | ≥8,000 cycles |
| Round-Trip Efficiency | Not specified |
System Data
| Specification | Details |
| Scalable / Parallel Support | Up to 15 units in parallel |
| Maximum Expandable Capacity | Up to 240kWh |
| Communication | CAN / RS485 |
| BMS | Integrated BMS |
| Monitoring | Integrated display |
Mechanical Data
| Specification | Details |
| Dimensions, W × H × D | 500 × 230 × 800mm |
| Weight | 124kg |
| IP Rating | IP20 |
| Mounting | Floor-standing / stackable |
Environment & Compliance
| Specification | Details |
| Operating Temperature | -20°C to +55°C |
| Certifications | Not specified |
| Warranty | 10 Years |
Compatible Inverters
The Greenrich AF16000 is compatible with a wide range of popular inverter brands via CAN or RS485 communication, including:
- Sunsynk
- Victron
- Deye
- Solis
- Growatt
- Kodak
- Luxpower
Warranty
- 10-year warranty
- Terms and conditions may apply.
- Please verify warranty terms with your supplier or refer to the official Greenrich product documentation for full details.
