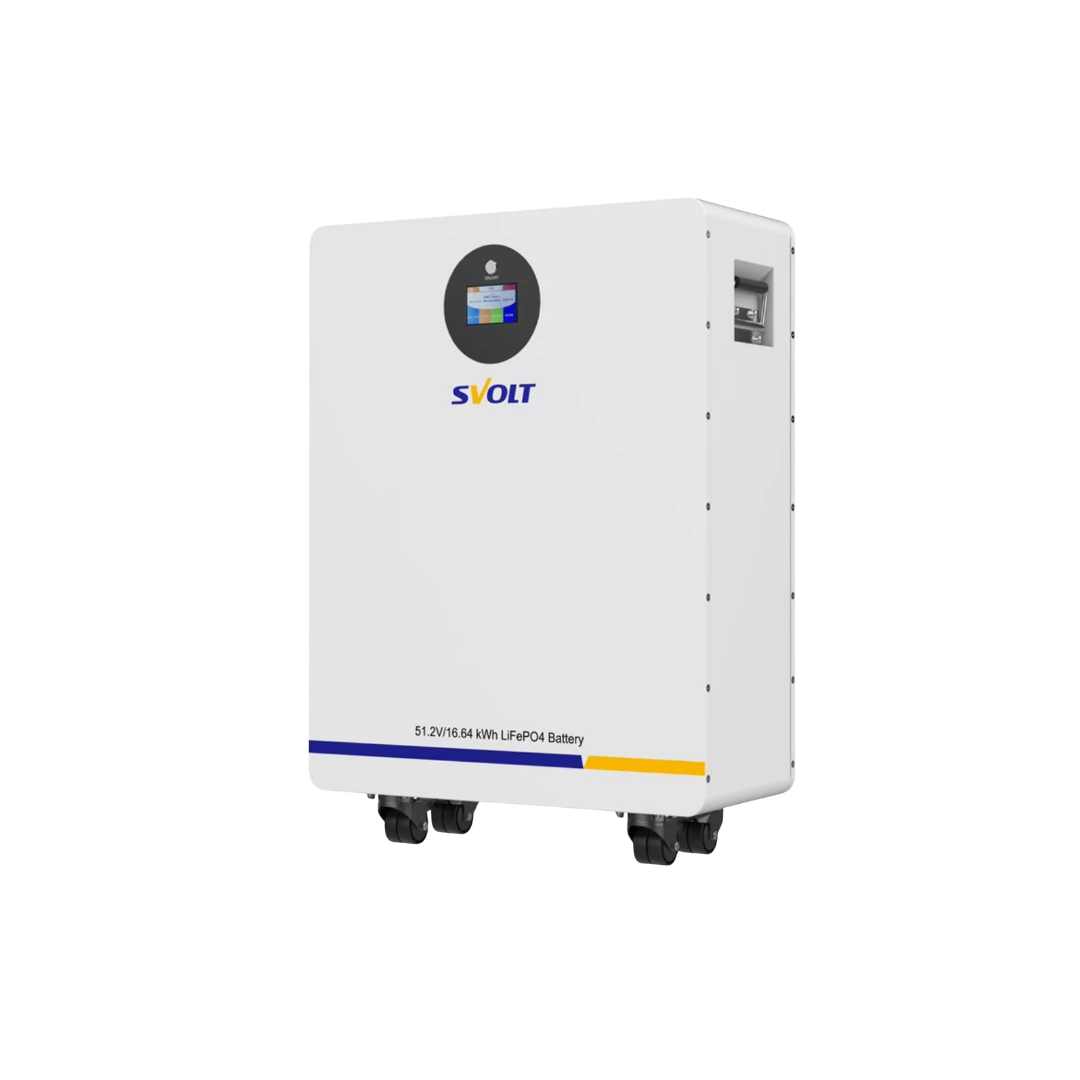

SVOLT SCN512325 16.64kWh 51.2V 325Ah LiFePO4 Battery A-Grade
Description:
The SVOLT SCN512325 is a high-capacity 51.2V lithium iron phosphate (LiFePO₄) battery built with A-Grade cells for reliable energy storage across residential, commercial, and industrial applications. It is designed for solar and renewable energy systems, UPS use, telecom power, and a wide range of equipment where long cycle life and consistent output are required. The battery includes a built-in BMS and LCD screen, with strong round-trip efficiency and scalable parallel expansion.
Battery Build and Application
Manufacturer: SVOLT, stated as joined with the Haval Motor Group
A-Grade cell technology for improved capacity and reliability
Designed for environmentally sensitive areas with a focus on recycling
Suitable for industrial, residential, commercial, and private energy storage use
Typical use cases include solar and renewable storage, electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems
Key Features
A-Grade cell technology
Maintenance-free construction
Environmental friendly focus
Renewable energy storage suitability
Built-in Battery Management System (BMS)
LCD screen
Warranty: 5 years
Electrical Specifications
Battery chemistry: LiFePO4
Nominal voltage: 51.2V
Nominal capacity: 325Ah
Energy / rated energy: 16.64kWh
Voltage window: 43.2V to 58.4V
Internal resistance: <25mΩ
Round trip efficiency: >95%
Self discharge per month: <3%
Charging Specifications
Recommended charge voltage: 56 ±0.20V
Max charge voltage: 58.4 ±0.20V
Recommended charge current: 50A
Max continuous charge current: 200A
Charge temperature: 0°C to 55°C
Discharging Specifications
Recommended discharge voltage: 44.8 ±0.20V
Max discharging voltage: 43.2 ±0.20V
Max continuous discharge current: 200A
Peak discharge current: 250A
Discharge temperature: -20°C to 60°C
Parallel and Series Configuration
Max parallel connectors: 16 pcs
Series connections: not allowed
Cycle and Storage
Cycle life: >6000 cycles
Storage temperature: -10°C to 30°C
Physical and Construction
Terminal type: screw
Case material: SPCC
Dimensions: 888 x 624 x 437 mm (L x W x H)
Weight: 153.6 kg
Warranty and Installation Requirements
Product warranty: 5 years
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour
A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system
The installation must be compliant with SANS 10142 and all its parts
Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman or master electrician installing the unit, can be rejected and will render the warranty claim null and void.
