The Solar Step

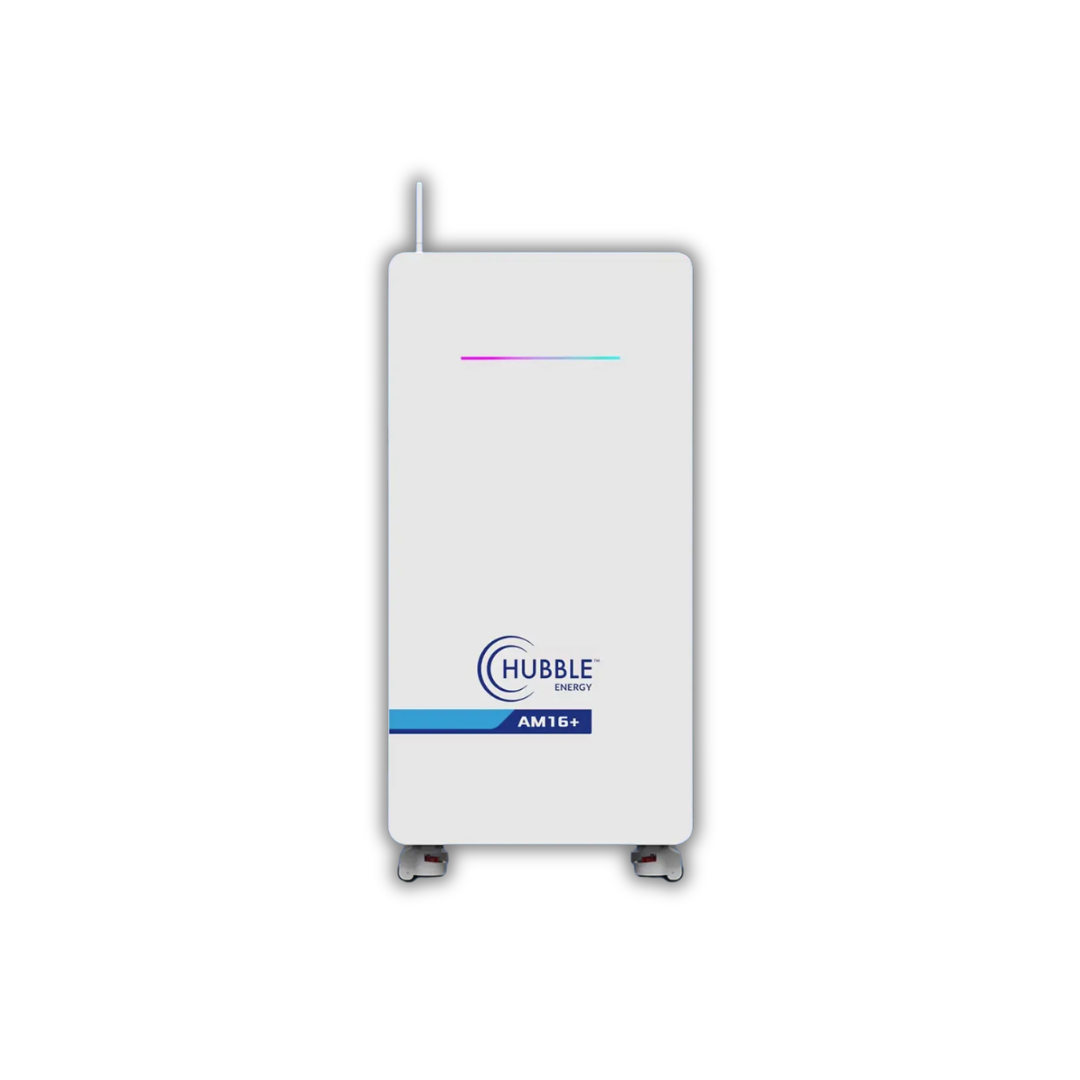

16.1kWh Hubble AM16+ LiFePO₄ 51.2V Lithium Battery
16.1kWh Hubble AM16+ LiFePO₄ 51.2V Lithium Battery
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 5 left
Couldn't load pickup availability
ONLINE DEAL ONLY, ARRANGE FOR IN STORE COLLECTION.
Product Description
The Hubble AM16+ is a high-capacity 16.1kWh lithium battery designed for larger residential, off-grid, backup and hybrid solar systems.
With a 314Ah capacity at 51.2V, up to 200A maximum discharge current and integrated Hubble Cloudlink monitoring, the AM16+ provides substantial energy storage and strong power delivery from a single floor-standing battery.

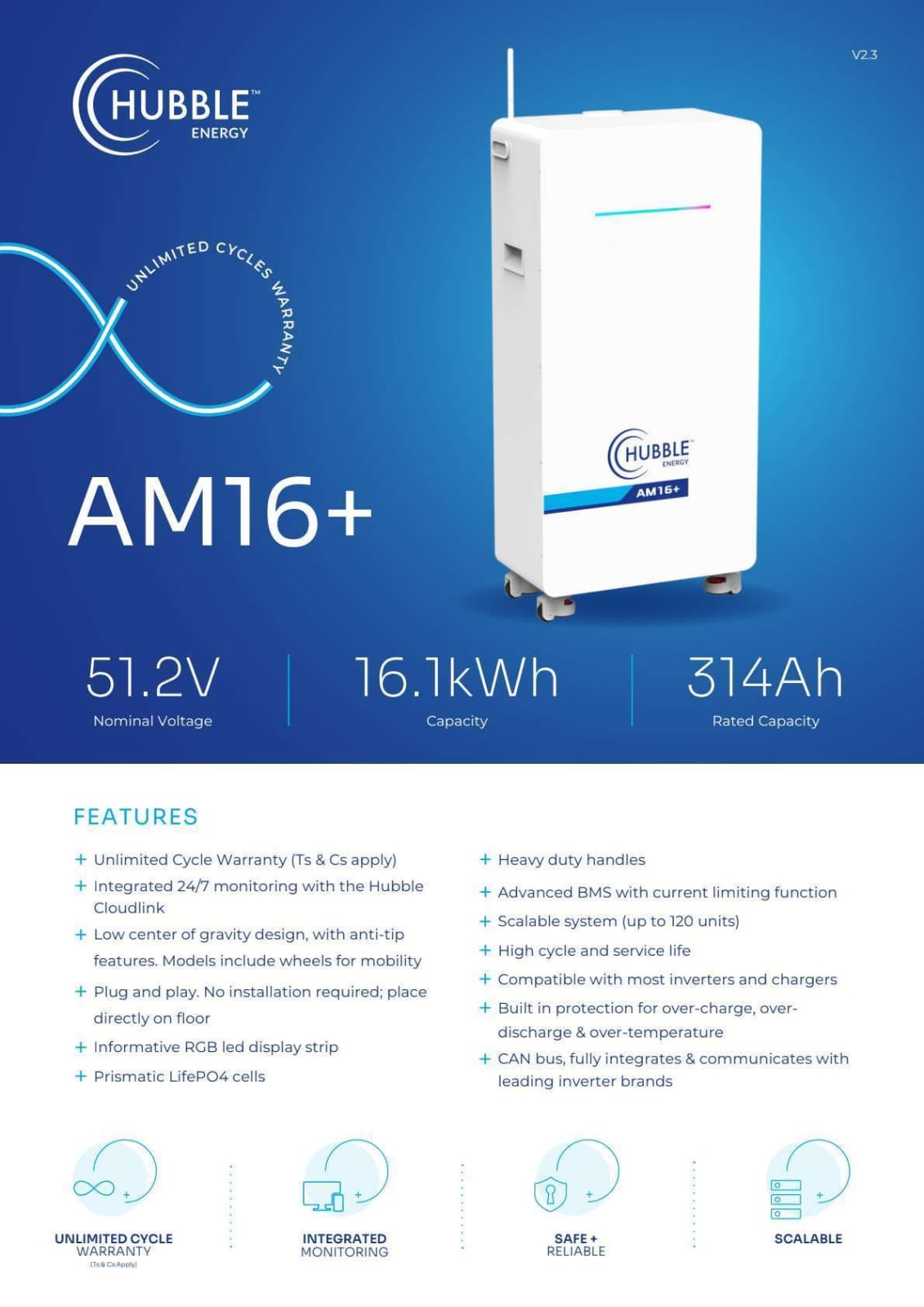

Key Features
16.1kWh nominal energy
314Ah rated capacity
51.2V nominal voltage
Prismatic LiFePO₄ cells
157A continuous discharge current
200A maximum discharge current
130A maximum continuous charge current
Integrated Hubble Cloudlink monitoring
CAN, RS485 and RS232 communication
RGB LED battery status display
Advanced integrated BMS protection
Floor-standing design
Lockable wheels for easier positioning
Up to 15 batteries in parallel with full communication
Approximate 15-year design life
10-year unlimited-cycle warranty, subject to terms and conditions
High-Capacity Energy Storage
The AM16+ provides 16.1kWh of battery storage in a single unit, making it ideal for installations that require more capacity than conventional 5kWh or 10kWh batteries.
Its larger capacity can provide:
Extended backup runtime
Greater overnight energy storage
Increased solar self-consumption
Support for larger residential loads
Reduced dependence on grid power
Actual runtime depends on the connected load, battery settings and inverter efficiency.
Advanced Battery Protection
The integrated Battery Management System provides:
Over-charge protection
Over-discharge protection
Over-current protection
Short-circuit protection
High-temperature protection
Low-temperature protection
Passive cell balancing
Intelligent charge-current limiting
Integrated Cloudlink Monitoring
Built-in Hubble Cloudlink provides 24/7 remote battery monitoring without requiring a separate external Cloudlink device.
This can assist users, installers and technical support with system monitoring, battery management and diagnostics.
Communication and Compatibility
The battery supports:
CAN
RS485
RS232
These communication options allow integration with compatible inverter systems.
The correct communication cable, inverter settings and compatibility should be confirmed before installation.
Expandable Battery Storage
Up to 15 compatible Hubble AM16+ batteries can be connected in parallel with full communication.
At maximum expansion, this represents approximately 241.5kWh of nominal battery storage.
Parallel installations must follow Hubble Energy's requirements for communication, protection, cabling and system configuration.
Floor-Standing Design
The AM16+ is designed for floor installation rather than wall mounting.
Its low centre of gravity and anti-tip design improve stability, while lockable wheels make the approximately 131.5kg battery easier to position during installation.

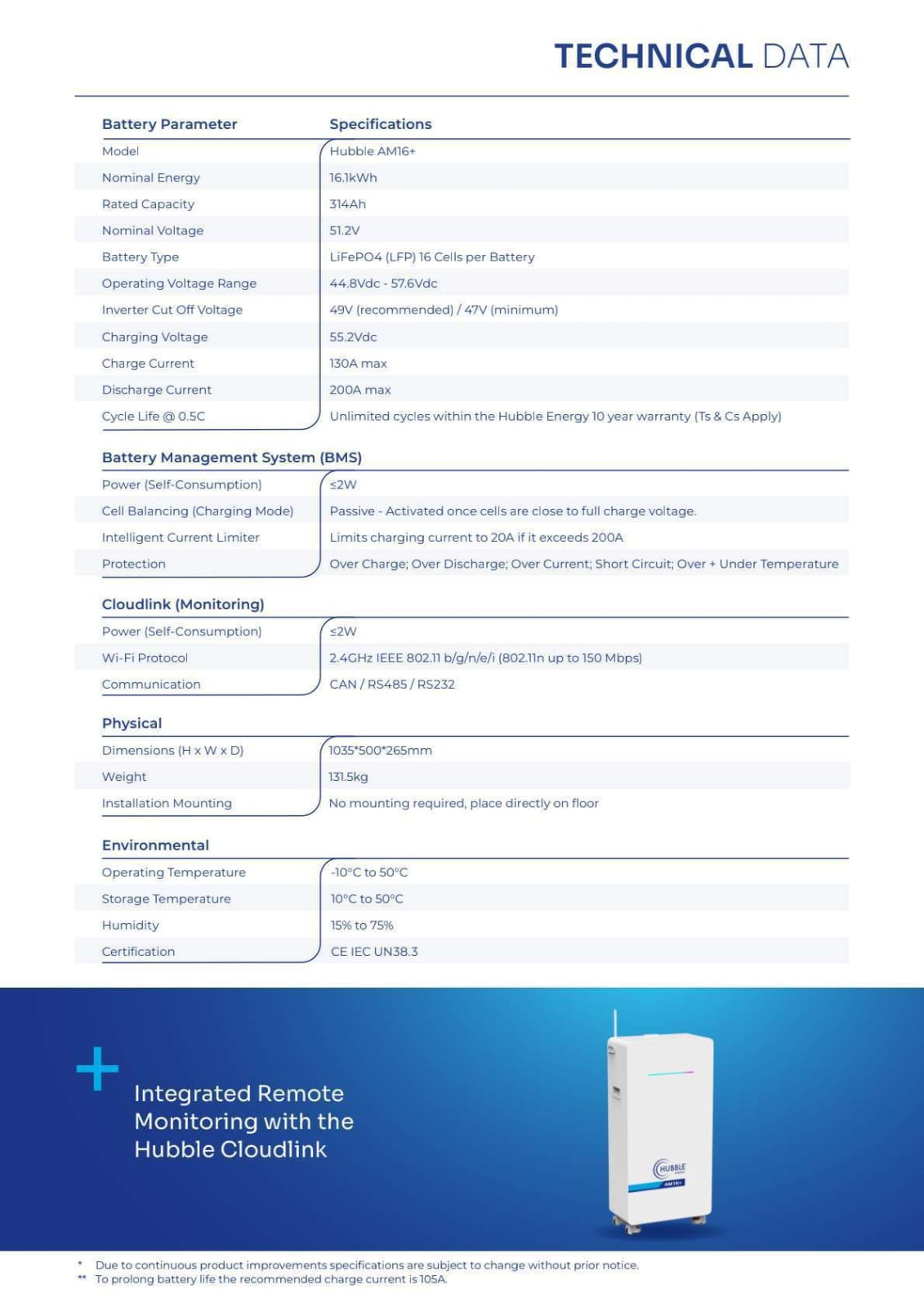

Technical Specifications
Brand: Hubble Energy
Model: AM16+
Battery chemistry: LiFePO₄
Storage capacity: 16.1kWh
Rated capacity: 314Ah
Nominal voltage: 51.2V
Operating voltage: 43.2V to 58.4V DC
Charging voltage: 55.2V DC
Recommended inverter cut-off voltage: 49V
Minimum inverter cut-off voltage: 47V
Maximum continuous charge current: 130A
Continuous discharge current: 157A
Maximum discharge current: 200A
Communication: CAN, RS485 and RS232
Monitoring: Integrated Hubble Cloudlink
Parallel expansion: Up to 15 batteries
Dimensions: 970mm × 500mm × 260mm
Weight: Approximately 131.5kg
Installation: Floor standing
Operating temperature: -10°C to 50°C
Storage temperature: 10°C to 50°C
Humidity: 15% to 75%
Certifications: CE and UN38.3
Design life: Approximately 15 years
Warranty: 10 years / unlimited cycles
Recommended Applications
The Hubble AM16+ is suitable for:
Large residential solar systems
Extended loadshedding backup
Off-grid installations
Hybrid solar systems
Farms and rural properties
Larger inverter systems
Small commercial energy storage
Solar self-consumption
Expandable battery banks
Warranty
- 10-year warranty
- Terms and conditions apply
The battery should be installed and commissioned by a qualified electrical professional in accordance with Hubble Energy requirements.
A valid Certificate of Compliance and proof of professional installation may be required for warranty support.
Product Disclaimer
Errors and omissions excepted.
Specifications, firmware, compatibility and monitoring functionality may change without prior notice. Customers and installers should confirm the latest Hubble Energy documentation before purchase or installation.
