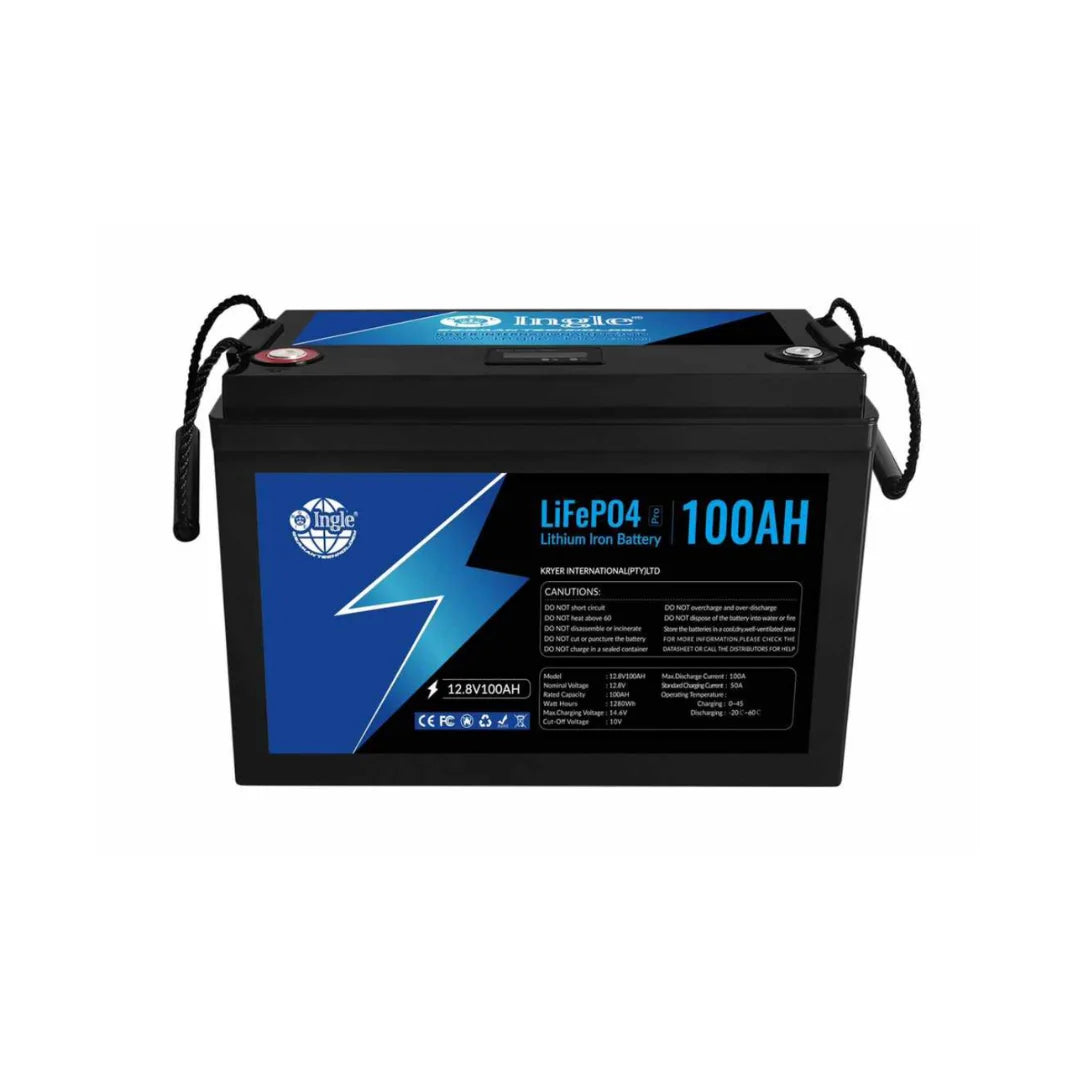

12.8V 100Ah Ingle LiFePO4 Battery 1.28kWh

Ingle 12.8V 100Ah LiFePO4 Battery 1.28kWh 150A Discharge

Description:

The Ingle 12.8V 100Ah LiFePO₄ battery is a modern 12V single-module lithium solution designed as a replacement option for lead-acid, AGM, and gel batteries. With a 1.28kWh rated capacity, strong discharge capability, and long cycle performance, it is suitable for backup, portable power, and 12V energy storage applications where efficiency and lifespan matter.

Battery Type and Application

12V 100Ah LiFePo4 single battery module

Intended as a lead-acid, AGM, and gel battery replacement option

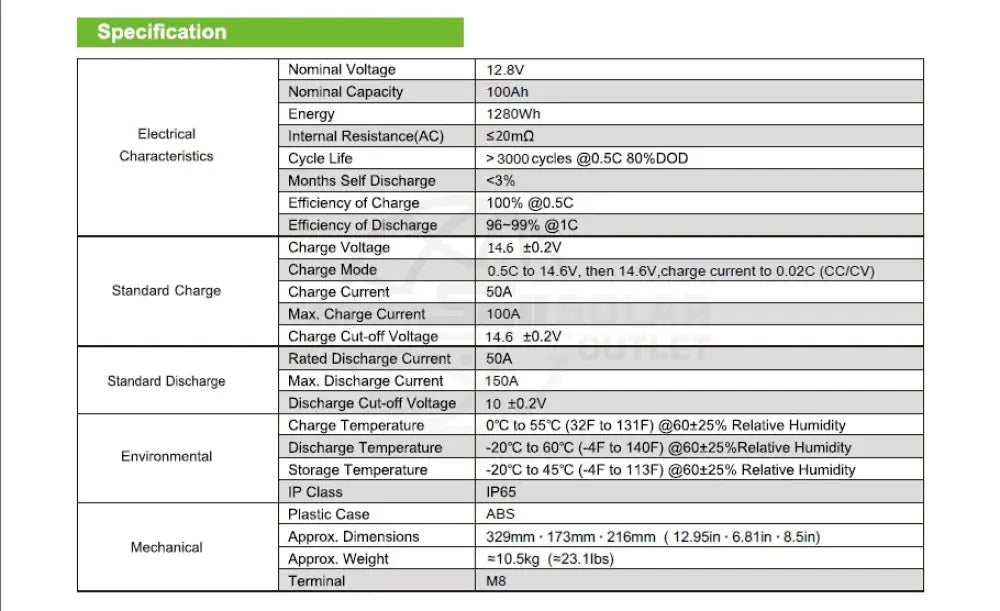

Electrical Specifications

Rated capacity: 1.28 kWh

Nominal voltage: 12.8 V

Charge cut-off voltage: 14.6 V

Discharge cut-off voltage: 10 V

Max discharge current: 150 A

Cycle life: 3000 cycles at 80% depth of discharge (DOD)

Design life: approximately 3 to 5 years

Connection and Expansion

Can be connected in series and parallel

Series and parallel configuration limit: 4 series and 4 parallel

Environmental and Physical

Charging working temperature: 0°C to 45°C

Dimensions (L x W x H): 329 x 173 x 216 mm

Weight: approximately 10.5 kg

Warranty

24 months warranty

Warranty and Installation Requirements

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour

A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system

The installation must be compliant with SANS 10142 and all its parts

Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman or master electrician installing the unit, can be rejected and will render the warranty claim null and void.
