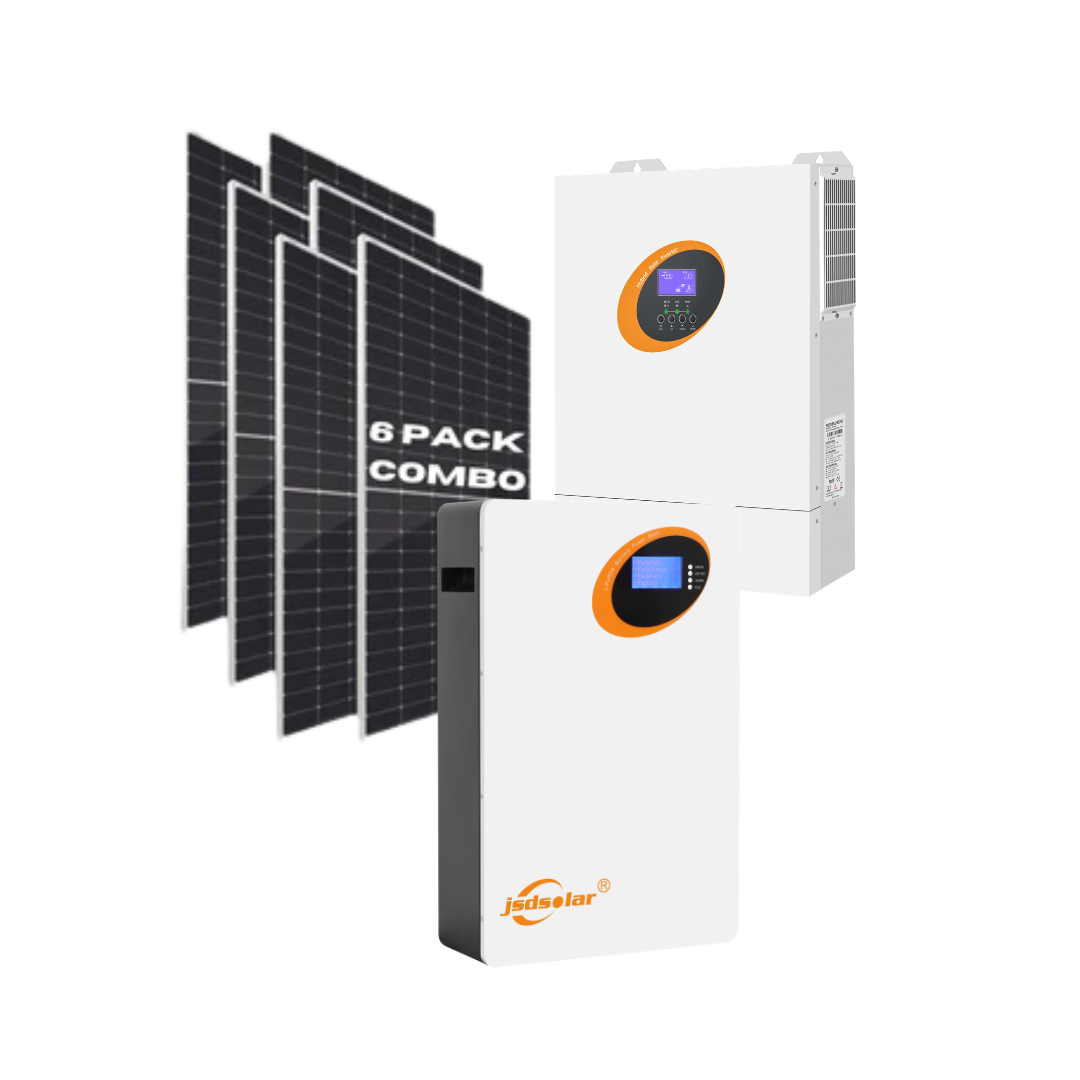

11KVA JSD Solar Hybrid Inverter MPPT 48V + 5.12kWh JSD Lithium Battery + 6x 560W Tier 1 Solar Combo
11KVA JSD Solar Hybrid Inverter MPPT 48V + 5.12kWh JSD Lithium Battery + 6x 560W Tier 1 Solar Combo
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 6 left
Couldn't load pickup availability
Title:
11KVA JSD Solar Hybrid Inverter MPPT 48V + 2x 5.12kWh JSD Lithium Battery + 6x 560W Tier 1 Solar Combo
Combo includes:

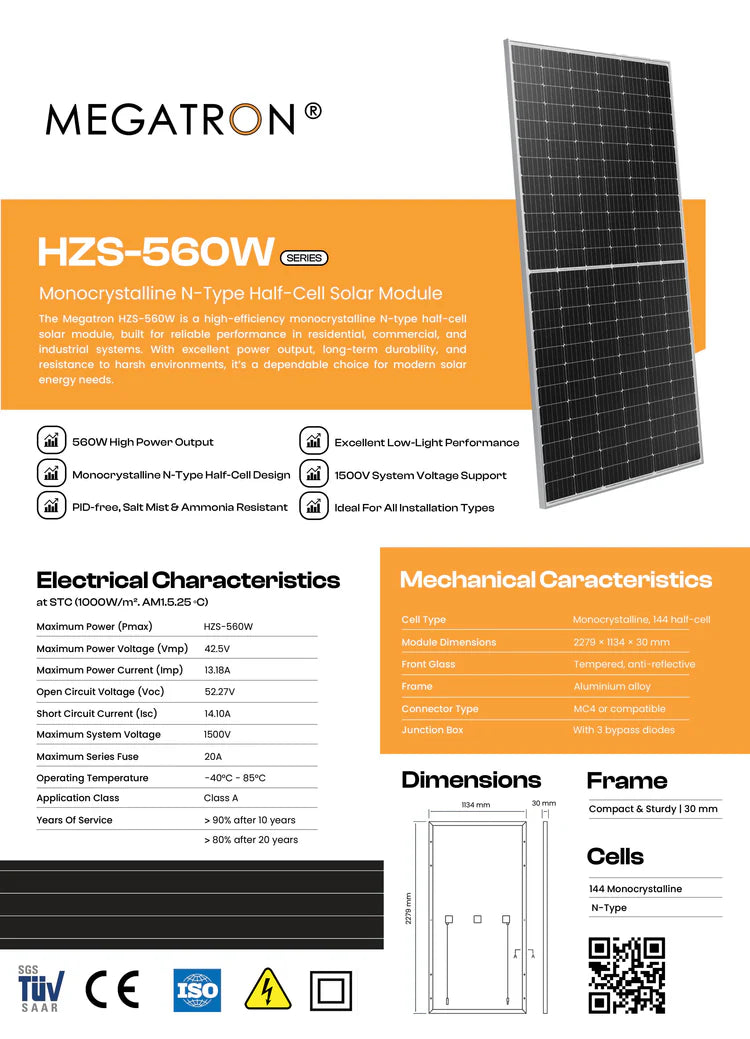

6x 560W TIER 1 Solar Panels
1x 11KVA JSD Solar Hybrid Inverter
1x 5.12kWh JSD Solar Lithium Battery
Description:
The Ecco J11000H is a high-output 48V hybrid inverter built for demanding residential and light commercial solar backup systems. It combines strong PV input capability, high-current battery charging, and flexible operating priorities to suit a wide range of installation requirements.
PV and MPPT Solar Charging
Built-in 2 MPPT trackers for efficient energy harvesting across varying roof strings
Maximum PV input voltage: 500VDC
Maximum PV array power: 5500W
MPPT operating range: 60VDC to 500VDC
High-current solar charging with a maximum charge current of 160A
Battery System and Charging Control
-Designed for 48VDC battery systems
-Maximum discharge current: 220A
-Charging method: CC/CV
-Floating charge voltage: 54VDC
-Overcharge protection: 63VDC
-Lithium battery activation function supported via PV input or utility supply
-Compatible operation with LiFePO4 batteries via RS485 communication
-EQ function supports battery performance optimisation and can help extend lifecycle
System Performance and Operating Logic
-Power factor: 1.0 for full real-power output utilisation
-Multiple output priority modes supported: UTL, SOL, SBU, SUB
-Detachable dust cover designed for harsher operating environments
Monitoring and Communications
-LCD display for system status and monitoring
-Communication interfaces: RS232, RS485, dry contact
-Optional WiFi remote monitoring available
Mechanical and Environmental
-Dimensions: 540 × 415 × 122 mm
-Weight: 15 kg
-Operating temperature range: -10°C to 50°C
JSD 5.12KWH LITHIUM BATTERY
The JSDsolar 48V-class (51.2V nominal) 100Ah LiFePO₄ battery is engineered for dependable energy storage in solar applications, EV-related use cases, and industrial UPS environments. Built with Grade A cells and a smart protection system, it delivers high efficiency, long cycle life, and scalable parallel expansion for larger storage banks.
Cell Quality and Service Life
-Grade A LiFePO4 battery design for long-term reliability
-6,000+ deep cycles with 80% recommended DoD
-Battery cell brand: EVE battery cell
-Total energy: 5kWh
-Battery type: LiFePO4
-Normal voltage: 51.2V
-Normal capacity: 100Ah
Battery Protection and Control
-Built-in smart BMS with overcharge protection
-Over-discharge protection and temperature control support
-Cell balancing function included for stable pack operation
System Efficiency and Operating Range
-Maintenance-free operation designed for zero routine servicing
-Efficiency rated at 98% to reduce energy losses
-Operating environment suitability from -20°C to 60°C
Scalability and Compatibility
-Parallel connection support for up to 15 units
-Maximum parallel bank reference: 48V 1500Ah
-Communication interface: CAN, RS232, RS485
-Inverter compatibility statement: matches all hybrid and off-grid inverter brands in the world
Mechanical and Installation Details
-Installation type: power wall mounted
-Dimensions: 500 × 494 × 145 mm
-Weight: 47.2 kg
Certifications and Supply
-Certificates: CE, RoHS, UN38.3, MSDS, ISO
-Supply ability: 5000 pieces per month
Warranty and Installation Requirements
PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK
Battery - 5 years
Inverter - 2 years
Solar Panels - 10 years
Installation should be completed by a qualified electrician and set up in accordance with SANS 10142 requirements, with a valid COC issued for the installation where applicable
Warranty support may require proof of compliant installation and commissioning information, depending on supplier terms
