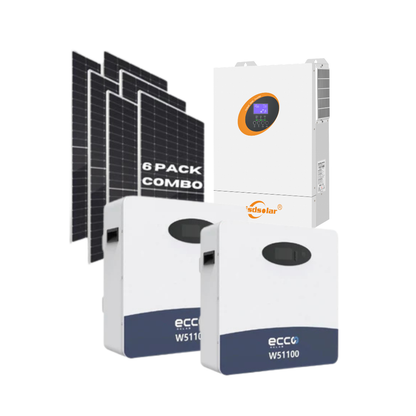

11KVA JSD Solar Hybrid Inverter MPPT 48V + 2x 5.12kWh Ecco Lithium Battery + 6x 560W Tier 1 Solar Combo
11KVA JSD Solar Hybrid Inverter MPPT 48V + 2x 5.12kWh Ecco Lithium Battery + 6x 560W Tier 1 Solar Combo
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 3 left
Couldn't load pickup availability
Title:
11KVA JSD Solar Hybrid Inverter MPPT 48V + 2x 5.12kWh Ecco Lithium Battery + 6x 560W Tier 1 Solar Combo
Combo includes:
6x 560W TIER 1 Solar Panels
1x 11KVA JSD Solar Hybrid Inverter
2x 5.12kWh Ecco Lithium Battery
Description:
The Ecco J11000H is a high-output 48V hybrid inverter built for demanding residential and light commercial solar backup systems. It combines strong PV input capability, high-current battery charging, and flexible operating priorities to suit a wide range of installation requirements.
PV and MPPT Solar Charging
Built-in 2 MPPT trackers for efficient energy harvesting across varying roof strings
Maximum PV input voltage: 500VDC
Maximum PV array power: 5500W
MPPT operating range: 60VDC to 500VDC
High-current solar charging with a maximum charge current of 160A
Battery System and Charging Control
-Designed for 48VDC battery systems
-Maximum discharge current: 220A
-Charging method: CC/CV
-Floating charge voltage: 54VDC
-Overcharge protection: 63VDC
-Lithium battery activation function supported via PV input or utility supply
-Compatible operation with LiFePO4 batteries via RS485 communication
-EQ function supports battery performance optimisation and can help extend lifecycle
System Performance and Operating Logic
-Power factor: 1.0 for full real-power output utilisation
-Multiple output priority modes supported: UTL, SOL, SBU, SUB
-Detachable dust cover designed for harsher operating environments
Monitoring and Communications
-LCD display for system status and monitoring
-Communication interfaces: RS232, RS485, dry contact
-Optional WiFi remote monitoring available
Mechanical and Environmental
-Dimensions: 540 × 415 × 122 mm
-Weight: 15 kg
-Operating temperature range: -10°C to 50°C
Lithium Battery (Ecco 51.2V 100Ah 5.12kWh W51100 – Wall-Mounted)
Key Features:
-Wall-mounted design – easy to install and aesthetically pleasing
-Lithium Iron Phosphate (LiFePO4) cells – safe, long life cycle
-Max 1C charge/discharge rate
-User-friendly interface
-Compatible with multiple inverter brands
-Supports up to 16 parallel groups
-Compliant with North American UL & EU TUV standards
Advantages:
- Longer Cycle Life: Up to 20× longer cycle life and 5× longer float/calendar life than lead-acid batteries
- Lighter Weight: ~40% of the weight of comparable lead-acid batteries
- Higher Power: 2× the power of lead-acid batteries while maintaining high energy capacity
- Wider Temperature Range: -20°C to 60°C
- Superior Safety: Eliminates risk of explosion or combustion from impact, overcharging, or short circuits
What’s in the Box?
- Battery
- Battery Cables & Mounts
Battery Parameters:
- Battery Type: Set to “USE”
- Bulk Charge Voltage: 56.4-56.6V
- Float Charge Voltage: 54V
- Cut-off Voltage: 47V
Technical Specifications:
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Total Power: 5.12kWh
- Best Operating Voltage Range: 43V - 54.5V
- Short Circuit Protection: Yes
- Power-on Reverse Connection Protection: Optional
- Max Charging Voltage: 57.6V
- Best Charging Voltage: 56.4V (Recommended)
- Max Continuous Output Power: 5500W
- Max Momentary Output Power: 7500W
- Local Parameter Configuration: Supported
- Max Installation Dimensions (mm): 480 × 170 × 500
- Package Size (mm): 590 × 290 × 615
- Weight: 49kg
- IP Class: IP54
- Communication: RS485, RS232, CAN
- Design Life: 15 years
-
Battery:
- Voltage: 48V
- Max Discharge Current: 220A
- Floating Charge Voltage: 54VDC
- Overcharge Protection: 63VDC
- Charging Method: CC/CV
Warranty and Installation Requirements
PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK
Battery - 5 years
Inverter - 2 years
Solar Panels - 10 years
Installation should be completed by a qualified electrician and set up in accordance with SANS 10142 requirements, with a valid COC issued for the installation where applicable
Warranty support may require proof of compliant installation and commissioning information, depending on supplier terms
