11KVA JSD Solar Hybrid Inverter MPPT 48V
11KVA JSD Solar Hybrid Inverter MPPT 48V
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 3 left
Couldn't load pickup availability
Title:

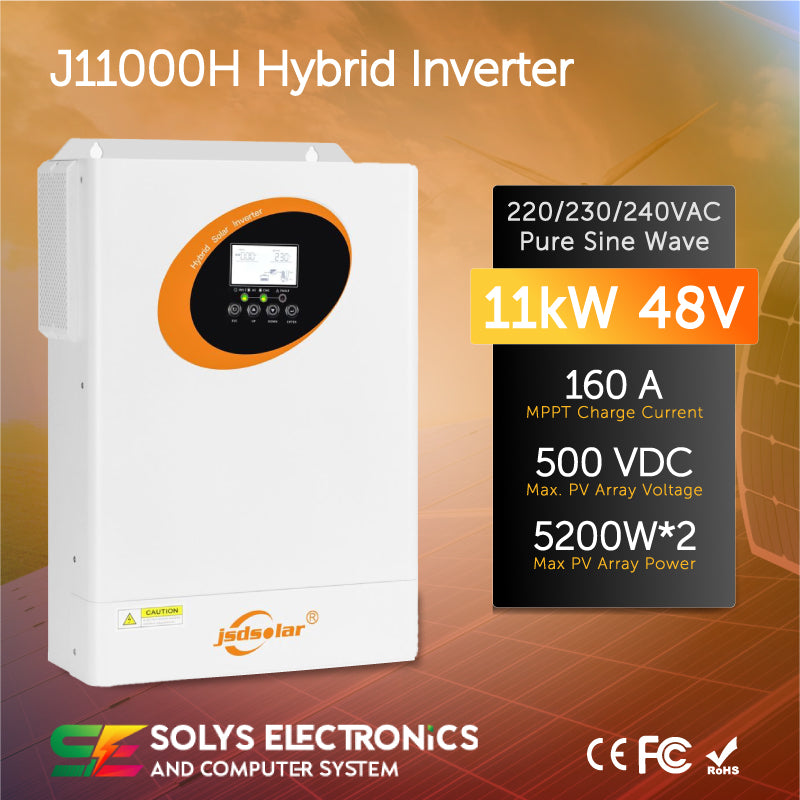

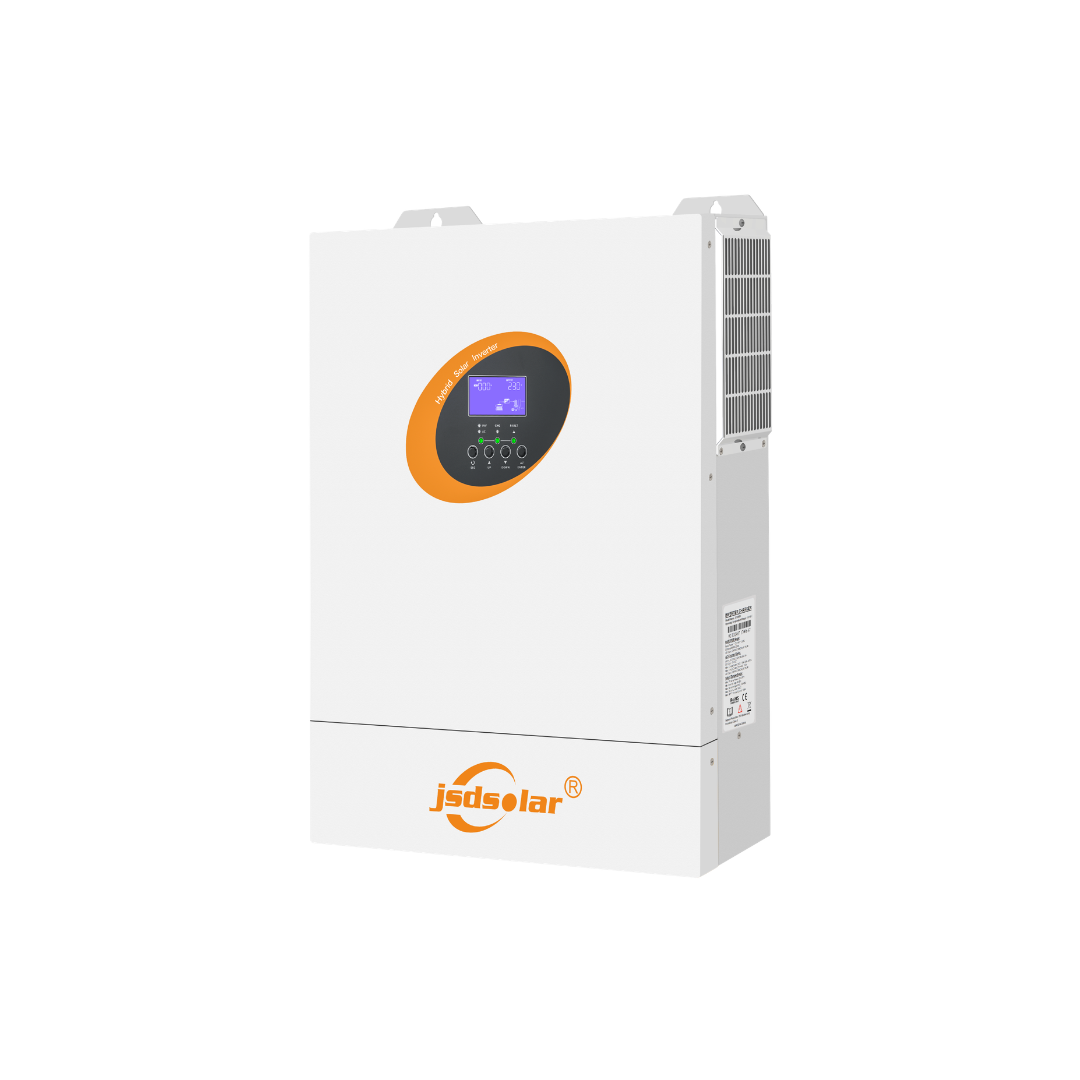

Ecco J11000H 11kVA 48V Hybrid Inverter 2 MPPT 500V PV
Description:
The Ecco J11000H is a high-output 48V hybrid inverter built for demanding residential and light commercial solar backup systems. It combines strong PV input capability, high-current battery charging, and flexible operating priorities to suit a wide range of installation requirements.
PV and MPPT Solar Charging
Built-in 2 MPPT trackers for efficient energy harvesting across varying roof strings
Maximum PV input voltage: 500VDC
Maximum PV array power: 5500W
MPPT operating range: 60VDC to 500VDC
High-current solar charging with a maximum charge current of 160A
Battery System and Charging Control
-Designed for 48VDC battery systems
-Maximum discharge current: 220A
-Charging method: CC/CV
-Floating charge voltage: 54VDC
-Overcharge protection: 63VDC
-Lithium battery activation function supported via PV input or utility supply
-Compatible operation with LiFePO4 batteries via RS485 communication
-EQ function supports battery performance optimisation and can help extend lifecycle
System Performance and Operating Logic
-Power factor: 1.0 for full real-power output utilisation
-Multiple output priority modes supported: UTL, SOL, SBU, SUB
-Detachable dust cover designed for harsher operating environments
Monitoring and Communications
-LCD display for system status and monitoring
-Communication interfaces: RS232, RS485, dry contact
-Optional WiFi remote monitoring available
Mechanical and Environmental
-Dimensions: 540 × 415 × 122 mm
-Weight: 15 kg
-Operating temperature range: -10°C to 50°C
Warranty and Installation Requirements
Installation should be completed by a qualified electrician and set up in accordance with SANS 10142 requirements, with a valid COC issued for the installation where applicable
Warranty support may require proof of compliant installation and commissioning information, depending on supplier terms
