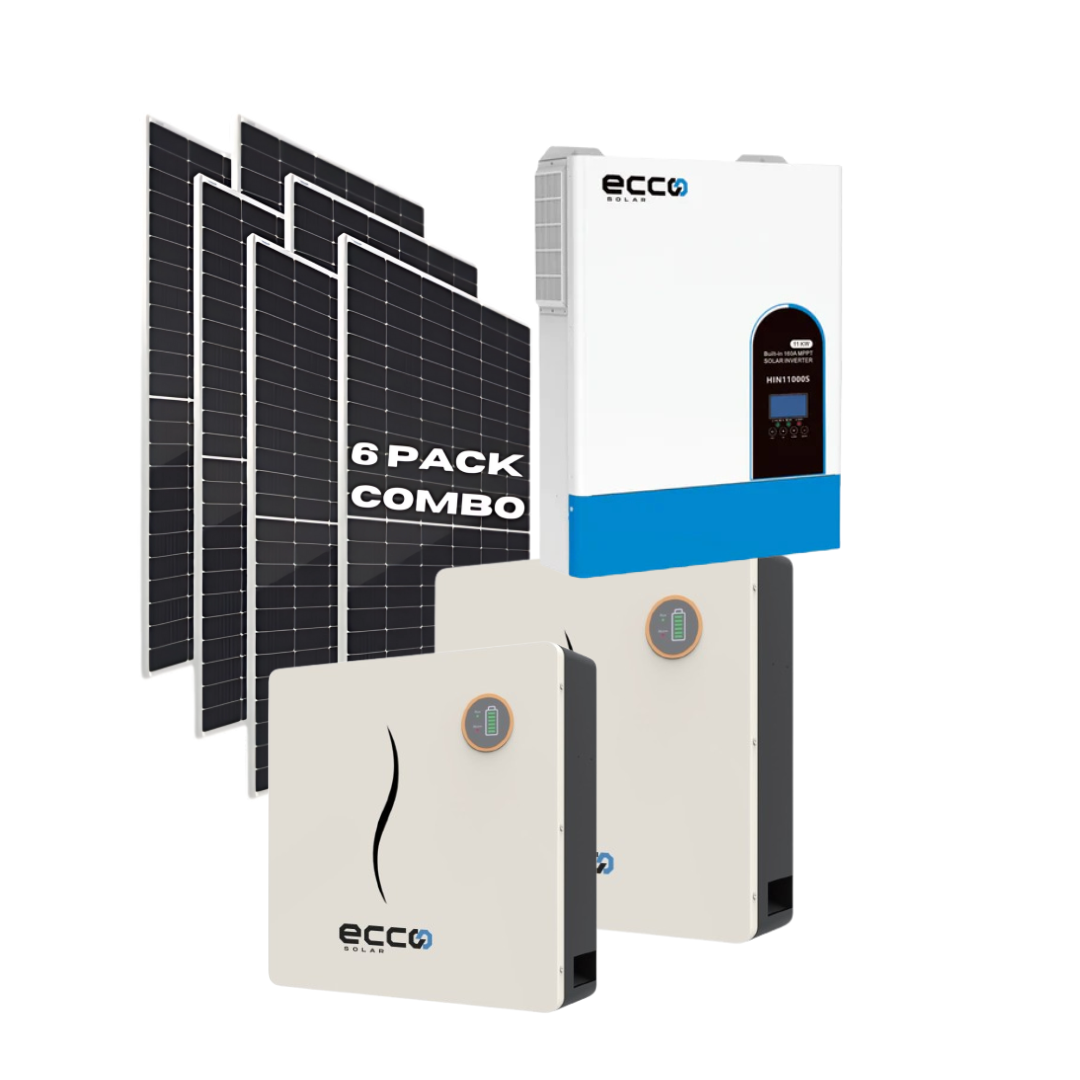

11KVA Ecco MPPT Hybrid Inverter 48V + 2x 5.12kWh Ecco Lithium Battery 100AH + 6x 555W Jinko Mono Crystal Solar Panels Off Grid Solar Combo Kit

11KVA Ecco MPPT Hybrid Inverter 48V + 2x 5.12kWh Ecco Lithium Battery 100AH + 6x 555W Jinko Mono Crystal Solar Panels Off Grid Solar Combo Kit

Power your home or business with this complete off-grid solar combo kit designed for reliable energy independence. Featuring a 11KVA ECCO 48V MPPT Hybrid Inverter, a 5.12kWh Ecco Lithium Battery (100Ah), and 6 x 555W Jinko Mono-Crystalline Tier-1 Solar Panels, this system delivers efficient performance, long lifespan, and seamless power during load shedding.

-Ideal for homes, farms, or small businesses
-High-efficiency MPPT hybrid inverter with battery support
-Durable Jinko Tier-1 panels for maximum solar harvest
-Scalable LiFePO₄ battery with built-in BMS for safety & longevity
-Perfect plug-and-play off-grid or backup power solution

11KVA / 11000W Ecco MPPT Hybrid Inverter Pure Sine Wave

The 11KVA / 11000W Ecco MPPT Hybrid Inverter offers a reliable, high-performance energy solution with pure sine wave output and built-in 2 MPPT for efficient solar energy management. Featuring lithium battery activation via PV or utility, it supports LiFePO4 batteries and offers advanced power features including a 94% peak efficiency rate, overload protection, and remote Wi-Fi monitoring. Designed for both residential and commercial use, this inverter is perfect for off-grid and backup power applications, with a wide voltage range, quick transfer times, and robust durability for harsh environments.

• Built-in 2 MPPT
• Lithium Battery Activation Function: Activated by PV or Utility
• Compatible with LiFePO4 Battery via RS485 communication
• Pure Sine Wave Output
• Power Factor: 1.0
• Maximum PV Input: 500Vdc
• Built-in MPPT: 160A
• Capable of Working Without Battery
• Detachable Dust Cover: Designed for harsh environments
• Optional Wi-Fi Remote Monitoring
• Supports Multiple Output Priorities: SUB, SBU, SUF
• EQ Function: Optimizes battery performance and extends lifecycle

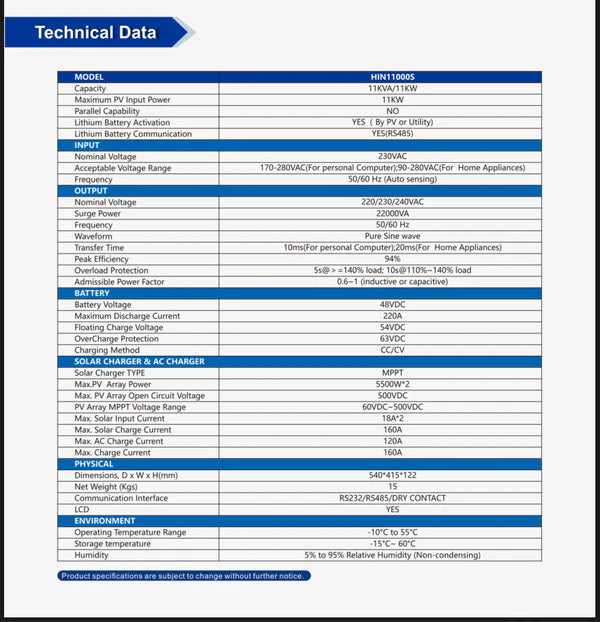

Specifications:

• Model: HIN11000S
• Capacity: 11KVA / 11KW
• Maximum PV Input Power: 11KW
• Parallel Capability: Not available
• Lithium Battery Activation: Yes (by PV or Utility)
• Lithium Battery Communication: Yes (RS485)

Input:

• Nominal Voltage: 230VAC
• Acceptable Voltage Range:
  • 170-280VAC (For Personal Computer)
  • 90-280VAC (For Home Appliances)
• Frequency: 50/60 Hz (Auto Sensing)

Output:

• Nominal Voltage: 220/230/240VAC
• Surge Power: 2200VA
• Frequency: 50/60 Hz
• Waveform: Pure Sine Wave
• Transfer Time:
  • 10ms (For Computers)
  • 20ms (For Home Appliances)
• Peak Efficiency: 94%
• Overload Protection: 5s @ 140% load

Battery:

• Battery Voltage: 48V
• Maximum Discharge Current: 220A
• Floating Charge Voltage: 54VDC
• Overcharge Protection: 63VDC
• Charging Method: CC/CV

Solar Charger & AC Charger:

• Solar Charger Type: MPPT
• Max. PV Array Power: 5500W * 2
• Max. PV Array Open Circuit Voltage: 500VDC
• PV Array MPPT Voltage Range: 60VDC - 500VDC
• Max. Solar Input Current: 18A * 2
• Max. Solar Charge Current: 160A
• Max. AC Charge Current: 120A
• Max. Charge Current: 160A

Physical:

• Dimensions (D x W x H): 540mm x 415mm x 122mm
• Net Weight: 15kg
• Communication Interface: RS232 / RS485 / Dry Contact
• LCD: Available

Ecco 5.12kWh 51.2V 100Ah Lithium Battery – Wall-Mount ELV51100

Description:

Reliable Residential Energy Storage
The Ecco ELV51100 is a high-performance 51.2V 100Ah lithium battery engineered for modern home and small commercial energy systems. Designed to work seamlessly with 48V hybrid inverters, this wall-mounted battery delivers dependable power storage for both backup and off-grid installations.

Built-In Battery Management System (BMS)

Advanced BMS monitors voltage, current, and temperature in real-time.

Automatically balances cells to ensure consistent performance and extend cycle life.

Integrated protection features against overcharge, over-discharge, overcurrent, and temperature extremes.

Intelligent charge, discharge, and balance state control for optimal efficiency.

Expandable Modular Design

Supports up to 15 units in parallel for larger energy storage needs.

Ideal for scalable home and light commercial applications.

Compact wall-mounted design saves installation space.

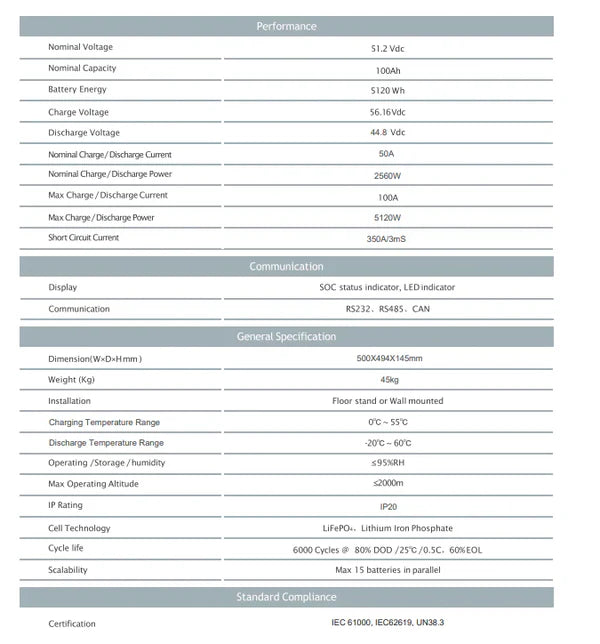

Technical Specifications

Nominal Voltage: 51.2V

Nominal Capacity: 100Ah

Total Energy: 5.12kWh

Charge Voltage: 56.16V

Discharge Cutoff Voltage: 44.8V

Dimensions (mm): 500 × 494 × 145

Weight: 45kg

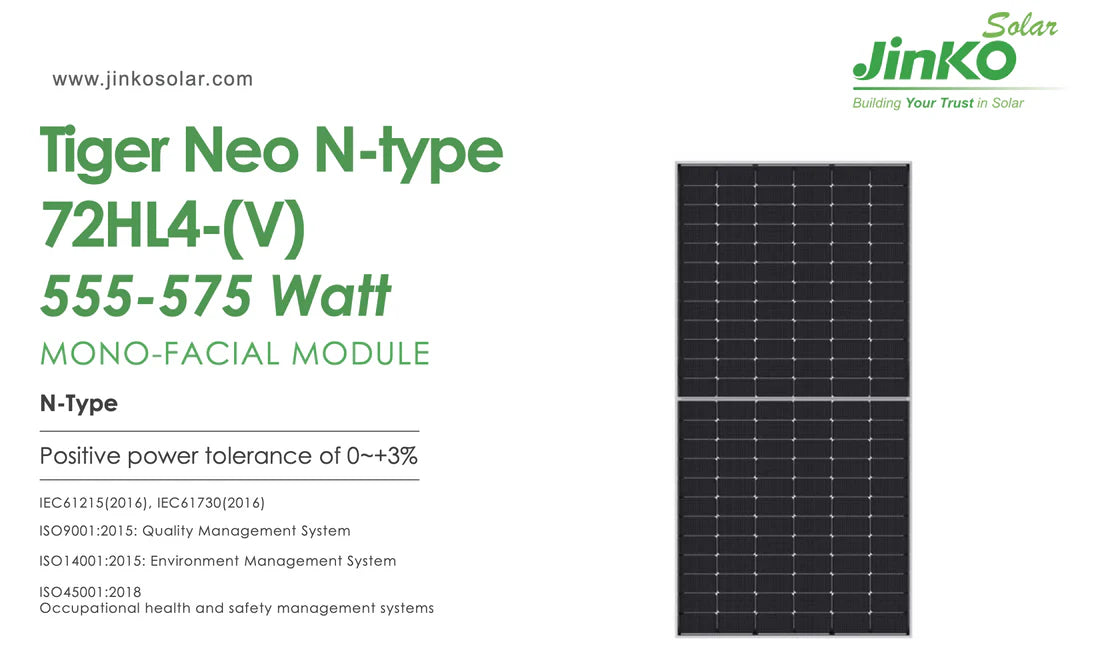

555W JINKO Mono Crystalline Solar Panel

Description:

Get reliable, high-efficiency solar power with the 555W Jinko Mono Crystalline Solar Panel. This solar panel is ideal for residential, commercial, or project installations. Jinko panels are globally recognized for their superior quality, durability, and outstanding performance in all conditions. It is also a TIER 1 panel

Key Features:

Model: JKM555N-72HL4-(V)-F1-EN

555W high-efficiency output per panel

Advanced Mono Crystalline technology for maximum energy harvest

Tier-1 bankable brand trusted worldwide

Also Supplied as a full pallet of 31 panels which is Ideal for bulk installations and contractors

Important Note:

Please note that solar panels are couriered at own risk

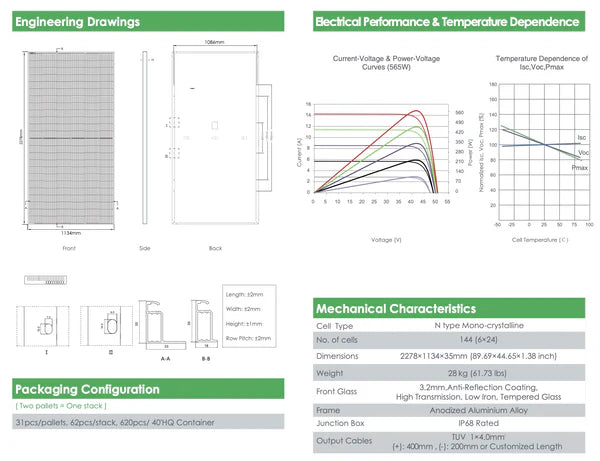

Spec sheet :

JKM555-575N-72HL4-(V)-F1-EN

Package include

-6x 555W JINKO SOLAR PANELS MONO CRYSTAL (TIER 1)

-2x 5.12kwh Ecco Lithium Battery 48V 100AH

-11KVA ECCO HYBRID INVERTER MPPT 48V

Warranty & Installation Requirements

Battery + Inverter - 5-year limited warranty

Solar panels -15 year product warranty

All lithium batteries and inverters must be installed by a qualified electrical wireman or Master Electrician registered with the Department of Labour. A valid Certificate of Compliance (COC) specific to the solar or backup system must be issued after installation. The setup must comply with SANS 10142 regulations.
Warranty claims without a COC, installation photos, or proof of qualified installation may be rejected.
