The Solar Step

11KVA / 11000W Ecco MPPT Hybrid Inverter Pure Sine Wave + 1x 5.12kWh Ecco Lithium Battery ( Wall Mount )

11KVA / 11000W Ecco MPPT Hybrid Inverter Pure Sine Wave + 1x 5.12kWh Ecco Lithium Battery ( Wall Mount )

Regular price R 24,500.00
Regular price Sale price R 24,500.00
Sale Sold out
Shipping calculated at checkout.

Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.

Low stock: 6 left

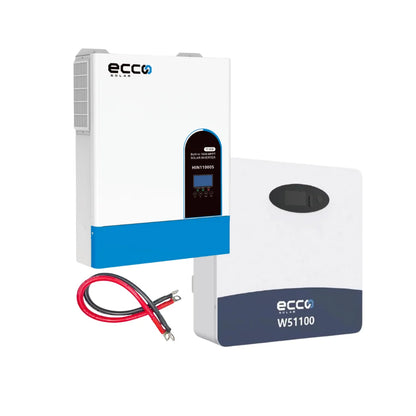

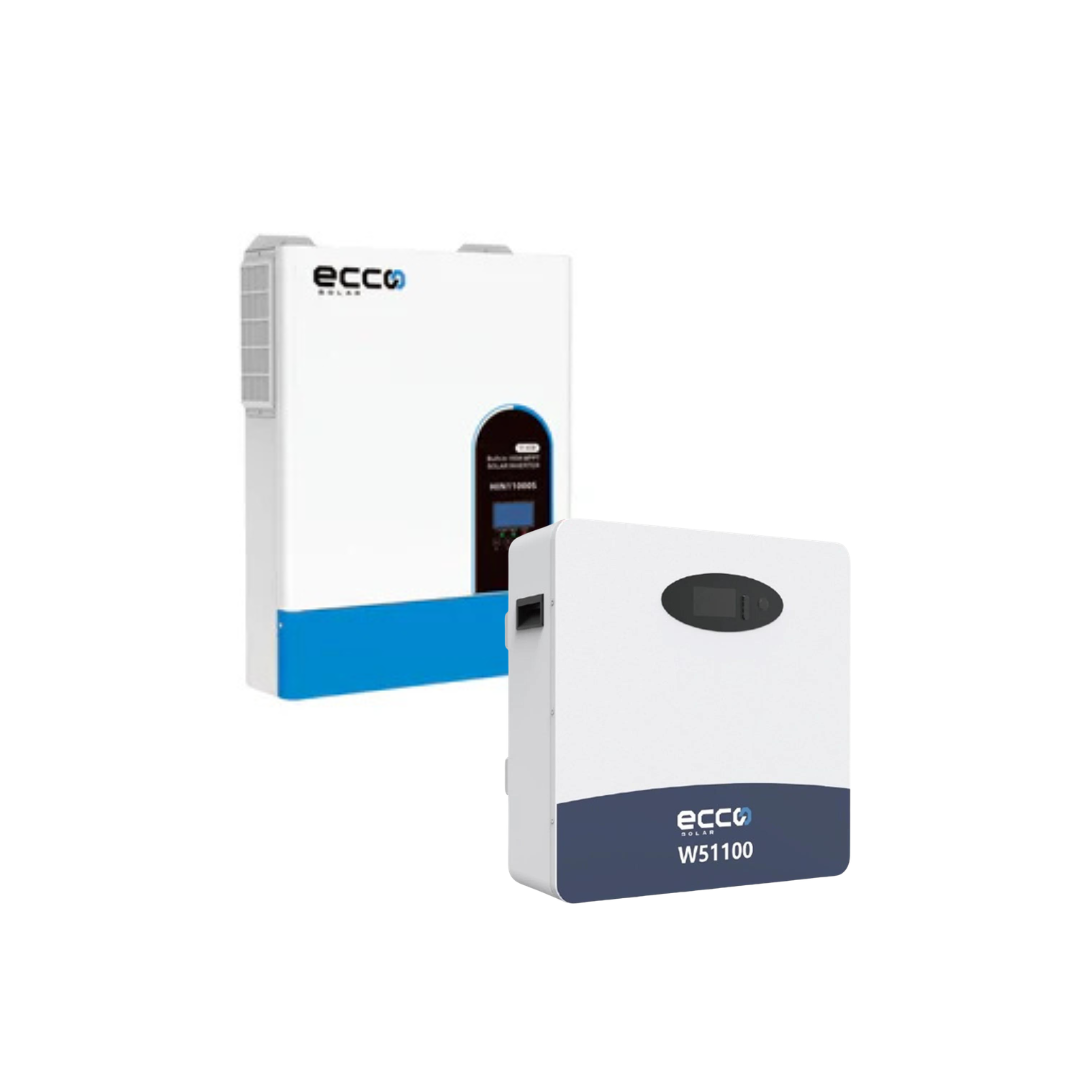

Combo Includes:

  • 1x 11KVA Ecco Hybrid Inverter
  • 1x 5.12kWh Ecco Lithium Battery

Inverter Specifications (HIN11000S)

Type: 11KVA / 11000W Ecco MPPT Hybrid Inverter (Pure Sine Wave)

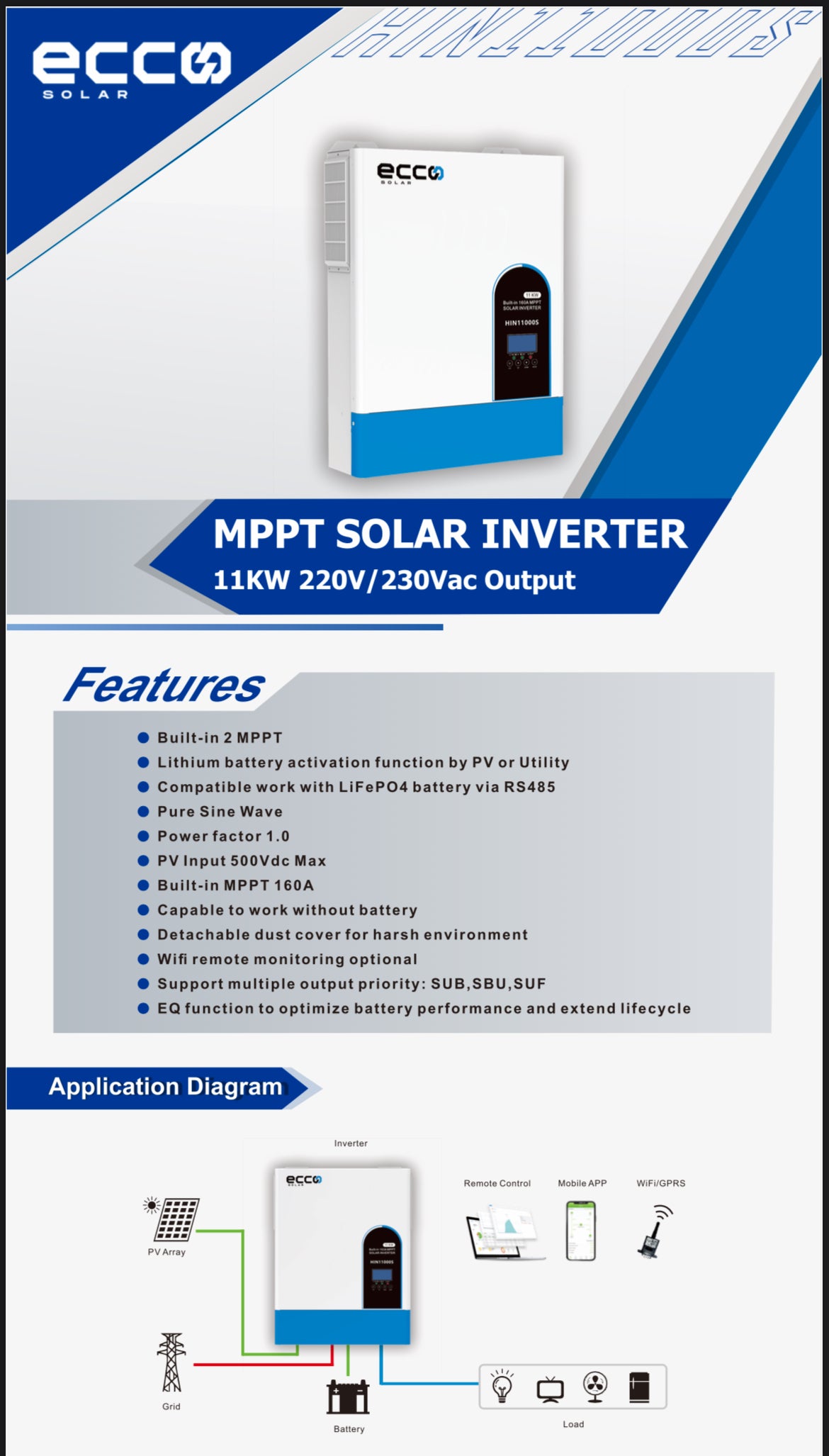

Key Features:

  • Built-in 2 MPPT
  • Lithium battery activation via PV or Utility
  • Compatible with LiFePO4 battery via RS485
  • Power factor: 1.0
  • Max PV Input: 500Vdc
  • Built-in MPPT 160A
  • Can operate without a battery
  • Detachable dust cover for harsh environments
  • WiFi remote monitoring (optional)
  • Supports multiple output priority modes: SUB, SBU, SUF
  • EQ function optimizes battery performance and extends lifespan

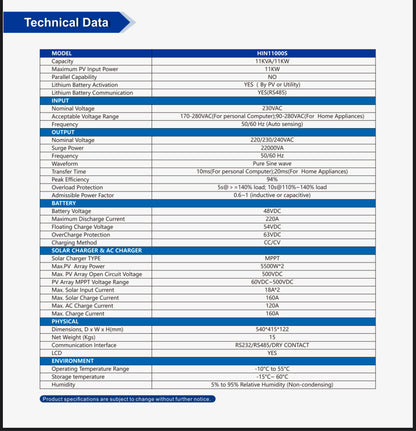

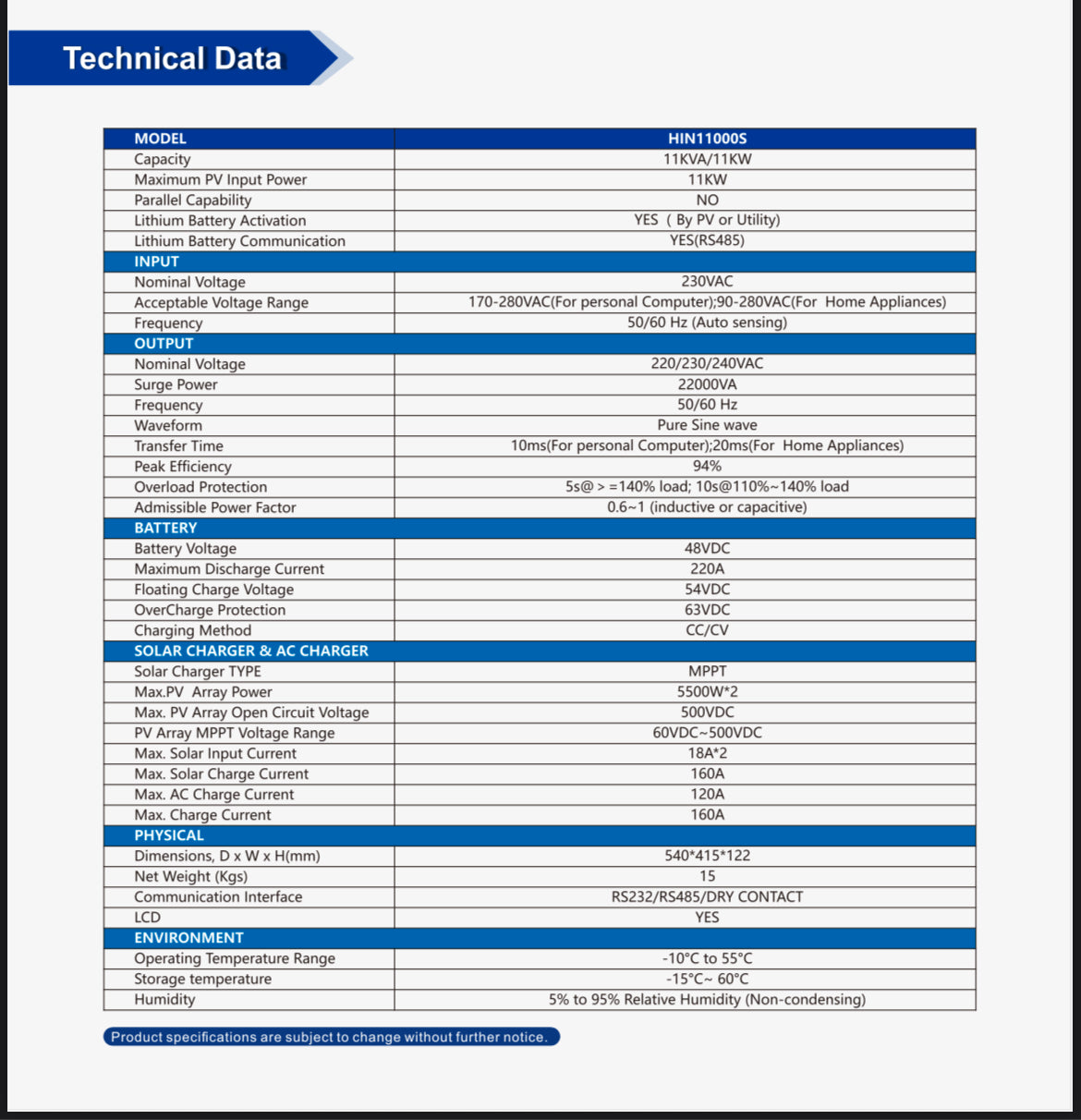

Technical Specifications:

  • Capacity: 11KVA / 11KW
  • Max PV Input Power: 11KW
  • Parallel Capability: No
  • Lithium Battery Activation: Yes (via PV or Utility)
  • Lithium Battery Communication: Yes (RS485)

Input:

  • Nominal Voltage: 230VAC
  • Acceptable Voltage Range:
    • 170-280VAC (for personal computers)
    • 90-280VAC (for home appliances)
  • Frequency: 50/60 Hz (Auto Sensing)

Output:

  • Nominal Voltage: 220/230/240VAC
  • Surge Power: 2200VA
  • Frequency: 50/60 Hz
  • Waveform: Pure Sine Wave
  • Transfer Time:
    • 10ms (for computers)
    • 20ms (for home appliances)
  • Peak Efficiency: 94%
  • Overload Protection: 5s @ 140% Load

Battery:

  • Voltage: 48V
  • Max Discharge Current: 220A
  • Floating Charge Voltage: 54VDC
  • Overcharge Protection: 63VDC
  • Charging Method: CC/CV

Solar & AC Charging:

  • Solar Charger Type: MPPT
  • Max PV Array Power: 5500W × 2
  • Max PV Open Circuit Voltage: 500VDC
  • MPPT Voltage Range: 60VDC - 500VDC
  • Max Solar Input Current: 18A × 2
  • Max Solar Charge Current: 160A
  • Max AC Charge Current: 120A
  • Max Charge Current: 160A

Physical & Communication:

  • Dimensions (mm): 540 × 415 × 122
  • Net Weight: 15kg
  • Communication Interface: RS232 / RS485 / Dry Contact
  • Display: LCD

Lithium Battery (Ecco 51.2V 100Ah 5.12kWh W51100 – Wall-Mounted)

Key Features:
-Wall-mounted design – easy to install and aesthetically pleasing
-Lithium Iron Phosphate (LiFePO4) cells – safe, long life cycle
-Max 1C charge/discharge rate
-User-friendly interface
-Compatible with multiple inverter brands
-Supports up to 16 parallel groups
-Compliant with North American UL & EU TUV standards

Advantages:

  • Longer Cycle Life: Up to 20× longer cycle life and 5× longer float/calendar life than lead-acid batteries
  • Lighter Weight: ~40% of the weight of comparable lead-acid batteries
  • Higher Power: 2× the power of lead-acid batteries while maintaining high energy capacity
  • Wider Temperature Range: -20°C to 60°C
  • Superior Safety: Eliminates risk of explosion or combustion from impact, overcharging, or short circuits

What’s in the Box?

  • Battery
  • Battery Cables & Mounts

Battery Parameters:

  • Battery Type: Set to “USE”
  • Bulk Charge Voltage: 56.4-56.6V
  • Float Charge Voltage: 54V
  • Cut-off Voltage: 47V

Technical Specifications:

  • Nominal Voltage: 51.2V
  • Nominal Capacity: 100Ah
  • Total Power: 5.12kWh
  • Best Operating Voltage Range: 43V - 54.5V
  • Short Circuit Protection: Yes
  • Power-on Reverse Connection Protection: Optional
  • Max Charging Voltage: 57.6V
  • Best Charging Voltage: 56.4V (Recommended)
  • Max Continuous Output Power: 5500W
  • Max Momentary Output Power: 7500W
  • Local Parameter Configuration: Supported
  • Max Installation Dimensions (mm): 480 × 170 × 500
  • Package Size (mm): 590 × 290 × 615
  • Weight: 49kg
  • IP Class: IP54
  • Communication: RS485, RS232, CAN
  • Design Life: 15 years

Warranties & Installation Requirements

  • 5-Year Warranty
  • Installation must be performed by a qualified electrical wireman or Master Electrician with valid registration with the Department of Labour.
  • A valid Electrical Certificate of Compliance (COC) must be issued after installation, specific to the backup or solar system.
  • Installation must comply with SANS 10142 and all its parts.
  • Warranty claims must include:
    • Installation photos
    • Valid COC
    • Proof of installation by a qualified wireman or Master Electrician
  • Failure to provide the above may void the warranty.
