11KVA / 11000W 48V ECCO Hybrid Inverter Plug & Play System + 5.12kWh ECCO Lithium Battery (SOLAR READY)
11KVA / 11000W 48V ECCO Hybrid Inverter Plug & Play System + 5.12kWh ECCO Lithium Battery (SOLAR READY)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 6 left
Couldn't load pickup availability
11KVA / 11000W 48V ECCO Hybrid Inverter Plug & Play System + 5.12kWh ECCO Lithium Battery (SOLAR READY)
What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 500w which is usually a TV, WIFI, Lights, etc. This portable system will last 16-20 Hours With a 100% DOD.

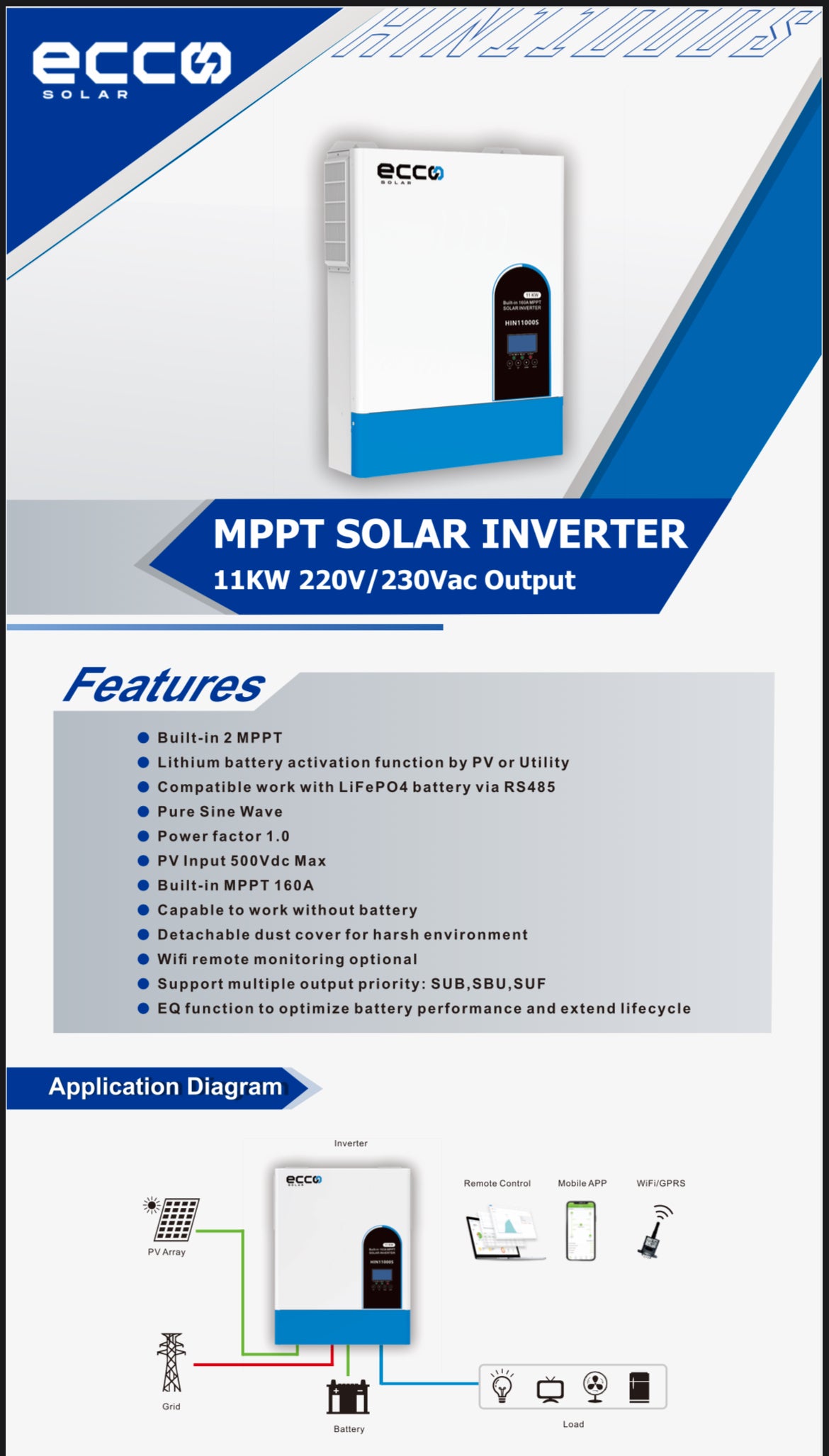

Features;

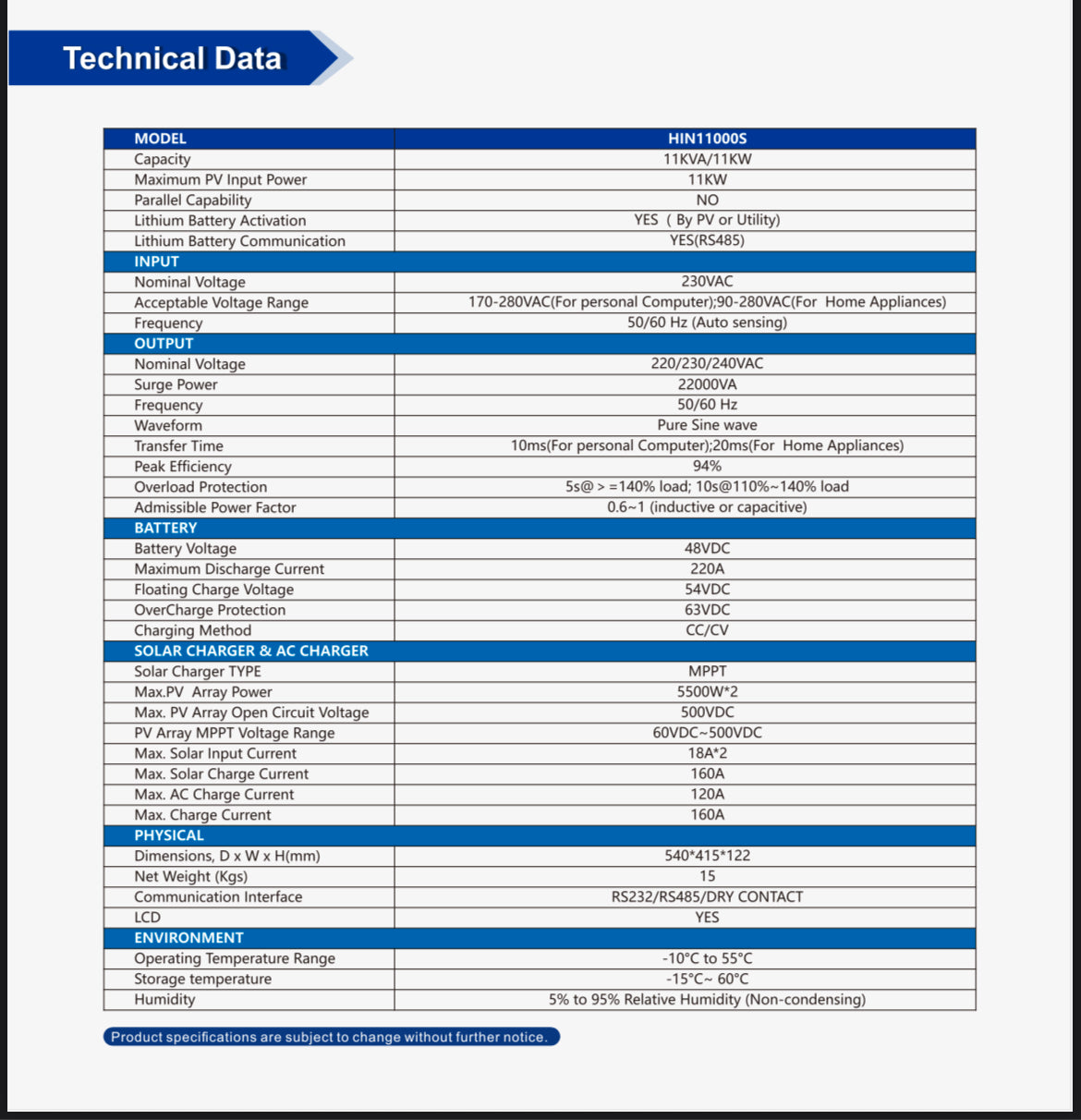

Specifications:
MODEL : HIN11000S
Capacity : 11KVA/11KW
Maximum PV Input Power : 11KW
Parallel Capability : NO
Lithium Battery Activation : YES (BY PV OR UTILITY)
Lithium Battery Communication : YES(RS485)
INPUT
Nominal Voltage : 230VAC
Acceptable Voltage Range : 170-280VAC(For Personal Computer) : 90-280VAC (For Home Appliances)
Frequency : 50/60 Hz (Auto Sensing)
OUTPUT
Nominal Voltage : 220/230/240VAC
Surge Power : 22000VA
Frequency : 50/60 Hz
Waveform : Pure Sine Wave
Transfer Time : 10ms(For Computers) 20ms(For Home Appliances)
Peak Efficiency : 94%
Overload Protection : 5s @ 140% Load
BATTERY
Battery Voltage : 48V
Maximum Discharge Current : 220A
Floating Charge Voltage : 54VDC
OverCharge Protection : 63VDC
Charging Method : CC/CV
SOLAR CHARGER & AC CHARGER
Solar Charger TYPE : MPPT
Max.PV Array Power : 5500W*2
Max. PV Array Open Circuit Voltage : 500VDC
PV Array MPPT Voltage Range : 60VDC-500VDC
Max. Solar Input Current : 18A*2
Max. Solar Charge Current : 160A
Max. AC Charge Current : 120A
Max. Charge Current : 160A
PHYSICAL
Dimensions, D x W x H(mm) 540 X 415X 122
Net Weight (Kgs) 15KG
Communication Interface RS232/RS485/DRY CONTACT
LCD
installation is safe and correct, as well as, within the scope of relevant regulations.
What’s in the box:
1 x ECCO 11KW Inverter
1 x Communication Cable
1 x User Guide
2x Mc4 Connectors
1x 200A Fuse
Battery Specifications:
Specifications:
| ax. Charging Current | 100 A |
| Max. Continue Discharging Current | 100 A |
| Weight | Approx. 43 Kg |
| Display | With display screen |
| Protocol | CANBUS/MODBUS |
| Parallel Connection | Parallel connection is optional (up to 15P). |
| Cell | 3.2V 100Ah |
| Design life | More than 20 years |
| Cycle Life | More than 3500 cycles at 100% DOD. |
| IP Class | Ip31 |
| (W*D*H) mm | 442 (17.40″) 431 (16.97″) 177 (6.99″) |
| Operating Temperature | Charging: 0 to +60°C |
This all-in-one system Includes:
1x Hybrid Inverter 48v 11 Kva 11000w MPPT 160A Inverter Pure Sine Wave – Ecco
(5 Years Warranty)
