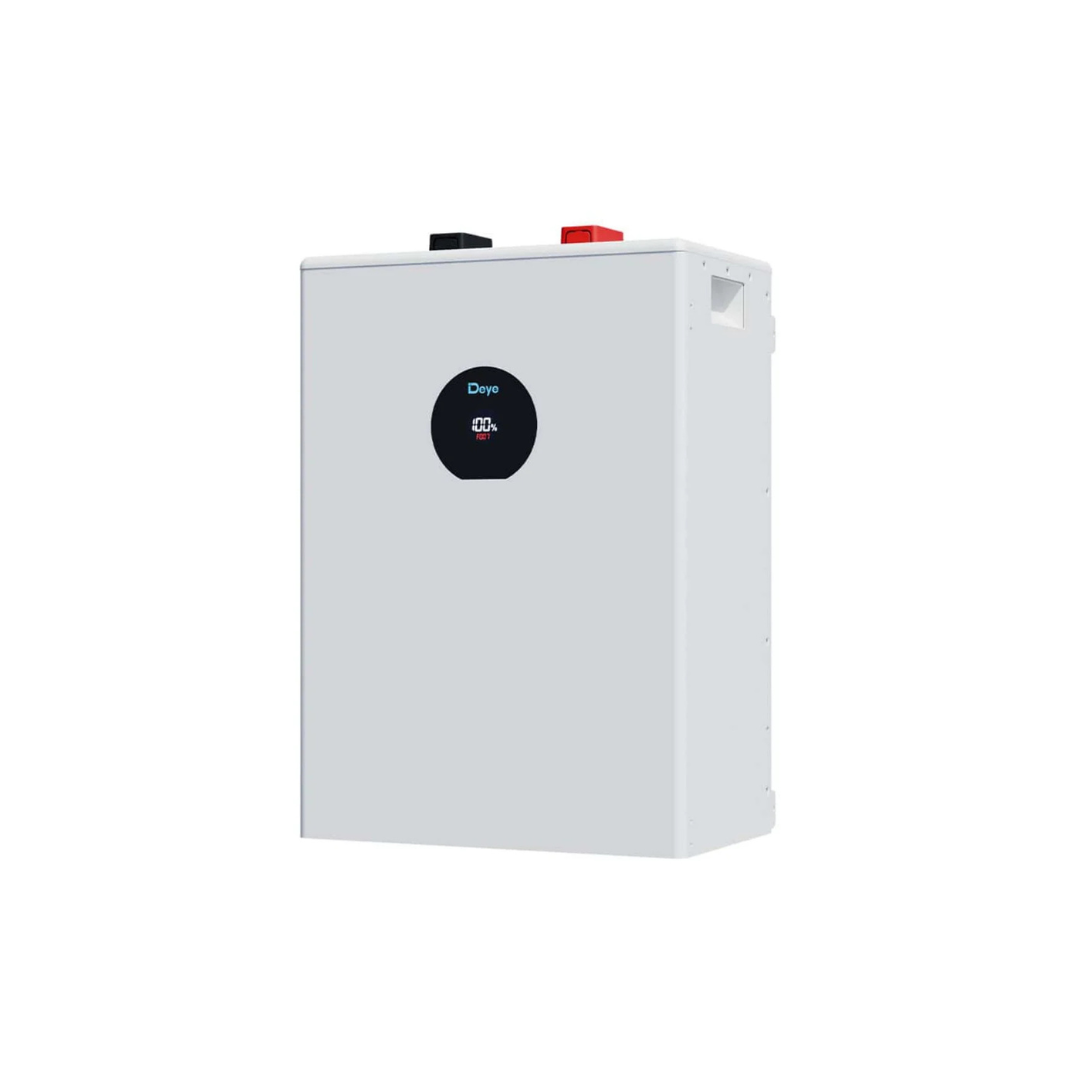

11.8kWh Deye 51.2V LiFePO₄ Lithium Battery ( SE-F12C )
11.8kWh Deye 51.2V LiFePO₄ Lithium Battery ( SE-F12C )
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 3 left
Couldn't load pickup availability
Product Description
The Deye SE-F12C is a high-capacity 11.8kWh LiFePO₄ battery designed for residential solar, backup, off-grid and larger energy-storage applications.
With a 230Ah capacity at 51.2V, more than 6,000 stated charge cycles and smart Bluetooth APP monitoring, the SE-F12C provides dependable lithium energy storage for homes and businesses requiring substantial battery capacity from a single unit.
Its modular design also allows compatible batteries to be connected in parallel, making the system suitable for future expansion.
Key Features
11.8kWh nominal energy
230Ah rated capacity
51.2V nominal voltage
LiFePO₄ battery chemistry
More than 6,000 stated cycles at 80% DOD
Bluetooth APP monitoring
IP21 protection rating
Wide operating temperature range
Wall-mounted or stack-mounted installation
Expandable parallel battery system
Suitable for residential and larger energy-storage applications
High-Capacity Energy Storage
The SE-F12C provides 11.8kWh of nominal battery storage from a single unit.
This makes it suitable for larger home solar systems where more battery capacity is required for:
Loadshedding backup
Overnight energy use
Solar self-consumption
Off-grid operation
High-capacity hybrid installations
LiFePO₄ Battery Technology
The battery uses Lithium Iron Phosphate chemistry, providing a stable and durable platform for regular solar charging and discharging.
The supplied specifications state a cycle life of more than 6,000 cycles at 80% depth of discharge.
LiFePO₄ technology is well suited to applications requiring frequent cycling and long-term energy storage.
Smart Bluetooth Monitoring
Bluetooth APP monitoring provides convenient access to battery information and system performance.
This can assist users and installers with monitoring battery status and managing the energy-storage system.
Scalable Battery Design
The SE-F12 platform is designed for parallel expansion.
The supplied information contains two different scalability figures:
One specification states support for up to 64 batteries in parallel
The technical table states a maximum of 32 batteries in parallel
The exact parallel limit should therefore be confirmed against the latest official Deye datasheet before system design or installation.
Flexible Installation
The battery supports:
Wall-mounted installation
Stack-mounted installation
This provides flexibility when designing residential or larger energy-storage systems.

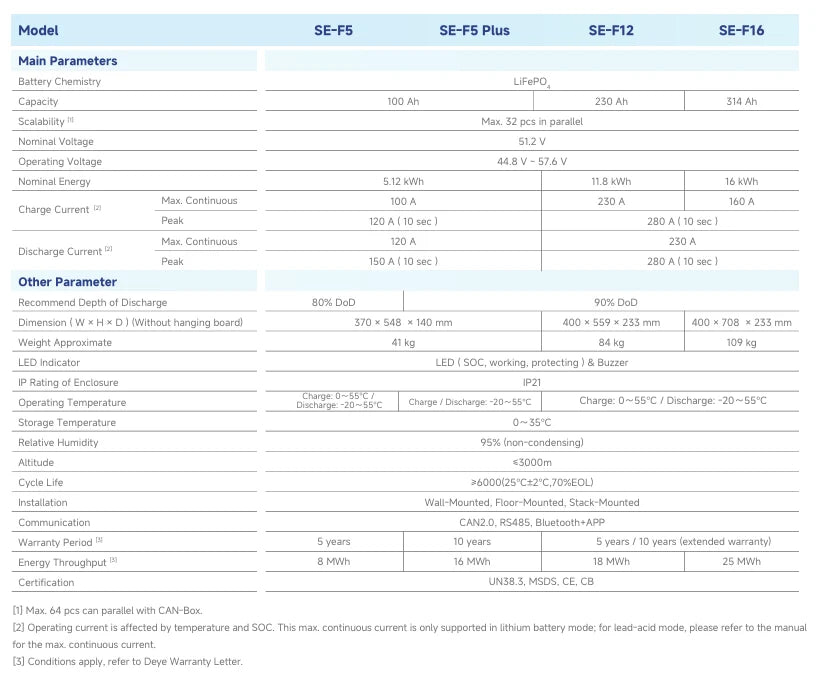

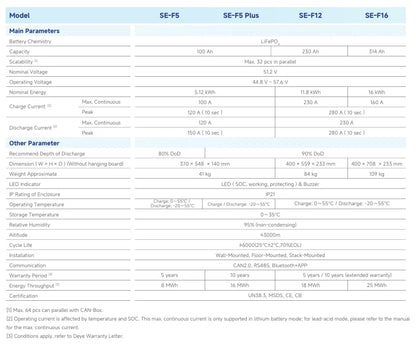

Technical Specifications
Brand: Deye
Model: SE-F12 / SE-F12C
Battery chemistry: LiFePO₄
Nominal energy: 11.8kWh
Rated capacity: 230Ah
Nominal voltage: 51.2V
Operating voltage: 44.8V to 57.6V
Cycle life: More than 6,000 cycles at 80% DOD
Monitoring: Bluetooth APP
Protection rating: IP21
Operating temperature: -20°C to 55°C
Installation: Wall mounted or stack mounted
Dimensions and Weight
Dimensions: 400 × 559 × 233mm
Weight: Approximately 84kg
Recommended Applications
Residential solar systems
Home backup power
Hybrid inverter systems
Off-grid installations
Larger battery-storage systems
Solar self-consumption
Small commercial energy storage
Expandable ESS installations
Product Disclaimer
Errors and omissions excepted.
Specifications, firmware, monitoring functionality, dimensions and expansion limits may change without prior notice.
Always confirm battery compatibility with the inverter and verify the latest Deye technical documentation before installation.
