10kWh Hubble AM10+ LiFePO₄ 51.2V Lithium Battery
10kWh Hubble AM10+ LiFePO₄ 51.2V Lithium Battery
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 5 left
Couldn't load pickup availability
ONLINE DEAL ONLY, ARRANGE FOR IN STORE COLLECTION
Product Description
The Hubble AM10+ is a high-capacity 10kWh lithium battery designed for residential solar, backup power and larger hybrid energy systems.
With 200Ah capacity at 51.2V, a 1C performance rating and up to 200A maximum discharge current, the AM10+ is well suited to installations where both strong power delivery and substantial battery storage are required.
It also includes integrated Hubble Cloudlink monitoring, allowing 24/7 remote battery monitoring without the need for a separate external Cloudlink device.

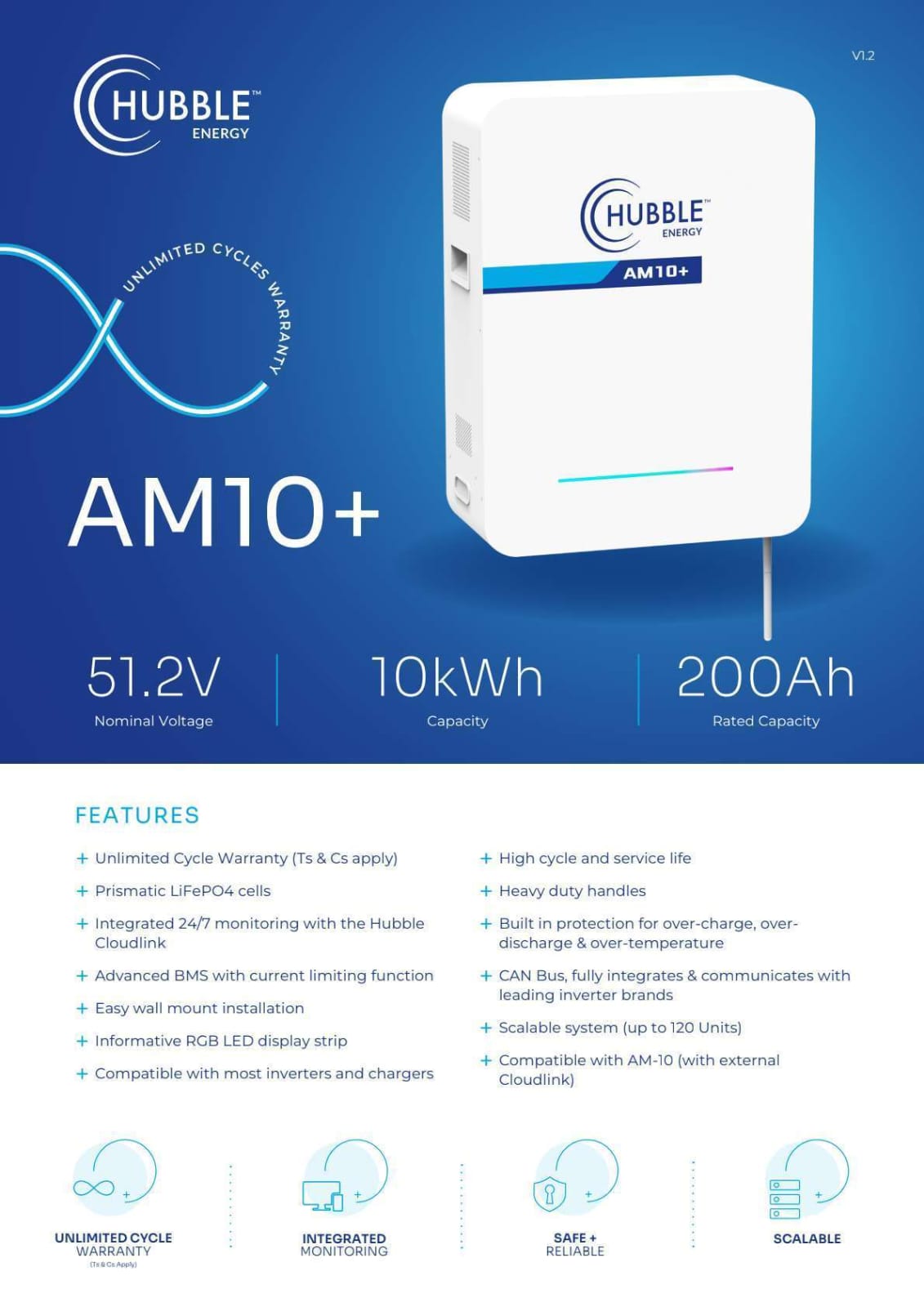

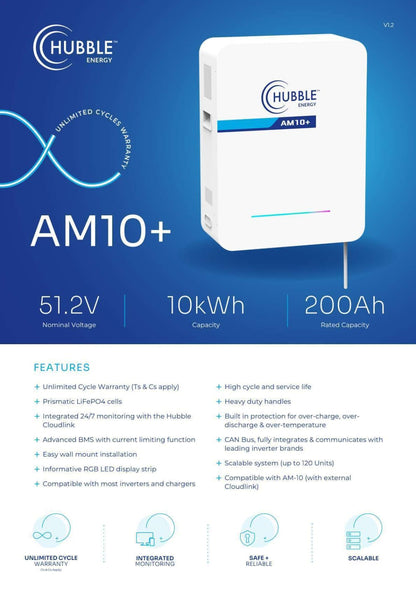

Key Features
10kWh nominal energy
200Ah rated capacity
51.2V nominal voltage
LiFePO₄ prismatic battery cells
1C high-performance battery
Maximum discharge current: 200A
Maximum charge current: 115A
Recommended charge current: 60A
Integrated Hubble Cloudlink monitoring
CAN, RS485 and RS232 communication
RGB LED battery status display
Advanced integrated BMS protection
Wall-mounted installation
Expandable battery storage
Compatible with existing Hubble AM-10 batteries when correctly configured
10-year unlimited-cycle warranty, subject to terms and conditions
Integrated Battery Protection
The built-in Battery Management System provides protection against:
Overcharging
Over-discharging
Over-current
Short circuits
High temperature
Low temperature
Cell imbalance
The BMS also provides intelligent charge-current limiting to help protect the battery during operation.
Hubble Cloudlink Monitoring
The AM10+ includes integrated Cloudlink functionality for remote monitoring and system diagnostics.
This allows compatible systems to provide access to battery information and can assist installers and Hubble support with technical monitoring and troubleshooting.
Battery Communication
The battery supports:
CAN
RS485
RS232
These communication interfaces allow integration with compatible inverter and charger systems.
Exact inverter compatibility and communication settings should be confirmed before installation.

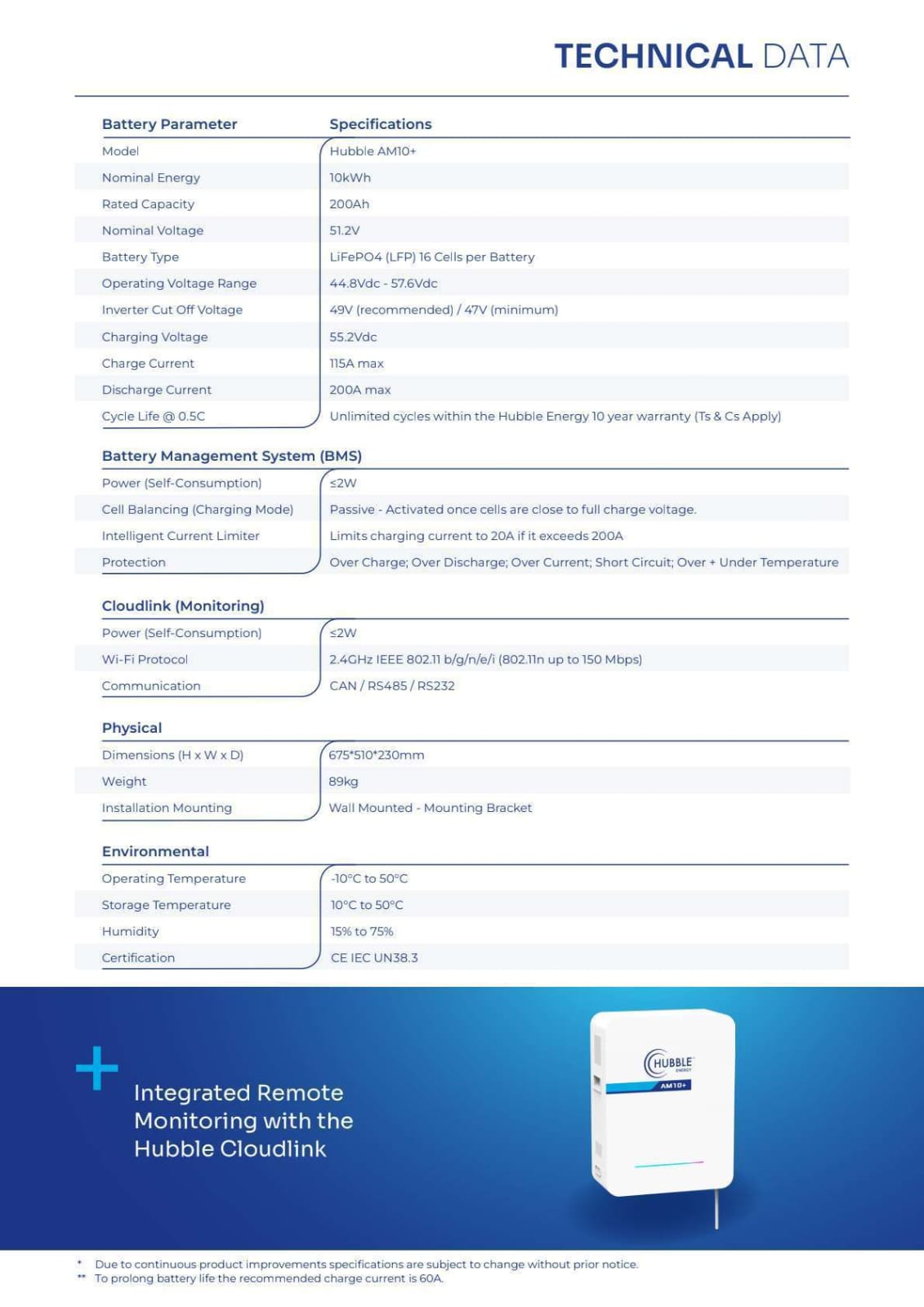

Technical Specifications
Brand: Hubble Energy
Model: AM10+
Battery chemistry: LiFePO₄
Nominal energy: 10kWh
Rated capacity: 200Ah
Nominal voltage: 51.2V
Cell configuration: 16 prismatic cells
Operating voltage: 44.8V to 57.6V DC
Recommended inverter cut-off voltage: 49V
Minimum inverter cut-off voltage: 47V
Charging voltage: 55.2V DC
Maximum charge current: 115A
Recommended charge current: 60A
Maximum discharge current: 200A
Communication: CAN, RS485 and RS232
Monitoring: Integrated Hubble Cloudlink
Wi-Fi: 2.4GHz IEEE 802.11 b/g/n/e/I
Dimensions: 675mm × 510mm × 230mm
Weight: 89kg
Installation: Wall mounted
Operating temperature: -10°C to 50°C
Storage temperature: 10°C to 50°C
Humidity: 15% to 75%
Certification: CE, IEC and UN38.3
Warranty: 10 years / unlimited cycles, terms and conditions apply
Recommended Applications
The Hubble AM10+ is suitable for:
Residential solar systems
Home backup power
Hybrid inverter systems
Off-grid applications
Larger battery-storage systems
Commercial backup installations
Solar self-consumption
Systems requiring future battery expansion
Warranty
10-year WARRANTY
Terms and conditions apply
The battery should be installed by a qualified electrical professional and configured according to Hubble Energy’s installation requirements.
A valid Certificate of Compliance and proof of professional installation may be required for warranty support.
Product Disclaimer
Errors and omissions excepted.
Specifications, firmware, monitoring functions and compatibility may change without prior notice. Customers and installers should confirm the latest Hubble Energy datasheet and inverter compatibility information before purchase or installation.
