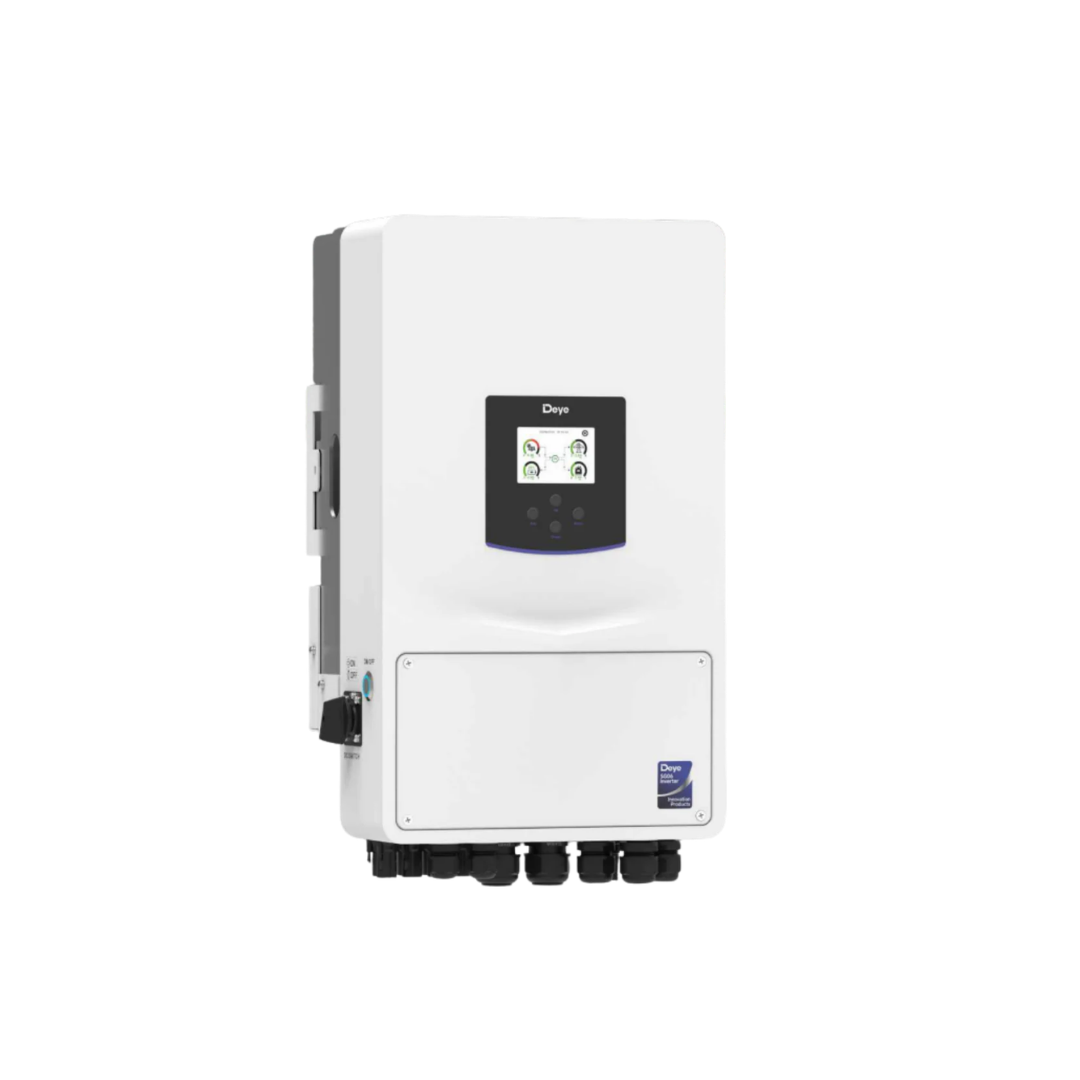

10KVA Deye V3 Single-Phase Hybrid Inverter 48V (SUN-10K-SG06LP1-EU-CM3)

Deye 10kW V3 Single-Phase Hybrid Inverter

Product Description

The Deye 10kW New Generation Hybrid Inverter V3, model SUN-10K-SG06LP1-EU-CM3, is a powerful single-phase energy management solution developed for large residential properties, small businesses, farms and other sites with substantial electricity requirements.

Providing 10kW of continuous output with efficiency of up to 97.6%, this inverter combines high-capacity battery charging, three independent MPPT trackers, AC coupling, generator support and intelligent load management. Its upgraded colour touchscreen and remote monitoring capability allow users and installers to manage the complete solar system with greater accuracy.

Important Version Compatibility Notice

Version 3 is not compatible with earlier versions of this inverter. It cannot be used interchangeably or connected in parallel with previous-generation models.

Compatibility with all existing inverters, batteries and system components must be confirmed before purchase.

Reliable Loadshedding Backup

The inverter automatically manages power from the solar panels, batteries and utility grid to maintain electricity supply during loadshedding.

Its 10kW continuous output capacity makes it suitable for demanding loads such as:

• Air-conditioning systems
• Commercial and industrial refrigeration
• Multiple household appliances
• Pumps and agricultural equipment
• Light commercial machinery
• High-consumption residential circuits

Six programmable operating periods allow charging, discharging and grid usage to be scheduled according to electricity tariffs, loadshedding requirements and daily consumption patterns.

High-Capacity Battery Performance

The low-voltage battery connection supports a maximum charging and discharging current of 220A.

This high-current interface enables the inverter to:

• Recharge large lithium battery banks efficiently
• Deliver strong battery output during heavy demand
• Support extended backup installations
• Improve energy availability during prolonged outages
• Handle high instantaneous loads more effectively

Battery compatibility and the approved operating current must always be confirmed with the relevant battery manufacturer.

Triple MPPT Solar Management

Three independent MPPT trackers allow the inverter to manage separate solar panel strings individually.

The inverter supports up to 20,000W of combined photovoltaic input, enabling improved solar production across installations with:

• Different roof orientations
• Multiple roof sections
• Split solar arrays
• Partial shading
• Different sunlight exposure throughout the day

Each MPPT tracker independently adjusts its connected string to maximise available solar generation.

AC Coupling for Existing Solar Systems

AC coupling allows battery storage and hybrid functionality to be added to certain existing grid-tied solar installations.

This can provide a practical retrofit solution for homes and businesses that already have solar panels and a grid-tied inverter but require battery backup without replacing the complete existing system.

The proposed AC-coupled configuration must be assessed and approved by a qualified solar installer before installation.

Diesel Generator Compatibility

The inverter supports charging from a compatible diesel generator.

Generator integration provides an additional source of electricity for:

• Farms
• Rural properties
• Commercial premises
• Sites with unreliable grid supply
• Extended periods of poor solar production
• Long or repeated power outages

Correct generator sizing, configuration and installation are required to ensure stable operation.

Colour Touchscreen and Remote Monitoring

The upgraded colour touchscreen provides clear access to system settings, operating information and real-time energy flow.

Users can view and manage:

• Solar power generation
• Battery charge level
• Battery charging and discharging
• Grid consumption
• Load demand
• Operating modes
• System alerts and performance

Wi-Fi connectivity provides access to the Deye Cloud monitoring platform, allowing system information to be viewed remotely from a compatible smartphone or connected device.

South African Grid Compliance

The inverter holds NRS 097 certification for approved grid-connected applications in South Africa.

This supports compliant installation and Certificate of Compliance sign-off when the inverter is installed and configured by a properly registered electrical professional.

Final approval remains subject to the installation design, municipal requirements, applicable regulations and correct commissioning.

IP65-Rated Enclosure

The IP65-rated housing provides protection against dust and water exposure, making the inverter suitable for approved indoor or outdoor wall-mounted installations.

Its intelligent air-cooling system assists with thermal management while operating under high loads.

The inverter must still be installed in accordance with the manufacturer’s environmental, clearance and ventilation requirements.

Expandable Parallel Operation

Up to 16 compatible units can be connected in parallel for increased system capacity.

This allows qualifying installations to be expanded as electricity demand grows, without replacing the complete energy system.

Only compatible Version 3 units should be used together, and all parallel configurations must comply with the manufacturer’s installation requirements.

Key Technical Specifications

• Brand: Deye
• Product type: Hybrid inverter
• Model: SUN-10K-SG06LP1-EU-CM3
• Generation: Version 3
• Rated continuous output: 10kW
• Phase configuration: Single phase
• Maximum inverter efficiency: Up to 97.6%
• Maximum solar input: Up to 20,000W
• MPPT trackers: Three independent trackers
• Maximum battery charging current: 220A
• Maximum battery discharging current: 220A
• Battery system: Low-voltage battery interface
• Programmable operating periods: Six
• AC coupling: Supported
• Diesel generator input: Supported
• Remote monitoring: Wi-Fi and Deye Cloud
• Display: Colour touchscreen LCD
• Enclosure protection: IP65
• Cooling method: Intelligent air cooling
• Grid certification: NRS 097
• Parallel capability: Up to 16 compatible units

Recommended Applications

The Deye 10kW V3 Hybrid Inverter is suitable for:

• Large residential properties
• Small commercial premises
• Agricultural operations
• Farms and rural installations
• High-demand backup systems
• Solar self-consumption systems
• Grid-connected hybrid installations
• Off-grid or unreliable-grid applications
• Existing solar installations requiring AC-coupled battery storage

Warranty

• Product warranty: 10 years
• Warranty terms and conditions may apply

All warranty requirements, registration procedures and installation conditions should be confirmed before installation.

The inverter must be installed, configured and commissioned by a qualified electrical professional. A valid Certificate of Compliance may be required for warranty claims and grid-connected installations.

Installation must comply with the applicable South African National Standards, local authority requirements and manufacturer instructions.
