The Solar Step

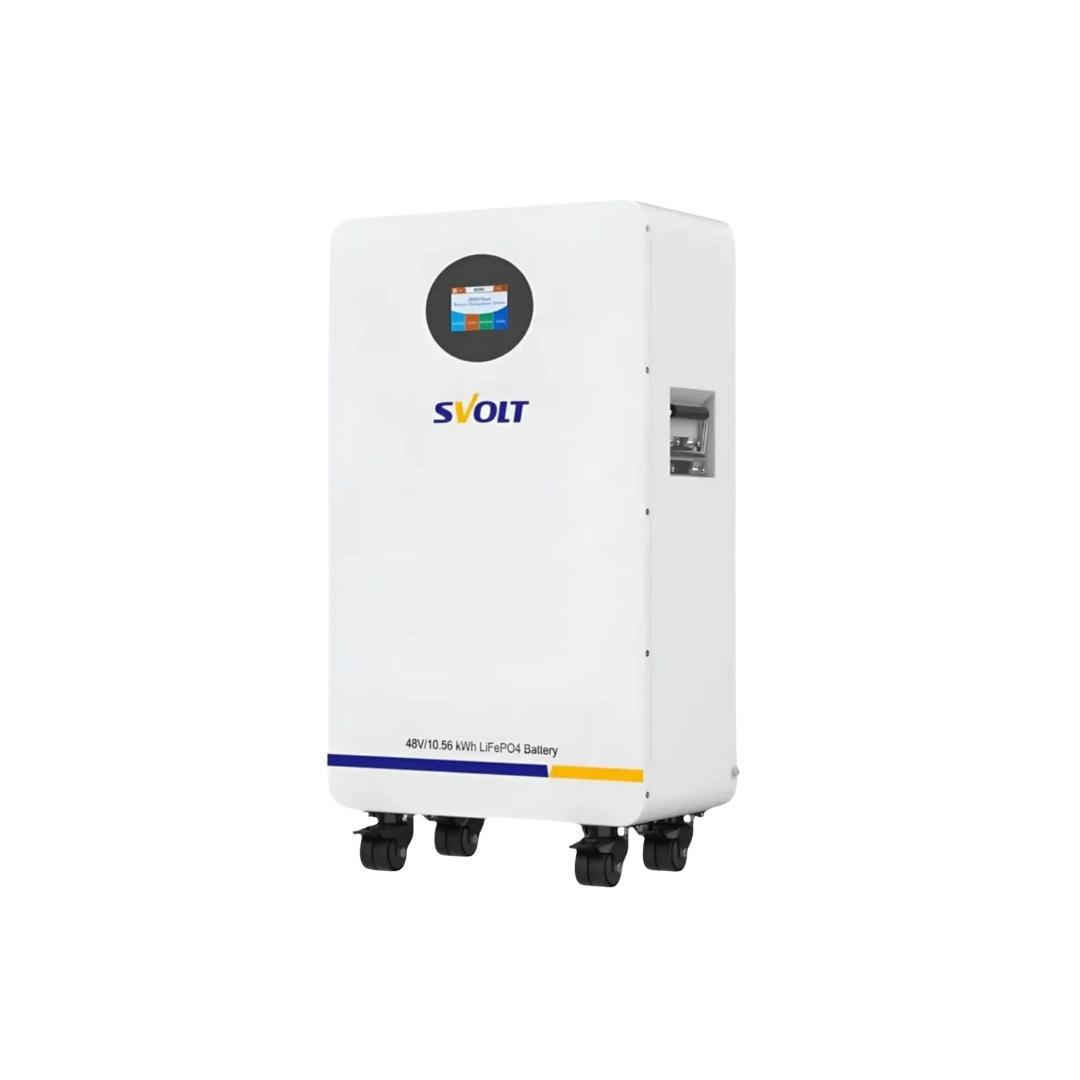

10.56kWh 220Ah SVOLT 48V A-Grade Wall Mount Lithium Battery (SCN48220)
10.56kWh 220Ah SVOLT 48V A-Grade Wall Mount Lithium Battery (SCN48220)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 4 left
Couldn't load pickup availability
Title:
SVOLT 48V 220Ah 10.56kWh LiFePO₄ Wall-Mount Battery – A-Grade Cells
ALL SVOLT STOCK ARE KEPT AT WAREHOUSE, PLEASE ARRANGE FOR IN STORE COLLECTION (READY WITHIN 60 MIN)
Description
High-Capacity Wall-Mounted Energy Storage
The SVOLT 48V 220Ah 10.56kWh Wall-Mount Lithium Battery (SCN48220) is engineered for reliable, long-term energy storage across residential, commercial, and light industrial applications. Built with A-Grade LiFePO₄ cells, this system delivers consistent performance, high efficiency, and enhanced safety for solar and backup power systems.
A-Grade Cell Technology and Reliability
Manufactured using A-Grade lithium iron phosphate cells for superior stability and lifespan
Designed with sustainability in mind, suitable for environmentally sensitive installations
Maintenance-free construction ensures dependable operation with minimal upkeep
Energy Capacity and Electrical Performance
Rated energy of 10.56kWh with a 48V nominal voltage
220Ah nominal capacity supports extended backup and daily cycling
Round-trip efficiency greater than 95% for reduced energy losses
Internal resistance below 25mΩ for efficient power delivery
Battery Management and Protection
Integrated Battery Management System (BMS) for cell balancing and protection
Safeguards against over-voltage, under-voltage, over-current, and temperature extremes
LCD display provides real-time system information and operating status
Scalability and System Integration
Supports parallel connection of up to 16 units for expanded storage capacity
Series connections are not permitted, ensuring safe low-voltage system design
Compatible with a wide range of 48V hybrid and off-grid inverters
Operating Conditions
Discharge temperature range: -20°C to +60°C
Charge temperature range: 0°C to +55°C
Storage temperature range: -10°C to +30°C
Optimised for long-term performance in varied environmental conditions
Technical Specifications
| Specification | Details |
|---|---|
| Model | SCN48220 |
| Battery Chemistry | LiFePO₄ |
| Nominal Voltage | 48 V |
| Nominal Capacity | 220 Ah |
| Rated Energy | 10.56 kWh |
| Voltage Window | 40.5 – 54.75 V |
| Recommended Charge Voltage | 52.5 ±0.20 V |
| Max Charge Voltage | 54.75 ±0.20 V |
| Recommended Charge Current | 50 A |
| Max Continuous Charge Current | 200 A |
| Max Continuous Discharge Current | 200 A |
| Peak Discharge Current | 250 A |
| Cycle Life | >6000 cycles |
| Self-Discharge | <3% per month |
| Parallel Capability | Up to 16 units |
| Terminal Type | Screw |
| Case Material | SPCC steel |
| Dimensions (W × H × D) | 415 × 680 × 235 mm |
| Weight | 82 kg |
| Warranty | 5 years |
Installation and Warranty Conditions
All batteries must be installed by a qualified electrical wireman or Master electrician registered with the Department of Labour. A valid Certificate of Compliance (COC) must be issued upon installation, and the system must comply fully with SANS 10142. Warranty claims submitted without installation photos, a valid COC, and proof of professional installation may be rejected and deemed null and void.
