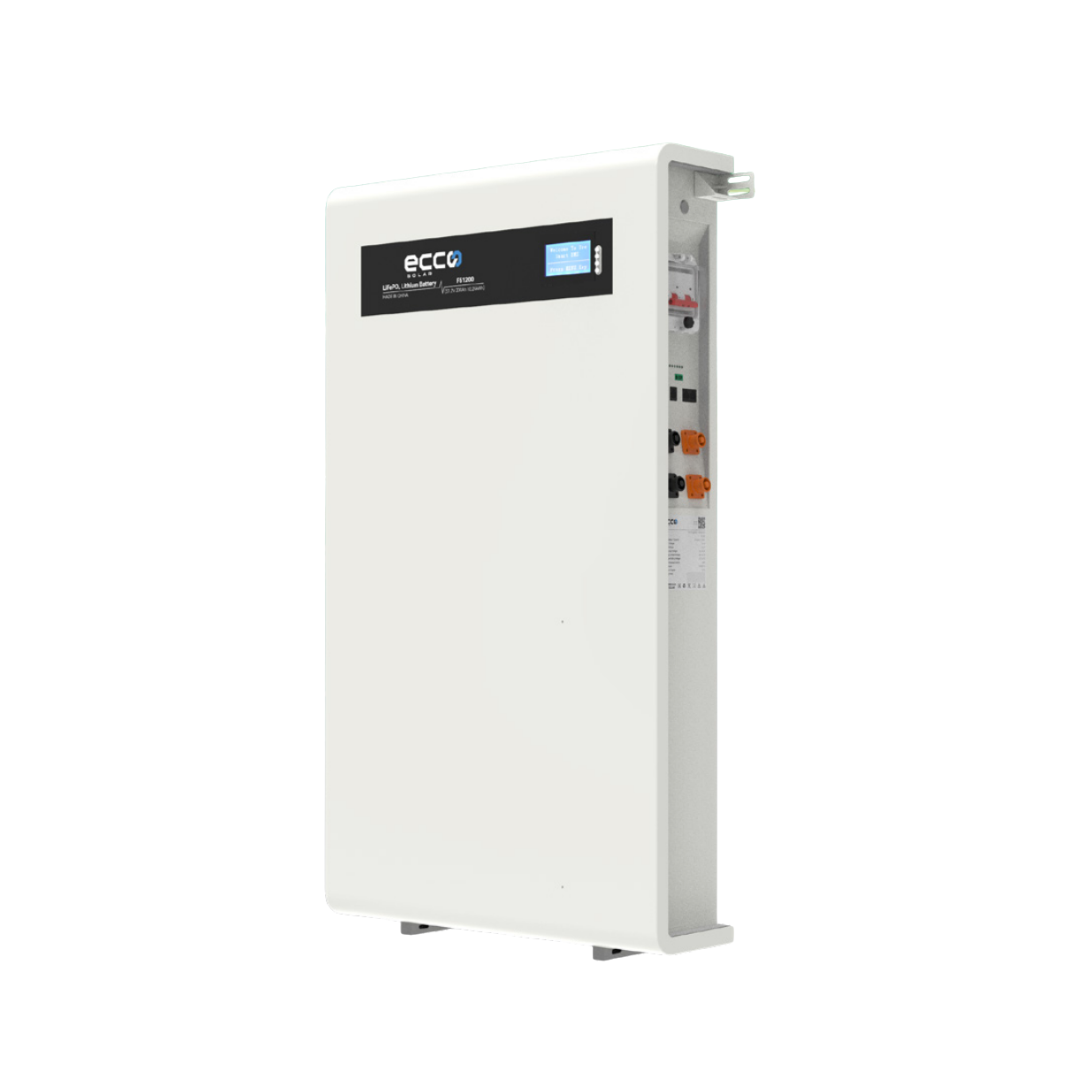

10.24kWh ECCO Lithium Battery LiFeP04(F51200)

10.24kWh ECCO Lithium Battery LiFeP04(F51200)

Description:

High-Capacity Residential Lithium Battery for Scalable Solar Storage
The F51314 Lithium Iron Phosphate (LiFePO₄) Battery is built to meet the energy storage needs of modern homes and hybrid solar systems. Offering superior safety, long lifespan, and high discharge capabilities, it is designed to support a wide range of residential inverters and legacy VRLA systems.

Key Features:

-Large Storage Capacity: 51.2V, 314Ah battery delivers 16.08kWh of usable energy per unit.

-Safe & Stable Chemistry: Lithium Iron Phosphate (LiFePO₄) cells reduce thermal risks and comply with CE, UN38.3, and IEC safety standards.

-Built-in BMS: Integrated Battery Management System safeguards against overcharge, over-discharge, overcurrent, and short circuit events.

-High Current Output: Supports up to 180A continuous and 200A peak output for high-demand appliances.

-Flexible Scalability: Expandable up to 16 units in parallel; external setup not required for up to 8 units.

-Simple Setup: Floor-standing unit with optional Human-Machine Interface (HMI) for enhanced monitoring and configuration.

-Wide Compatibility: Supports major inverter brands and integrates into new or legacy battery bank configurations.

-Durable Construction: IP54-rated casing suitable for residential indoor environments.

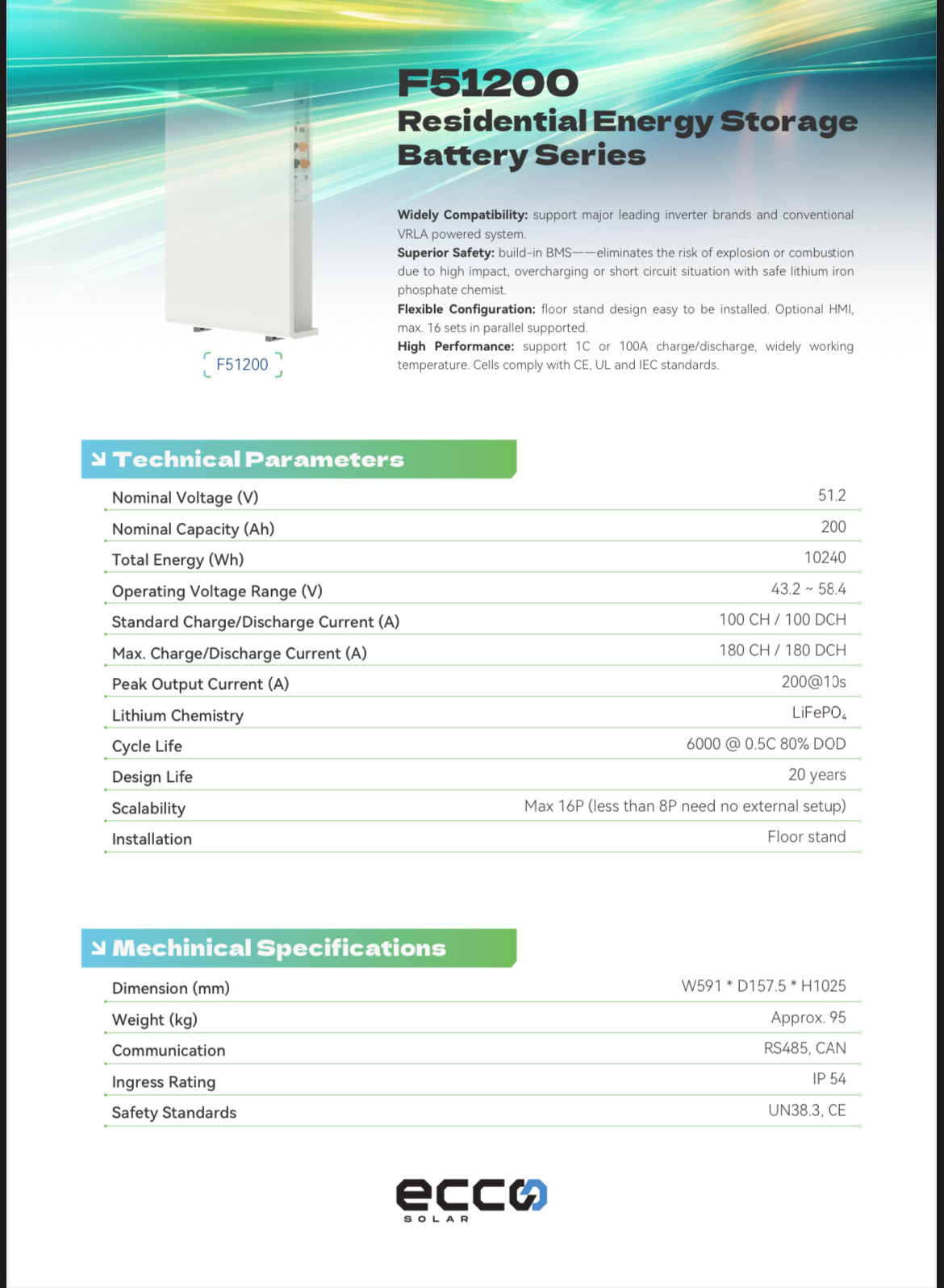

Technical Specifications:

-Nominal Voltage: 51.2V

-Nominal Capacity: 200Ah

-Usable Capacity: ~10.24kWh

-Max Charge/Discharge: 180A

-Peak Current: 200A (10 seconds)

-Chemistry: LiFePO₄

-Cycle Life: 6000 cycles @ 80% DOD (0.5C rate)

-Design Life: 20 Years

-Weight: 110kg

-Dimension (mm) W591 * D157.5 * H1025

-Communication: RS485, CAN

-IP Rating: IP54

Installation Requirements:

-Installation by a certified wireman or master electrician with registration through the Department of Labour is required.

-A valid COC (Certificate of Compliance) is mandatory upon completion.

-The system must be installed in accordance with SANS 10142 standards.

Warranty:

-5-Year Manufacturer Warranty

-Warranty claims must be supported by professional installation evidence, including photos and COC.
