20KW DEYE Hybrid Inverter Three Phase LV (Low Voltage) 48v
20KW DEYE Hybrid Inverter Three Phase LV (Low Voltage) 48v
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 4 left
Couldn't load pickup availability
Title:
20KW DEYE Hybrid Inverter Three Phase LV (Low Voltage) 48v
ONLINE DEAL ONLY. CAN BE ORDERED FOR IN STORE COLLECTION
Description:

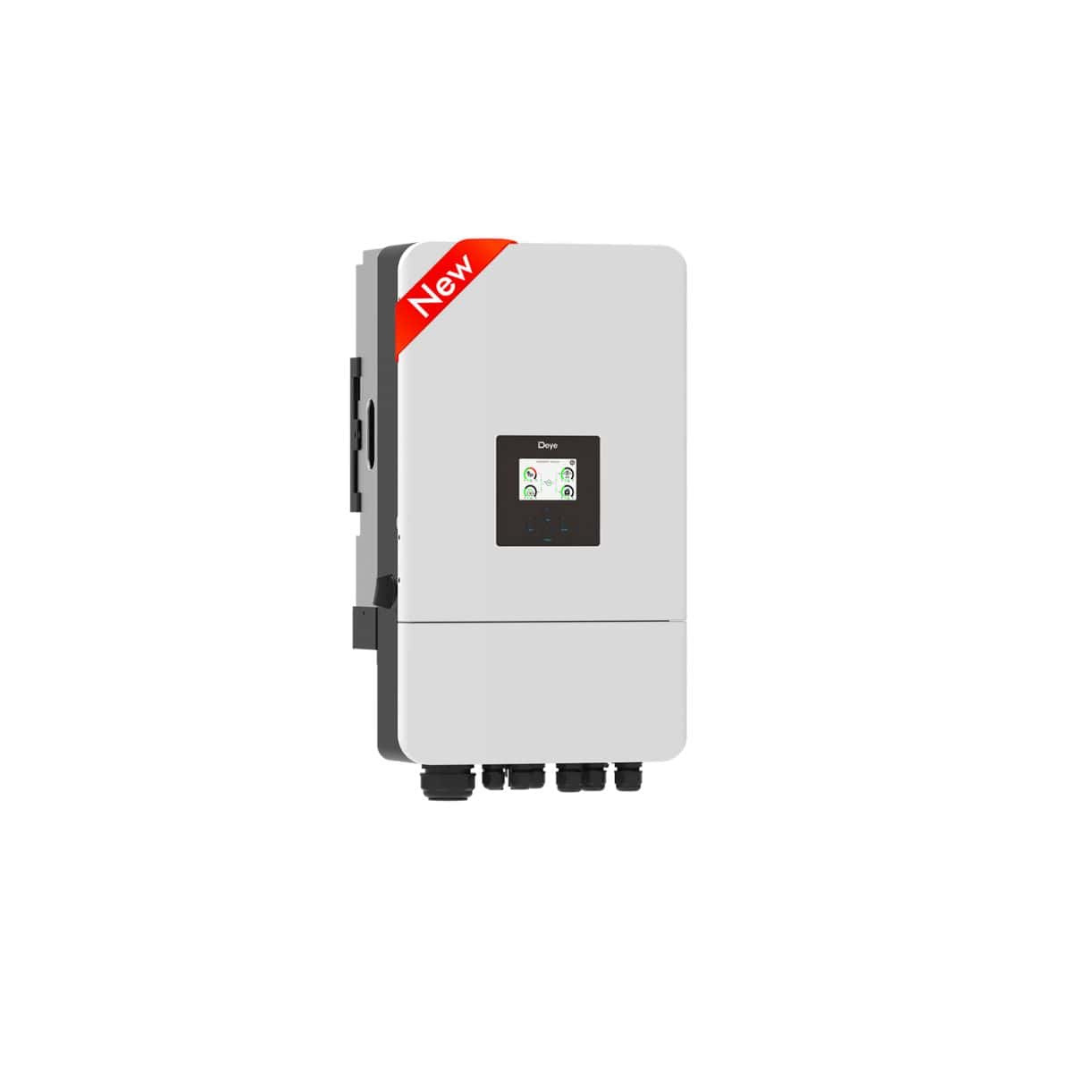

The Deye 20kW Three-Phase Hybrid Inverter (Low Voltage 48V) is a robust energy solution designed for large-scale residential and commercial systems. With a transformer isolation design and ultra-high 350A charge/discharge capability, this inverter offers unmatched flexibility and performance in demanding solar and backup installations.
Key Features
Unbalanced Three-Phase Output
-Delivers up to 100% unbalanced load per phase
-Supports maximum output of 50% rated power per phase
Flexible System Integration
-AC-coupling enables retrofitting into existing solar systems
-Parallel support for up to 10 units in both on-grid and off-grid configurations
Battery Compatibility and Efficiency
-Designed for 48V low-voltage batteries with transformer isolation
-Supports multiple battery connections in parallel
-Maximum charging/discharging current: 350A
Advanced Control & Generator Support
-Configurable charging and discharging time periods (up to 6)
-Compatible with diesel generator integration for hybrid backup systems
Product Specifications
-Rated Power: 20kW
-Phase: Three-phase
-Battery Voltage: 48V (Low Voltage)
-Charge/Discharge Current: Max. 350A
-Parallel Capability: Up to 10 units
-Dimensions: 750 × 456 × 268.5 mm
-Weight: 50.6 kg
-Application: On-grid / Off-grid / Diesel generator backup
-Mounting: Wall-mount recommended
-Use: Commercial and large-scale residential installations
Warranty & Installation
-Backed by a 10-year limited warranty (terms apply)
-Installation must be performed by a certified electrician
-A valid Certificate of Compliance (COC) is required
-Installation must comply with SANS 10142 regulations
